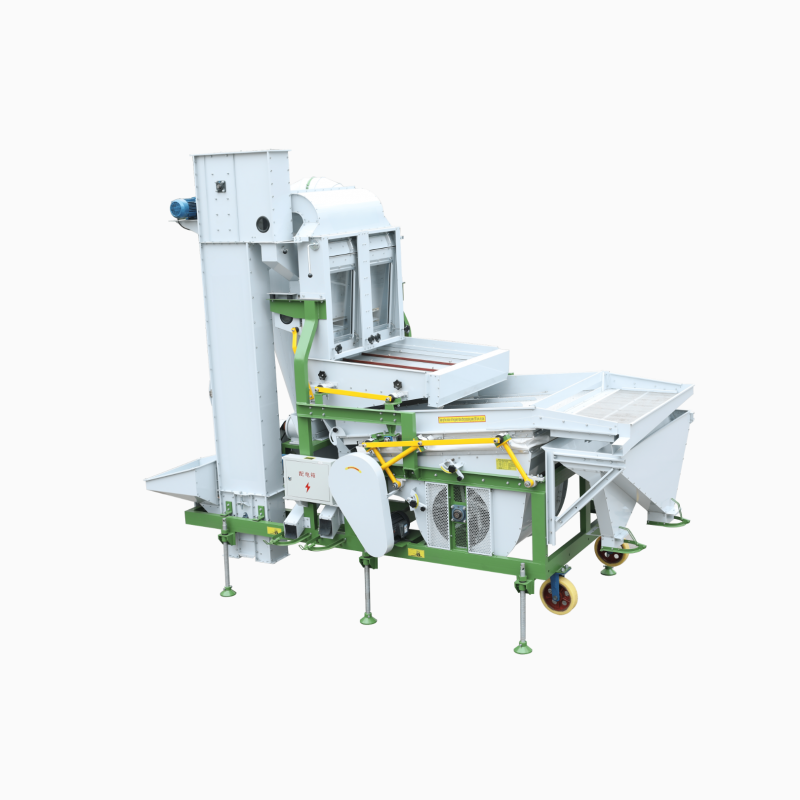

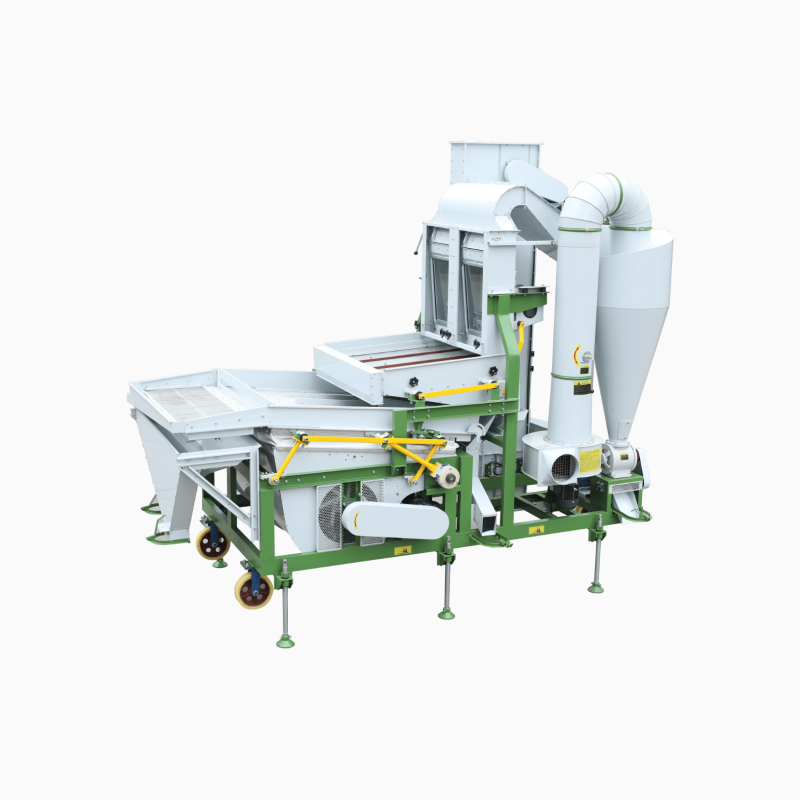

Air sieve separator with pneumatic table, Kyiv region.

In an air-grid separator with a pneumatic table, the sieve from the frontal side removes small and light impurities, thereby reducing the load on the pneumatic table, increasing the quality of sorting by product size and impurities. The separator consists of a conveyor that moves the product with minimal damage, a vertical pneumatic separation channel, a cyclone dust collector, a wide platform and a vibrating sieve. It cleans the product from dust, chaff, husks and other light impurities. Rotten, moldy, moldy and sprouted seeds, as well as seeds affected by insects and bacteriosis are removed. After cleaning from impurities, the product is sorted into large, medium and small fractions.

Features:
1) The air sieve separator with a pneumatic table can replace the pneumatic cleaning machine, reduce the load on the pneumatic tables, and increase productivity.
2) Whenprocessing of wheat, rice, grainscorn, soybeans, sorghum and other commonзернових культур the maximum productivity is 20 T/h
3) The separator removes more than 90% of light impurities from the grain.
4) The cyclone dust collector reduces the pollution of the room. The product can be fed using a noria, auger and belt conveyor.

Sieve size (mm)
Gravity table:(//tractor-service.com)
1700*1600
Front screen:
1250*1200
Throughput (t/h)
Cleaning of wheat, beans: 10
Sesame cleaning: 5
Power (KV): 12.3
Voltage (V/Hz):380/50
Weight (kg): 2150
Overall dimensions (L*W*H):4200*2300*3600
