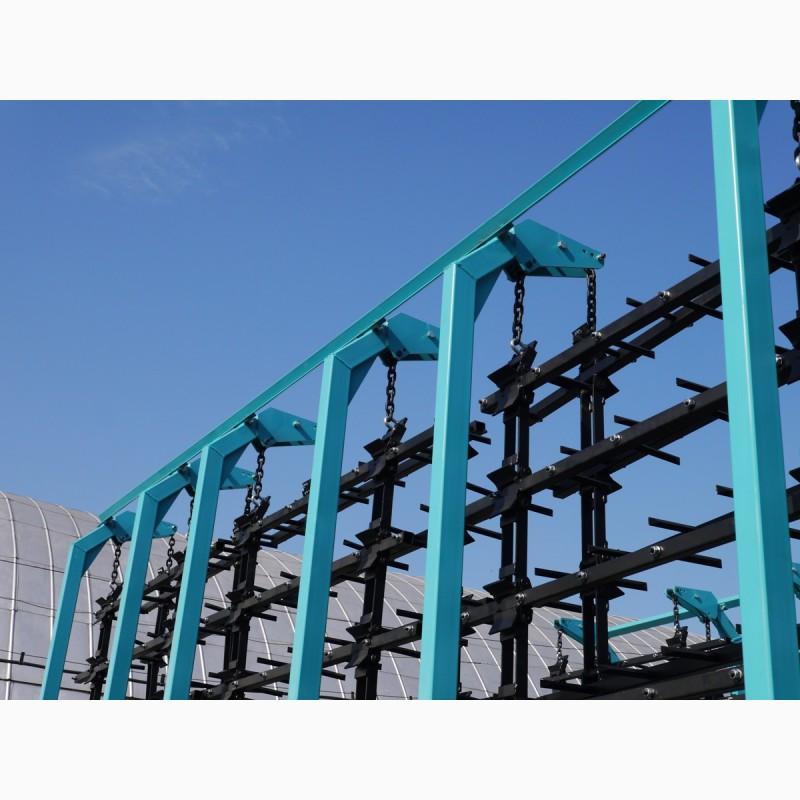

Продам Борона зубова шлейфова БЗШ-18, Дніпропетровська обл.

tooth harrow шлейфова БЗШ-18. Борона tooth plume BZSh-18 has a working width of 18 meters, the plume consists of 16 rows. Schleifova harrow is subject to partial state compensation of 25-40%. Production. Guarantee. Delivery in Ukraine. The main functions of the tooth harrow plume BZSh-18 at the wound of spring field work:
= - closure of moisture, grinding of lumps, leveling the surface of the field, distribution of crop residues on the surface of the field after winter;
= - acceleration of drying the topsoil for the possibility of carrying out earlier crops without weathering moisture;
- laying mineral fertilizers and soil herbicides;
- Provision of weed seed germination, and destruction of their seedlings during further processing.
During the harvesting period and summer: provocation of weed seed germination, shallow processing of stubble after harvesting (instead of peeling, with not very compacted soil)
= - uniform distribution of crop residues on the surface of the field, mulching of the soil to accumulate a large amount of moisture and its retention. Prevent water and wind erosion.
Autumn field work:
- Provision of weed seed germination and destruction of their seedlings during further processing;
- grinding lumps, leveling the surface of the field, distribution of plant residues for high quality sowing of winter crops;
= - laying of mineral fertilizers. Specifications BZSh -18
БЗШ -18
Type of the trailer
Processing width 17.65 m= (// tractor-service.com)
= The tractor power of 330 liters. p.
Working speed is 8-15 km/h
Processing depth 4-9 cm
45 ° attack angle; 67 °
Number of dental rows 16/1120
Transport width 4.9 m
The mass of kg. 6750
Features of tooth harrows plume (heavy) BZSh-18 consist in the following design and technological solutions, which can significantly increase reliability and work resource, also improve repair.
• The tooth is made of a square of steel 65g with appropriate heat treatment. The use of a square of milling on two sides on a sharp wedge, provides the work of the cutting face of the square and the wedge of the work surface with the effect of self -renishing. A sharp wedge easily penetrates the soil.
• When used as a load -bearing beam of a thick -walled square section, it became possible to execute a square of 16x16 in one wall of the pipe in one wall, which in turn avoids a dangerous transitional cross -section of the tooth in the area of the square of the thread. • links that collect load -bearing bars in the loop are made of strong sheet steel steel brand 30g2p used for
• Ланки, що збирають несучі бруси в шлейф виготовлені з міцної листової бористой сталі марки 30Г2Р, використовуваної для made of disks - Borin, paw. Also, the frame design of the link gives the plume stability when working without demolition should be in the trail. Fastening of the link to the tooth beam with the help of volume axes significantly increases the repair capacity of the site.
• stamped from sheet steel stops mounted on the tooth beam provide the required angle of installation of teeth (23 ° or 45 ° from vertical).
= • Scheme of teeth at the intersection of the distance of the adjacent teeth of 25 mm and diagonal of a square of 22 mm provides almost complete overlap of the work area over the entire width of the grip when the plume construction consists of ten load -bearing bars with teeth. • The load -bearing frame allows you to install additional containers and systems for application of the necessary chemicals and fertilizers.
• Несуча рама дозволяє встановлювати додатково ємності і системи для внесення необхідних хімікатів і добрив.
