Automatic pallet packing plant, Chernihiv region.

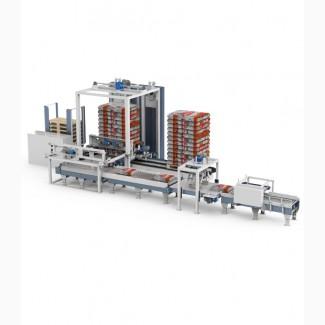

AUTOMATIC PALLET PACKAGING MACHINE

Principle of operation:
The product enters a special receiving conveyor of the palletizer, which orients, unfolds the load and accumulates in quantity and according to it.
given program. After accumulating and forming the necessary amount of artificial loads for the layer, it is automatically fed to the storage.
Next, the formed layer from the accumulator is fed to the moving table of the palletizer. Then the formed layer of artificial cargo palletizer
it is moved from a mobile table with an elevator or Cartesian systems and placed on a pallet. Upon reaching the specified number of layers,
the pallet formed in this way is removed from the palletizer. After this, the next empty pallet from the store is automatically supplied and the cycle repeats again.

■ Fully automatic bag palletizing machine. This is a unique machine designed and manufactured by our company for packaging.
25-50 kg bags.
■ Convenient and friendly interface
■ Maximum security(//tractor-service.com)
■ Maximum ease of use and low need for periodic maintenance.
■ Automatic production without operator participation, standard production and aesthetic appearance
■ High productivity and maximum hygiene.

General Characteristics
Product Code PAL08
Product For Packaging Flour, fodder,grain,fertilizers etc. Packaged raw materials, Packaged raw materials, Packages ,
Working pressure 6-8 Bar
Power supply 400 V/50-60 Hz
Energy consumption 22 kW/h
Degree of Protection IP54
Mass 6000 Kg
Air requirement 3 m³/hour
