Automatic Flour Packaging Line (1-2-5 Kg), Chernihiv region.

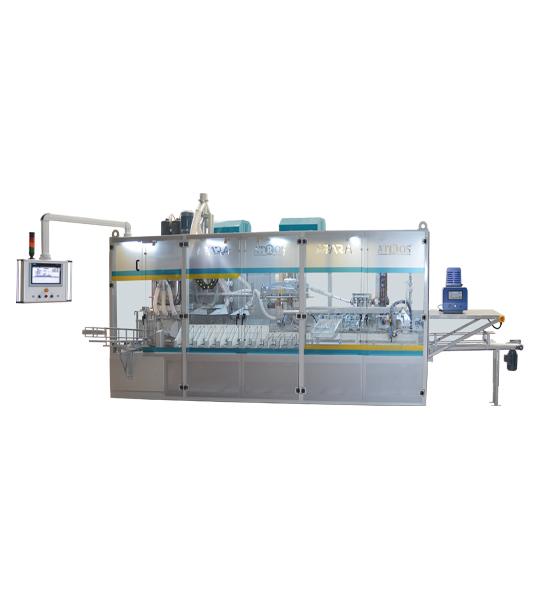

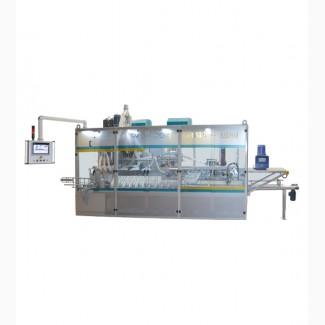

ATR125 LINEER AUTOMATIC FLOUR PACKING LINE (1-2-5 KG)
It is a line of automatic packing into ready-made paper bags with a folding rectangular bottom weighing 1/2/5 kg. Intended for
for packing loose products of the food industry: flour,sugar, tea and legumes, etc.

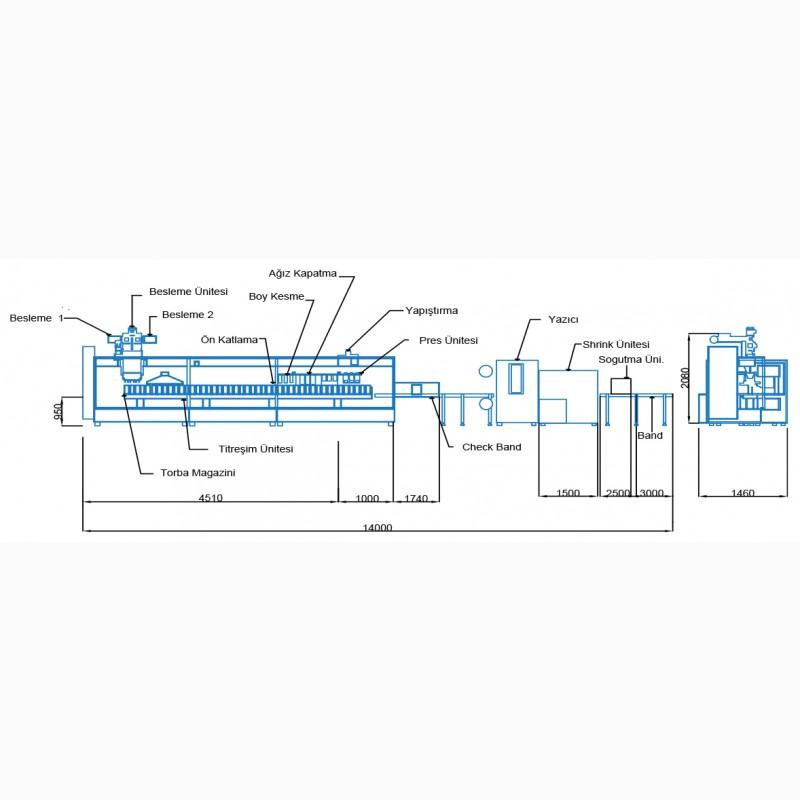

Machine line :
■ Packing using a screw dispenser,
■ Shop for paper bags,
■ Lines of transport and vibration,
■ Dust collection system,
■ Side pleat,
■ Cuts off the top of the package,
■ Preliminary folding,
■ Gluing,
■ Product weight control,
■ Ink jet printer,
■ Consists of a shrinking station and tape (option).

Principle of operation:
■ The machine consists of mechanical, electrical and electronic systems.(//tractor-service.com)
■ All settings are made using the PLC touch screen.
■ Selected software and display modules are user-friendly.
■ Packing of flour is carried out with the help of a screw mechanism.
■ The machine is equipped with a built-in dust removal system.
■ Surfaces of metal parts are processed and covered against corrosion.
■ The car is painted with static paint.
■ All nodes in contact with the product are made of stainless steel.
■ There is a system for adjusting the speed of vibration.
■ Leading world brand products in the field of used components.
■ Easy adjustment and a wide range of size changes,
■ Hygienic clean - ideal for food packaging.
■ Fast abrasive components such as plastic, vacuum and gasket are not available.
■ Easy access to all areas of the machine.
■ Dust-free working environment due to the presence of a dust collection system.
■ Servo technology ensures fast and silent operation.
■ The machine needs a vacuum of 6.5 kPa, 380 V, 3 phases, 50 Hz. 20 kW/hour of electricity, 6
bar 15 m3/min. air and 12 m3/min.
■ WARRANTY: 1 hour (12 months)
