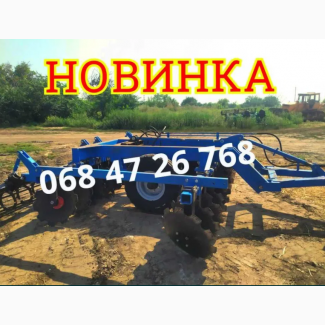

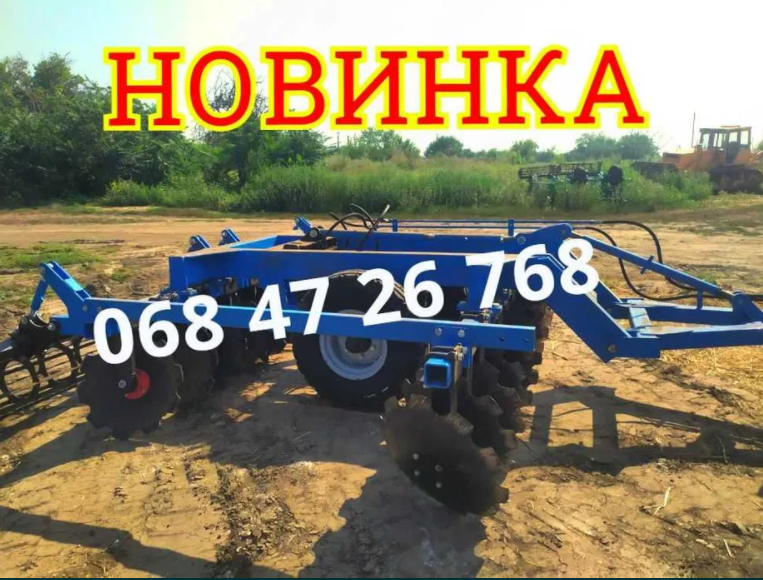

New trailed harrow unmaintained rack (2.4-2.8-3.1-3.5-3.8, Kirovohrad Oblast.

State compensation for VAT warranty. New trailed harrow with maintenance-free stand (2.4-2.8-3.1-3.5-3.8 Technical characteristics.
Name BDFP-2.4 BDFP-2.8 BDFP-3.1 BDFP-3.5 BDFP-3.8 BDFP-4.2
Type Trailed
Working speed 8-12 km/h
The depth of soil treatment is 8-18 cm.
Height in transport position 1400 mm.
Height in working position 1100 mm.
Length 4940 mm.
Width 2.4 m. 2.8 m. 3.1 m. 3.5 m. 3.8 m. 4.2 m.
Productivity 1.9 Ha/h. 2.2 Ha/h. 2.5 ha/h. 2.8 Ha/h. 3.1 Ha/h. 3.4 Ha/h.
The power of the tractor is 80 hp. 100 HP 130 L.S. 160 HP 180 HP 200 HP
Transport speed, no more than 20 km/h.
Number of working bodies 14 racks 16 racks 18 racks 20 racks 22 racks 24 racks
Number of rinks 1 rink 2 rink
Ground clearance, not less than 300 mm,
Transfer to the transport and working position by the hydraulic wheeled transport mechanism of the disc harrow, connected to the hydraulic system of the tractor.
Weight 1400 kg. 1630 kg. 1850 kg. 2000 kg. 2250 kg. 2400 kg.
The BDFP Trailed Harrow is produced with a working width of 2.4 to 4.2 meters. Complete with plate cylindrical rollers with a diameter of 400 mm.

Traileddisk harrow BDFP-2.4BDFP-2.4
Trailed disk harrow BDFP-2.4 2(//tractor-service.com)
The harrow contains two rows of disks, each of which is located on an individual rack, which is attached to the bar with two L-shaped brackets (diameter 20 mm). This design excludes clogging of the interdisk space. The harrow can be used in all soil and climatic zones where the soil moisture does not exceed 27 percent and the soil hardness does not exceed 3.5 MPa, and it is also not recommended to use this harrow in areas with significant stony inclusions. Due to the use of individual racks in the design, the front harrow can be used at high working speeds - up to 14 km/h.

harrow stand BDFSStoykaBDF-BDFP
Disk working body, which is a cut-out spherical disk (chamois) installed on the hub, with a diameter of 650 mm. and 6 mm thick, with internal sharpening along the entire contour. Due to the special geometry of the trunnion rack, it is installed at an optimal angle of attack to the line of traction and an angle to the vertical, which ensures high-quality crushing, crushing and turnover of the cut layer.

Unlike similar harrows of other manufacturers, the design of this harrow uses camomile disks (cut-out spherical) with a diameter of 650 mm and a thickness of 6 mm, made of 65G steel. During manufacture, the discs are thermally treated, which ensures a hardness of 36-42 HRC.

Disks are installed on hubs that rotate around an axis on roller bearings (Podshipnyk 127509 - UAZ hub) nodes at an angle of attack and a vertical inclination of 21 degrees.

The metal anther, which is installed on the axis during assembly, covers the hub, forming a protective structure, which is supplemented by a sleeve with an oil seal inside and an anther outside. The unit is very well sealed from the outside environment due to this design.

The fixing and adjusting nut of the hub bearing is closed by a flange with a cap, which performs two functions:

hub sealing
fastening of the working body (BDF disk) to the hub.
The scraper is attached with two bolts with square headrests to a bracket with two grooves, which, in turn, is welded to the rack and when the harrow is working, it cleans the working body (disc BDF camomile) from sticking soil, winding plants, clogging harvest residues, and also directs the flow of soil in the direction of the harrow and turns it.

The rear rollers of the harrow provide two functions:

crushed soil
compacts and aligns the surface
In addition to the above-mentioned functions, with the help of a roller for mounted harrows, the depth of soil cultivation is set, which varies, as indicated above, from 8 to 18 cm.
