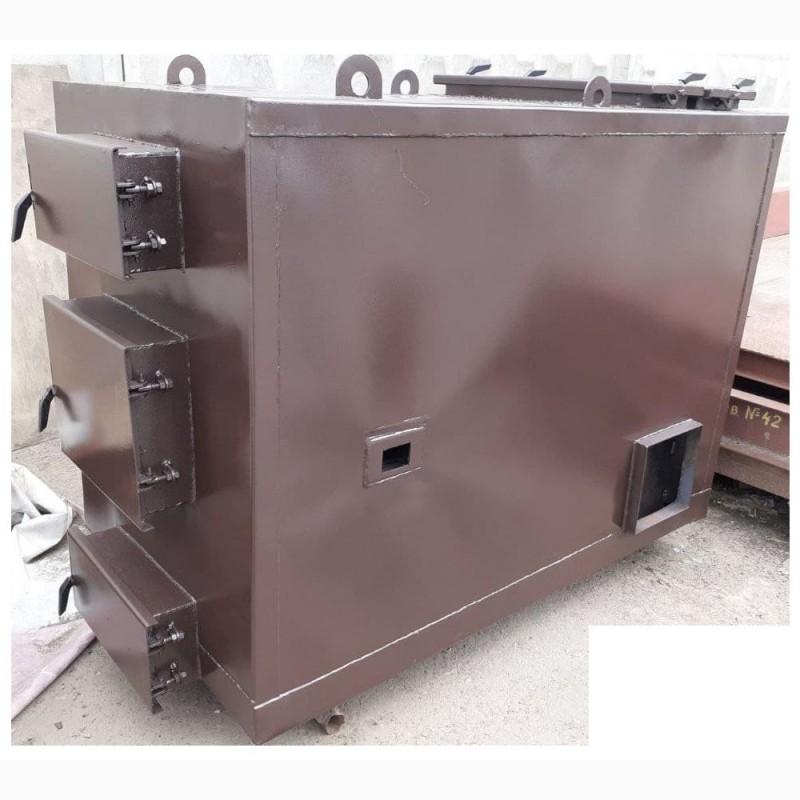

KFV-100 air heating boiler with a capacity of 100 kW, Poltava region.

The boiler is intended for the organization of an air heating system in both domestic, warehouse, commercial, industrial and any other large premises with a volume of up to 4000 cubic meters.
The boiler is suitable for use in the drying process of various materials, fruits, and plants.
The fuel for this type of boiler is firewood, sunflower husks, wood chips, or sawdust. для данного вида котлов является дрова, шелуха подсолнуха, щепа или тырса.
Technical characteristics of the KFV-100 air heating boiler with a capacity of 100 kW

Power, kW
(+ guaranteed power reserve 20%) 250

Coolant air 60-120˚С

Efficiency, % More than 93

Size of loading opening, mm 400/400
Chimney diameter, mm 200

The type of fuel loading is automatic.
Type of slag removal Manual
Air consumption, cubic meters per time 10000

Maximum electric power, kW 1.5-4
(//tractor-service.com)
Required voltage, V 380/220
Boiler weight, kg 1100

Boiler dimensions, mm
depth
width
height
2210
950
2250

5mm thick boiler steel is used in production.
Basic equipment of the KFV-100 air heating boiler with a capacity of 100 kW with automatic fuel supply:
- firebox lined with fire-resistant brick SHA-5, size, m: 1x0.7x1.2, volume - 0.84m³;
- heat exchanger pipes (thickness 4 mm);
- heat exchanger housing (boiler steel, thickness 4-5 mm); 175
- автоматика управления котлом (производитель – Польша);
- fan control board VC 4-75.
Warranty maintenance of the boiler is 12 months, electrical and electronic components - 12 months.
Equipment delivery time: 14-20 days. It is possible to manufacture boilers and bunkers according to individual dimensions and specifications.
Each boiler can be equipped with a burner working on any solid fuel of small fraction (pellets, sawdust, sunflower husks, any agricultural waste with any ash content).
It is possible to install a burner that works onwaste oil and any liquid fuel. Possible installation of automatic ash removal.
