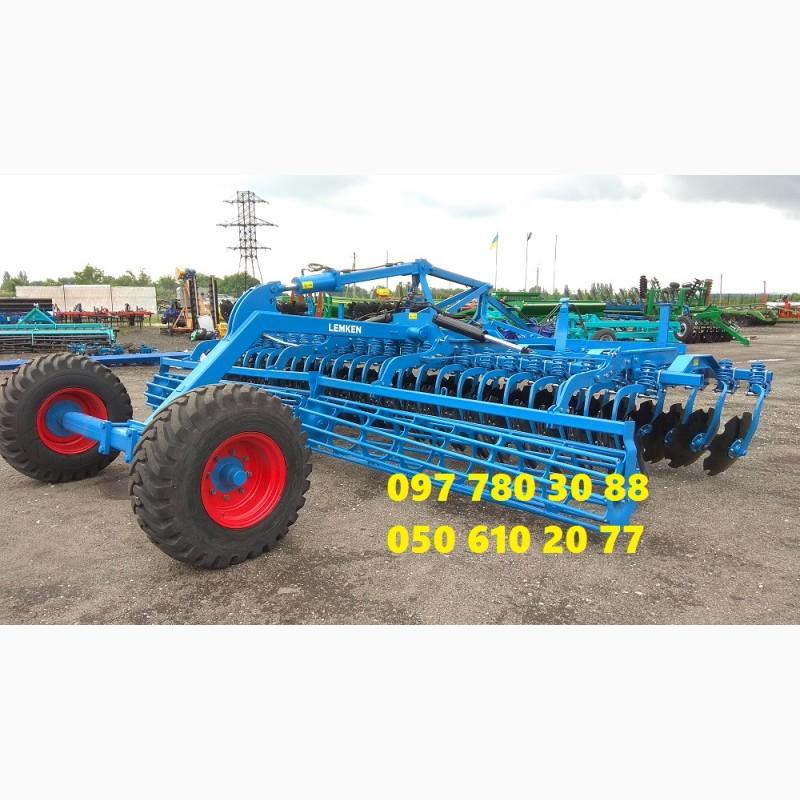

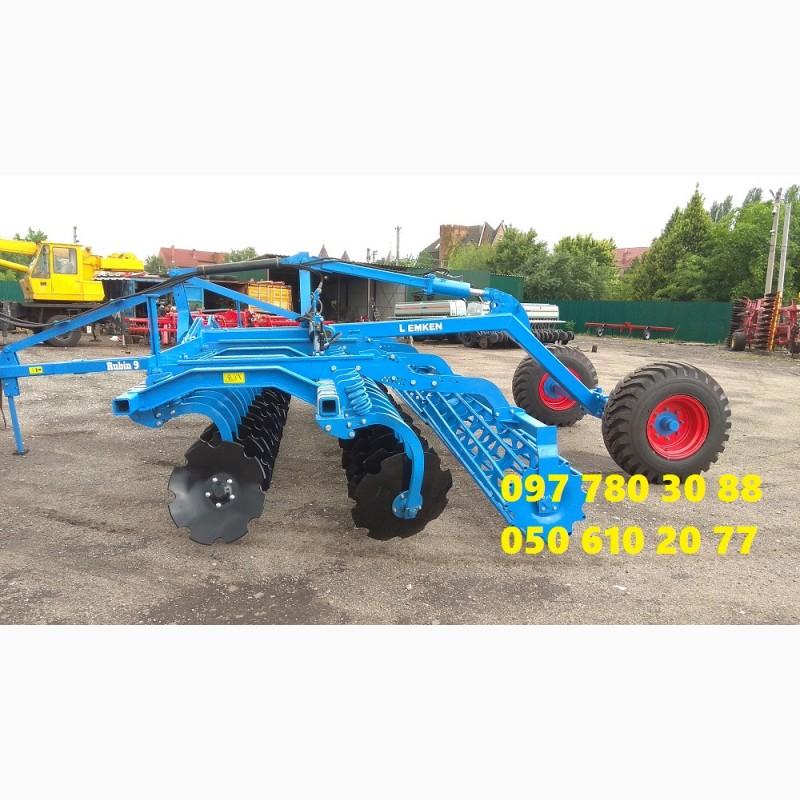

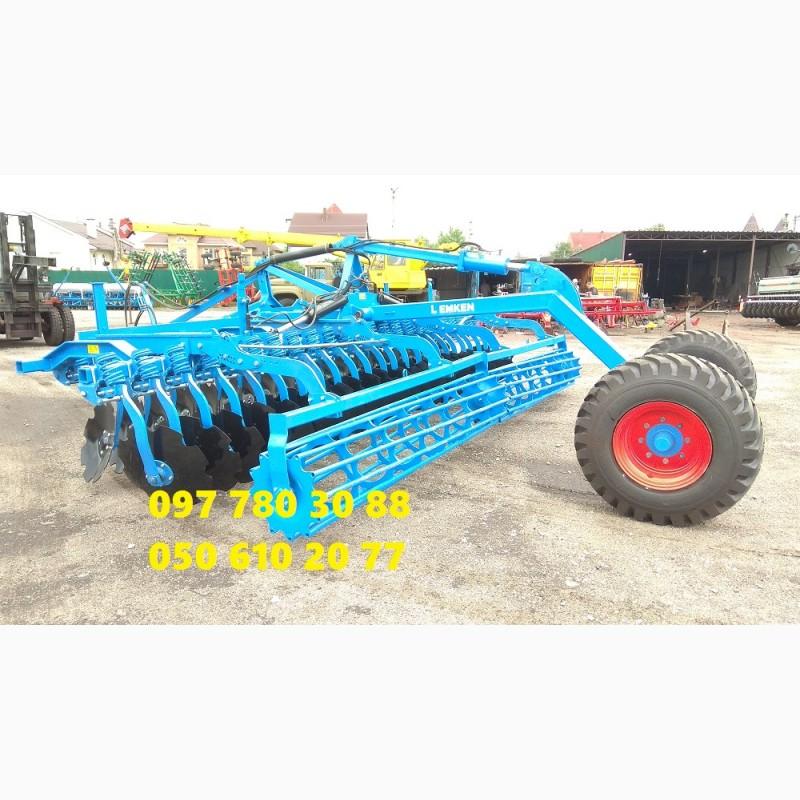

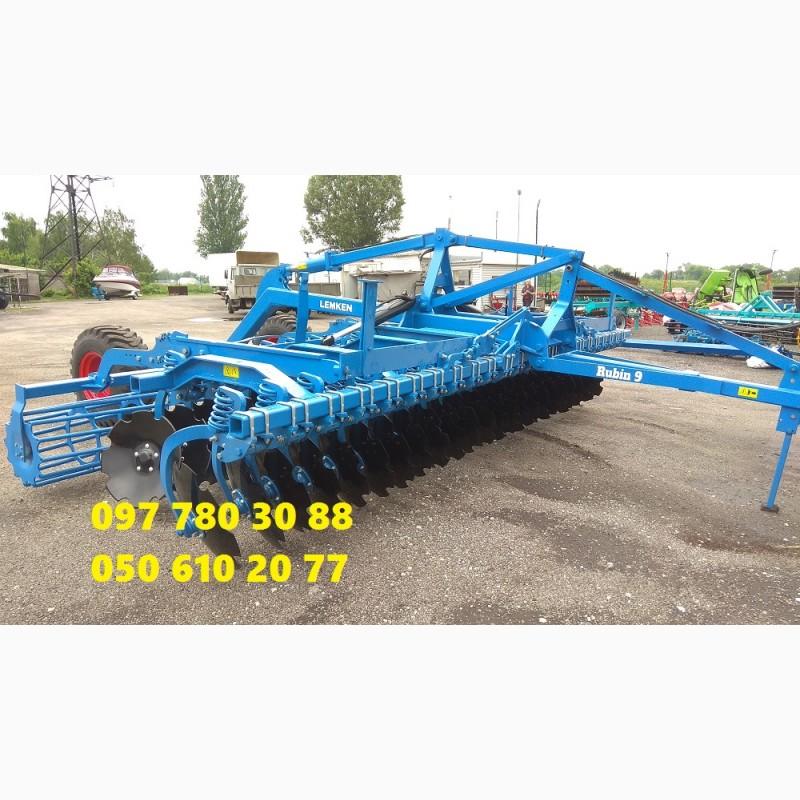

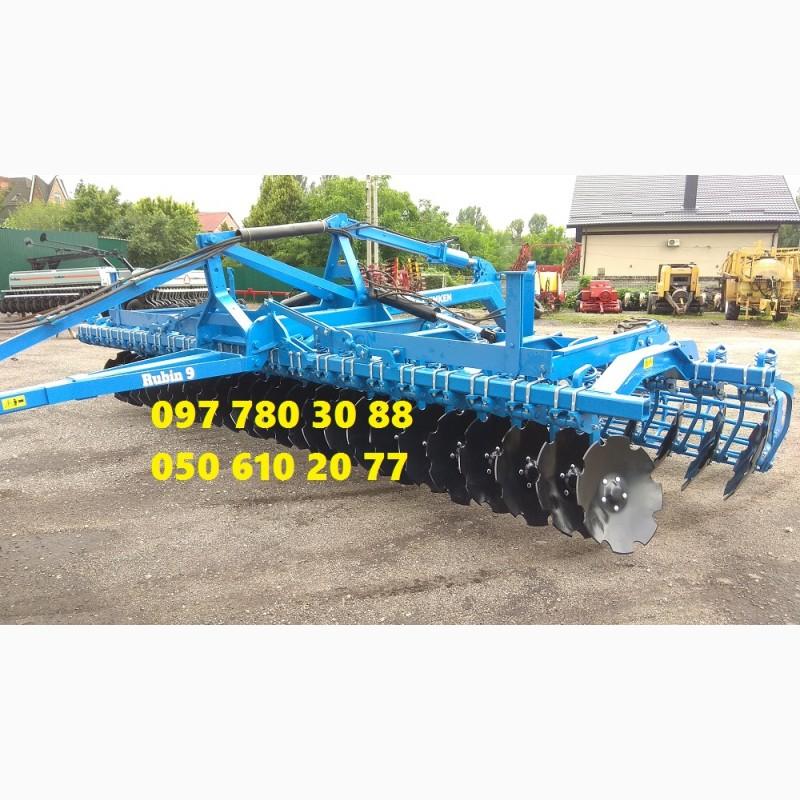

Disk harrow Lemken Rubin 9/600 - 6m, Dnipropetrovsk region.

Disk harrowLemken harrow Rubin 9/600 is ideal for tillage in areas with the remains of tall stalks of corn and sunflower, with a large mass of siderate used for green manure, fallen bread.Disk harrow Lemken Rubin 9/600 provides uniform mixing of soil and plant residues even to a minimum depth of 3 to 15 cm. Compared with rigid working bodies, rotating discs ensure work without clogging of working bodies even with a large amount of organic mass (including corn and sunflower).

Technical characteristics

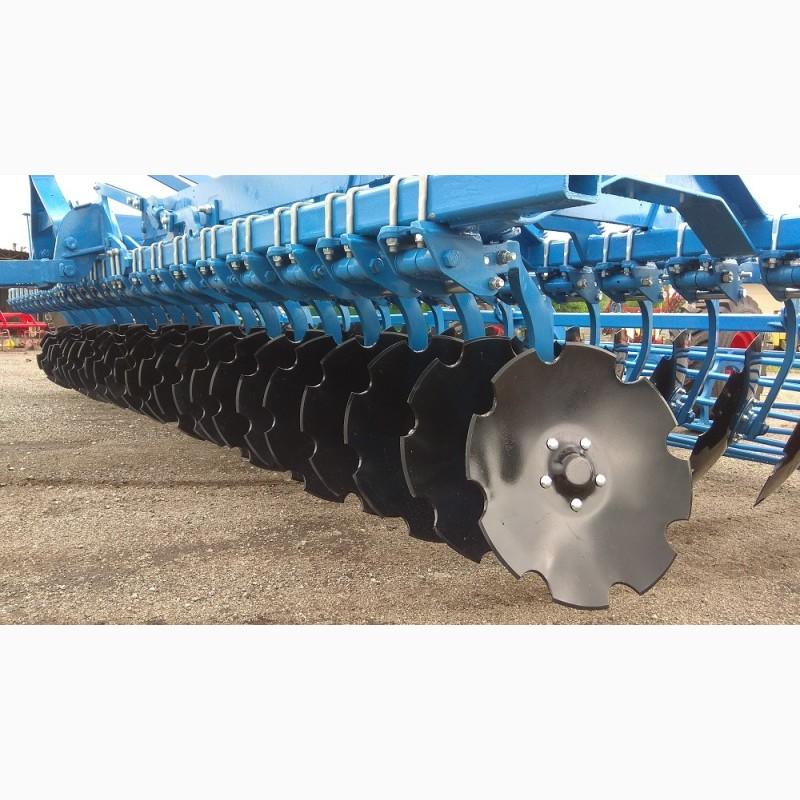

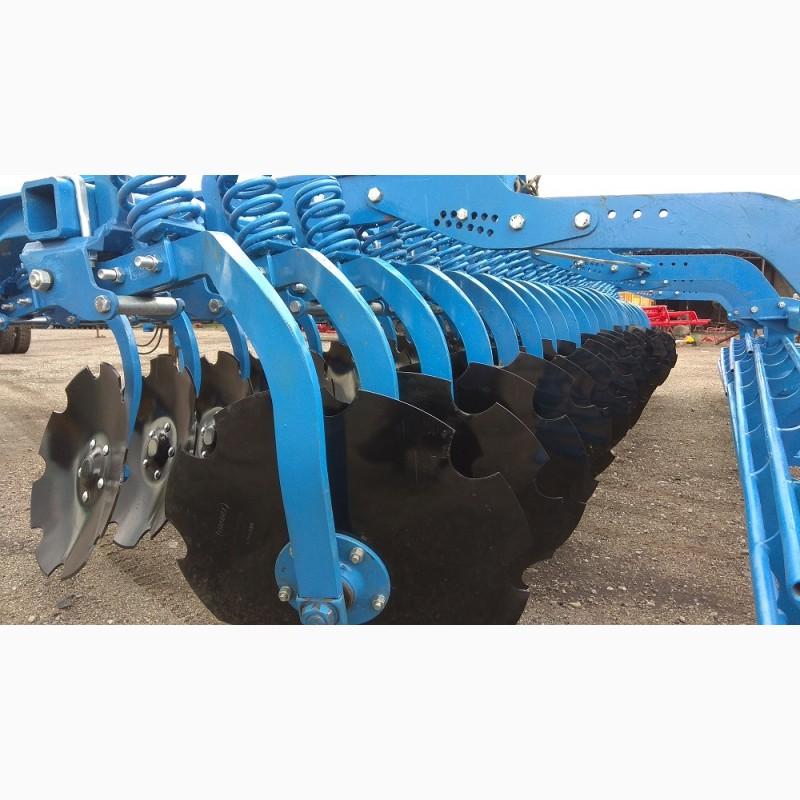

The RUBIN tool contains 2 rows of serrated hemispherical discs with a diameter of 620 mm, which crush, grind and intensively mix plant residues with the soil, even in conditions of a hardened surface. All discs maintain a uniform, precisely defined depth. Two rows of discs are staggered in relation to each other at a distance of 12.5 cm, as a result of which continuous soil treatment is achieved over the entire surface. The scrapers located behind the discs ensure an even distribution of the processed layer. Thanks to the high frame structure (80 cm), clogging with organic mass is excluded. The accuracy of observing the working depth is achieved due to the self-recessing rear roller, as a result of which there is no need to use supporting wheels.
RUBIN is a universal unit that in one pass of the tractor performs all the functions necessary for soil cultivation and pre-sowing preparation on stubble or an unplowed field.
Replaces and surpasses the disc harrow. Due to the presence of a number of working bodies, such as: toothed hemispherical discs fixed on separate racks with an automatic mechanism against overloads, spring looseners-wrappers (harrows), rolling rollers, RUBIN is a multifunctional tool.

RUBIN performs the following functions:
• cutting and processing of harvest residues at a depth of 3 cm to 15 cm,
• grinding the long remains of sunflower and corn stalks,
• intensive mixing of soil with plant residues,
• fluffing,
• alignment,
• rolling and compaction of the soil,(//tractor-service.com)
• pre-sowing preparation.

RUBIN can also be used instead of a plow in the so-called no-tillage technology. Thanks to the functions listed above, after treating the soil with RUBIN, sowing can be carried out.
Hydraulically folds for transportation up to a width of 3 m.
Optimal speed: 12-15 km/h.

Model - Rubin 9/600 KUA
Gripping width, m - 6
Transport width, m - 3
Disc diameter x thickness, mm – 620 x 6
The number of disks is 48 pcs.
Recommended processing depth, cm – 5 – 14
Recommended operating speed, km/h. - 12 - 15
Weight, kg - 6486
Tractor power, hp - from 290
