Продам Дисковую борону Asistente, Дніпропетровська обл.

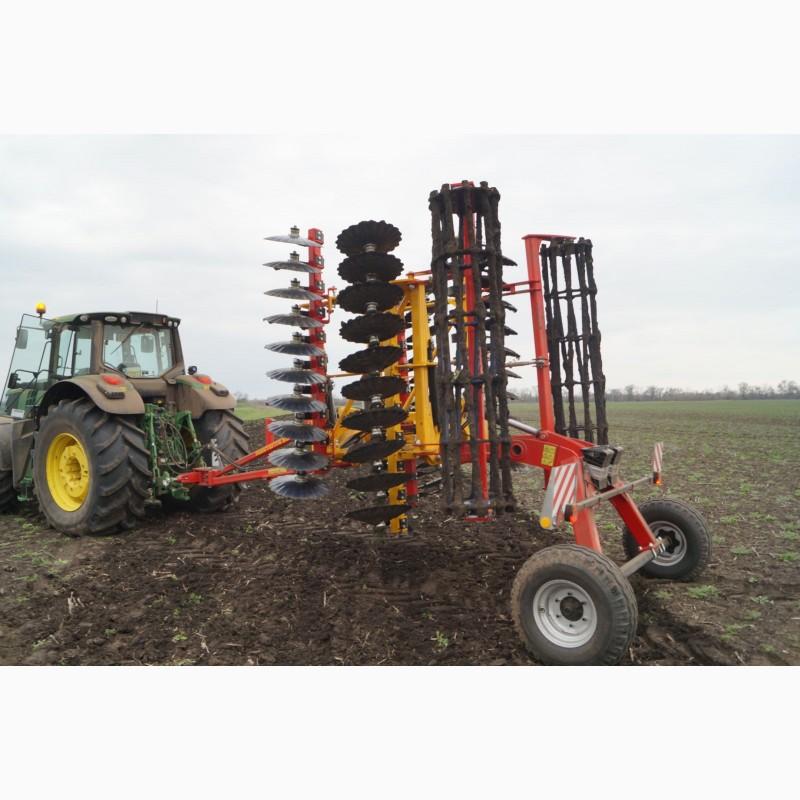

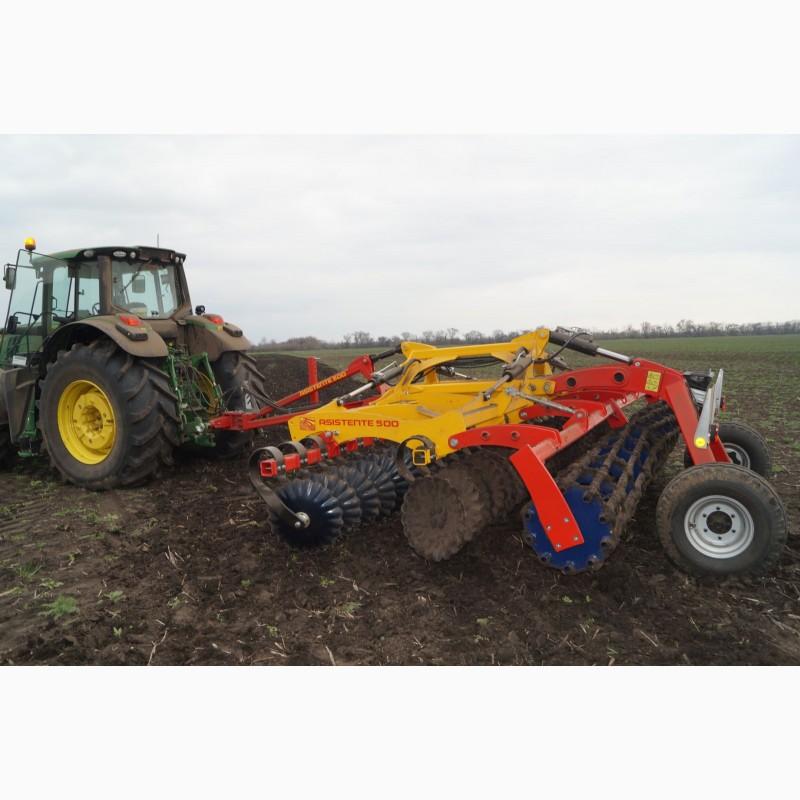

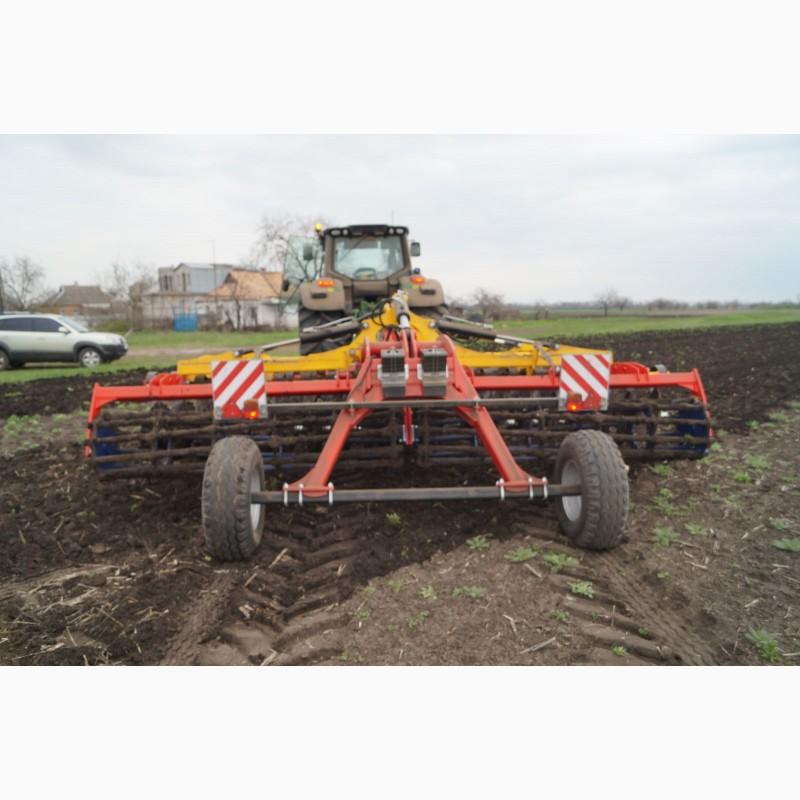

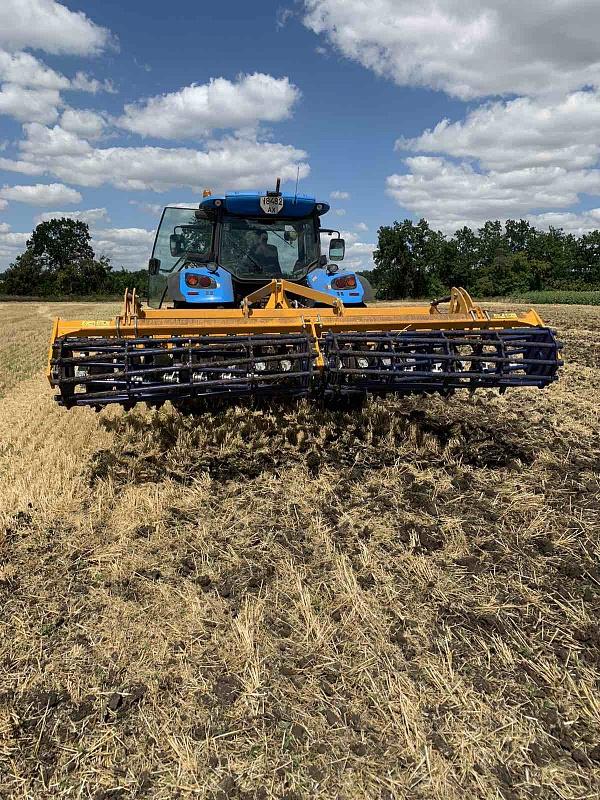

Disk harrow Asistente of the Italian manufacturer Arador-TSL is used in agricultural production for high-speed loosening of the soil, basic soil processing and preparation of the seed bed. Thanks to the high speed of processing and the quality of mixing organic mass with the soil during stubbledisc cultivation the Asistente harrow is a universal unit and performs both surface and deep soil processing.
Устройство дисковых борон Asistente основана на индивидуально расположенных в два ряда дисках в шахматном порядке по отношению друг к другу на расстоянии 12,5 см на листовых пружинных стойках (3-D technology), которые одновременно служат предохранительным механизмом. Расположение дисков на индивидуальных стойках обеспечивает работу без забивания рабочих органов. Рабочие органы выдерживают точно заданную глубину , этому также обеспечивает задний каток . Дисковая борона Asistente может комплектоваться несколькими вариантами рабочих органов и катков. Данная технология позволяет работать с более низким тяговым сопротивлением по сравнению с другими способами подвеса рабочих органов, при этом обеспечивая независимое реагирование на сложные участки, что позволяет работать, в том числе на каменистых почвах, рабочие скорости до 18 км/ч уменьшают негативное воздействие в виде уплотнения почвы.

The design of the Asistente disc harrow includes the function of transverse adjustment of the front beam of the discs. This allows you to set up the unit for the most efficient work for pre-sowing preparation, work with harvest residues or cover crops. In addition, adjusting the discs of the tillage machine allows you to reduce the wear of the discs and extend the service life of the machine.
Compact frame designs have a spatial structure that gives high rigidity and strength to both mounted and semi-trailer units with a small weight. Made of special structural steels, frame structures ensure durability during intensive use. The constructions of the mounted units have a favorable location of the center of gravity and allow working with tractors of a smaller carrying capacity. If it is necessary to increase the penetrating ability, additional mounted loads are hung. The frames of the ML series aggregates have a lightweight design.

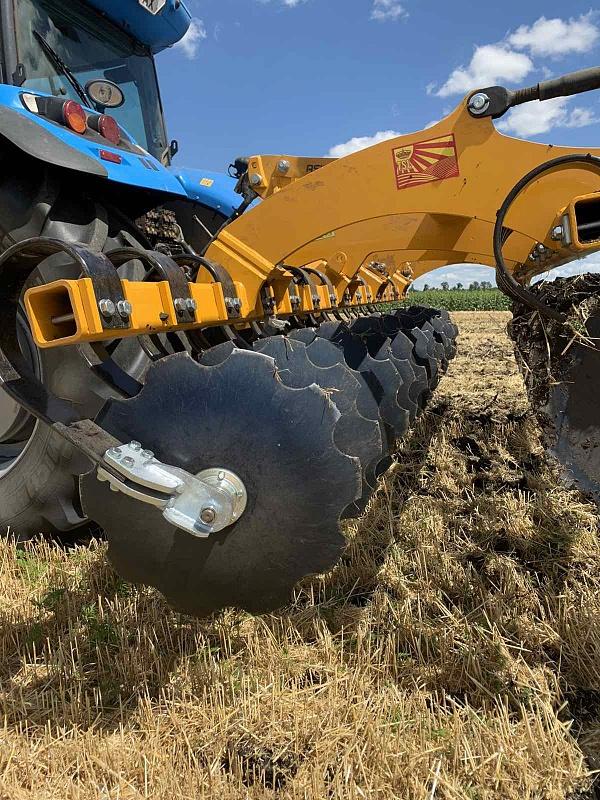

Disks and leaf spring racks of the Spanish company Bellota. Bellota's working bodies ensure long-lasting and high-quality work. In the basic configuration, a 560 mm (22 inch) camo disc is installed, and optionally, a 510 mm (20 inch) disc can be installed. Those with a larger diameter handle a larger organic mass and work to a depth of 3 cm to 15 cm. Those with a smaller diameter rotate at a higher speed, thereby providing the best mulching effect and work to a depth of up to 12 cm.
Disc-shaped working discs, both solid and with small or large cutouts; VT Rex have the properties of excellent grinding of crop residues, achieve deep penetration. Complete set order

Bearing units manufactured by the SKF company (Sweden). The correct location of the bearing unit, high load capacity and exceptional protection ensure the reliability of the technological process. Lubricant installed for the entire service life does not require additional maintenance.

In the case of using discs of the same size, the outermost disc forms a groove, which to some extent negatively affects subsequent operations. The design of the Asistente harrow includes the ability to adjust the height of the edge disc, which eliminates processing defects.

As standard, the Asistente disc harrows are equipped with tubular rollers with a diameter of 500 mm of reinforced construction, which are the most universal in use in most operations. Available diameters are 450, 500, 550 mm. Bearing units imported from the SKF company are installed on the rollers.(//tractor-service.com)
The working depthof the peeler is set mechanically on the rollers of the unit
The undercarriage of the unit consists of a reinforced frame, axles of the European manufacturer ADR (Italy), as well astyres of world manufacturers. производителей.
The transport width of semi-trailer disk units when folded is 2.8 meters.

Parameter 2.5 ML 3.0 ML 3.5 ML 3.0 M 4.0 M 5.0 TF 6.0 TF
Working width, m 2.5 3 3.5 3 4 5 6
Design hinged hinged hinged hinged hinged semi-hinged semi-hinged
Mass, kg 1100 1350 1500 1550 1900 3600 4000
Required power of the tractor, hp 80 100 120 120 150 180 220
Number of discs, pcs. 20 24 28 24 32 40 48
Disc diameter, mm 560 camomile, option 510 (solid, small cutout, large cutout, VT Rex),
Rack Leaf spring, 3-D technology
Working depth, mm 3...12 3...15
Working speed, km/h 10...18
Fuel consumption, ha/l ot 4.5
