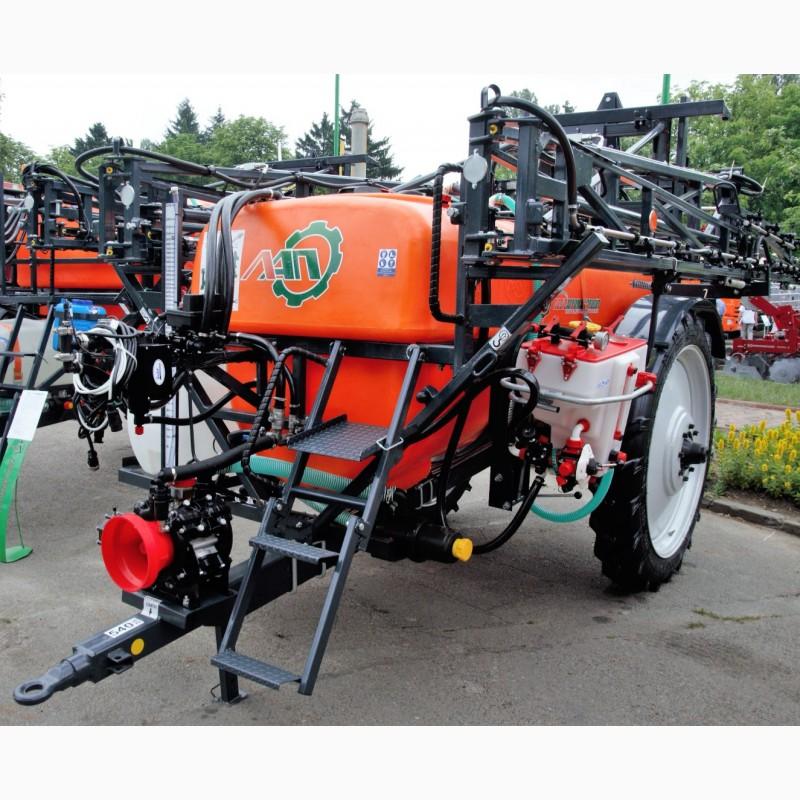

Trailed boom sprayer OPSH-24-18, Lviv region.

Trailed rod sprayer OPSH-2418 is intended for chemical protection of field crops from pests, diseases and weeds continuous spraying with working fluids of pesticides and application of liquid mineral fertilizers of the KAS type. Aggregates with tractors of class 1.4; 2 t.s. The sprayer is equipped withwheels 9.5 x 42.

Bar - space truss, two-hinged pendulum suspension, which provides full stabilization of the bar, hydro and mechanical locks for fixing the bar in the unfolded position, full hydraulic folding / unfolding;
The frame, the rod slider are made of a thick-walled square tube with a sliding system using polymer materials, a cylinder-corrector (enables work on slopes);
Powder polymer painting;
Stainless steel collectors. steel diam. 1/2, cutting devices and sprayers of leading companies (LECHLER /TEEJET);
Polymer tank 2500 l., one hydraulic mixer, special sprayers for washing the tank;
Four-stage filtration system of the working fluid;
Pump Annovy Reverbery, 185 l/min;
Cardan transmission BONDIOLI PAVESI, 6 x 8;(//tractor-service.com)
Light signaling (stop-gauge-turn);
Washing system with an additional tank for 250 l;
Wheels 9.5 x 42;
Track -1.5 - 2.1 m;
The working height of the rod is 500-1900 mm;
Sleeve for self-refueling 5 m. with a float filter;
The computer system Tijet 844 E (option) ensures high-quality execution of the technological process and the possibility of working with navigation systems, including the possibility of disconnecting sections of the boom in automatic mode when hitting treated areas;
Navigation system Matrix PRO 570 GS;
Boom Pilot kit, for compatible operation with TeeJet 844 E;
Lighting system;
Mixer Polmac (Italy) - 35 l.
