ZhS sunflower harvester, PRIMERA sunflower harvester, UNICORN from 4m to 12m, Donetsk region.

The best reapers of Ukraine for sunflower harvesting
Compensation.
Delivery!+79900265592
Harvesters of example, unicorn, Azov harvesters, width of capture from 4 m to 12 m
Special technical changes made it possible to achieve a high speed of advancement of the combine harvester, without shaking or catching the product, thus guaranteeing maximum productivity. The harvester allows you to collect all types of flowering plants, leaving only leaves and stems on the field, guaranteeing a particularly clean harvest, even at a minimum height from the ground level.

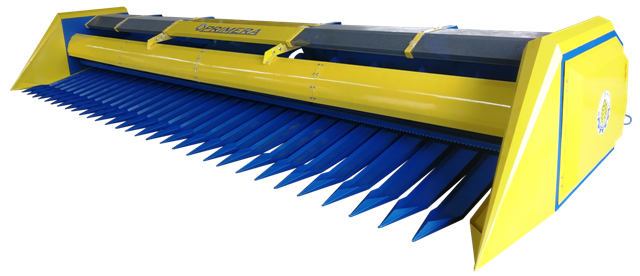

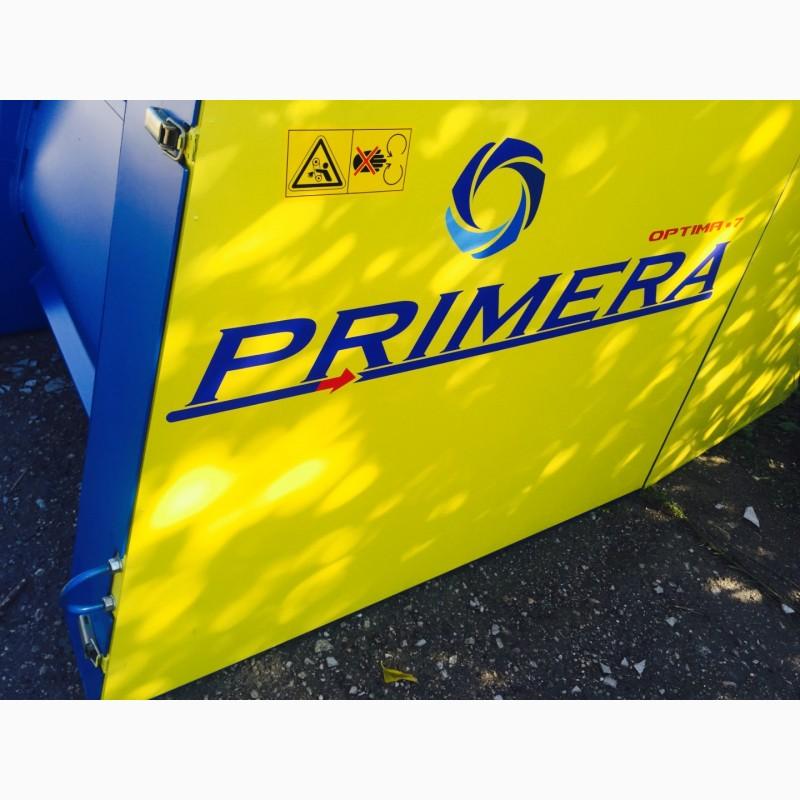

Primera harvesters II is designed specifically for harvesting sunflower by the rowless method, it optimizes the operational qualities of the harvester as much as possible. The design characteristics of the harvester help to collect sunflower in any direction, regardless of the direction of sowing, easily penetrating the rows. Special technical changes made it possible to achieve a high speed of advancement of the combine harvester, without shaking or catching the product, thus guaranteeing maximum productivity. The harvester allows you to collect all types of flowers, leaving only leaves and stems on the field, guaranteeing a particularly clean harvest, even at a minimum height above ground level.

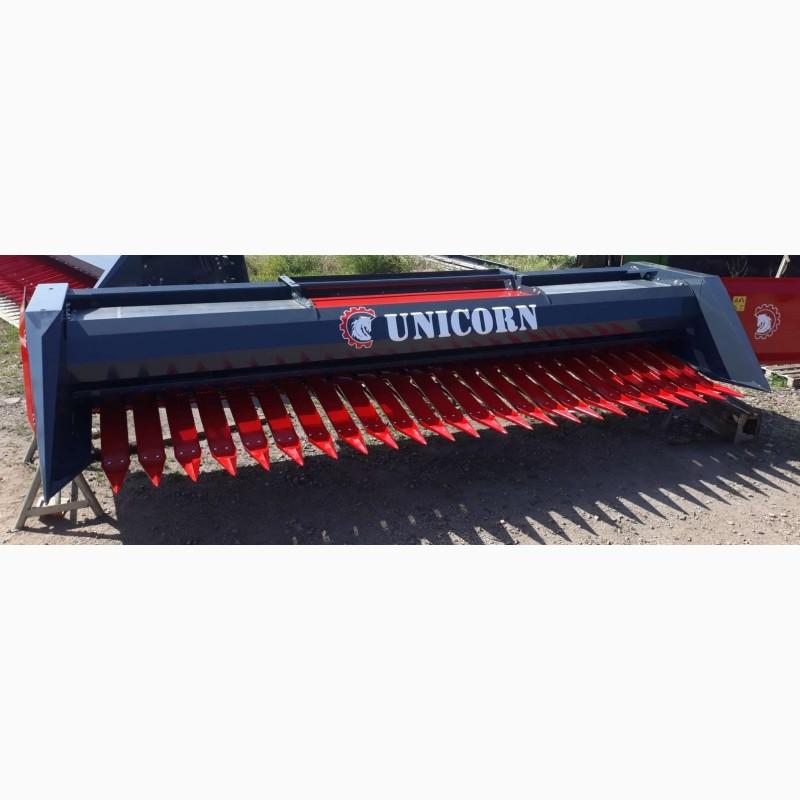

UNICORN SUNFLOWER HARVEST
Warranty 24 months.
DELIVERY +79900265592
DISTINCTIVE FEATURES,
TECHNICAL IMPROVEMENTS AND IMPROVEMENTS
FRAME: the improvement of the frame design allowed to increase it.
strength and stiffness. Corrected angles and mutual distances
arrangement of load-bearing beams and finger beam. Reinforced braids were tied together
the frame at critical points, thereby providing minimal static
deflection of the frame as a whole. Many small nodes have been replaced by sheet details
of complex configuration, manufactured on a high-precision imported machine.
CNC equipment. This reduced the total number of welds, reduced(//tractor-service.com)
internal stresses from friction in frame elements.
SCREW: the design of the screw is reinforced with additional partitions, in
in the form of rolled plates, and elongated support coils. The auger is protected
with a safety friction clutch, which is installed on a spline.
of the shaft and limits the torque on the auger in the event of stones hitting и
other extraneous objects into the ego's work area, thereby protecting everything.
rotating parts from overloads and destroyed.

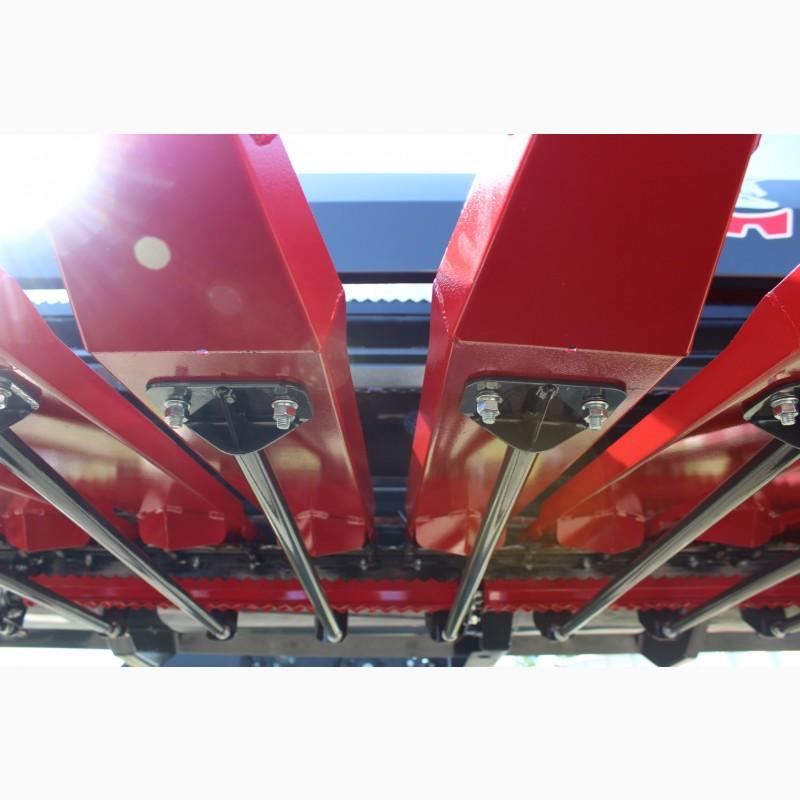

REEL: the weight of the reel is reduced by 70 kg. due to the use of the pipe
larger diameter, while its rigidity has increased. Long shafts
replaced with trunnions, which added strength to the structure and increased its life
exploitation The reel is equipped with feed fingers serving
for active cleaning of the working space between lifters from clogging
masses.
From above, the auger is closed with shields with a diameter of 196
штампованных отверстий 3мм, которые
they prevent mass transfer through the auger and
reel, and also serve to provide
personnel safety during work
