Sunflower harvester UNICORN, PRIMERA from 4m to 12m. Sunflower harvesters ZhSN, Kharkiv region.

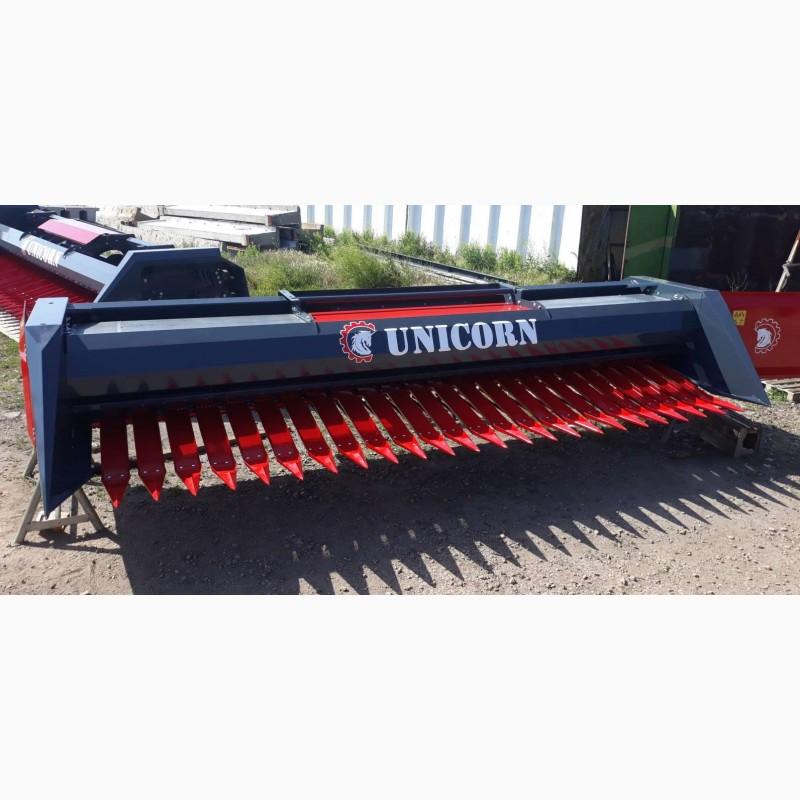

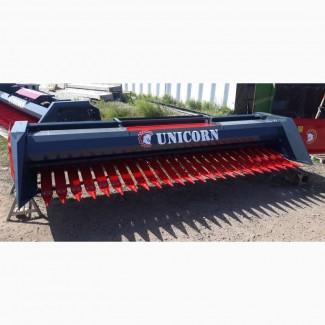

Harvesters for harvesting UNICORN sunflowers
Ширина захвата от 6до 12м
VERSATILITY: the harvester is reliable in design, easy to operate and economical in
service In addition, it is equipped with telescopic legs that allow removing the harvester with
harvester in field conditions without additional devices.
Universal transition frame with header tilt angle adjustment in the range 0...15º
allows you to aggregate the harvester withany combines of domestic and imported production.
Thanks to the new design of sidewalls, one-piece (seamless) intermediate pillars, lightweight
the design of the stem lifter, reel, front shield (bugger) managed to reduce the weight of the harvester
in total by 250 kg.

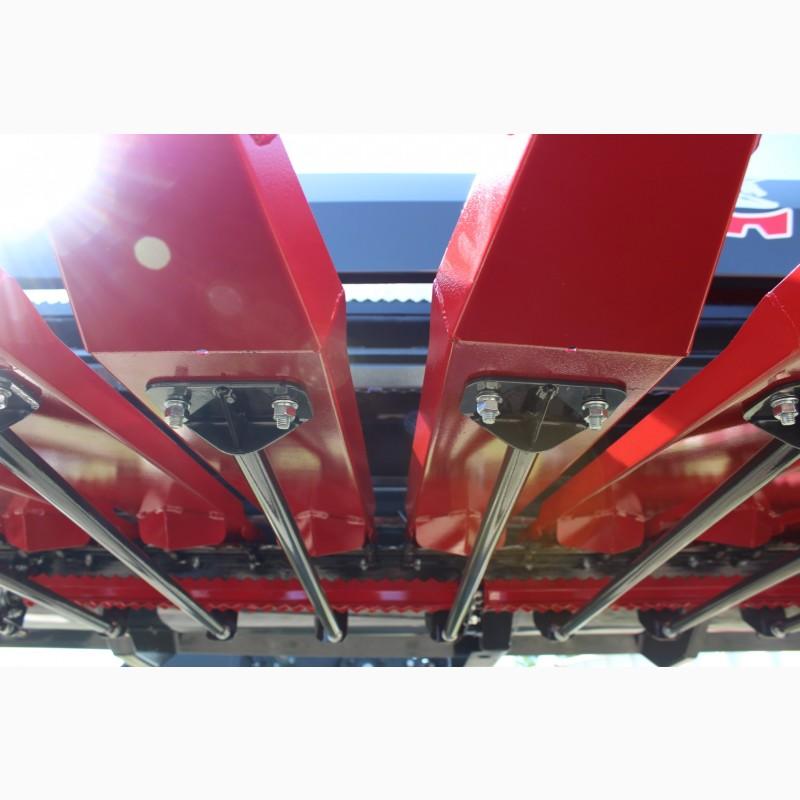

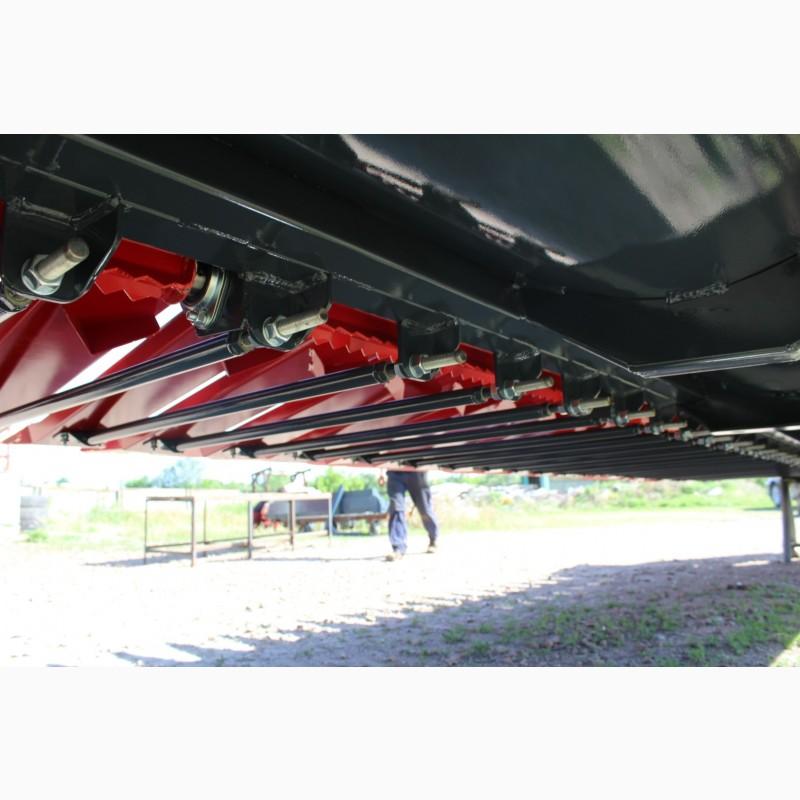

STEM LIFTERS (lifters): the updated design of the lifters made it possible to lighten the ego by 30% и
ensured an even more uniform and accurate entry of the harvester into the sunflower rows, regardless of the width.
between the rows, smoothly directing its stems and baskets to the knives, preventing the seeds from falling to the ground.
The inter-seed distance of the stem lifters is 22.5 cm. The harvester can be equipped with elongated ones
lifters of 1750 mm with variable clearance width between them in the range of 26...58 mm.
DRIVE SHAFT: the universal design of the header allows
additionally install the extension shaft, which serves for cleaning.
sunflower stems from leaf mass and weeds,
ensuring the supply to the cut zone of the sunflower cap with minimal
with the rest of the stem, thereby prolonging the life of the cutting apparatus.
and freeing the harvester mechanisms from excessive overloads. Regulation(//tractor-service.com)
the position of the shaft in relation to the cutting apparatus gives an opportunity
effectively use the ego at any angle of inclination of the harvester.
VERSATILITY: the harvester is reliable in design, easy to operate and economical in
service In addition, it is equipped with telescopic legs that allow removing the harvester with
harvester in field conditions without additional devices.
Universal transition frame with header tilt angle adjustment in the range 0...15º
allows you to aggregate the harvester with any combines of domestic and imported production.
Thanks to the new design of sidewalls, one-piece (seamless) intermediate pillars, lightweight
the design of the stem lifter, reel, front shield (bugger) managed to reduce the weight of the harvester
in total by 250 kg.
CUTTING DEVICE: the bolt fastener used on the knife simplifies maintenance in
cleaning time At the request of the client, the drive of the cutting device
can be installed SСHUMACHER made in Germany, the cutting speed of which is 1000...1150 strokes in
minute depending on the combine harvester model).

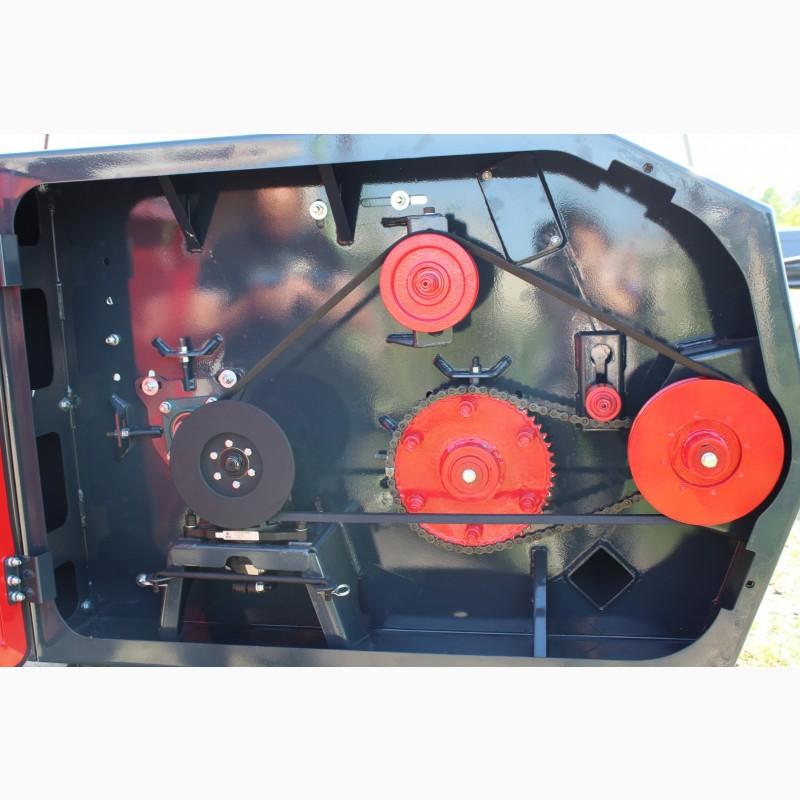

UNITS AND DETAILS OF KINEMATICS: the first stage of the drive of the harvester has been moved to the left one.
side panel for simplified maintenance. Using shafts with a diameter of 40 mm,
bearing units produced in Poland, roller sprockets elevated
wear resistance, fasteners of strength class 8.8 (880 kg/cm2
) allowed to put
UNICORN harvesters in one row with foreign analogues corresponding to the European one.
standards, significantly improve operational characteristics and wear resistance
Delivery in Ukraine!
