Two-axle trolley for transporting harvesters VL-30 (up to 9.15m) TM "Volland", Volyn region.

Cart for transportation of harvesters VL - 30 (TM "Volland")
Advantages:
• Simplicity of construction;
• Here - ADR (Italy);
• The trolley is made of structural steel, the frame profile is a pipe 200x200x8;
• Certified coupling loop (Ø45 mm);
• Independent front suspension on the support-turning circle from the manufacturer JOST (Germany);
• Wide track of the front and rear axles;
• The minimum turning radius of the cart is 8 meters;
• Low installation (loading) height of the harvester on the cart;

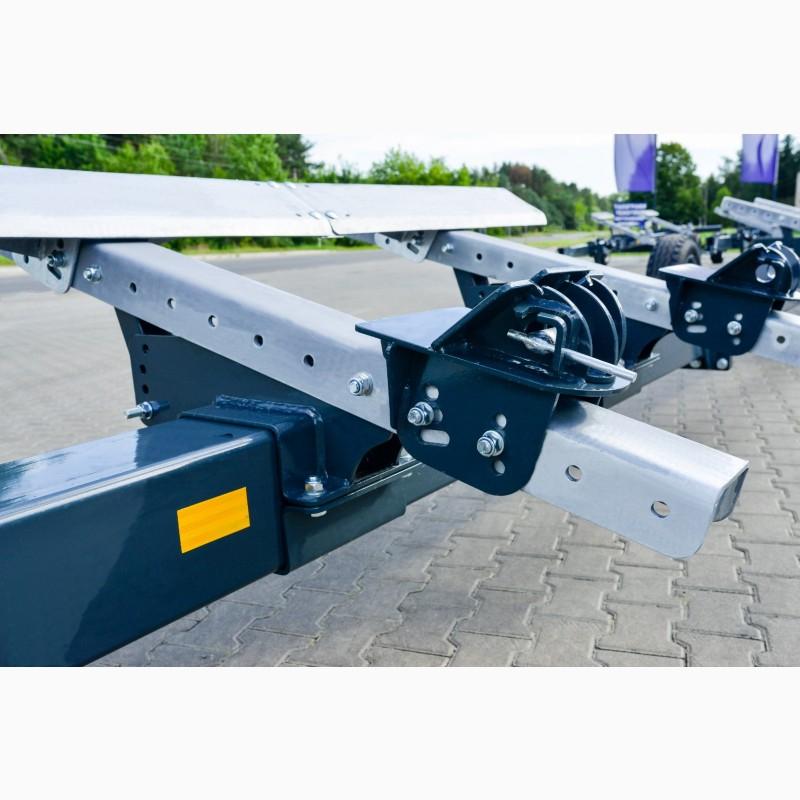

•Universal supports forsupport of the harvester with adjustment of the required angle of inclination;
• Support plates for the cutting part of the harvester (L = 1100 mm. - 4 pcs. standard);
• 12 V light signaling system;
• Powder coating with preliminary sandblasting.
• Quick fixation of the harvester with locking fingers;(//tractor-service.com)
• Fastening elements (supports and plates) are covered with zinc;
• Electric cable (plug-plug) included;
• Anti-recoil supports (2 pcs.) in the set;
• * Complete set with additional frame insert and support;

TROLLEY MODEL VL - 30 / VL – 30*
The type of trolley is two-axle
The width of the transportable harvester, m. up to 9.14* / up to 11.20*
Overall length, mm. 14300 / 16040
Own weight, kg 1586 / 1786
Carrying capacity, kg. 4224
Total mass, kg. 5810 / 6010
Track, mm. 1300/2100
Tires: 10.0/75-15.3
Tire ply rate 14PR
Maximum transport speed, km/h: 25
