Straw cutter - hay and straw rotary chopper, Kharkiv region.

Description

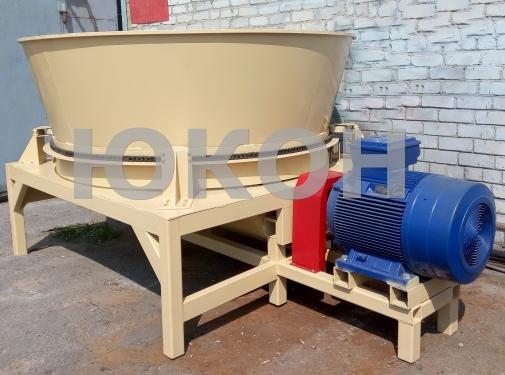

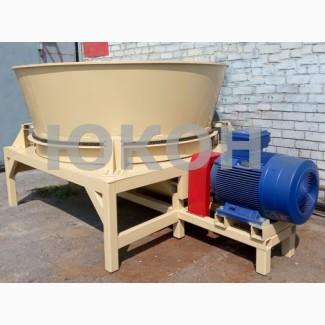

Straw shredder - hay and straw rotary shredder
Biomass shredders are used for grinding hay, alfalfa and various crops at a humidity of up to 25% (with humidity above 25%, productivity decreases). The hay and straw grinder is ideally suited for granulation and briquetting lines for the production of grass granule briquettes, cattle feed, litter for cattle, production of fuel briquettes and pellets, because the resulting fraction at the exit of the straw cutter does not require further grinding with an additional crusher. ||150дробилкой, а это огромная экономия электроэнергии на производстве!

Biomass shredder (Alfalfa, Straw, Hay - in bales (round and square).

CHARACTERISTICS:
Sechka can be used:
— as raw material for granulation;
— as raw material for briquetting;
— as bedding for livestock;
— for animal feed.

Name of the indicator

Value of the indicator

1. Grinding time of 1 roll* in
depending on weight, density
bale and humidity. 5-15
2. Productivity, t/h 0.6-1.5
3. Total power of the drive, 170
кВт, не более , 58 из них:
— rotor drive
— hopper drive

55

1.1-1.5

4. Rotor speed, rpm 3000
5. Hopper rotation frequency, rpm 1-8
6. Cutting length, mm. 0.01 — 9 mm
7. The diameter of the grinding machine.
of a round roll, no more, m. 1.9
8. Service personnel, people 1(//tractor-service.com)
9. Overall dimensions, mm, not
more
— length
— width
— height

3000

2000

1800

10. Mass, kg, not more than 1500
11. Warranty period of service, months. 12
12. Shredder control cabinet to order
*The weight of a round roll is 100-250 kg. The moisture content of straw (hay) is not more than 25%.

The large diameter of the grinding chamber.
Shredder of straw and other phytomass materials.

Reliability in operation, durability of the structure, the ability to satisfy the high demands of the modern market, where quality comes first!

The resulting fraction is also used in the production of straw compost in farms as bedding for animals and birds in livestock and poultry farms.

We can guarantee equipment quality and productivity. Checked!
In the photo, the straw cutter is equipped in the granulation line for the production of straw pellets.

Straw shredder with top loading for round bales and square bales of any size, productivity up to 1.5 tons per time with an output fraction of up to 8 mm, productivity can be increased by obtaining a fraction after grinding of more than 8 mm.

About our company:
We are a manufacturer of granulating lines based ongranulator OGM, we produce OGM-1.5 and OGM-0.8 granulators, as well as accompanying equipment for the raw material section of the granulation line (AVM drying -0.65; AVM-1.5; Raw material feeder, straw chopper (straw cutter), shredders and hammer crushers for wet and dry raw materials.

We provide production with an uninterrupted supply of wearing parts (matrices, shells and other press mechanics of our own production) forgranulators OGM (OGM-1.5; OGM-0.8), DHV (B6-ДГВ) ДГ-1, ГТ (ГТ-420, ГТ-500, ГТ-520) and others (Kahl, Munch, Matador, CPM, GT, ДГВ, Buhler, Granit, La Meccanica, Nova Pellet, Giuliani , Mabrik, Muyang, Paladin, Promill, Salmatec, Stolz, Van Aarsen).

We carry out the restoration of circular and flat matrices.

Help in repair and maintenance of granulator, granulation line.
