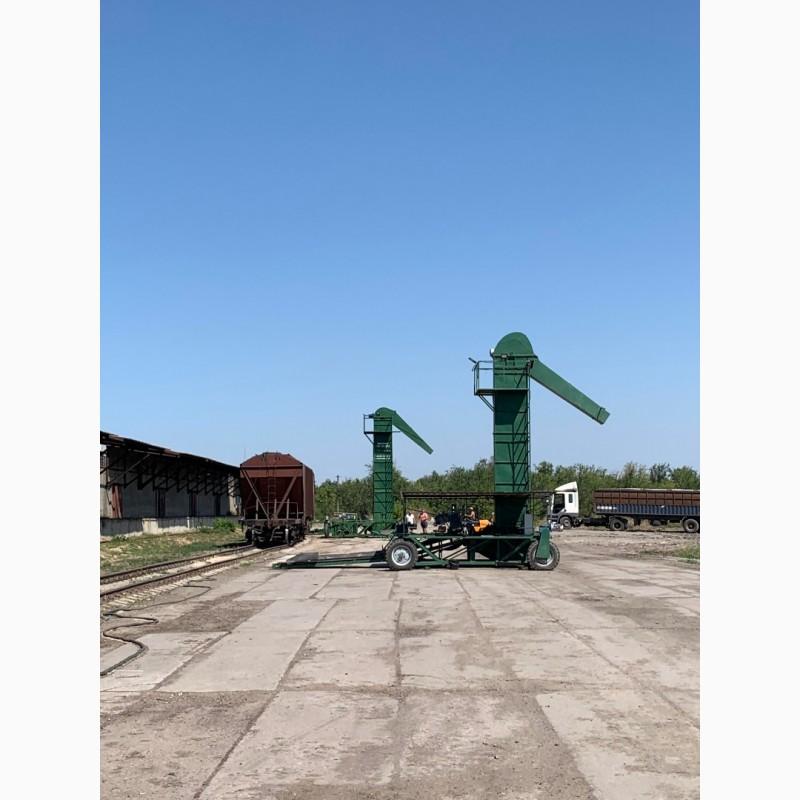

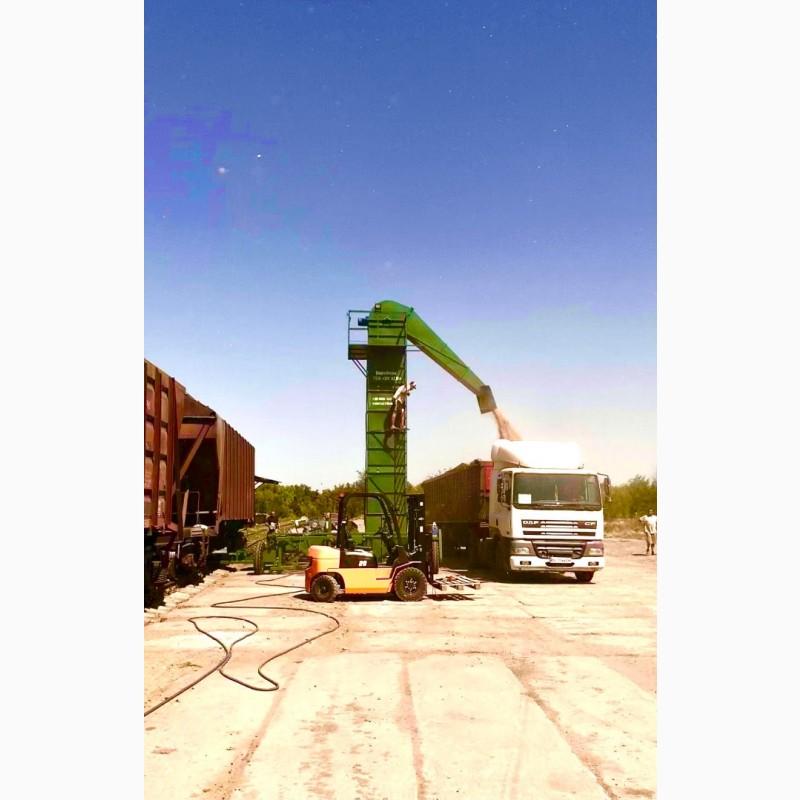

Mobile wagon unloader, Zakarpattia region.

Wagon unloader of 2018 in working and well-maintained condition.
Capacity 200 t/h (shipment of the railway route during the day).
Unloaders are located in Mykolaiv and are ready for work.
The total cost of the equipment is 1.3 million.

General instructions and designations

The RVP-100 unloader is a conveyor and is used to unloadgrain cargo from hopper wagons forgrain and is intended for continuous horizontal and vertical transportation when working indoors or outdoors with the lower limit value of air temperature up to -20°C.
The loader is manufactured in accordance with the requirements of the Technical Specification and differs:
- reliability and efficiency, ease of maintenance, productivity;
- low energy load of the equipment, lightweight design, compactness of the drive station.
The unloader must be connected to a three-phase alternating current network with a frequency of 50Hz, a voltage of 380V with a blindly grounded neutral through a protective disconnection device.

Basic technical characteristics.

The total length of the installation: 8000mm
The maximum unloading height at the lowest point is 4700mm.
Installation width, max. 5700mm
Type of motor-reducers:
Conveyor with a width of 1400 mm.
Noria 420mm wide
Movement drive
WMI Supgog 130
WMI Supror 130
WMI Supror 130(//tractor-service.com)
Power supply V/Hz 380/50
Total installed power kW 18.0
Technical productivity* i.e. time 100-200
Mass, no more than kg 3500

The practical performance of the unloader when transporting a specific material is established experimentally, based on the physical and mechanical properties of the given material and the gap between the belt and the unloading hatch of the wagon.

Composition of the product.

The unloader includes the main assembly units and details listed in table 2.
Table 2.
№№ пп Name of assembly units Qty
1 Frame with removablewheels 4 pcs. 1
2 Horizontal section 1400 mm wide with tension drum 1
3 Upper support rollers 57x900 and side 57x260 6 and 12
4 Pressing roller 76x1500 1
5 Inclined section with a width of 1400 mm with a drive drum and a motor-reducer 1
6 Support rollers 57x1340 8
7 Rollers supporting 76x1450 and 76x1380 5 and 2
8 Upper and lower deflector rollers 2 and 2
9 Conveyor belt 1400-BKNL-650-2-0-NB 14.0 meters long 1
10 Noria width 500mm, height 70000 (with drive head and gear motor + tension drum with receiver) 1
11 Bucket V-8.9 liters 60
12 Conveyor belt B-400 L=14.0m 1
13 Electric cabinet
