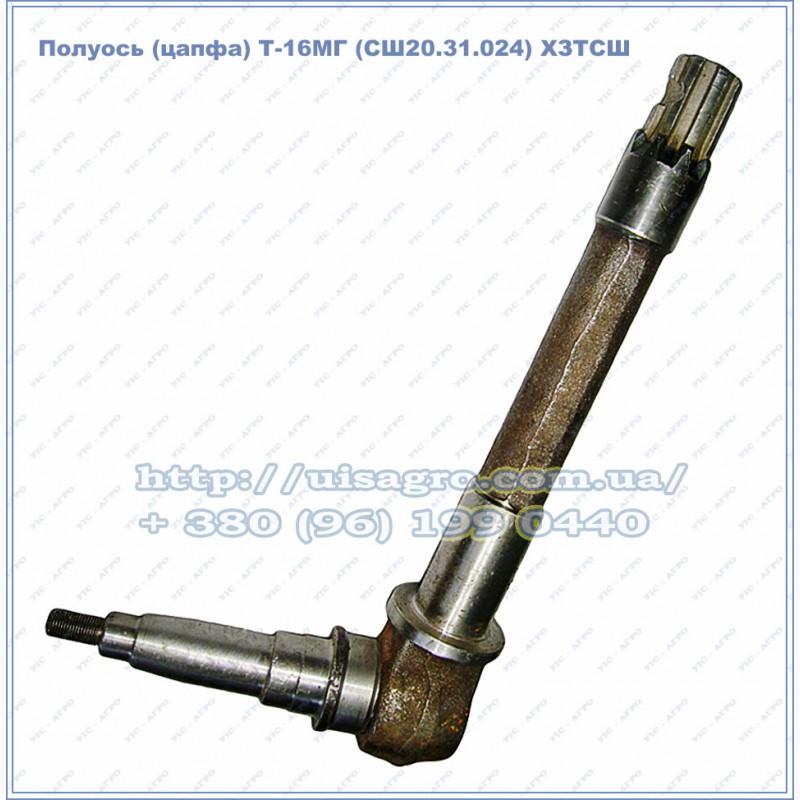

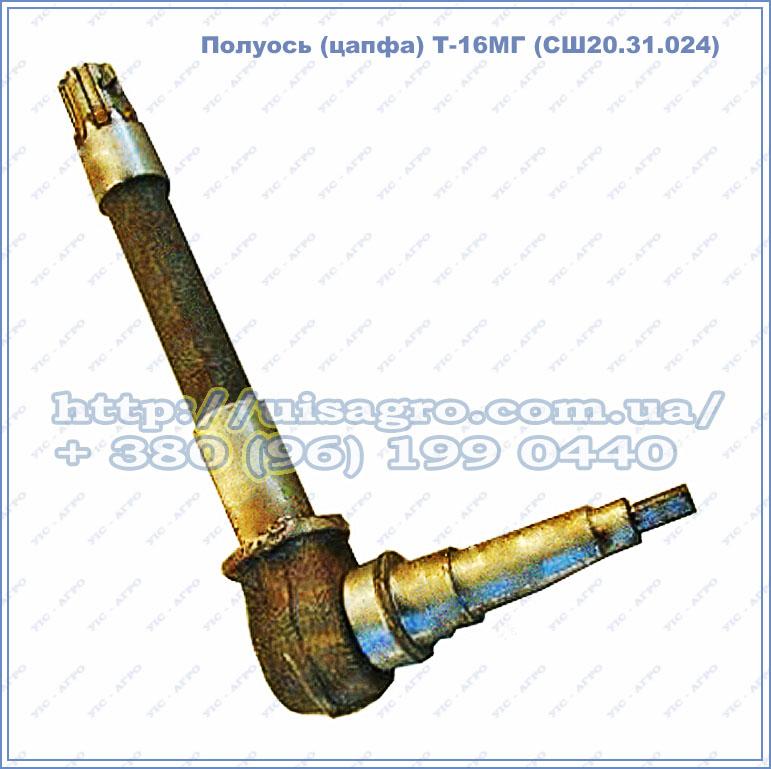

Semi-axle (trunnion) СШ20.31.024 front bridge T-16, СШ-2540, Kharkiv region.

      Buy a new semi-axle (pin) of the front axletractor T-16MG (СШ20.31.024) ХЗТСШ, at a minimally low price with a maximum quality guarantee. It is used in self-propelled chassis (tractors) T-16, T-16M, T-16MG, СШ-25, СШ-2540 produced by the Kharkiv factory of self-propelled chassis (Kharkov, Ukraine).

        Weight — 7.659 kg     Material — steel 40X

        Semi-axle СШ20.31.024 welded part consisting of a knuckle of a semi-axle with a semi-axle welded to it at a certain angleof the front wheel. The semi-axis knuckle is turned in two bushings СШ20.31.208 and DSШ14.31.196 pressed into the vertical plane of the knuckle housing DSШ14.31.021-4. The right and left half-axles of the front axle of the self-propelled chassis are interchangeable.

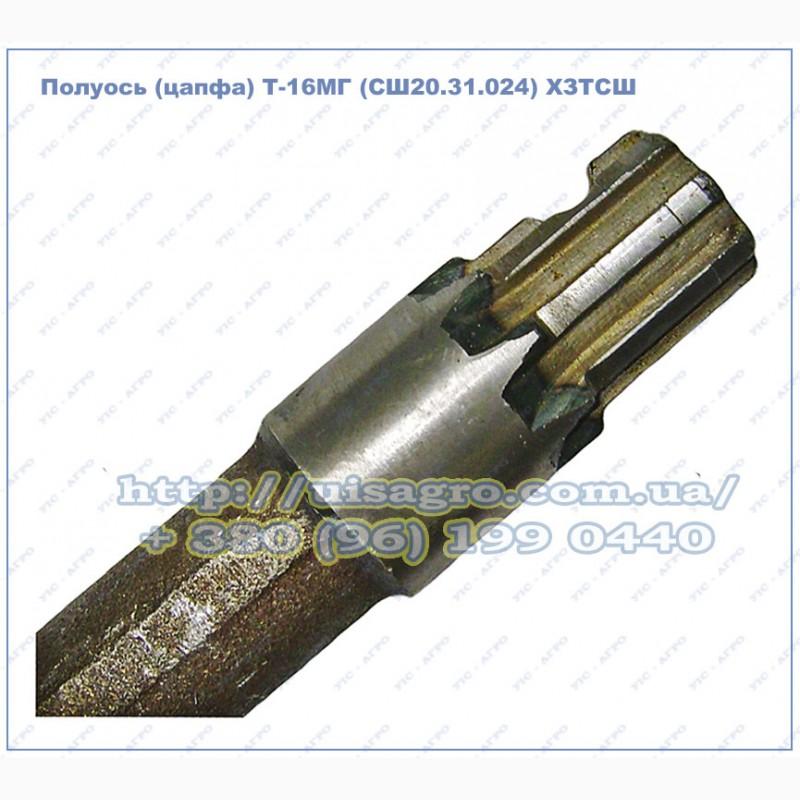

        A thrust ball bearing 8209 is pressed into the lower part of the semi-axis knuckle, on which the knuckle body rests through the Ш101.31.107А ring. Lubrication to the bushings and thrust bearing is supplied through the oiler, which is screwed into the knuckle housing. The front wheel hub DSSH14.31.124-3 is installed on the horizontal part of the semi-axis, which rotates on the axis on two conical roller bearings 7305A and 7607A, fixed with a crown nut M16x1.5. On the upper splined ends of the axles, the rotary levers are installed, respectively, the right СШ20.31.109-3 and the left СШ20.31.110.-2.
(//tractor-service.com)
        The semi-axle СШ20.31.024 is made of high-strength steel, the seat of the axle is thermally treated with high-frequency currents to a Rockwell hardness of 54 units.  The semi-axle is capable of carrying large mechanical loads in the process of transport and operation of a self-propelled chassis with agricultural machines.

        The original. Manufacturer's warranty and quality. High strength, reliability and wear resistance is due to modern production technologies and high-quality materials. DO NOT CHINA. Not artisanal production.
