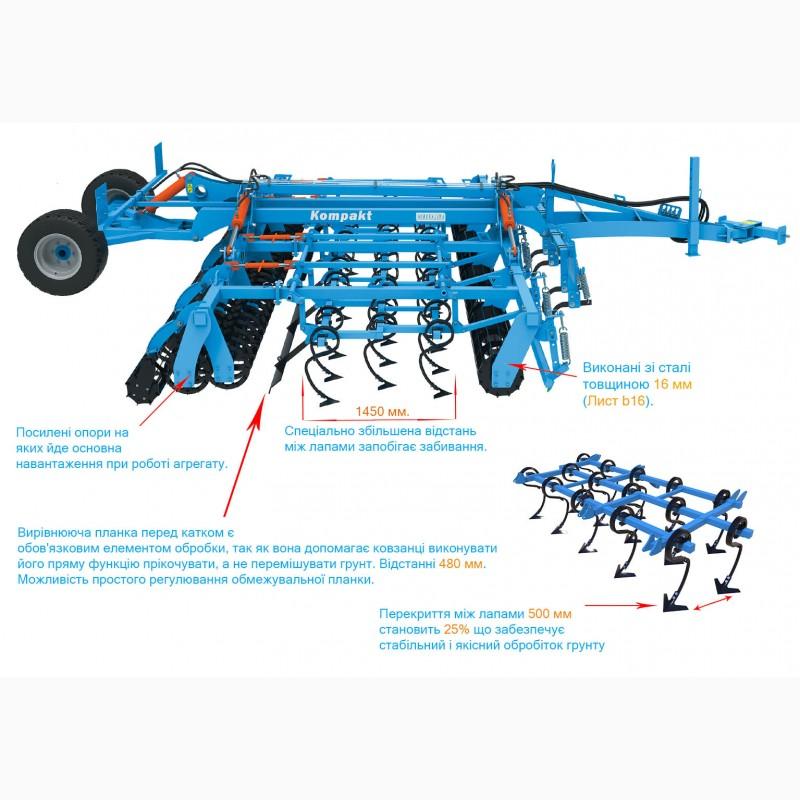

KOMPAKT AKPK compactor, Vinnytsia region.

Perfect soil preparation for sowing in one pass Using the Finish roller for better grinding effect Combination of 7 work operations in one pass
Increased unit productivity thanks to high working speed High-quality maintenance-free bearing assembly FKL Working section with 3 rows of paws
Increased frame height Warranty 2 years Two-row rearrink
AKPK "Kompakt" for pre-sowing soil preparation meets all modern requirements of agronomists. It is produced with a working width from 3 to 9 m. In one passtractor the unit performs all operations necessary for pre-sowing preparation on the plowed surface:
Grinding
Alignment
Fluffing
Creation of a seed bed at a precisely specified depth (from 2 cm or more)
Conservation of moisture in the soil
Rolling of the soil layer over the seedbed
Working bodies.

Arrow paws:

perform loosening on the surface layer of the soil to a precisely specified depth
the surfaces are installed exactly horizontally, as a result of which they do not affect the lower moisture-bearing layer, while keeping moisture under the seed bed(//tractor-service.com)
the wide distance between rows of paws (500 mm) prevents clogging with harvest residues.
Two slat-plate rollers:

grind and crush the soil
Two leveling bars:

level the sown area
Crosskill roller (ring-spur):

rolls and compacts the soil layer above the seed bed,
sorts lumps: small lumps remain at the bottom, large ones are carried to the surface, thus protecting the seed bed from erosion as a result of rain, wind and erosion processes.
As a result, the Kompaktomat AKPK tool provides fast and uniform germination of seeds.

For transportation, it hydraulically folds up to 3 m (for a 9-meter unit - up to 4.6 m). Versions with a width of 3 and 4 meters are made without the possibility of folding into the transport position.

The optimal speed is 10-12 km/h.
