Utilizer of all types of waste (household, medical, production), Kyiv

Disposal of any type of organic waste, including hazardous (domestic, industrial, medical, biological, agricultural, oil sludge), by burning at high temperatures.

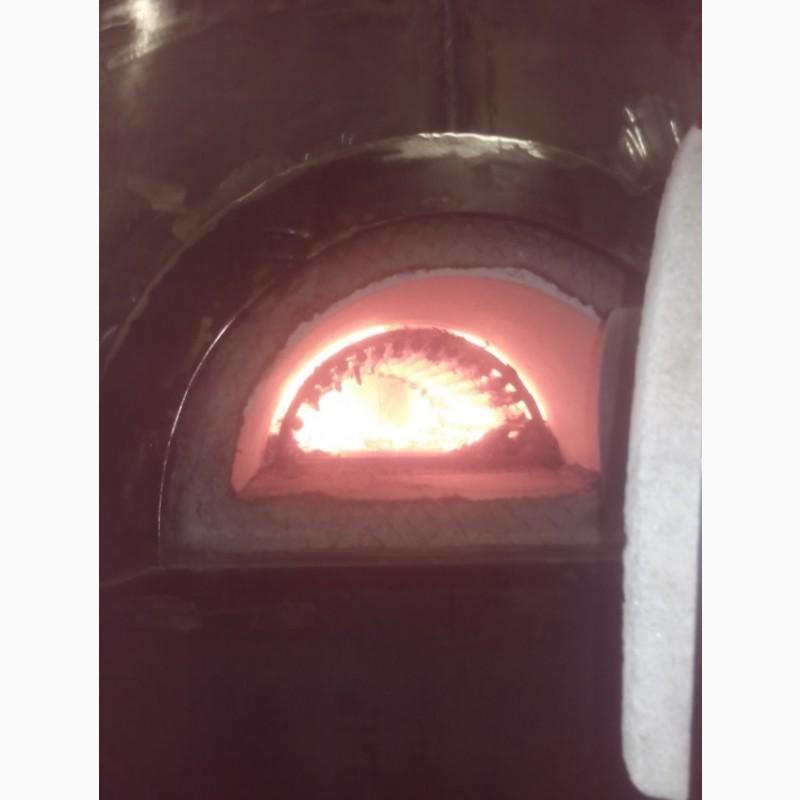

The technology provides for the organization of the combustion process in units with two combustion zones. In the primary zone, the initial combustion process and active gas generation take place. In the secondary combustion zone, afterburning of combustion products takes place. Such an organization of the reactor makes it possible to use practically all organic materials with a humidity of up to 60% as fuel.

The temperature in the afterburning zone is about 1300 C.

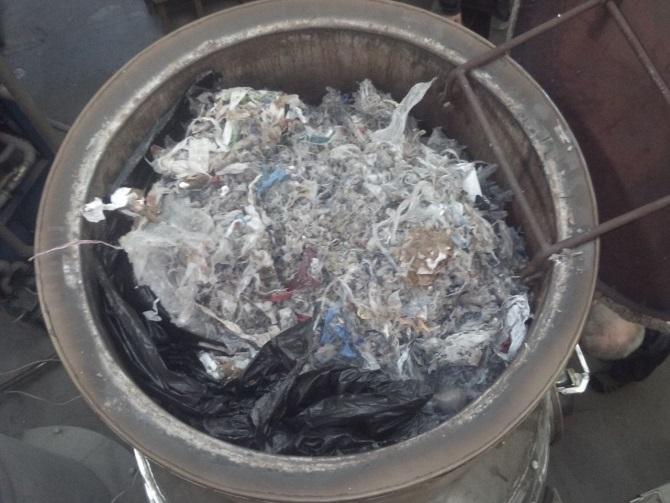

Products subject to disposal:

Products subject to recycling - dry bulk, liquid, viscous.

- solid industrial waste - 2000 t / hour

- liquid waste (petroleum product waste (oils, antifreeze, coolant, pharmaceutical waste (liquid), solvents, paints, varnishes, food products, etc.) - 1000 t / hour

- overall dimensions of recycling products, before feeding to the conveyor - no more than 120x120x120 mm

- feed to the conveyor - manual.

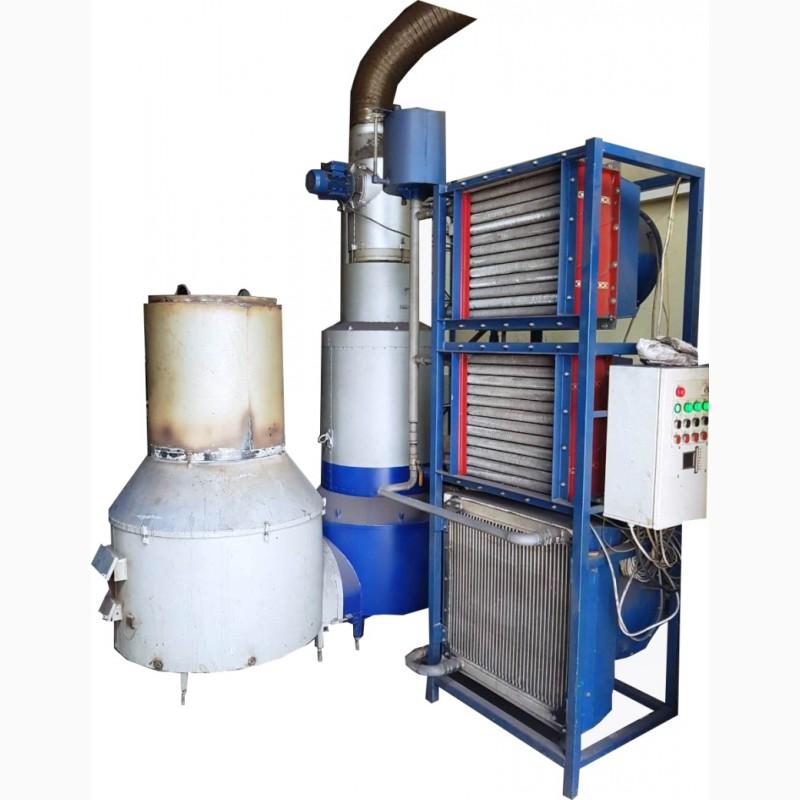

Reactor-utilizer:

Productivity - 100 kg \ h

the disposal temperature is 12,000 C.

electrical consumption - 3 kW / h

working hours - 24 hours x 7 days/week

reactor loading - conveyor, feed to the conveyor - manual(//tractor-service.com)

reactor unloading - automatic

additional type of fuel -propane gas (cylinder, consumption for start-up time up to 15 minutes)

control system - semi-automatic, without emission quality monitoring

the control system - gives a signal to load the reactor, provides unloading, controls the reactor cooling system

Heat removal - water.

overall dimensions of the reactor - 3000 x 3000 x 4500 mm (specified after design)

weight of the reactor - 2000 kg (specified after design)

overall dimensions of the area of preparation / reception / supply of substances subject to disposal - 15000 x 15000 x 4500 mm

substance supply system, for disposal - conveyor, auger (to be specified after the design)

energopotreblenie part of the water sampling heat exchange - 3 kW / h

water for the rector is not needed.

quantity of water for the system - calculation value

number of service personnel - 2 persons. / shift

Warranty 12 months.

Own production equipment.
