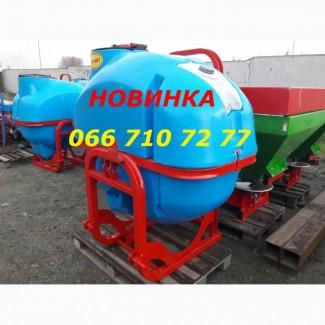

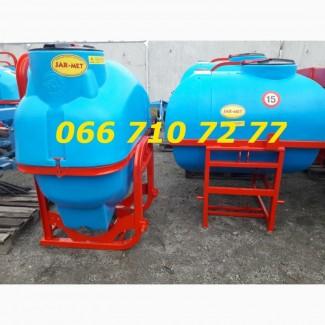

Sprayer rod 800 l, rod bent frame 14 m Polmark Poland Details, Dnipropetrovsk region.

Rod sprayer 800 l, rod bent frame 14 m Polmark Poland Подробнее Pole sprayer 800 (800 l, rod 14 m) Polmark Poland Rod sprayer intended for processing field crops, including those cultivated by intensive technology, with pesticides, herbicides, etc., as well as the introduction of liquid complex fertilizers by their surface spraying.
The sprayer is assembled with a 45 hp tractor equipped with a box and a power take-off shaft.
The sprayer is equipped with a slot device set.
Characteristics
Main
Manufacturer Polmark
Country of manufacture Poland
New condition
Weight 220 kg.
The length of the rod is 14 m.
Number of rod sections 3 pcs.
The thickness of the frame is 3 mm.
The thickness of the rods is 2 mm.
Wing attachment 4 mm.
The frame around the barrel is 2 mm.(//tractor-service.com)
Working pressure (mPa) 0.2-2.0
Quantity of sprayers 28 pcs.
The distance between sprayers is 0.5 m.
Productivitypump 120 l/min
Speed of movement (km/h) 3-10
PTO speed 540 rpm
Rods profiled pipe
Reservoir chemical.. and impact-resistant polyethylene
Hoses reinforced high-qualityrubber
Throat sieve filters, suction, distributor filter, nozzle filters
The type of sprayer is flat jet
Sectional distributor (middle, left, right sides)
Single nozzles with side cut-off + 2 pcs. additionally (placed every 0.5 meters)
Pump plastic-cast iron - Tolvery
A handwasher is present.
High-precision glycerin manometer
