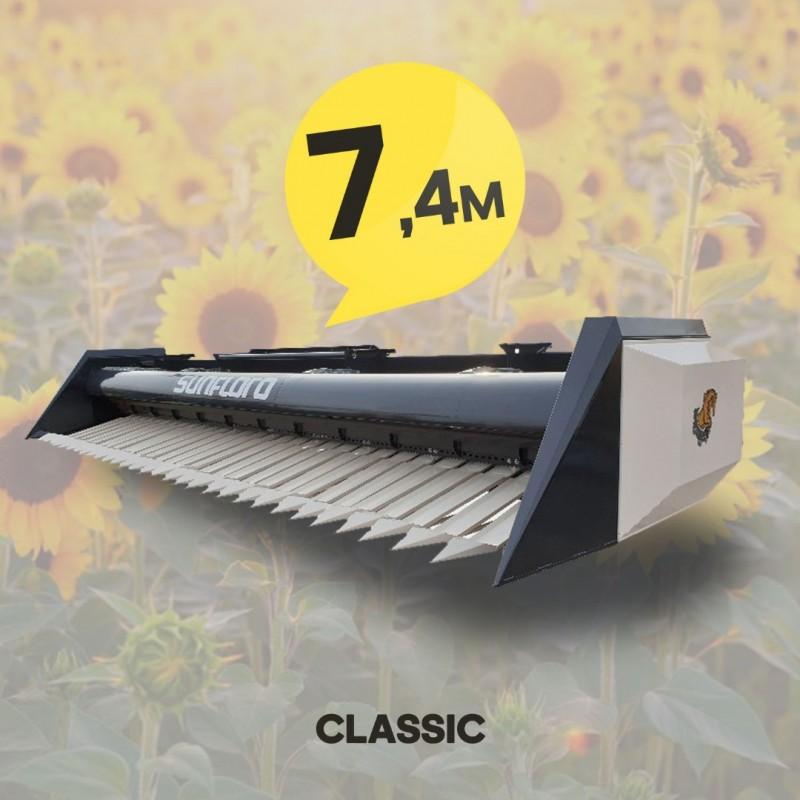

Sunfloro sunflower harvester - 7, 4 classic, Zaporizhzhia region.

Harvesterfor harvesting sunfloro sunflowers – 7, 4 classic
― предназначена для качественной и эффективной уборки подсолнечника (подсолнуха). Технические особенности жатки позволяют убирать различные сорта подсолнечника, работая в любом направлении, с минимальными потерями в кратчайшие сроки. Жатка также показала себя эффективной при уборке полеглого подсолнуха.
Sunfloro, Sanfloro is an improved, modified model of the sunflower harvester Sanfloro, ZhSN, John Greaves, as well as the Italian "Zaffrani".
Principle of actionharvesters for harvesting sunflowers Sunfloro.

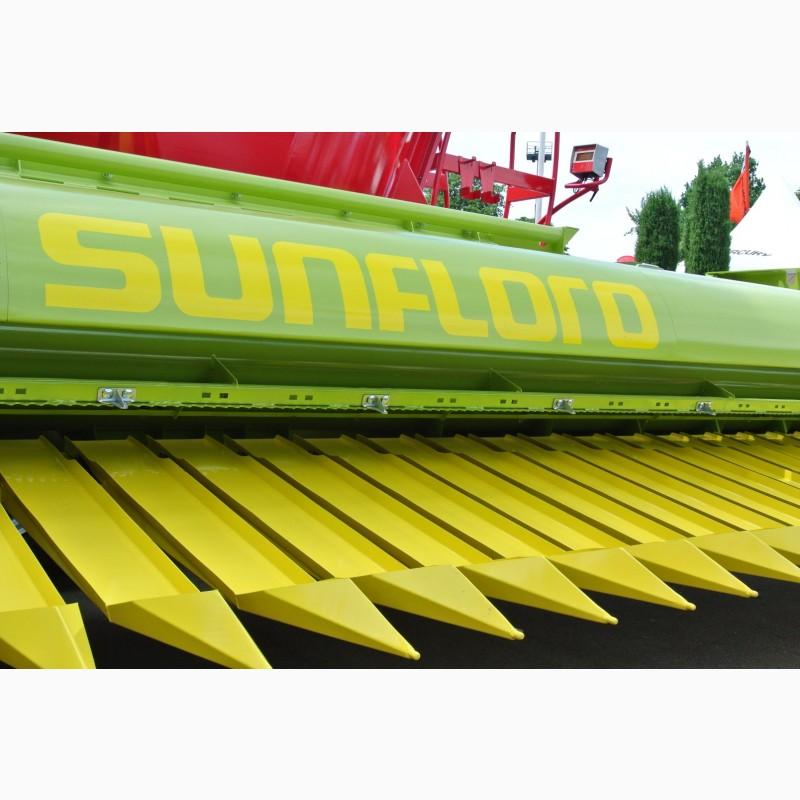

The harvester separates the harvested mass of sunflower with the help of special separators of stem lifters - elevators, which provide high penetrating ability inside the harvested crop, providing the best conditions for cutting baskets and protection against seed spillage. Next, the mass of sunflower baskets is captured by a reel, which in a sunflower harvester has a more rigid design than in a grain one, and is covered with a special protective cover that prevents sunflower caps from being thrown out. The captured mass is fed to the cutting device of the harvester, and the baskets are cut by a special knife with a cutting frequency of 950 double strokes per minute. Then the cut mass is sent to the harvester with the help of an auger.
The main advantages of the Sunfloro sunflower harvester, Sunfloro compared to the sunflower harvester (lifters):
1. The quality of cleaning is significantly higher. Losses on the Sanfloro harvest do not exceed 1%. Device losses are 100 to 150 kg/ha. Harvesters - up to 15 kg. Thanks to a better harvesting process, Sanfloro fully pays for itself in terms of losses on 250-300 hectares of sunflowers. The economic advantages of the harvester for harvesting Sanfloro sunflowers can be found in the article "Recommendations for harvesting sunflowers" on our website in the Articles section.
2. The Sanfloro harvester, in contrast to the lifter device, allows you to harvest sunflowers with the same quality, both with row sowing and continuous sowing.
3. The use of a grain harvester, re-equipped for harvesting sunflowers with the help of a device, significantly reduces its service life. Sanfloro is designed specifically for harvesting sunflowers and has all the technical and operational characteristics necessary for its long-term use.
4. The harvester for harvesting Sanfloro sunflower allows you to cut only the baskets (caps) of sunflower, leaving the stems and leaves on the ground, which guarantees the high quality of the obtained harvest (up to 1% contamination in the container) and the correct operation of the combine thresher. In addition, due to the fact that the sunflower stalks do not fall into the harvester, the humidity of the harvested seed decreases.
5. The simple assembly system of the Sunfloro sunflower harvester allows you to switch from grain crop harvesting to sunflower much faster, does not require the involvement of additional workers and resources (1 operator is enough) for its operation.(//tractor-service.com)
6. The harvesting speed of the harvester is 30% higher than that of the device, which significantly shortens the sunflower harvesting period.
The main advantages of the Sanfloro sunflower harvester compared to other domestic and imported manufacturers (Zaffrani, John Greaves, ZhSN, etc.), as well as the earlier Sanfloro model:

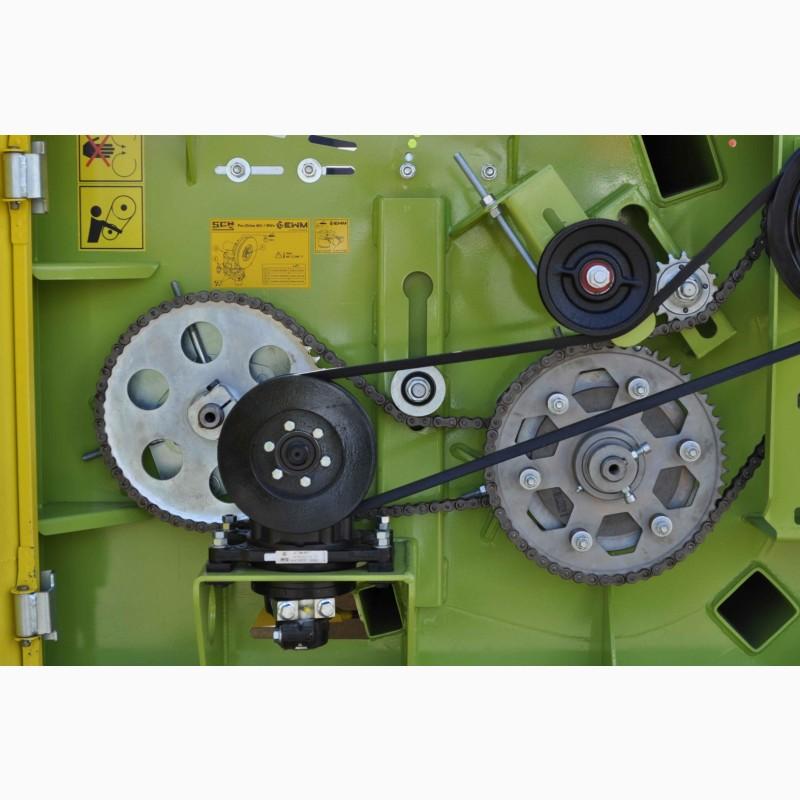

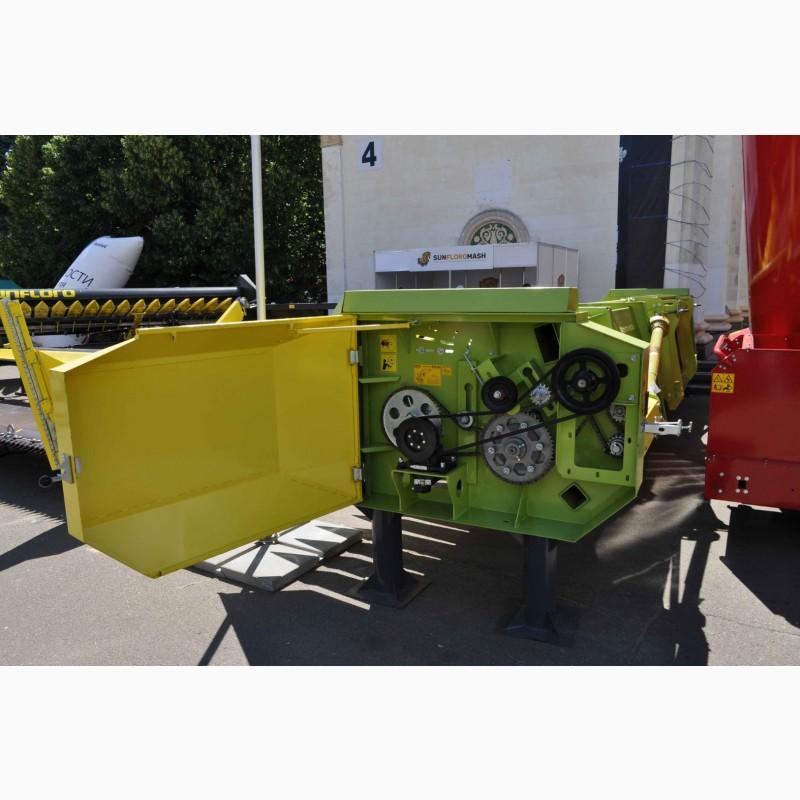

1. The reel drive, which was previously located on the right side of the harvester, was moved to the left side, which made it possible to separate the rotation of the auger and the reel (previously, the reel rotated from the auger shaft). These changes made it possible to significantly reduce the load on the working nodes of the sunflower harvester, increase its reliability, increase the resource not only of mechanical gears, but also of the auger itself.
2. An improved method of fastening the reel cover and the protective net of the harvester auger. This made it possible to improve the quality of sunflower harvesting (previously, the caps that fell on the net fell outside the harvester), as well as to improve the overview of the auger while working in the field.

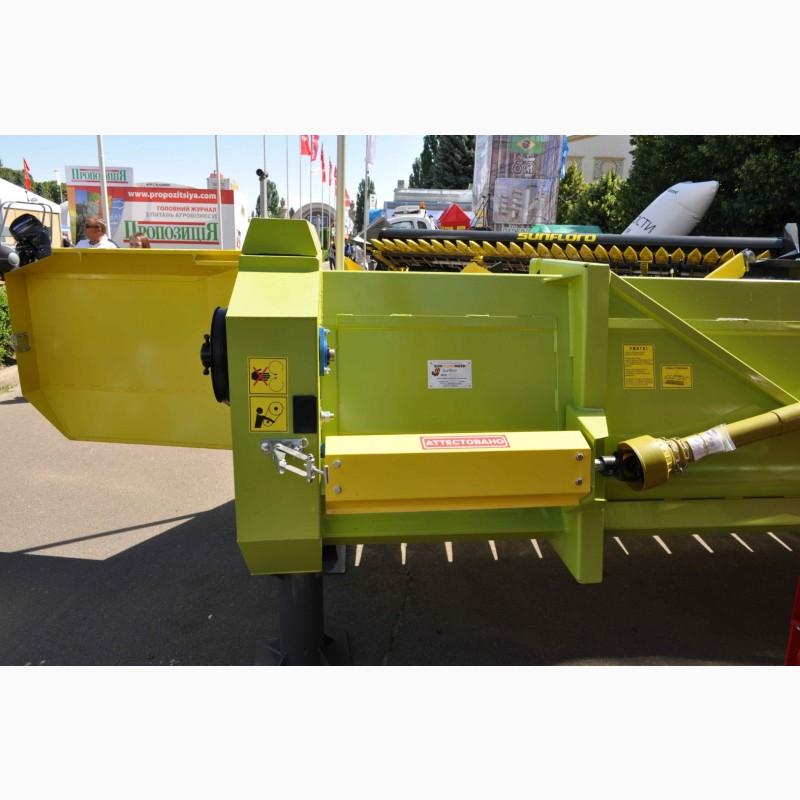

3. The resource of the cardan transmission of the harvester for harvesting Sanfloro sunflower is increased due to the reduction of the angle of collapse of its hinges.
4. Increased reliability of the auger of the Sanfloro harvester as a result of replacing the auger trunnion with a calibrated shaft that is fixed in a clip.
5. Strengthening of the frame of the harvester for harvesting Sanfloro sunflower due to the use of supporting frame pipes of a larger section.
6. The moment of discarding sunflower seeds and caps with a reel back onto the stem lifters is eliminated due to the creation of a special "seed trap" inside the harvester itself.
7. Increased productivity of the harvester for harvesting sunflower due to an increase in the cutting speed by 5%, which allows to reduce the harvesting time.
8. The shape of the toes of the lifters and the design of the Sanfloro sidewalls make it possible to provide excellent penetrating ability, as well as to separate the mass of the sunflower regardless of the direction of movement of the harvester.
9. The mass of the harvester for the Sanfloro sunflower is reduced, which allows you to consume less fuel during harvesting.
