We build a film arch greenhouse with our own hands

Even an unheated film greenhouse in the backyard is not only an opportunity to get early radishes, onions and greens, but also to get a crop of tomatoes and cucumbers much earlier, which at the same time will not depend on the whims of the weather, and accordingly, the unexpected development of diseases. So the opportunity to harvest, for example, tomatoes, stretches until the first severe frosts. And the last fruits gathered in front of them, ripening, will delight the table for a long time.

We decide on the plot for the greenhouse

To begin with, we decide on the plot of the location of the building. At the same time, it is desirable to take into account the priority of winds, to reduce the load on the structure, all-round coverage of the sun without shading by buildings and trees. But if a tree or a small structure casts a shadow in the morning or in the evening, it will not be a big problem.

In our case, it was a designated unplanted (the season was already in full swing, the greenhouse was the last to be tackled) area approximately 8 by 6 meters, which was intended for this building. A young apple tree partly provided shade from the east, but on the other hand it protected from the wind. It is already known that in the spring, the apricot freezes on that side during frosts. And the shadow from it and from the grapes nearby are not significant.

The prevailing strong northwesterly winds fall on the corner of the greenhouse, with a rollover through the arch, so the wind load is acceptable, as shown by the last storms.

Матеріал та інструмент для робіт

After a detailed inspection of the place for the future greenhouse, for reasons of circular access, open doors, etc., the dimensions of the greenhouse were determined to be approximately 6(length) by 5(width) meters. From the beginning, it was assumed that the greenhouse could be moved to another place (if needed or to change the soil), so the structure had to be demountable (at most - a screwdriver or a screwdriver, if only without a film). Based on this, we began to select the material. Of course, metal needs to be bought, and with wood they decided to make do with what was available, in particular, euro pallets in good condition and rails and unsorted beams left over from construction.

Experience of installing and operating a film greenhouse from factory arches still of Soviet production (from the dismantled greenhouse complex) was already available, as was the experience of repair work on it, combined with the replacement of the film. But moving this structure was determined to be impractical, primarily due to the length of the arches (about 8 m chord), which had to be moved 30 km away. So it was decided to cook the greenhouse with our own hands.

Of course, for this, a tool and consumables are needed, with the help of which the plan will be implemented, namely:

• a grinder;
• a brewer (inverter);
• electrodes (we used a big bundle);
• sliding tongs, clamps;|| |113
• молоток, кувалда;
• disc electric saw; =other metalwork trivia (screwdrivers, pliers, side cutters);
• електрорубанок (можна було обійтися, але хотілося гарного результату, та й плівка цілішою буде);
• інша слюсарна дрібнота (викрутки, плоскогубці, бокорізи);
• roulettes, including 20 m (I already had one).

I also needed twine for marking and checking diagonals.

For a light construction, it was decided to use a metal profiled pipe 15x15 mm and a rod with a diameter of 10 mm. For a length of 6 m, it was decided to make 8 arches.

For this, the following were purchased at the metal base:

• for the top of the arches, a profiled pipe 15x15 - 6 m long, - 8 pieces; arches and other needs, including connections);
• для низу арок прут діаметром 10 мм та довжиною 3 м, - 16 штук (та ще стільки на армування арок та інші потреби, зокрема з'єднання);
• for racks, a profiled pipe 15x15 - 2 m long (but it turned out that it could be shorter), - 16 pieces.

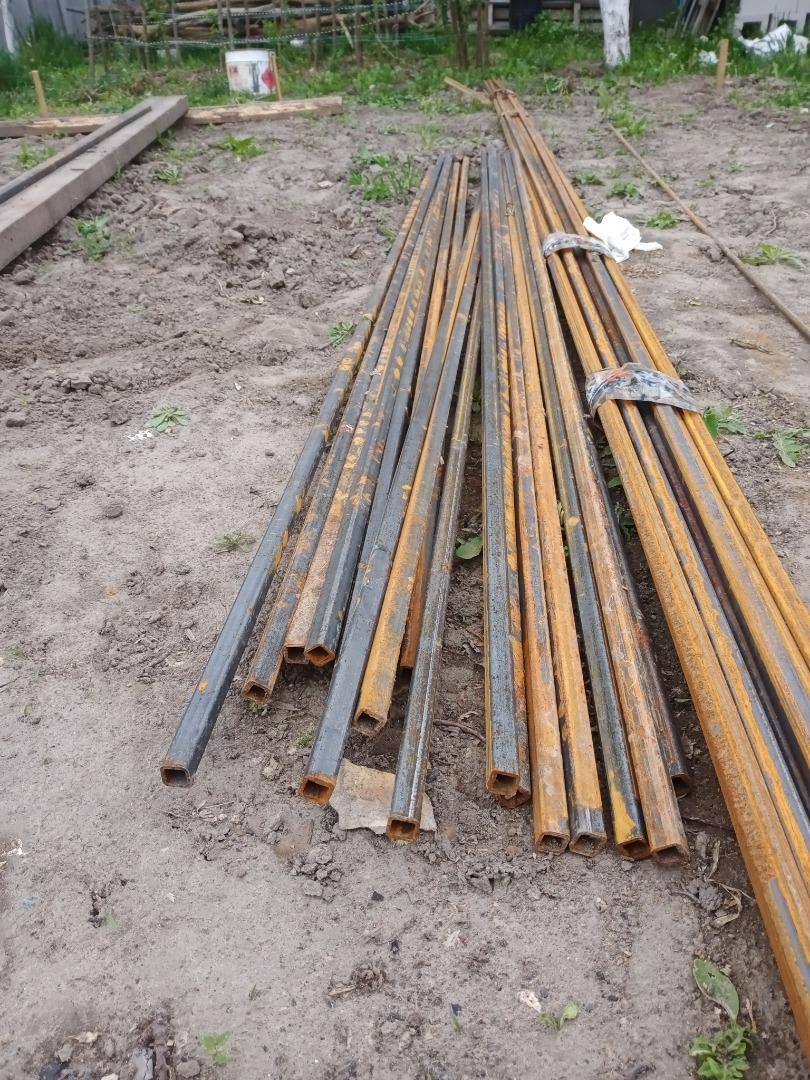

Prepared metal for the arches and posts of the greenhouse.

The profiled pipe 15x15 mm and the rod with a diameter of 10 mm are well connected to each other for a minimum of welding and at the same time a tight fit for the collapsible structure. At the same time, an arch of such weight was obtained that the two of us could easily assemble the structure on the racks.

Of course, an oversized vehicle was needed to transport such a length, for which many thanks to the neighbor with the bus. There was no tool for arc rolling on the metal base, but as it turned out, this is a rather expensive procedure. However, the final decision regarding the width and height of the greenhouse has not yet been made. And there were ideas on how to do it yourself, which we will talk about later.

Calculation of the dimensions of the arch of the greenhouse

To calculate the dimensions of the arch, the length of the profile pipe 15x15 with an arc length of 6 meters and chord length of 5 meters for making 1 arch. Because it was unknown how the material would behave during the welding process, which in the end paid off.

I was lucky to come across a convenient online calculator for calculating a circle segment on the Internet (https://planetcalc. ru/1421/), which was used for the calculation.

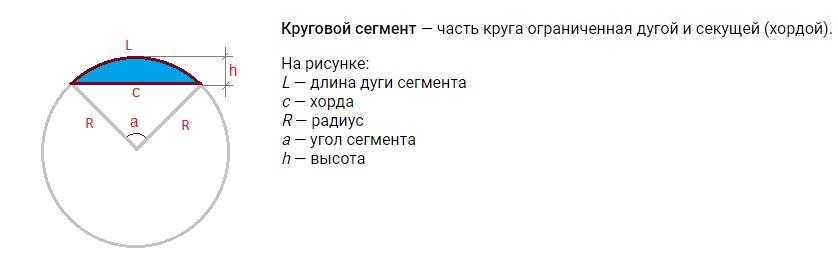

The figure illustrates the notation in the calculations

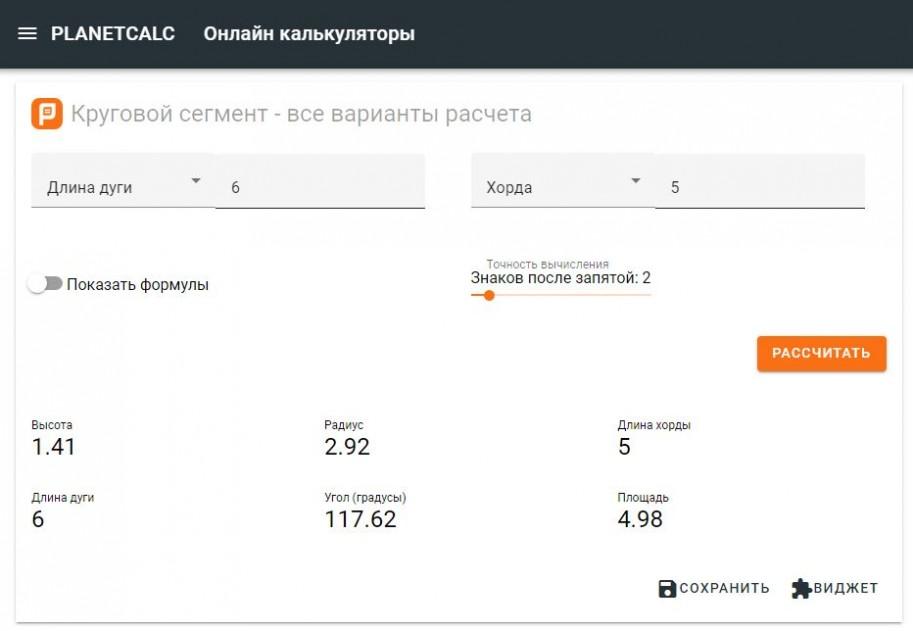

A fragment of the online calculator, which was used to make the calculations (https: //planetcalc.ru/1421/, calculation "Circular segment - all calculation options") with calculated dimensions for our structure.

The resulting height of the arch was absolutely acceptable, while ensuring snow drift in winter and moderate wind load. And also - the height of the work in the greenhouse on tying.

From the calculator, we actually only needed the radius (2.92 m) and the height of the arch (1.41 m), the other dimensions were dictated by the blanks.

Manufacturing greenhouse arches according to a homemade template

For implementation, a relatively flat area on the site of the future greenhouse was chosen for marking the template. The well-compacted soil after winter also contributed to this.

Further process in the photo.

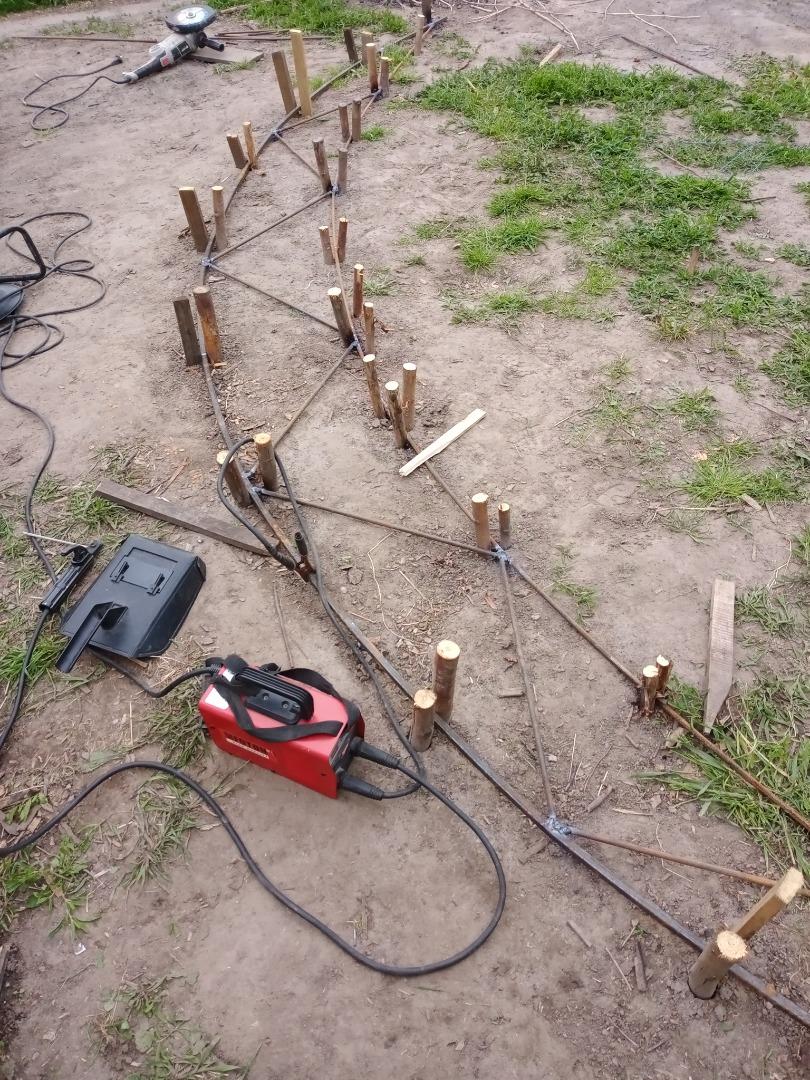

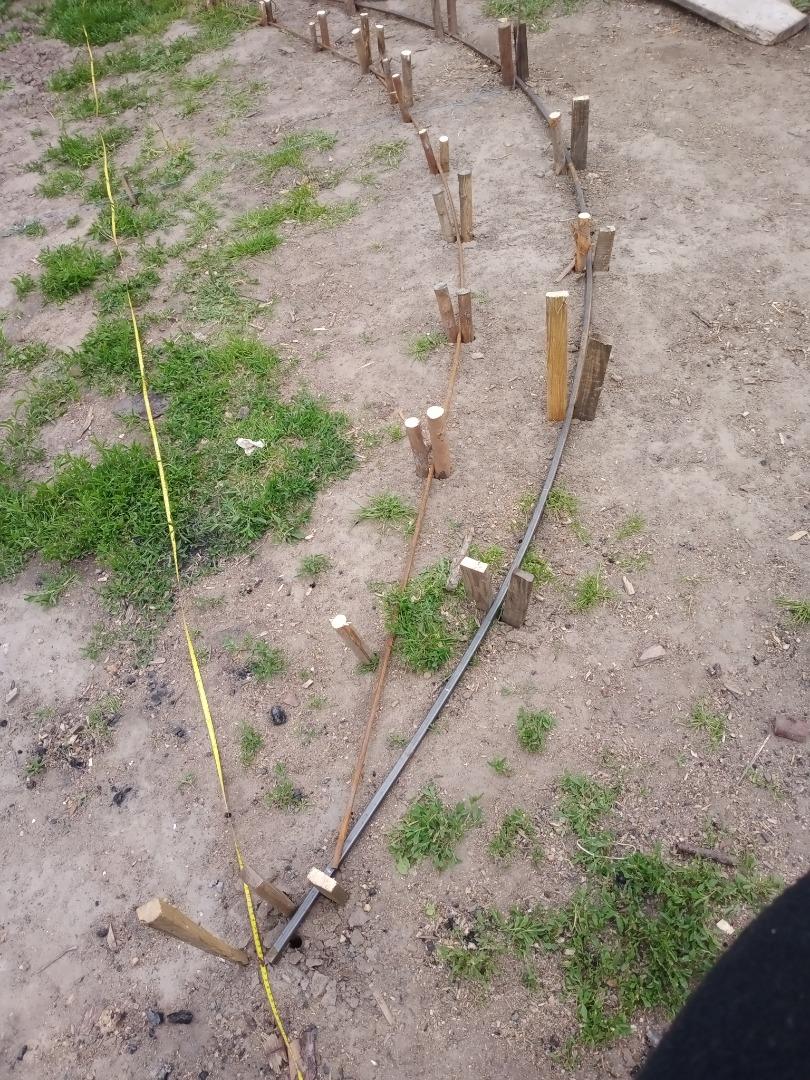

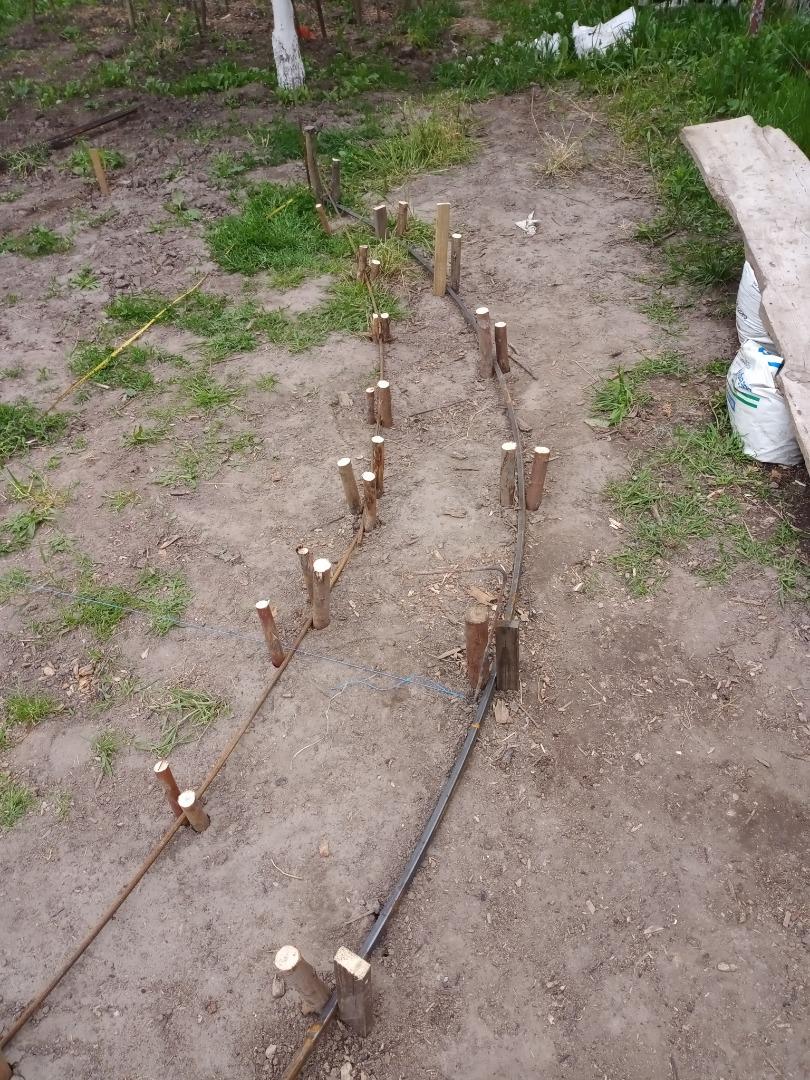

For the manufacture of arches, pegs 0.5-0.6 m long were used to punch out a template according to the dimensions. A 5-meter chord was taken as a base, to which the center of the circle was found based on the height of the arch and its radius, then an arc was drawn with two pegs and a piece of twine. Profiled pipe is flexible enough for this, so you can do without rolling.
The lower part of the arch was also punched out in steps of 0.5 m from the center (top) of the arch at distances of 38 cm, 36 cm, 30 cm, 25 cm, 15 cm. This was done to some extent experimentally for the width of the arch, which suited and provided structural strength.

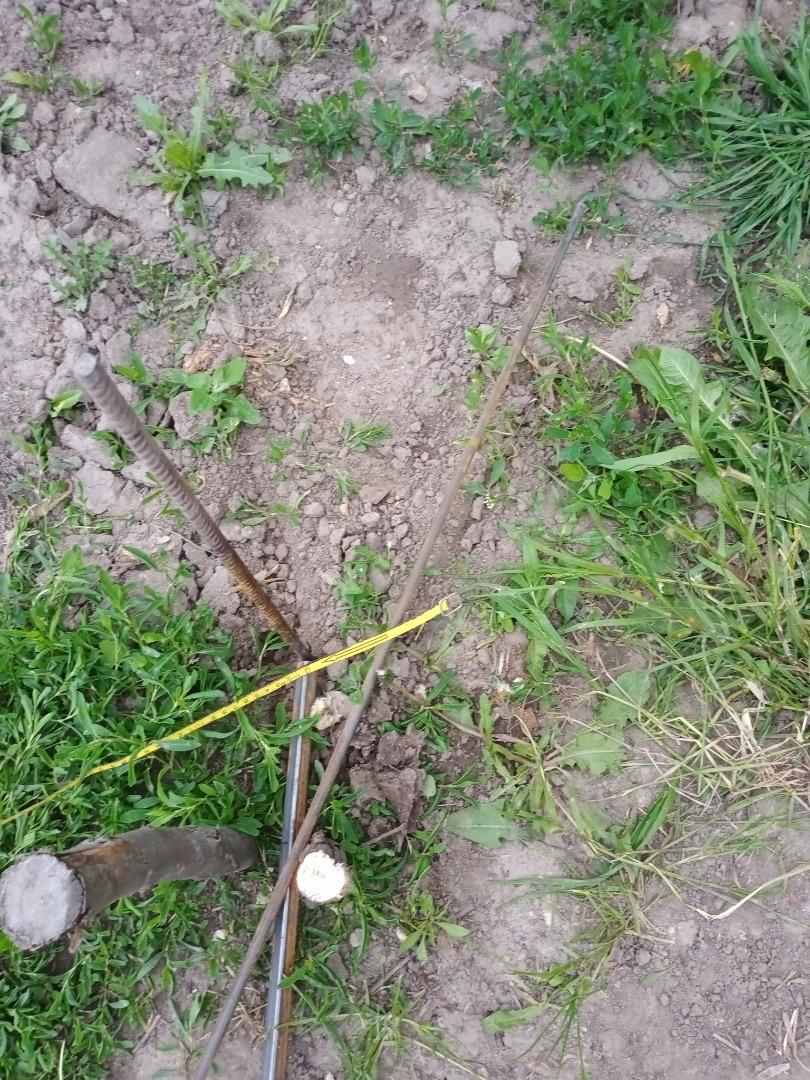

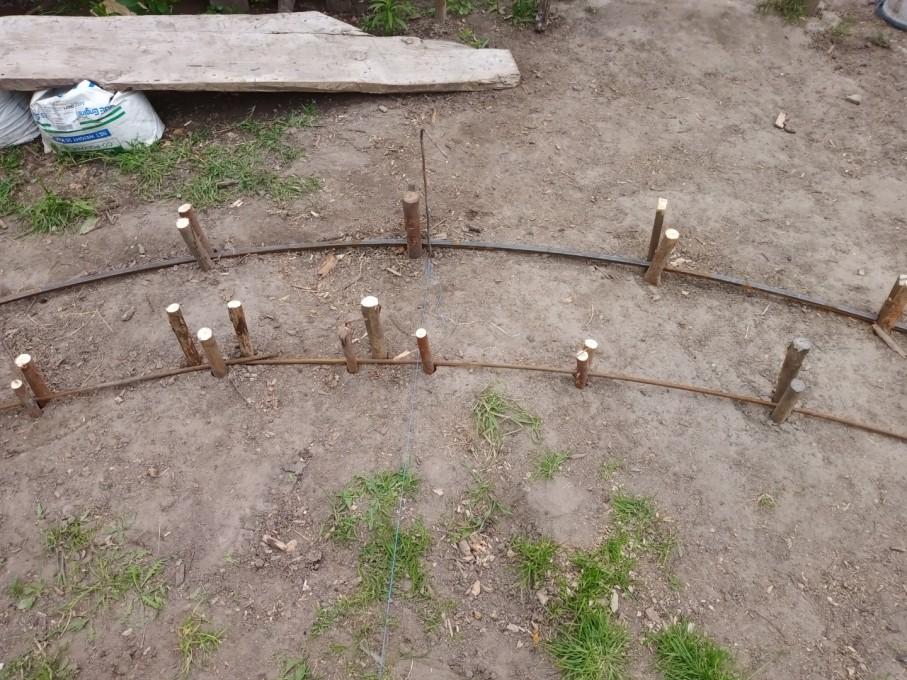

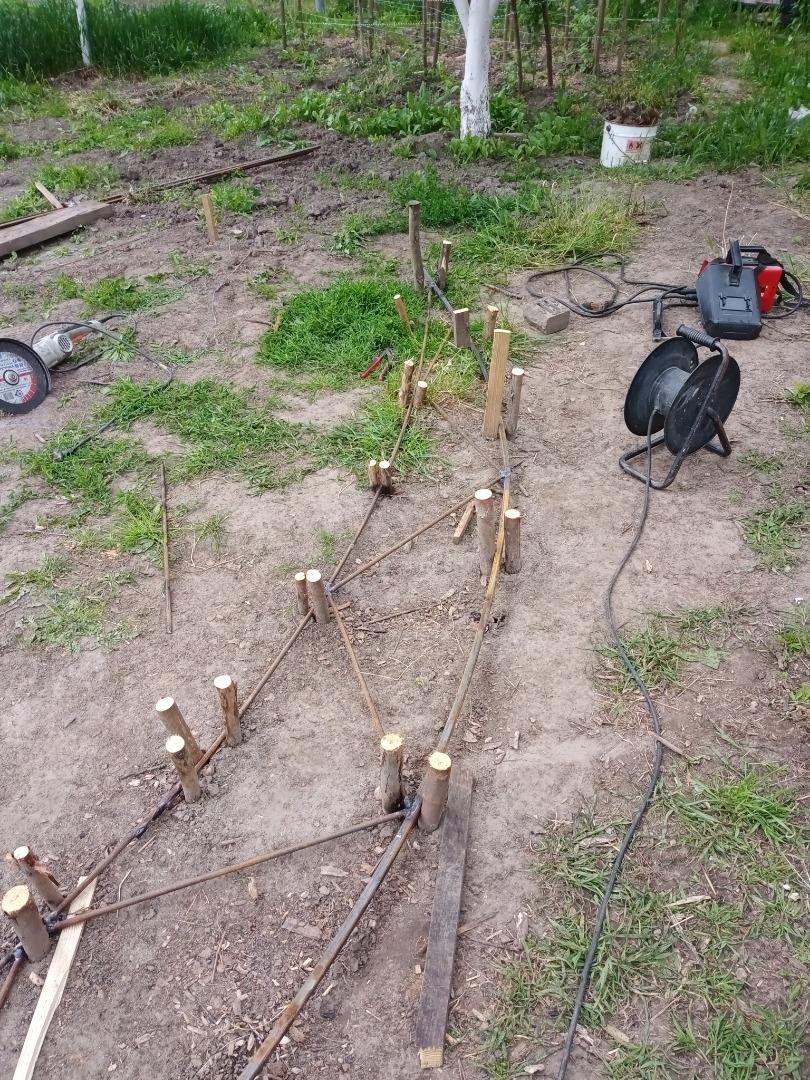

Center of circle, basis for marking. The radius of the twine is oriented in the photo to the center of the arch.

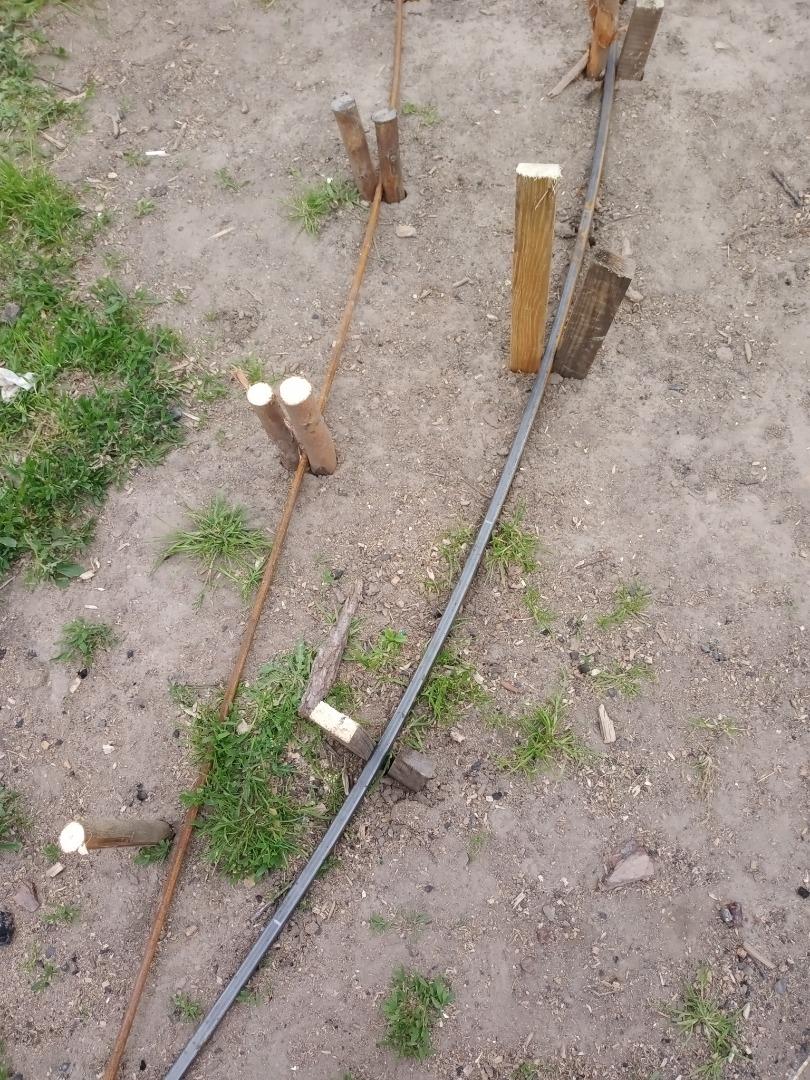

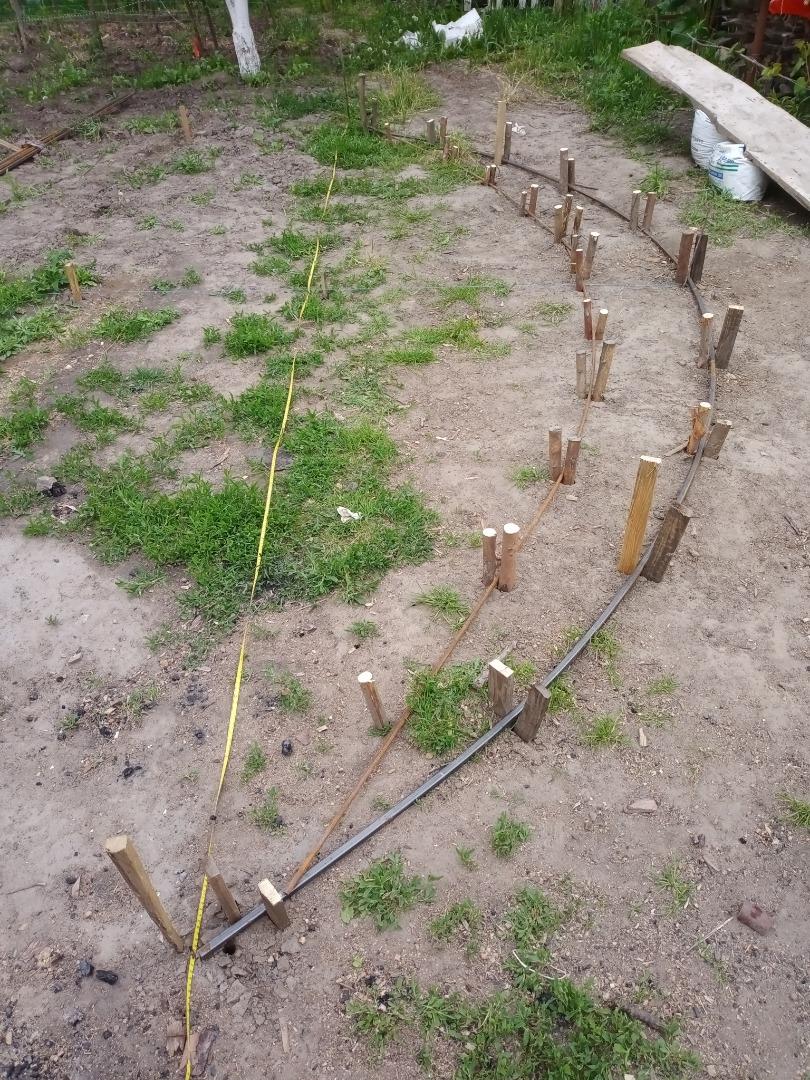

Checking the correctness of the template with the embedded profile. The chords were 5 m long.

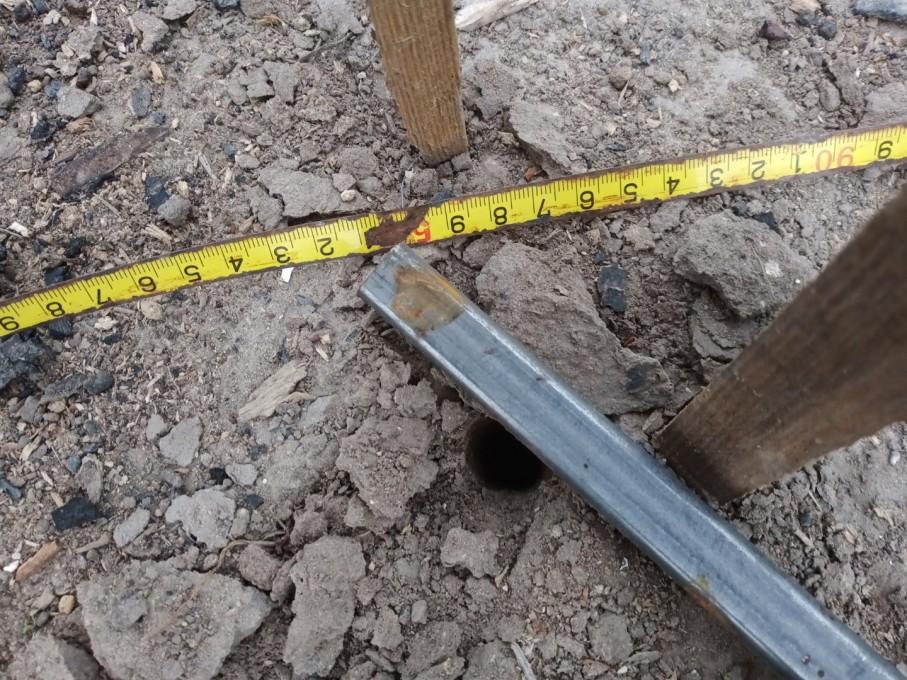

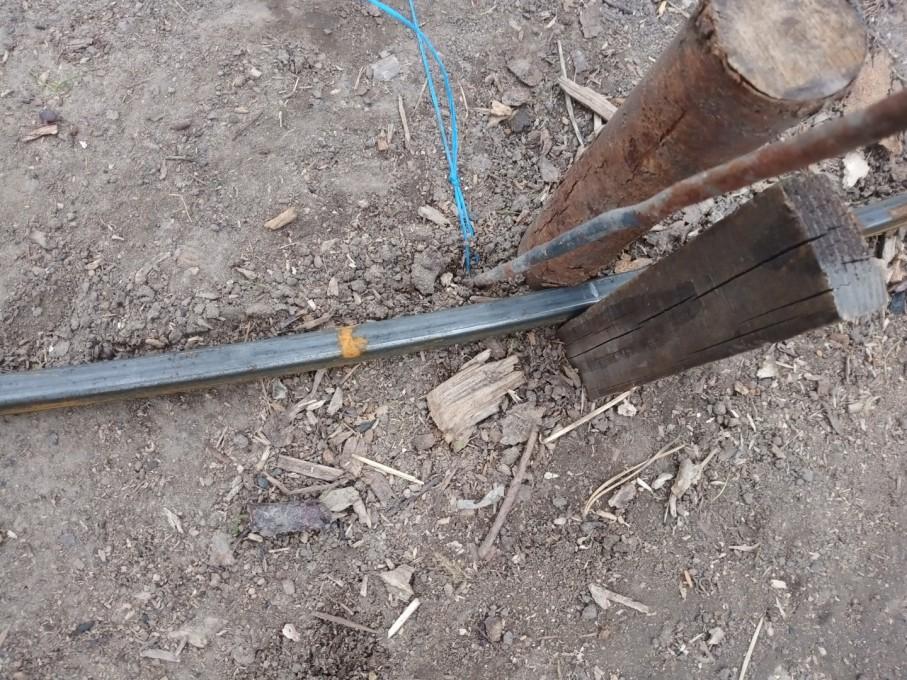

Marks on the profile, through which the dimensions of the bottom of the arch are reflected according to the above dimensions.

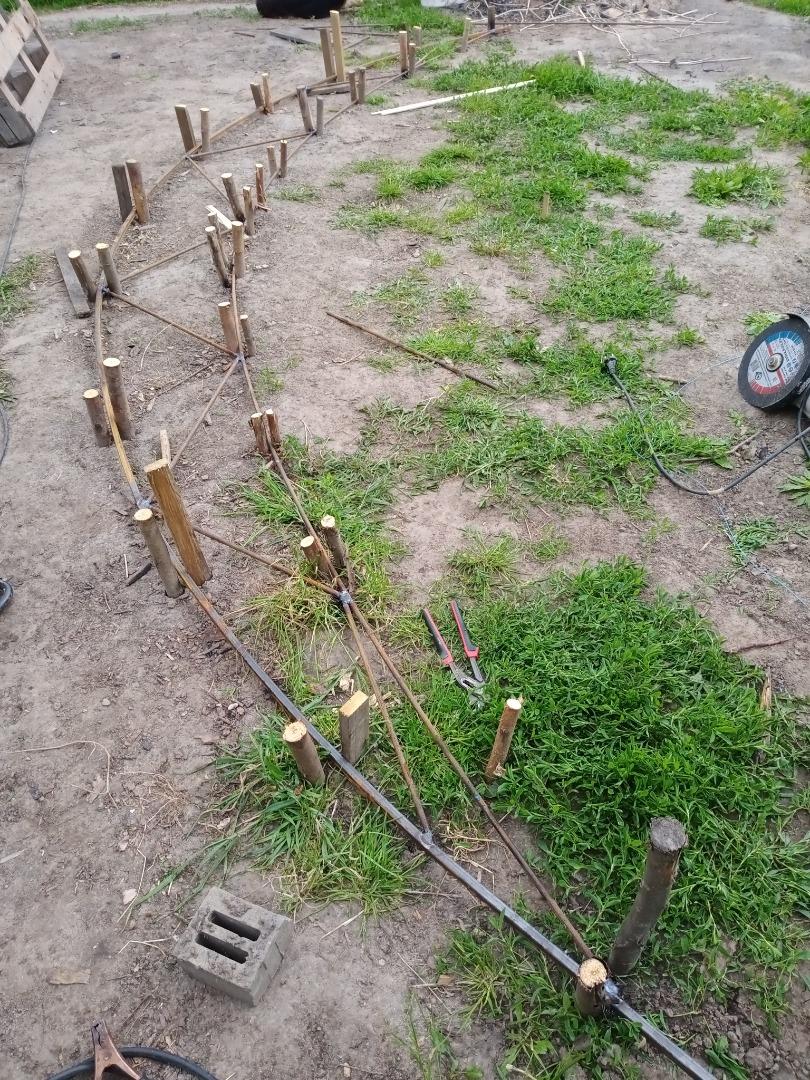

View of the marking from above.

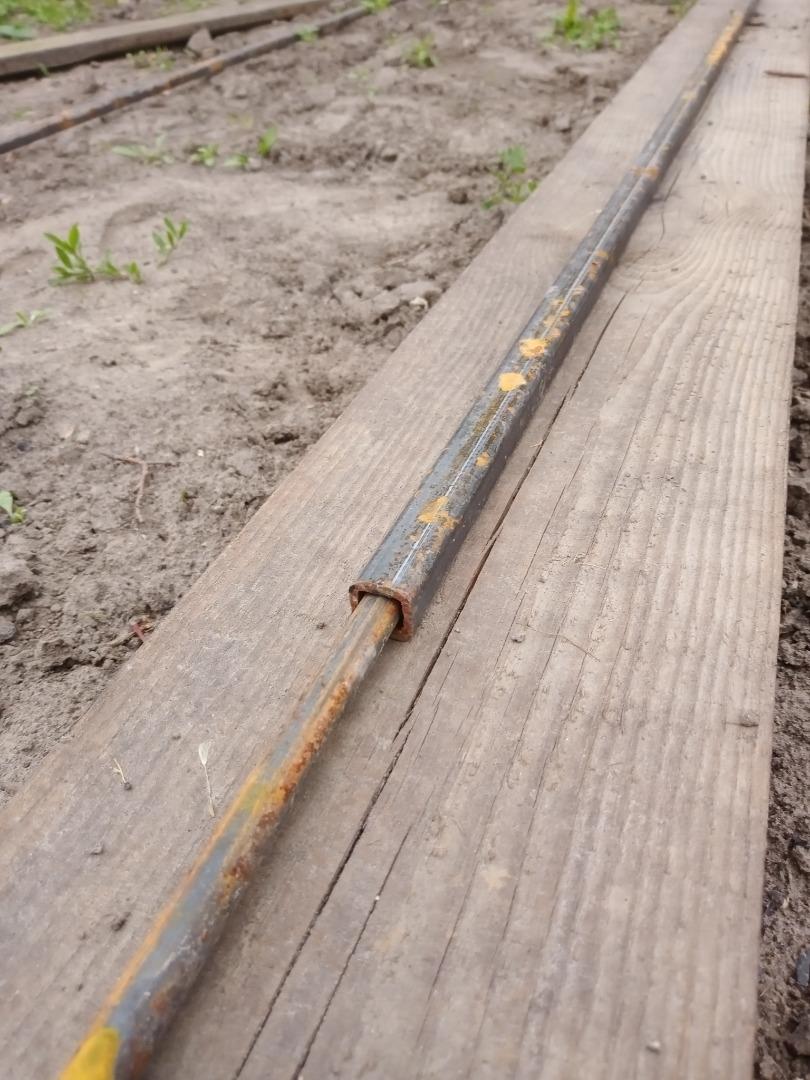

The lower part of the arch is folded from two rods 3 m long with a certain excess. Before laying, it is advisable to cook them separately. At the ends of the arch, 15 cm of the profile remained for "hot" bending (heating with an arc) for a detachable connection.

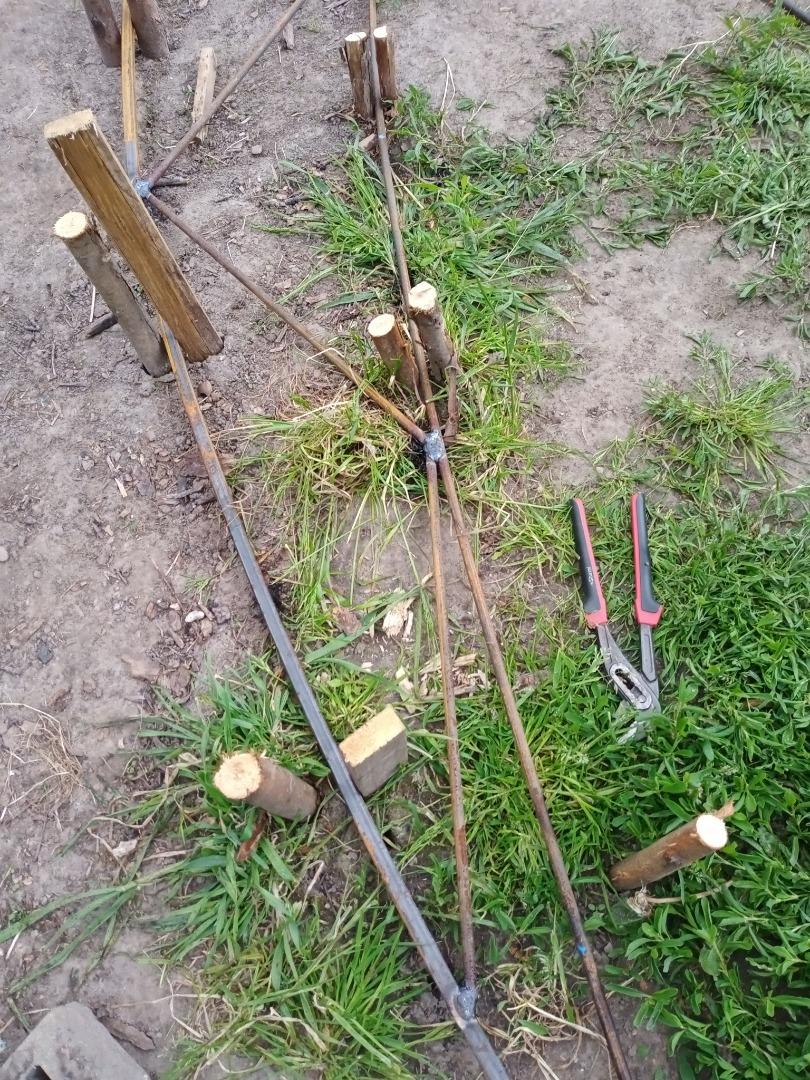

Excess of the lower part of the arch for trimming. The piece will go under the reinforcement of the arch.

In the first arch, the lower part was not welded in advance, but already in place.

Center of the top of the arch. The profile was divided with a label in half and placed between the pegs (by the way, the strongest and thickest in the template)

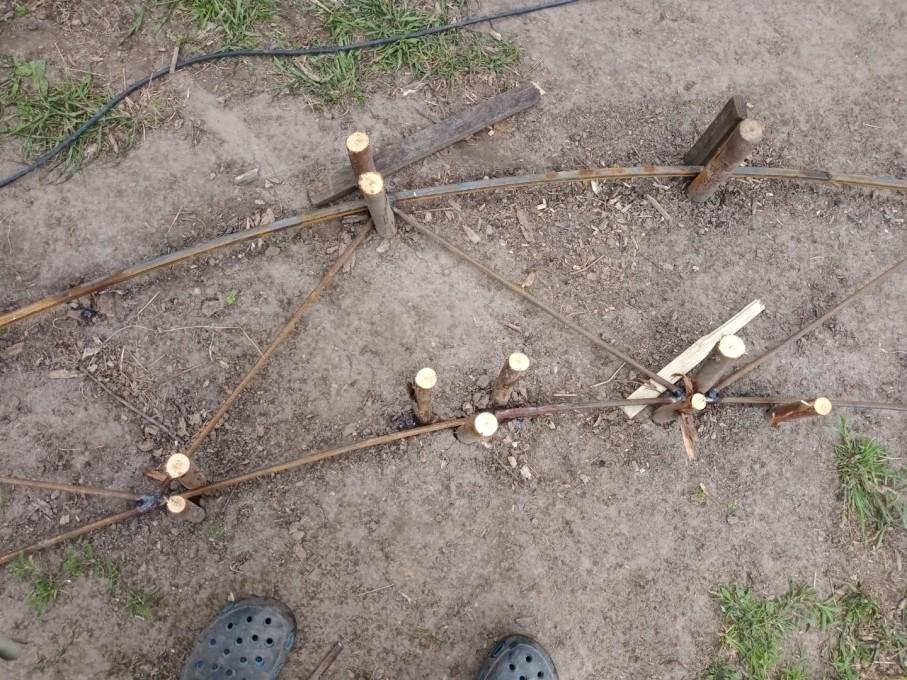

Further welding works. Pieces of the rod for reinforcement were determined by location and cut with a grinder. based on the center, marks on the outer arch after 50 cm and radial marks from them, punched out with the columns of the template on the lower part. It turned out to be somewhat inconvenient that the columns were punched out exactly on the marks, so it was somewhat difficult to bypass them in the work.

Method of welding. Both sides were boiled.
It turned out to be unexpected that the profile was bent with twisting. So it had to be leveled by force and released by welding and fixed by reinforcement. This was not characteristic of the entire profile, but only of 3 pieces. Obviously, this is precisely the defect of the technology of its manufacture, and not the chosen technology for the arch.

Just those uncomfortable places...

Another angle...

Finished arch. And 7 more of these, make and weld the lugs for fastening the tree, bend the ends of the arch and paint with 3-in-1 rust paint.

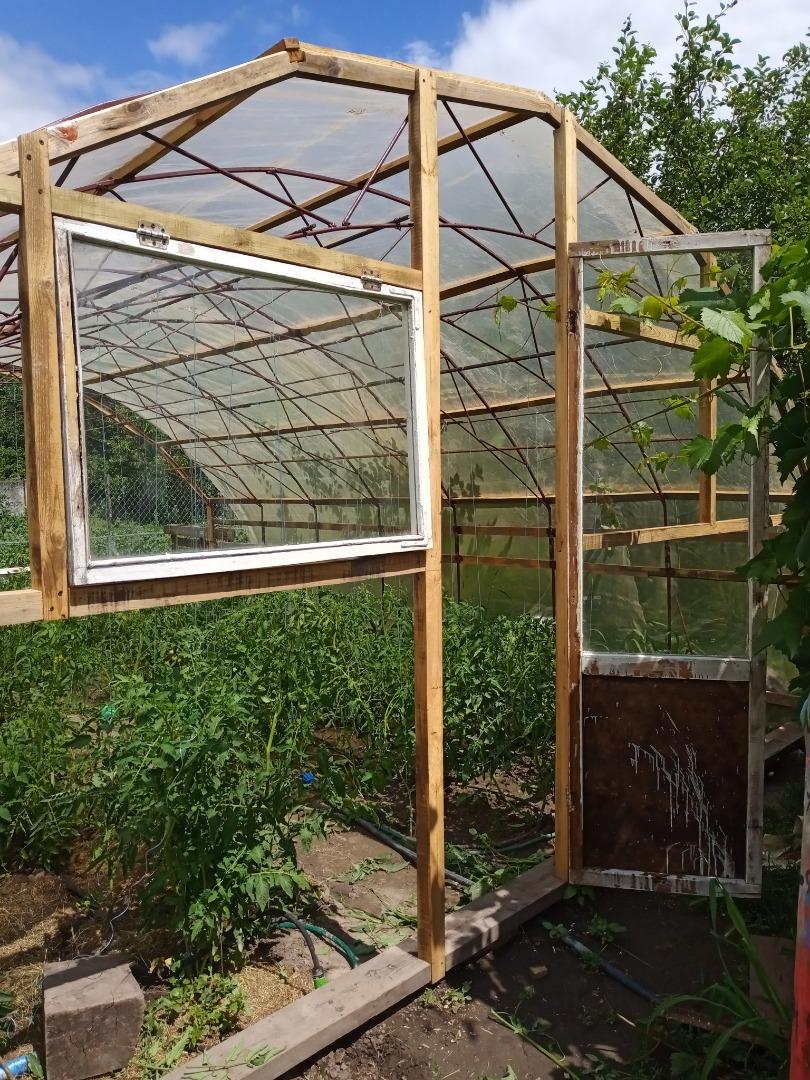

Overview of the finished structure and obtained real dimensions

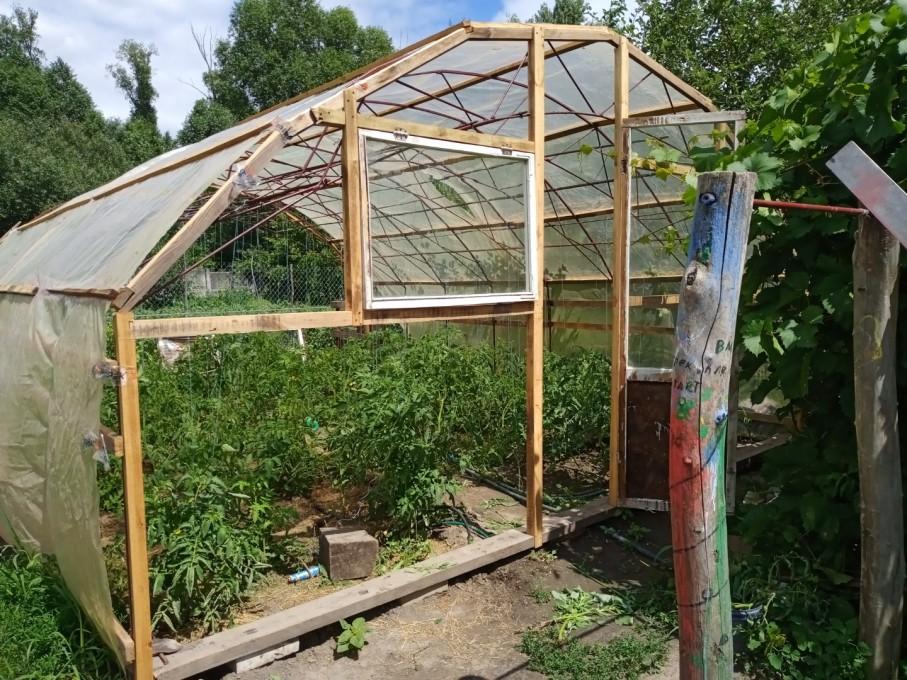

Finished structure, but not yet covered with a permanent film.
For the ends, existing wood and long-dismantled wooden windows and doors were used, but not completely, but only individually. The wood still needs protective treatment, but that will come later.

It remains to be covered with a film.

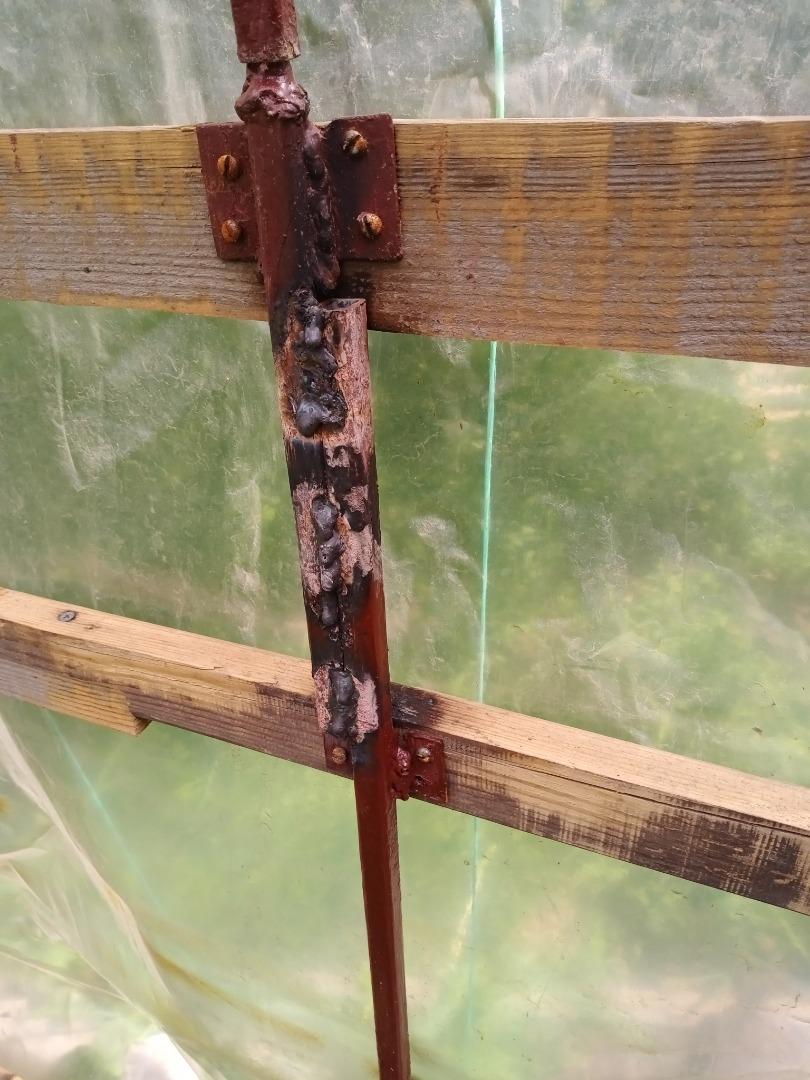

This is what the arch in the middle looks like for the collapsible connection. Hot bending is also reinforced by top welding. When bending, the profile partially tore, so holes had to be welded. The crate is wooden, from the boards of euro pallets.

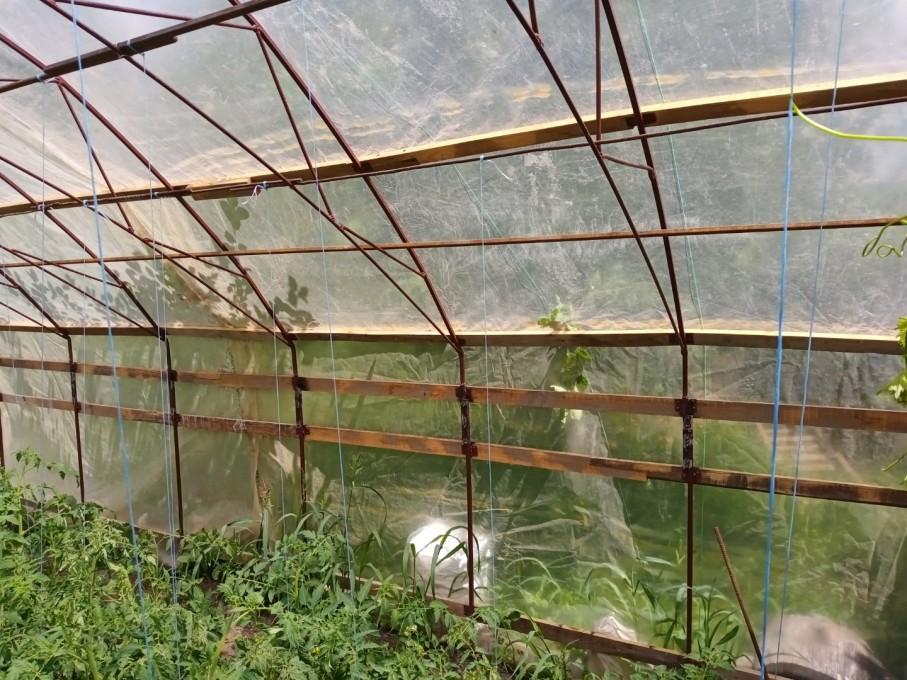

Construction from the middle.

And this is the result of using 2 meter posts: 50 cm went into the ground, but 1.5 m above it led to too high a design, in particular for tying. So the already finished structure was shortened in place.

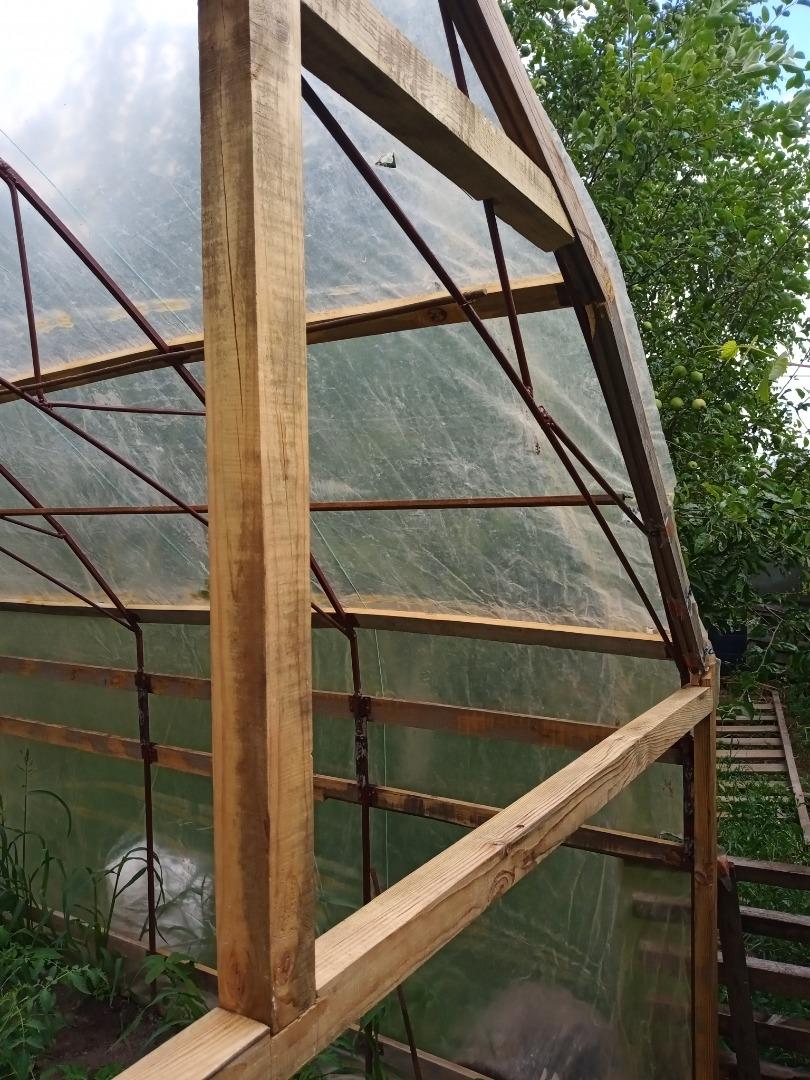

The corner is the southeast corner of the greenhouse. The collapsible connection of the arch and the rack is fixed by the lateral (in width) lath of the greenhouse.

Several laths of the lath are made solid to strengthen the structure and primary connection.

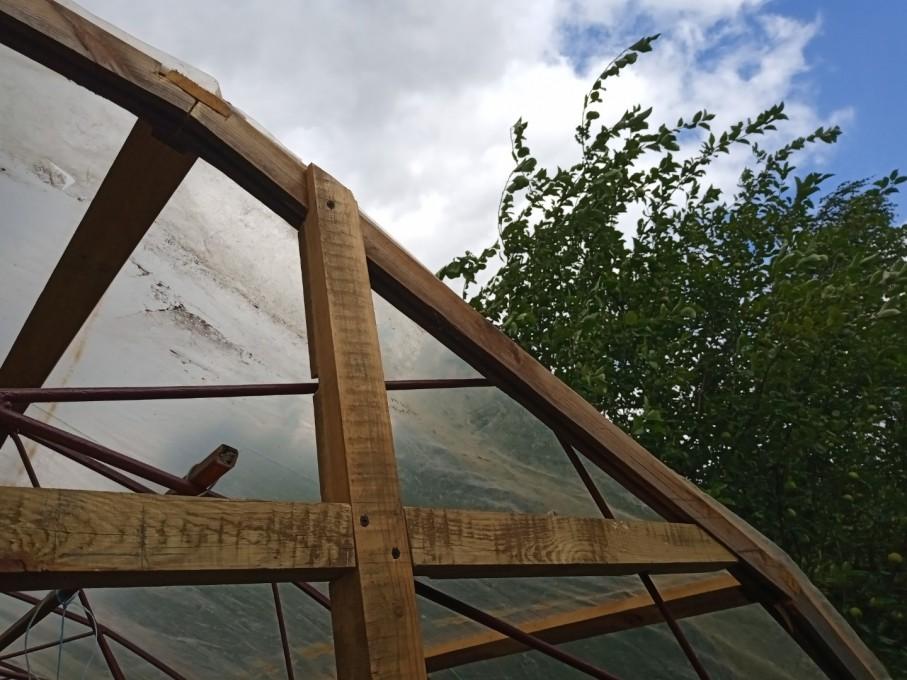

Final maximum height of the arch and wooden upholstery.

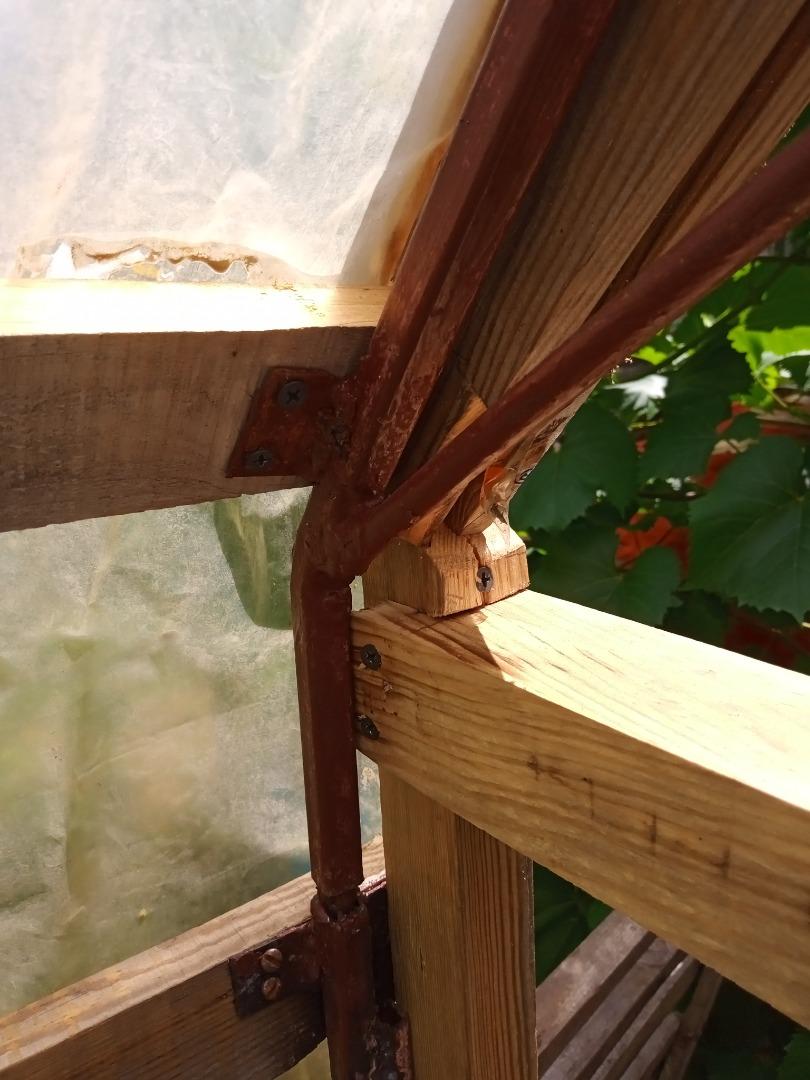

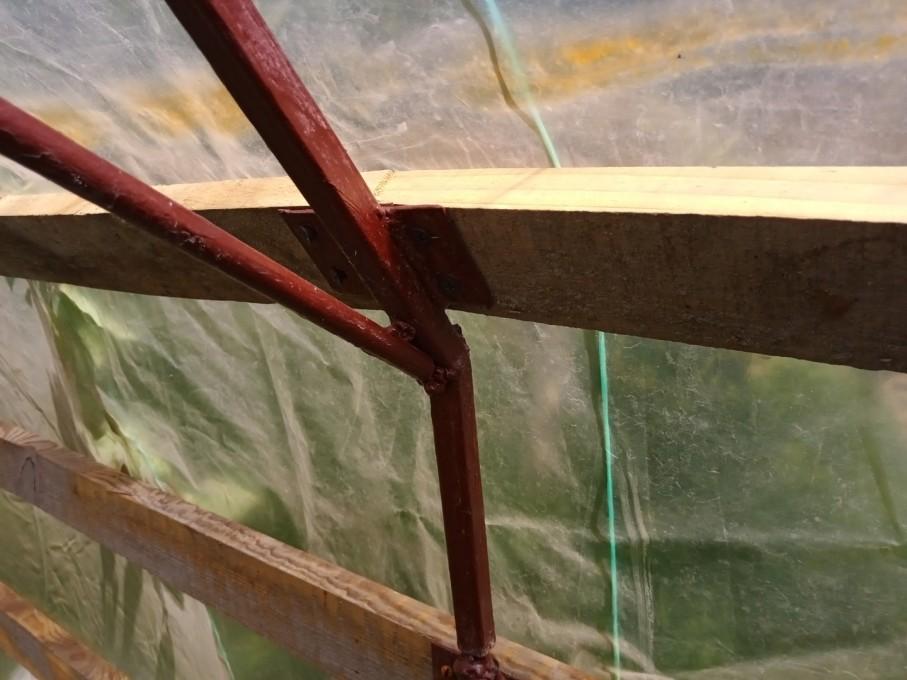

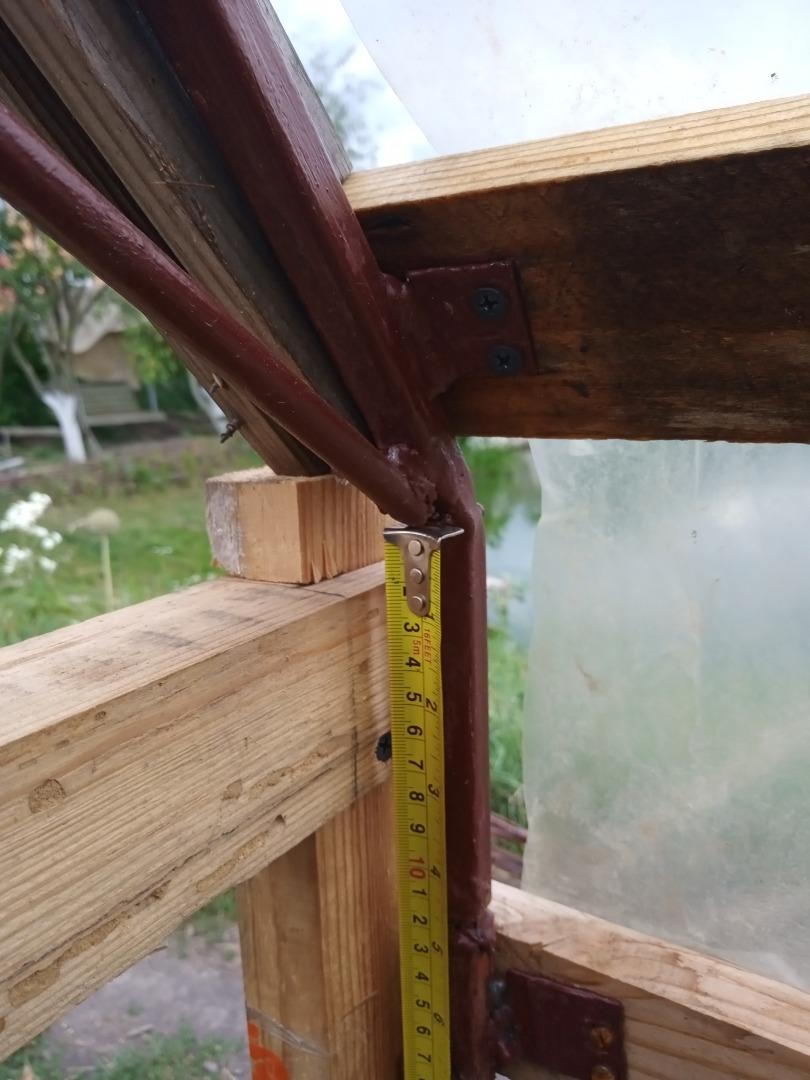

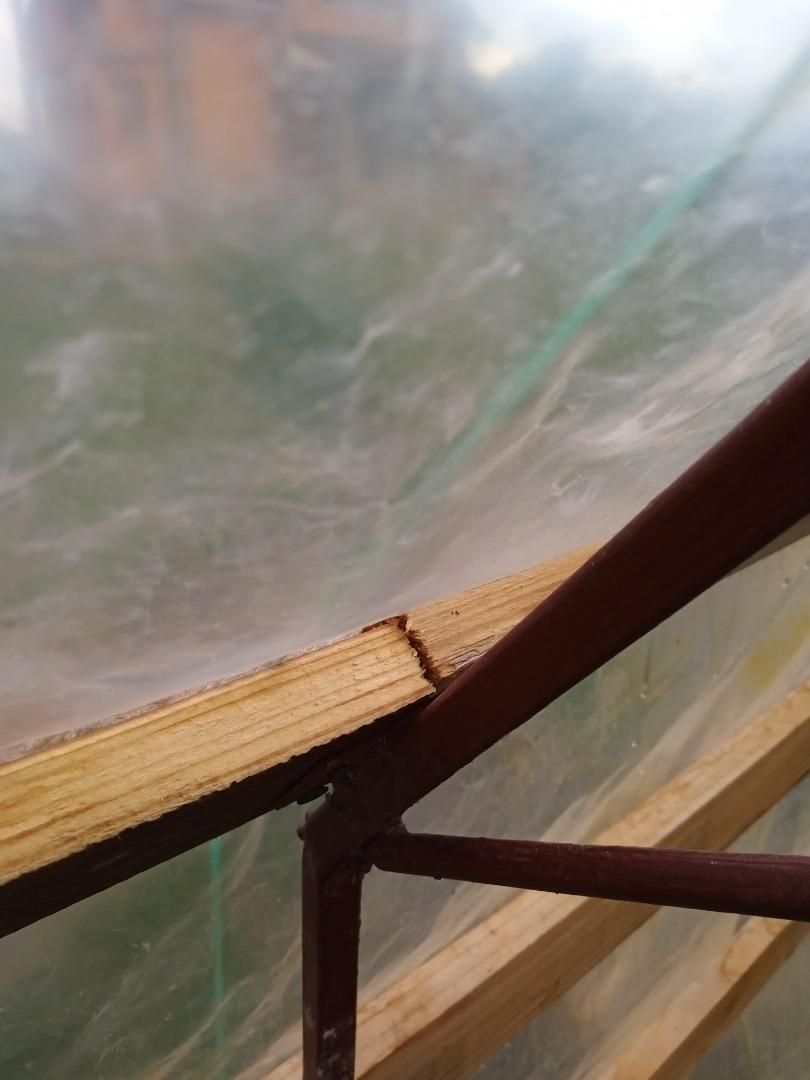

Height and construction of the connection between the arch and the post. Fastening the wooden crate to the posts and arches with such lugs. Making them took some time, as well as finding the material. Currently, only metal tape with a thickness of 4 mm is on sale at metal stores!

Parts of pallets were used for wrapping. This does not affect the strength of the structure.

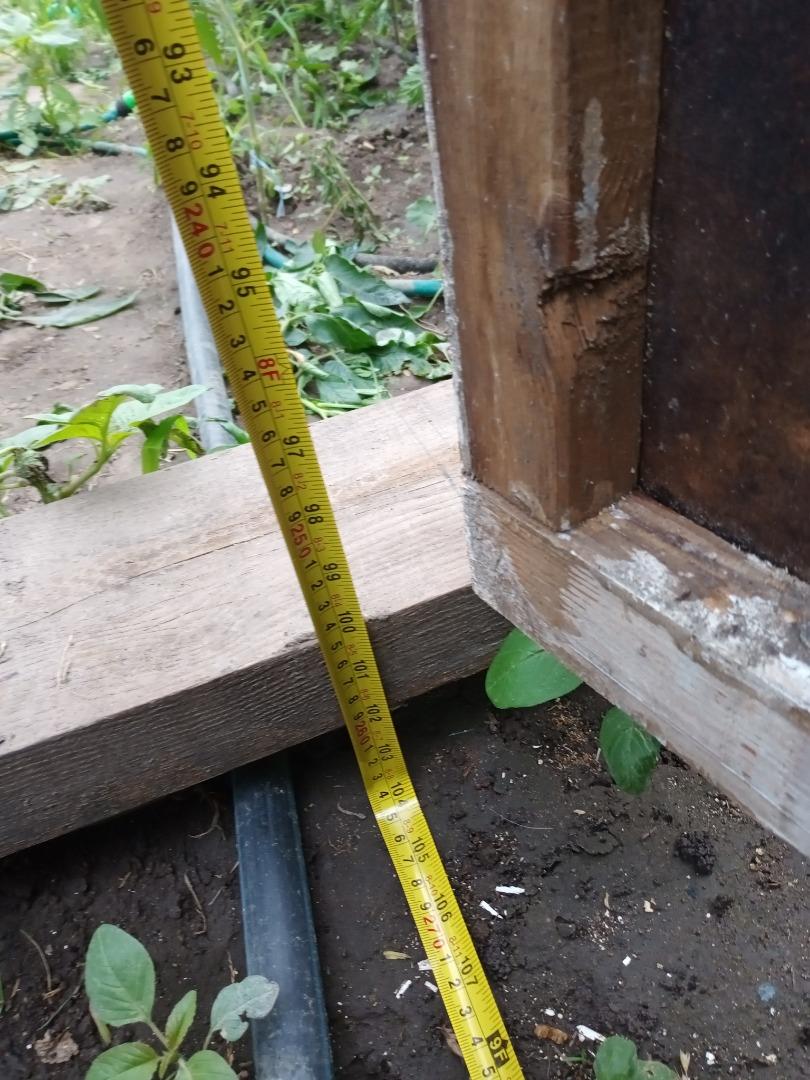

Final height of the side wall (originally planned to be 1.5 m)

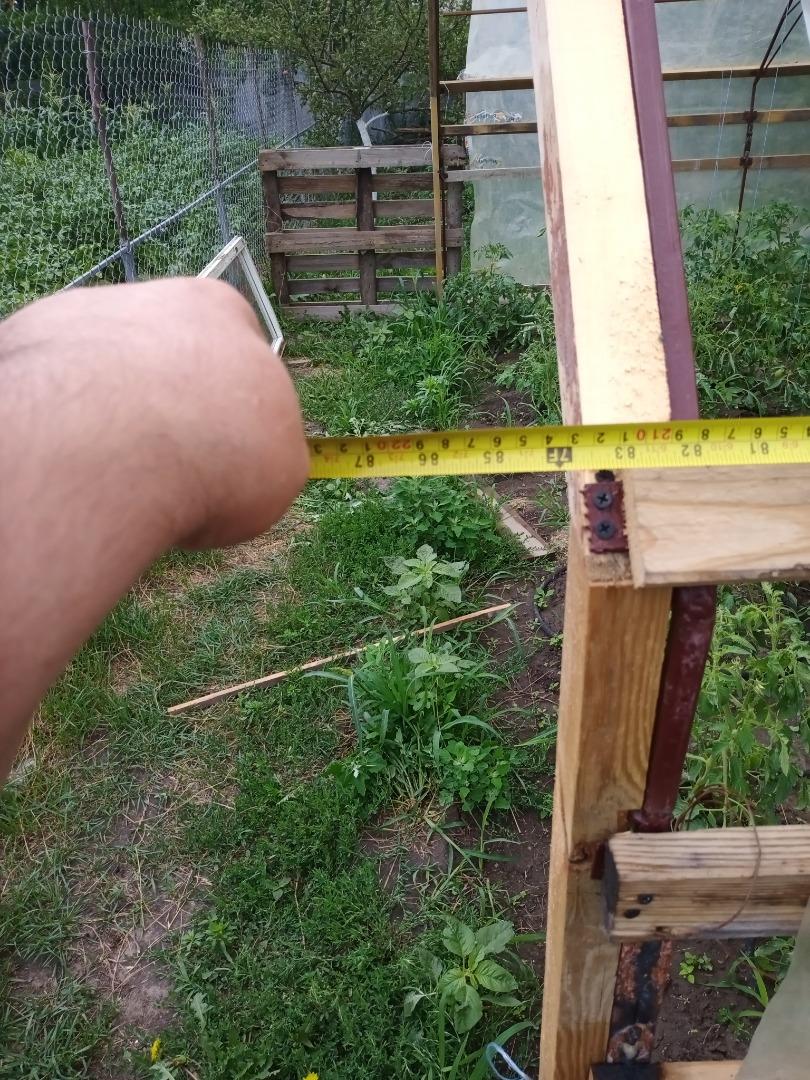

Final width.

The final length (+ 4 m, because 5 m was measured with a tape measure)

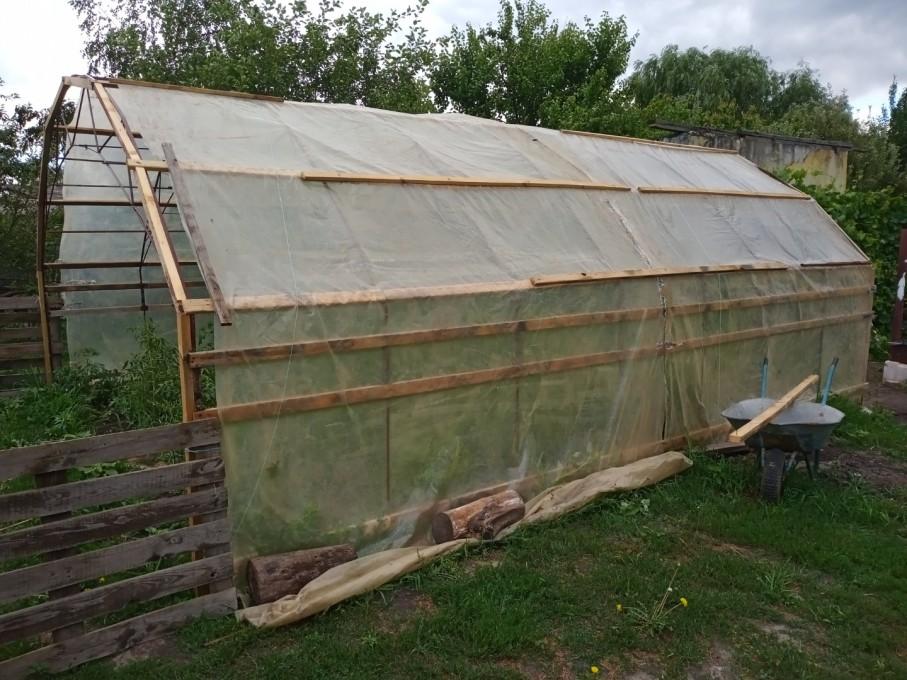

Temporarily, for the next season, the structure is covered with a film of 2 arcs (3 m wide) so as not to transfer a new film.

The method of fastening end structures. Notches and self-tapping screws.

One more angle.

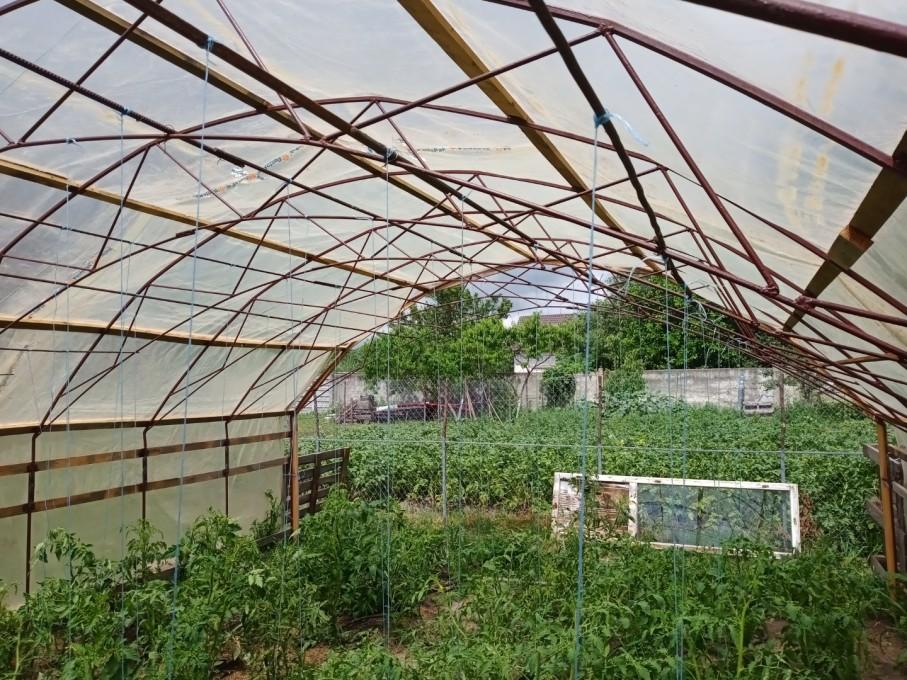

Tomatoes are already growing in the greenhouse, they are tied up, water is supplied and drip irrigation is arranged from leaking hoses.

У підсумку

We hope this experience will be useful to you. In general, in a hurry, in fact, on weekends, these works took about a month. With intensive, it will be much faster.

Of the design errors that were corrected on the spot - only a mistake with the height of the racks. So pay attention to this and measure the assembled racks with arches on the ground for height.

You can do without a wooden crate, but then you have to be clever with the connection with metal (the same rod, for example), and how to fix the film. The frame must be painted. It is also advisable to put on the arch, for example, a polyethylene pipe with a diameter of 20 cm, cut lengthwise. It is labor-intensive, but the film will not rub off in the contact areas.

The greenhouse can be heated with the same stove (we will talk about heating greenhouses in the following articles) to extend the season. But this is additional trouble that should be justified. But it will certainly not be superfluous during frosts, as in the 2020 season.

Have a good harvest and enjoy the result!
