Motoblock Forte HSD1G-105G - reliable and an undemanding assistant in the household

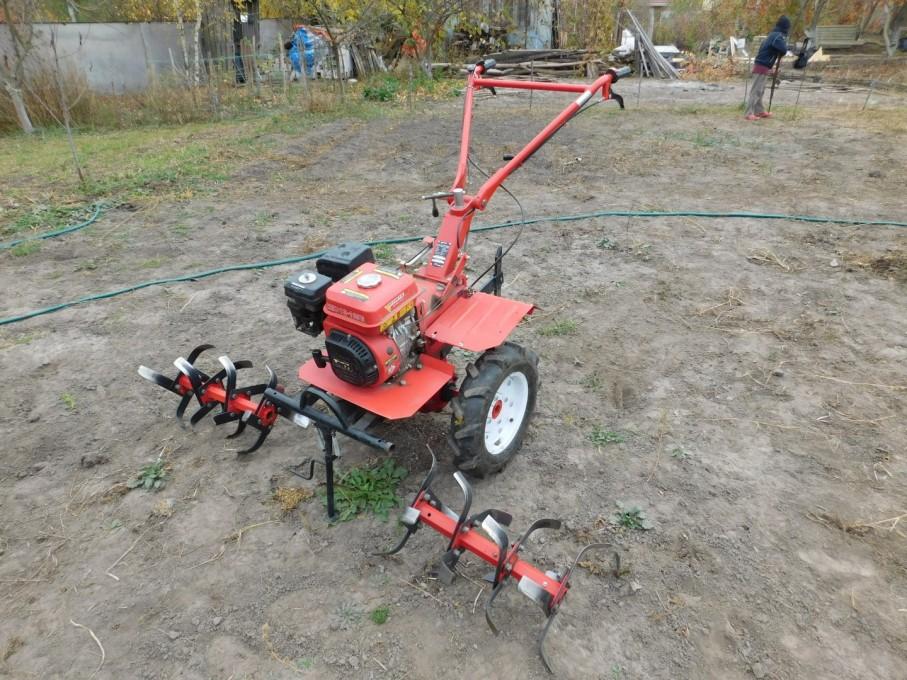

General appearance of the walk-behind tractor. Cutters are prepared for changing wheels. And also, the total grip width is 105 cm, but it can be adjusted. The cutters are collapsible, in fact each one is somewhere in the ratio of 2:1.

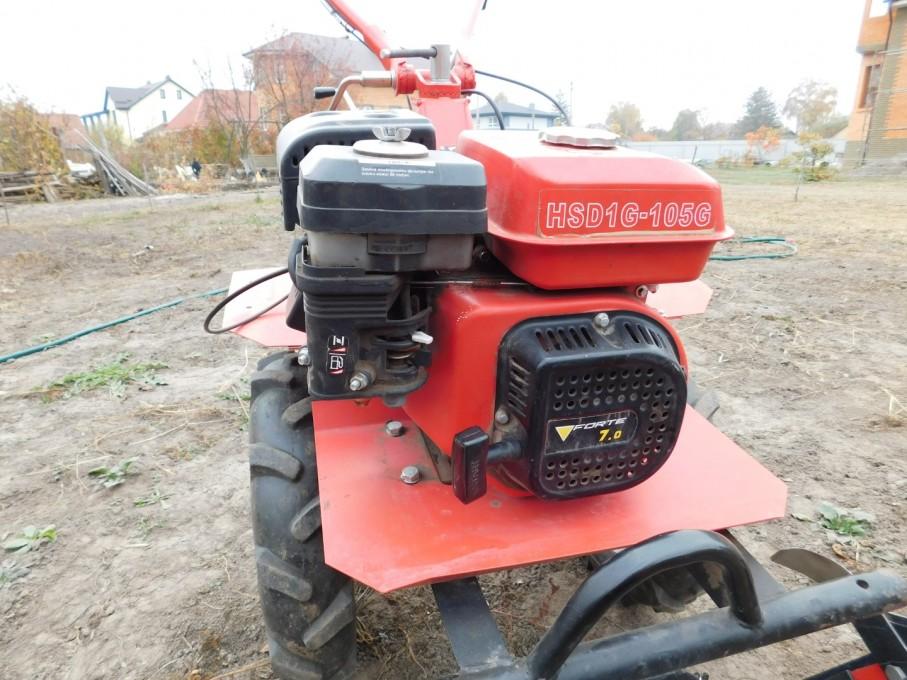

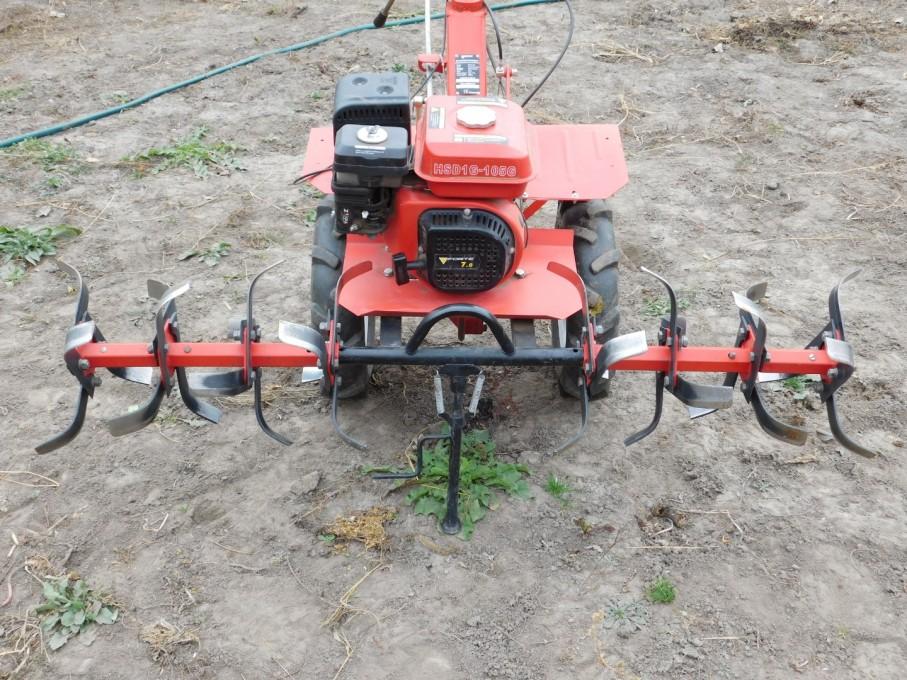

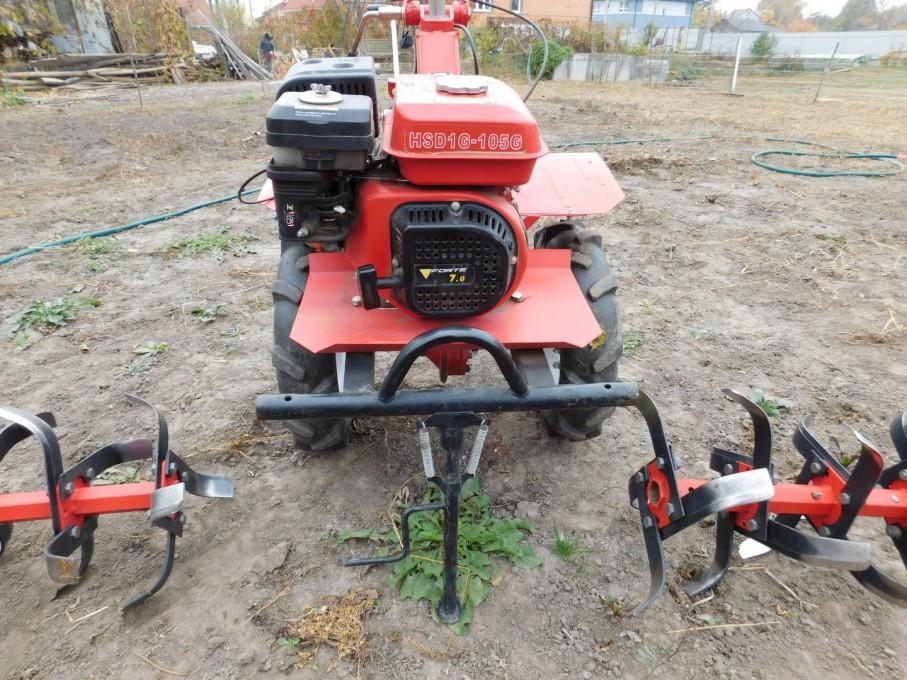

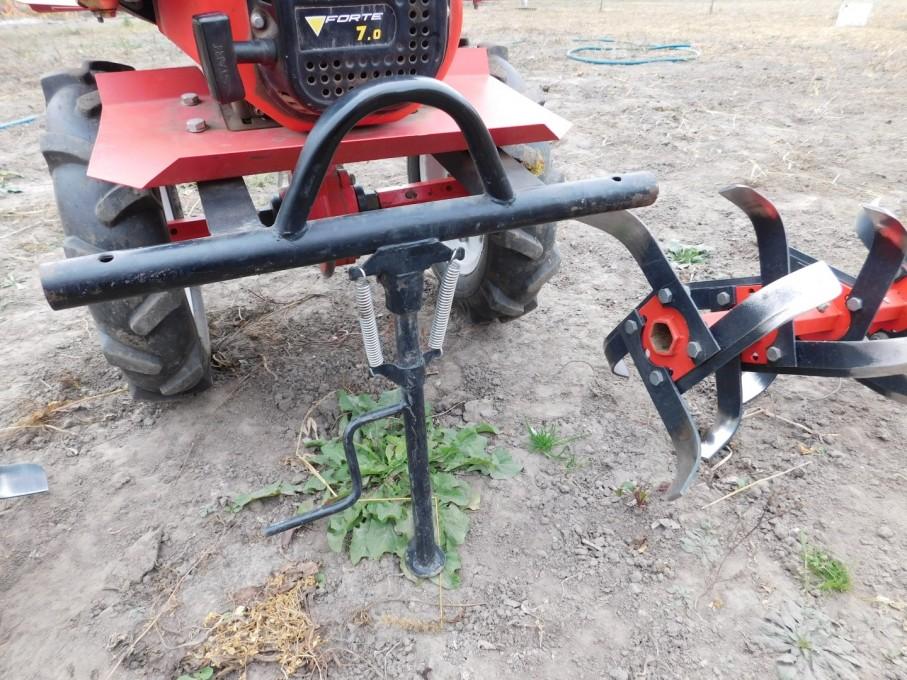

View of the walk-behind tractor from the front: we can see such an interesting feature as the possibility of transporting the cutters on a part of the structure with a support leg.

Here, if necessary, you can hang weights for working with heavy soils with cutters or a plow. And it does not necessarily have to be factory, after all, anything that does not disturb the balance of the unit. I will say that such weights were even a small landing on top, he was very interested. But, of course, you shouldn't do that. It's not a horse after all.

The starter in this motoblock is manual, but fail-safe (thu-thu-thu). But... in a year or two he had to go through it - he didn't turn the rope all the way and wedged it. It turned out that the fault was the factory lubricant of the spring, which thickened with dust almost to resin. The fact is that the cooling fan impeller is structurally behind the starter, so it draws dust. So, after work, if there is an opportunity to blow with the compressor here and around the engine, it will not be superfluous. Or at least with a brush, for peace of mind.

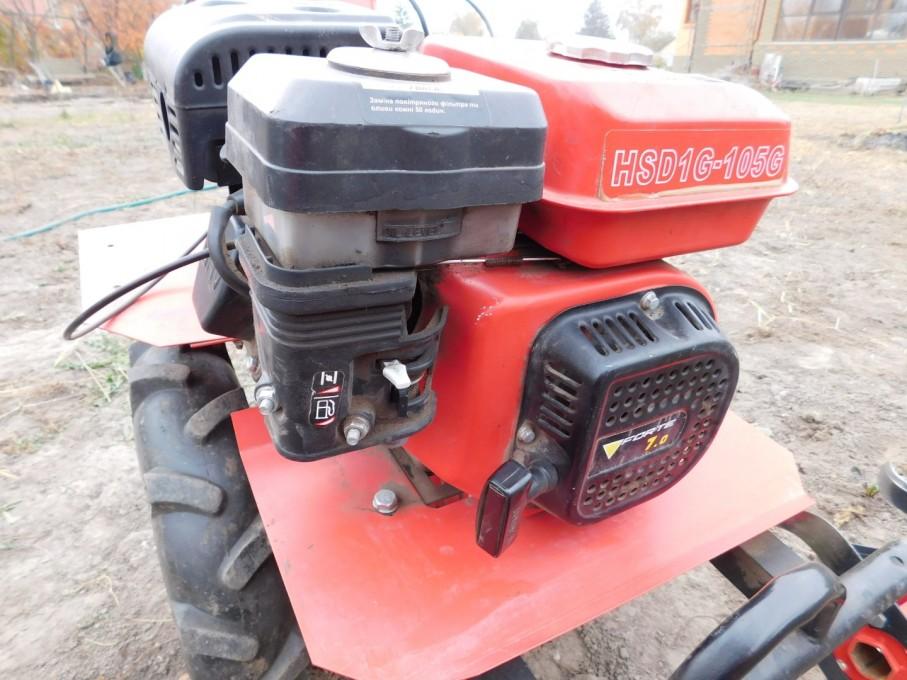

On the upper left is an air filter with an oil bath, below (white and gray) is an air damper, and even lower is a black, fuel tap. Gliding to the extreme right (from this angle of view) for both, - fully open. Currently, both are closed in the photo. The same is true for storage. It is not necessary to burn off gasoline, as recommended for chainsaws and chainsaws, before storage. The engine is still 4-stroke.

The motoblock is ready for start-up. The fuel plan is open, the air damper is closed. Then for the "shmorhalka" lightly until the beginning of the effort, and then strongly and sharply. As a rule, it starts from the first time. You can't imagine my shock at the first start after the purchase (because before that I had a not very good experience with a brushcutter and a chainsaw), - it started the first time, with uniform work! After a slight warm-up, open the air damper completely. On a hot motoblock, you can start without closing the throttle. But it will reach quite quickly, especially in the cold season, so closing-starting-opening the infection will not hurt, but will save nerves and prolong the life of the rope of the windbreaker.

View of the right (as you go) side. This is where the muffler comes out. I must say that the exhaust is surprisingly clean. But when starting, you stand on this side, so the enriched exhaust goes towards you. Well, it is clear that at the same time the clothes should be working. You can also see the gearbox lever from this angle: forward 1st gear (more lively), back 2nd (mostly I carry out all operations on it, more economical fuel consumption and easier on the hands).

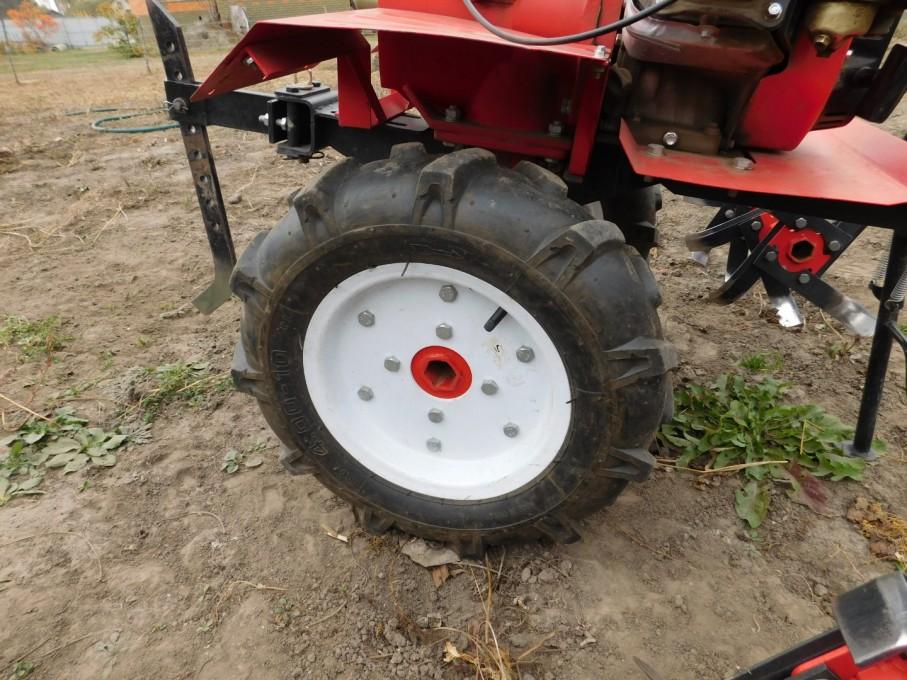

Wheels. Rubber with tractor tread. I deliberately took 10", because there were also 8" to choose from. And I didn't miss a beat.
Given that the walk-behind tractor was in the factory transport box, without pre-sale pre-rolling, the wheels had to be assembled, since the discs are made of 2 halves, ALL the hardware!!!! AND TO ALL!!! were even with a reserve!!! And all possible keys for them! Also of good quality!
At the same time, the rubber with the camera must be placed between the disks, and then twisted. If there is a problem with a hole in the wheel, we have to disassemble the wheel.

Another type of disk twist. An interesting point - rubber under a pressure of 3.3 atmospheres. Tractor house. "Yawned" on it once and ended up with a severed camera nipple, which, as it turned out, is not cheap.

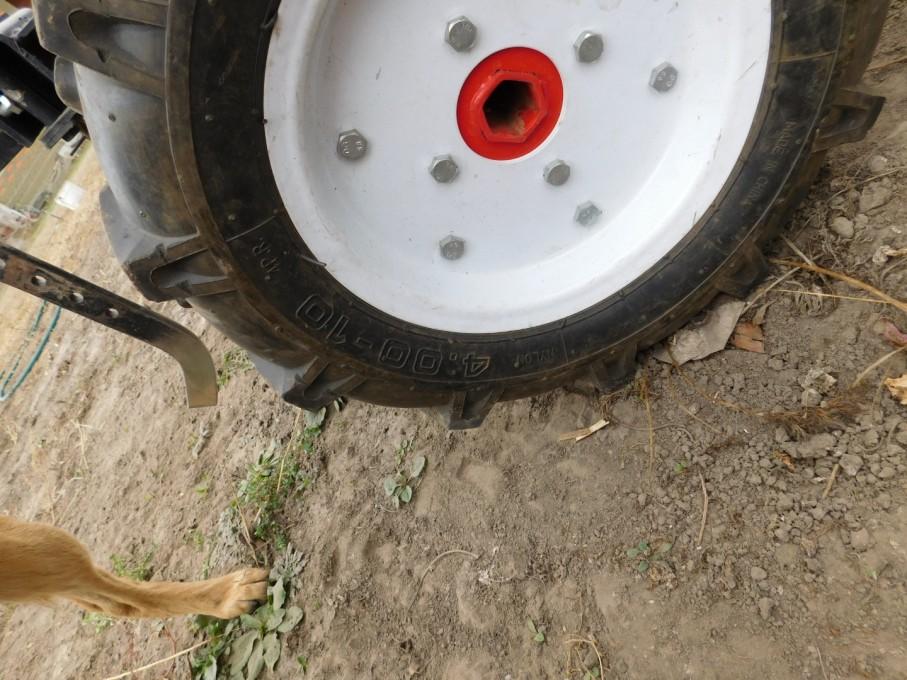

I apologize for the dog's paw in the frame, the walk-behind tractor is its weakness, especially when it is started and in motion.

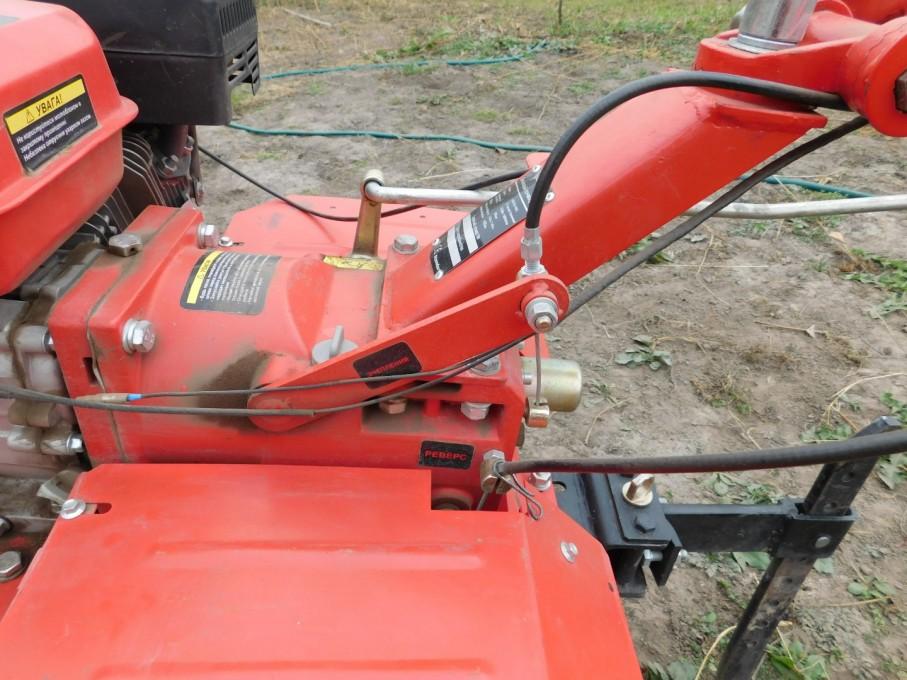

The location of the gear selector lever. If necessary, it can be easily dismantled, for example for transportation by car, which I have done many times. And yes, do not throw away the stand from the corner from the transport box-packaging and do not cut the corner (even if it is absolutely necessary!). It will be very useful for such transportation, when you need to remove the wheels due to the dimensions. I do this when transporting a combi by a car! It's true that it's difficult to load/unload - still a good 100 kg (and even more on the tag)

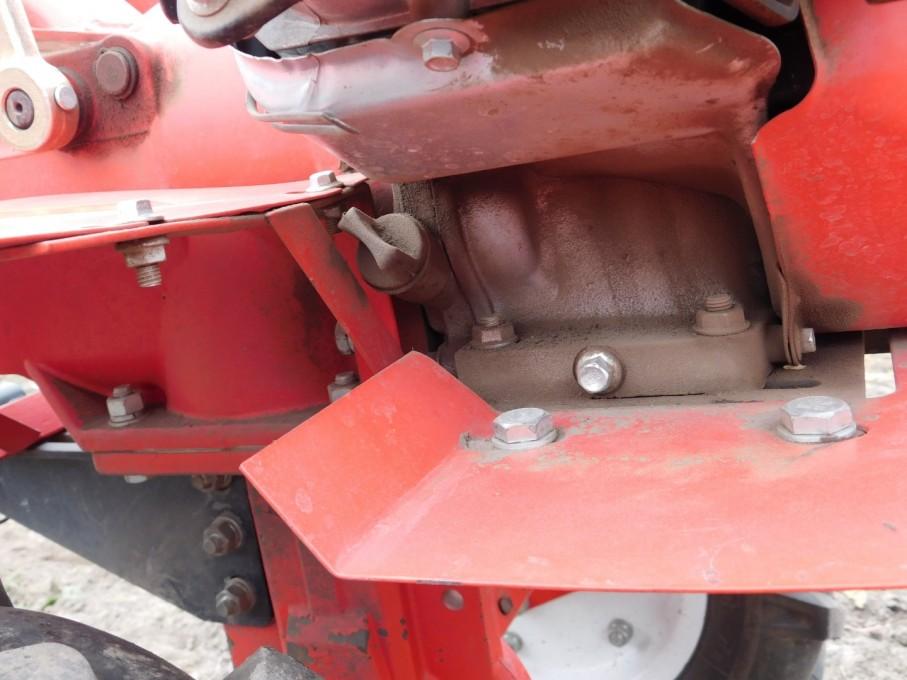

Frame (black from below), the point of attachment of the engine with the box and transmission of the transmission to the box from below. Very high maintainability! Although, I hope, I will not get to know this in practice soon.
And on this side, the waste oil drain nozzle (gray plug for finger grip under the cylinder protective jacket on the lower left)

View from above. Pay attention to the number of stickers with instructions and warnings. In 7 years of operation, not a single one has come off! Here is "China" for you! The control handles can be adjusted in the horizontal and vertical planes, for maximum convenience or, for example, to walk from the side and not trample the processed (never used this in practice, although I tried).

View from the back. There is a power take-off shaft (covered by a protective cup on screws). I don't have a tool for it, so I never unscrewed it.

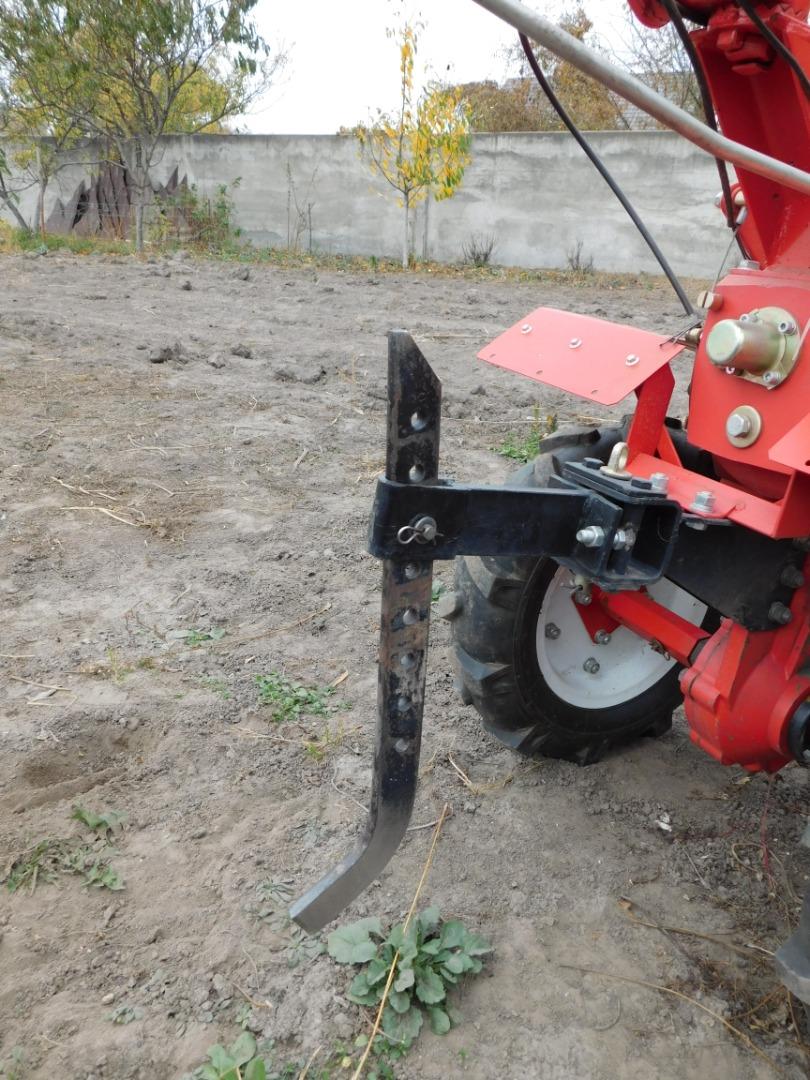

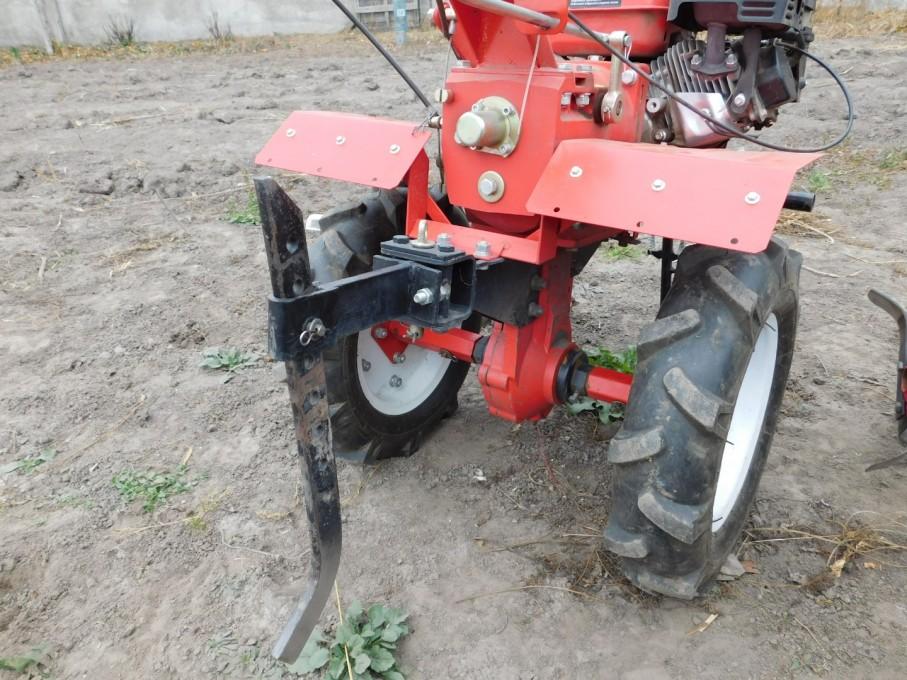

A very important working organ for:
- as a support when re-tying the wheel/mill;
- and if you are serious - it is a regulator of the depth of immersion of cutters during soil cultivation (ploughing, just like that, with cutters, and well, that plow).
Don't be too lazy to play with the depth level on unfamiliar (and familiar, moisture can be different!) soil. This will be a guarantee of the quality of processing.

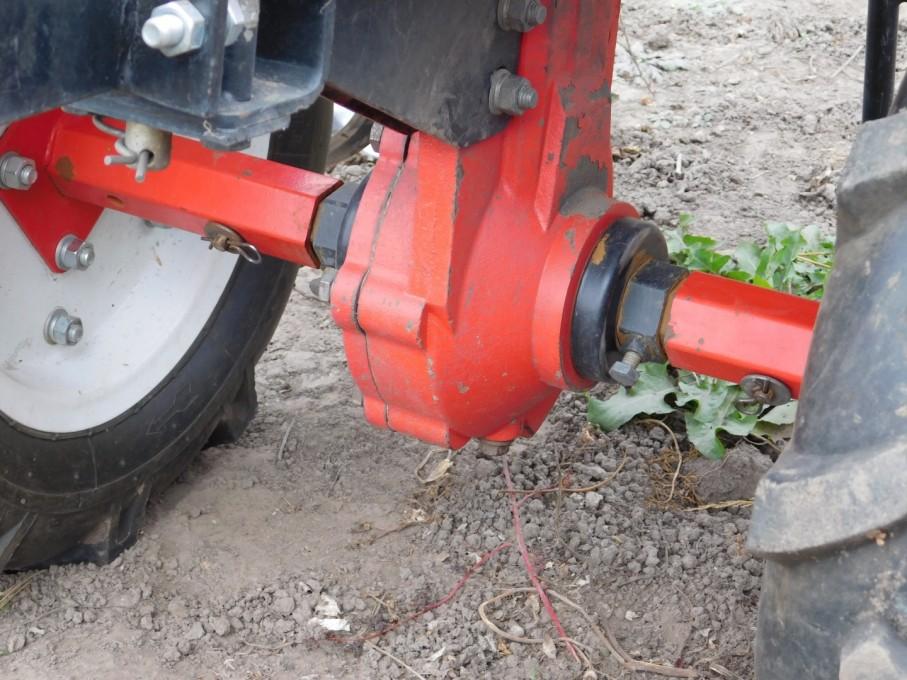

Fastening of the axle of the wheels in the transmission. Of course, there is no differential. It's a little bad that everything that gets on the bolts of the protective cups is screwed on. But not critical. For one thing, you can see how the wheel spins. It's funny - for so many years, I have never lost a cotter pin from an axle at work, but just like that - they lost it!

Here, this is a miracle of the engineering thought of fastening.

My workplace. And it looks cool in the photo. But this is not a toy. Although it is "average", 100 kg and 7 horses will not only do a good job, but also require your strength. So, after a day of work, you will sleep soundly!

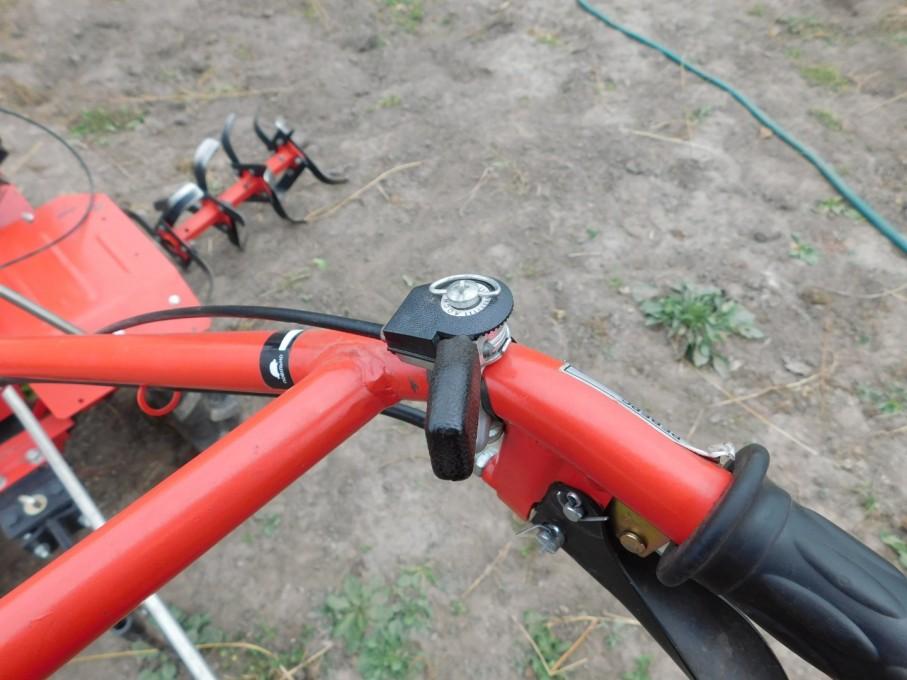

The "gas" is under the right hand, on the "ratchet" to fix the position. There are no problems with this. The cable was never adjusted, although it was checked, only the fasteners were tightened. Vibration though...

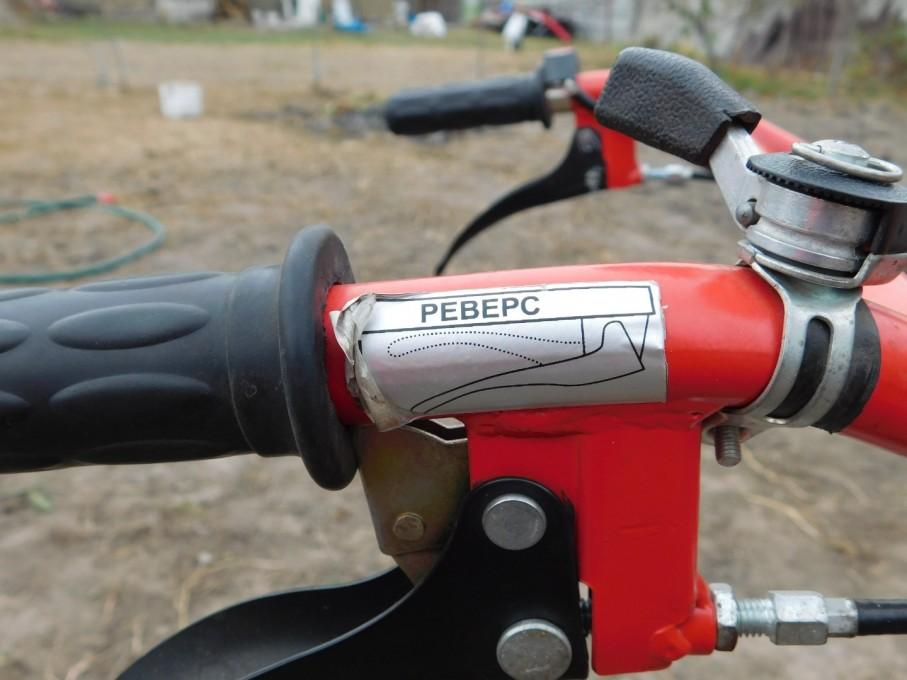

On the right hand... yes, the back way. The dog on the handle prevents accidental activation. Pay attention to the splicing of the switch axes - immediately bend the antennae so as not to injure your hand. Because there was such...

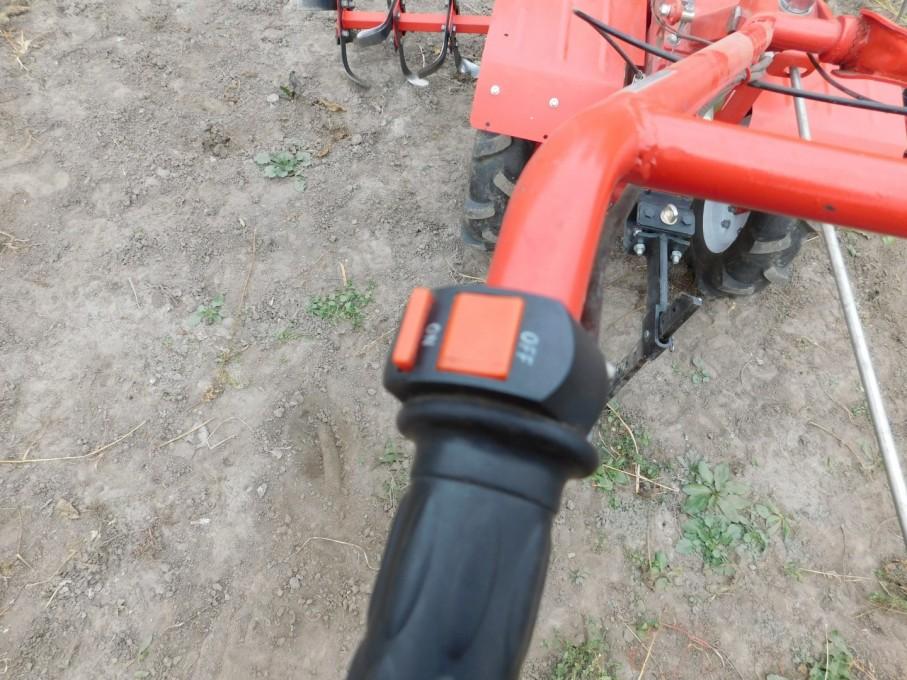

And this is the ignition switch. So far trouble free. But you can accidentally mute it at work.

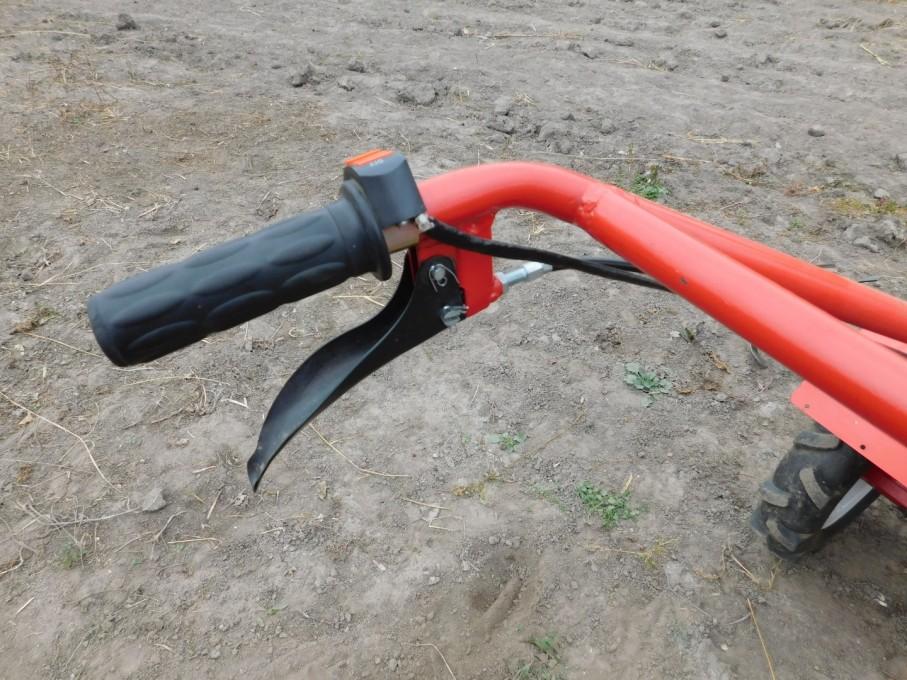

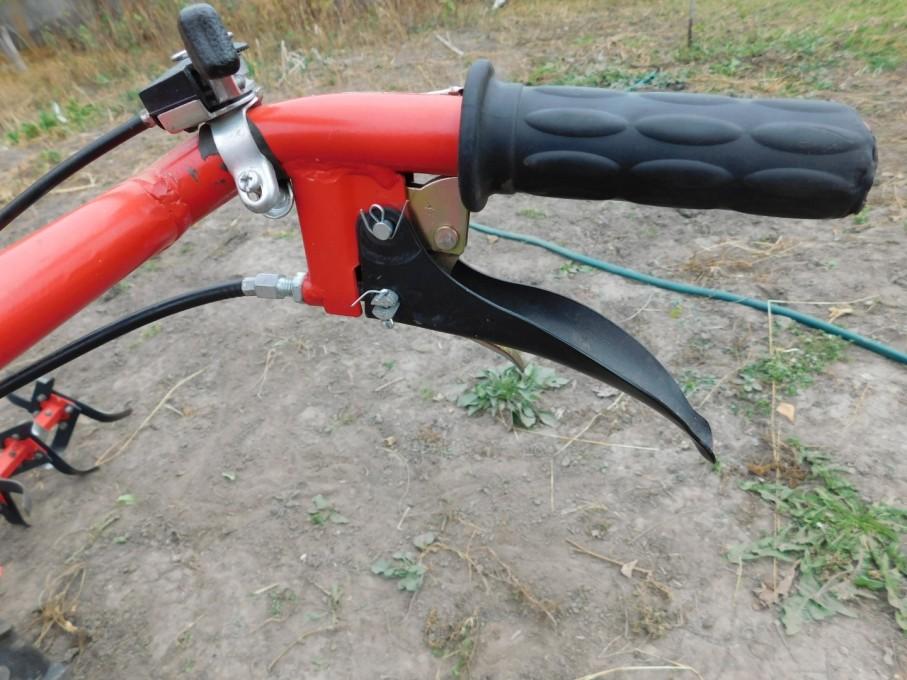

And this is a type of vaccination. Tough, but with correct work. The ergonomics with the handle and the injection lever are very comfortable (at least for my hand). The clutch cable is adjustable, but there is no need to adjust it out of the box at this time.

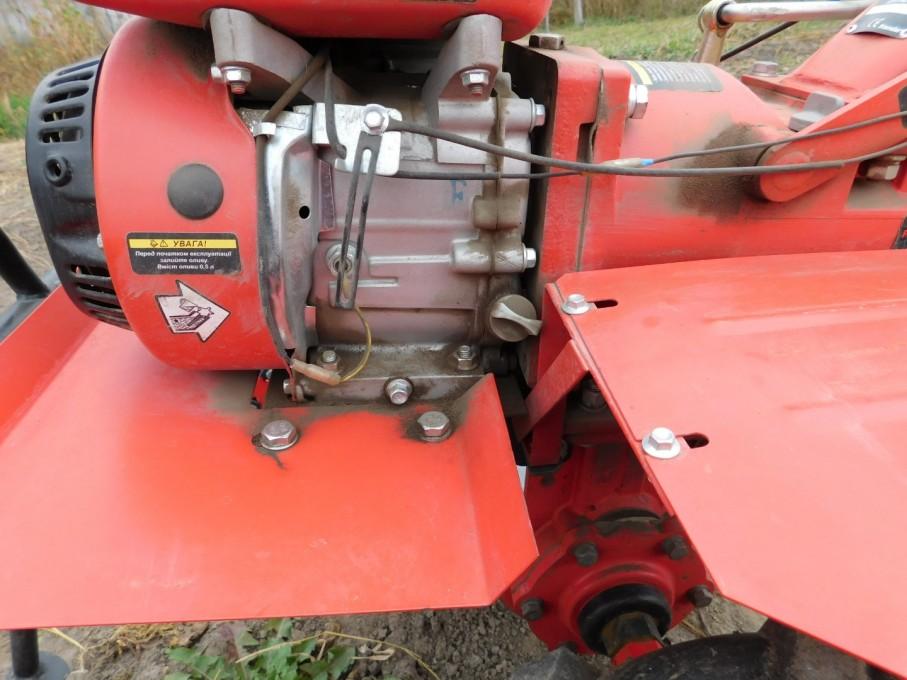

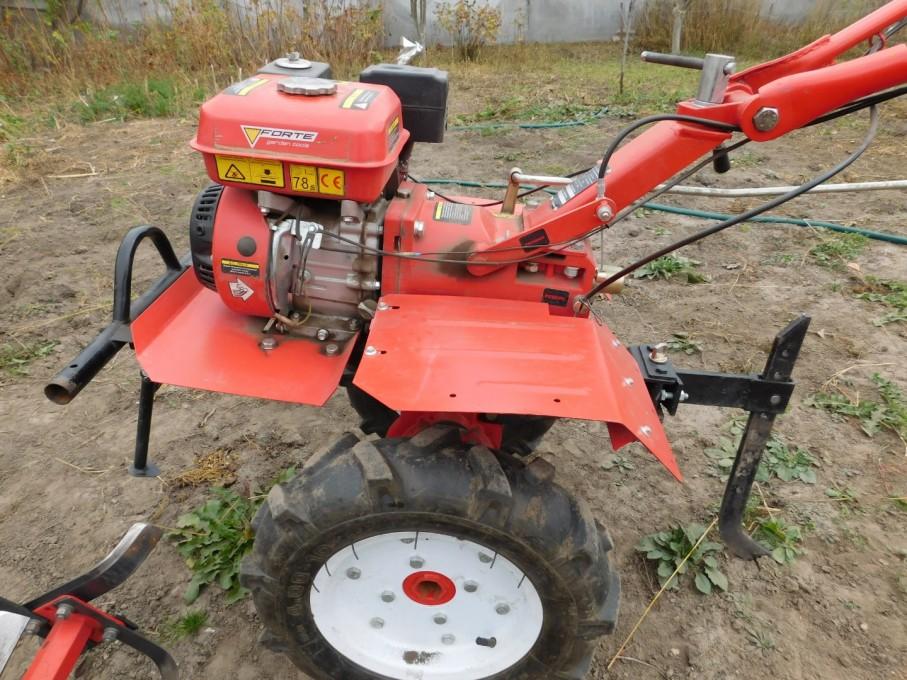

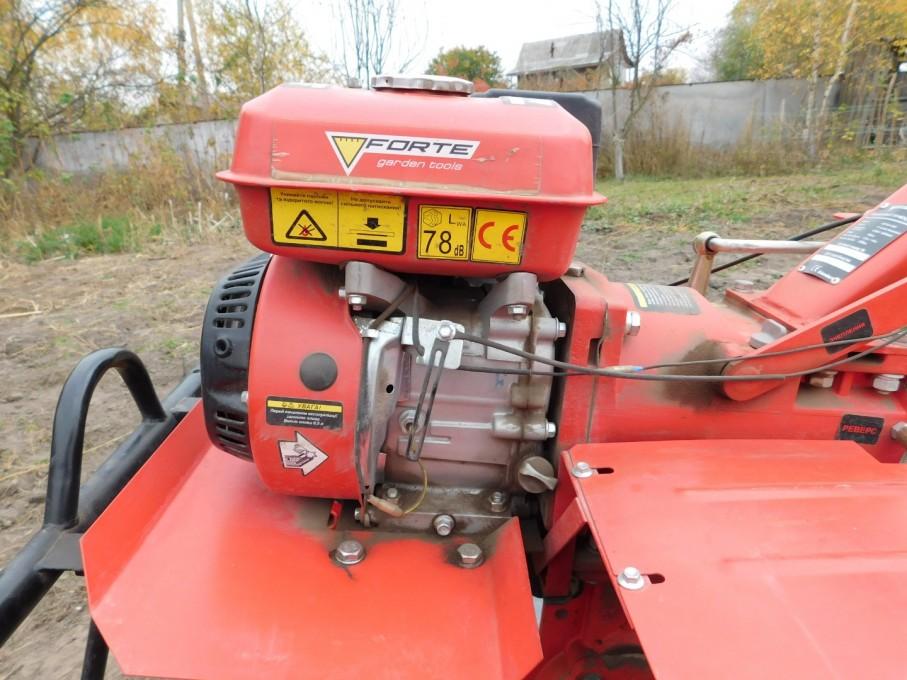

General view on the left. There is nothing special here, except for the engine oil filler neck (0.5 l, I use the same as for the car, 10W-40, the remaining replacement is just enough for the walk-behind tractor, and it is not needed often).

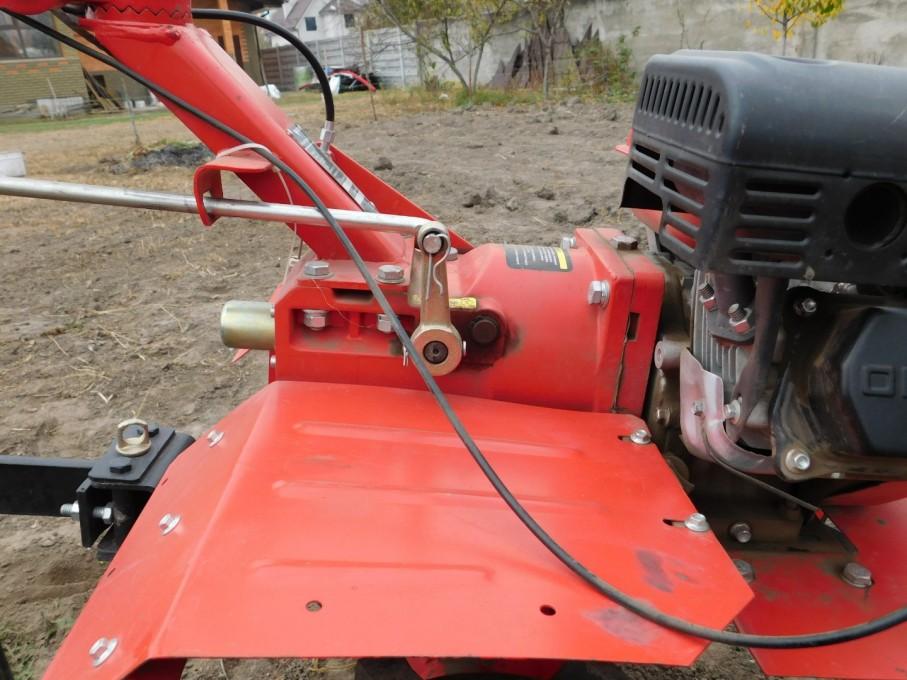

View of the box on the left . Inoculation lever. The stuffing box is a little "snotty", but it's not critical.

A view of the engine and a larger view of the oil nozzle.

An even larger view...

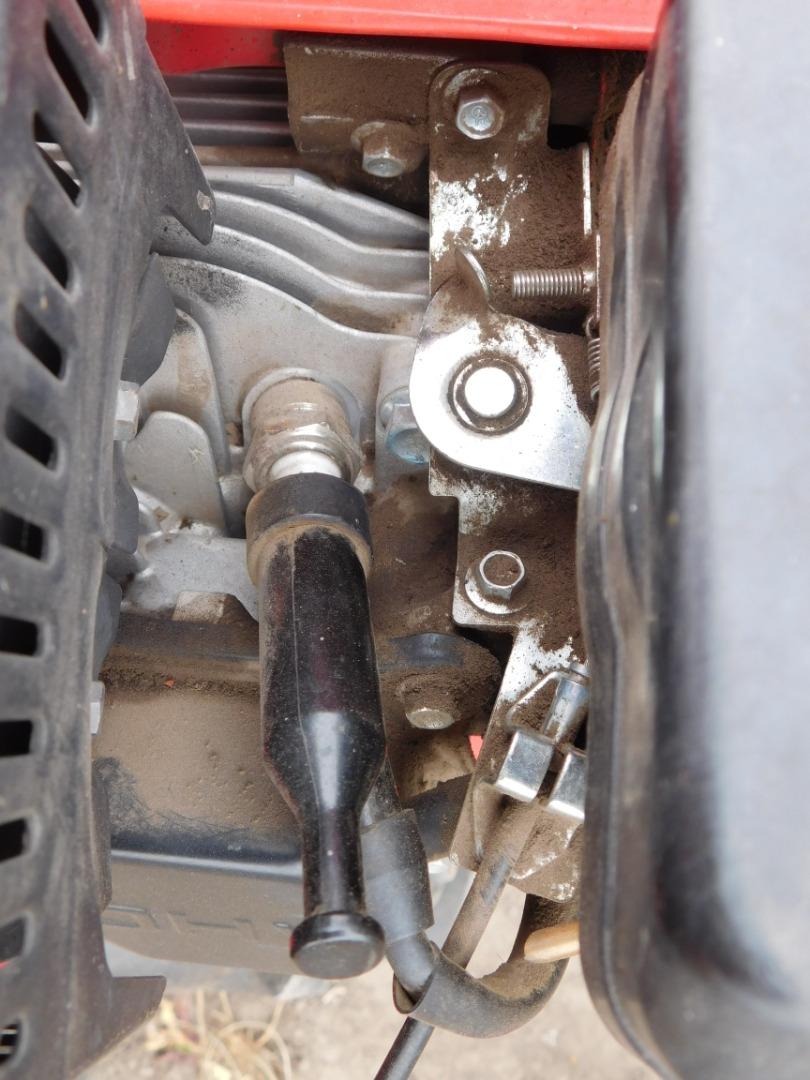

Close-up of the waste oil drain nozzle .

I was not too lazy to remove the air filter. The oil in the bathtub is already dirty. It will be necessary to replace it after work. Take care of the filter, it's a guarantee:
- economical consumption of fuel and your nerves (and it was... deaf...);
- long service piston group (well, criticize);
- easy "start-up" and correct operation.

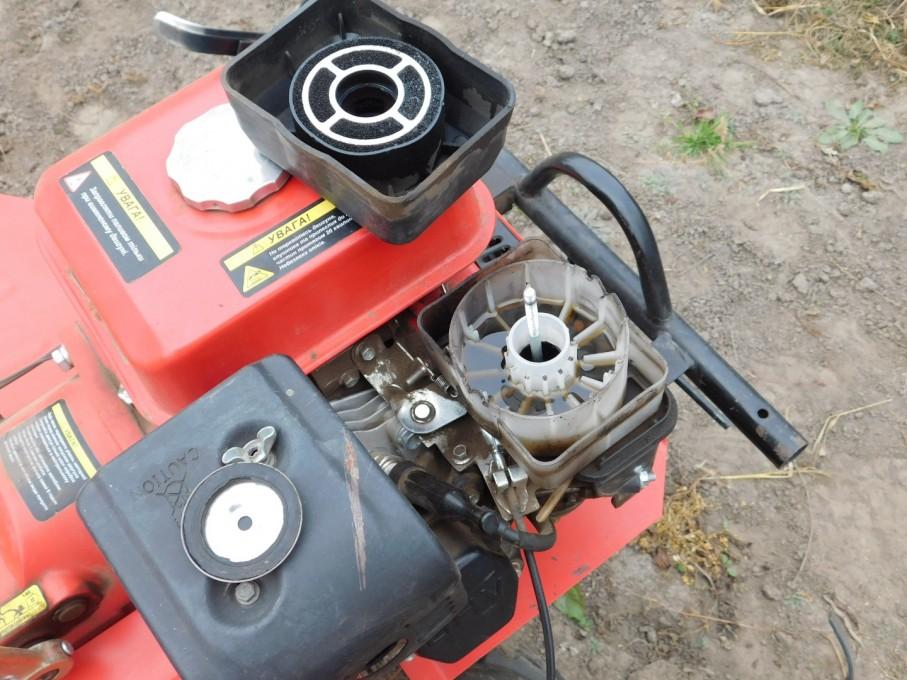

Here is the air filter dismantled. At the same time, he left, washed the "mochala" with gasoline. And, of course, dried.

A candle (still factory!!!) with a candle holder. Takes off tight. And there is pollen. But it does not affect the "speed" at the moment.

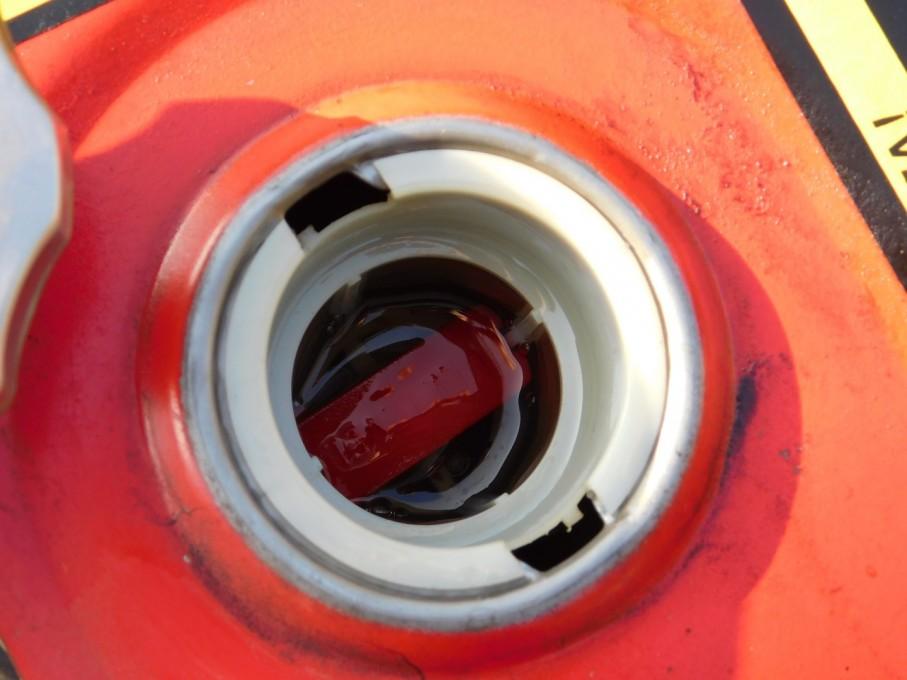

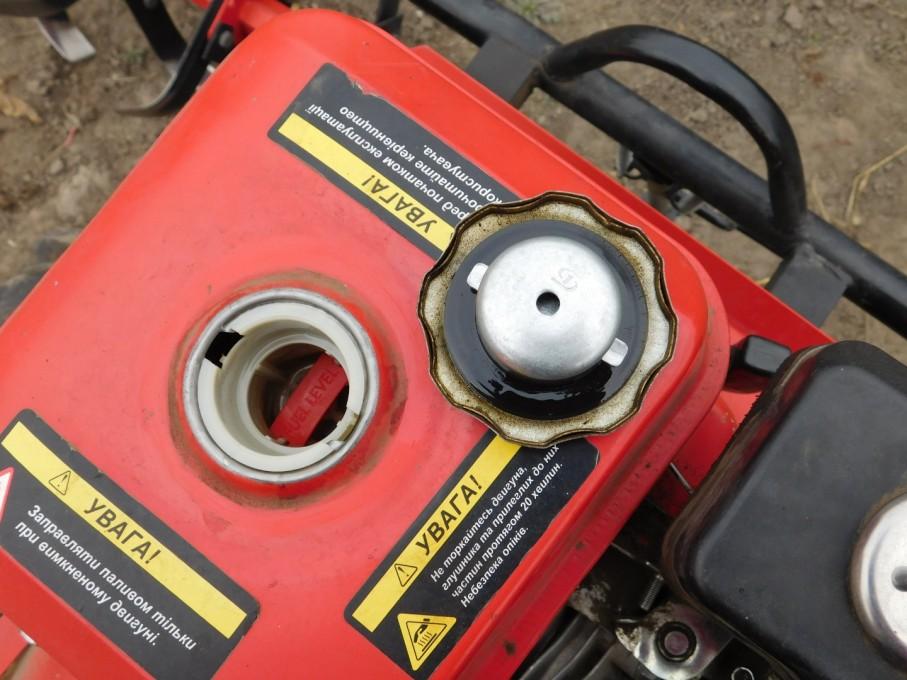

The neck of the tank with a cork. The red division on the filter mesh in the neck is the maximum fuel level.
About fuel: as I mentioned, I use 95 euro gasoline (Belarusian, if they don't lie at the gas station).

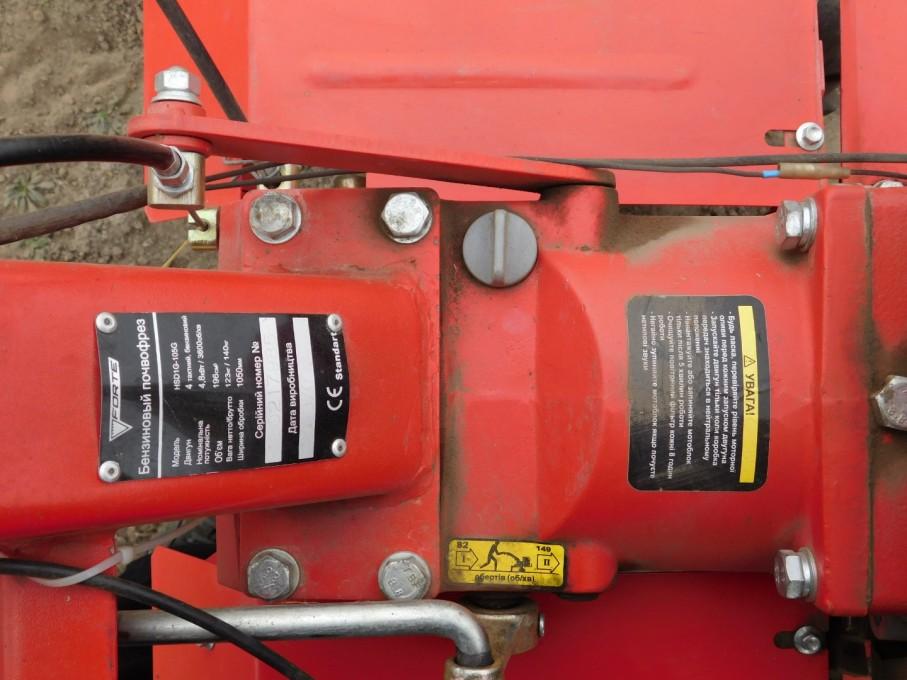

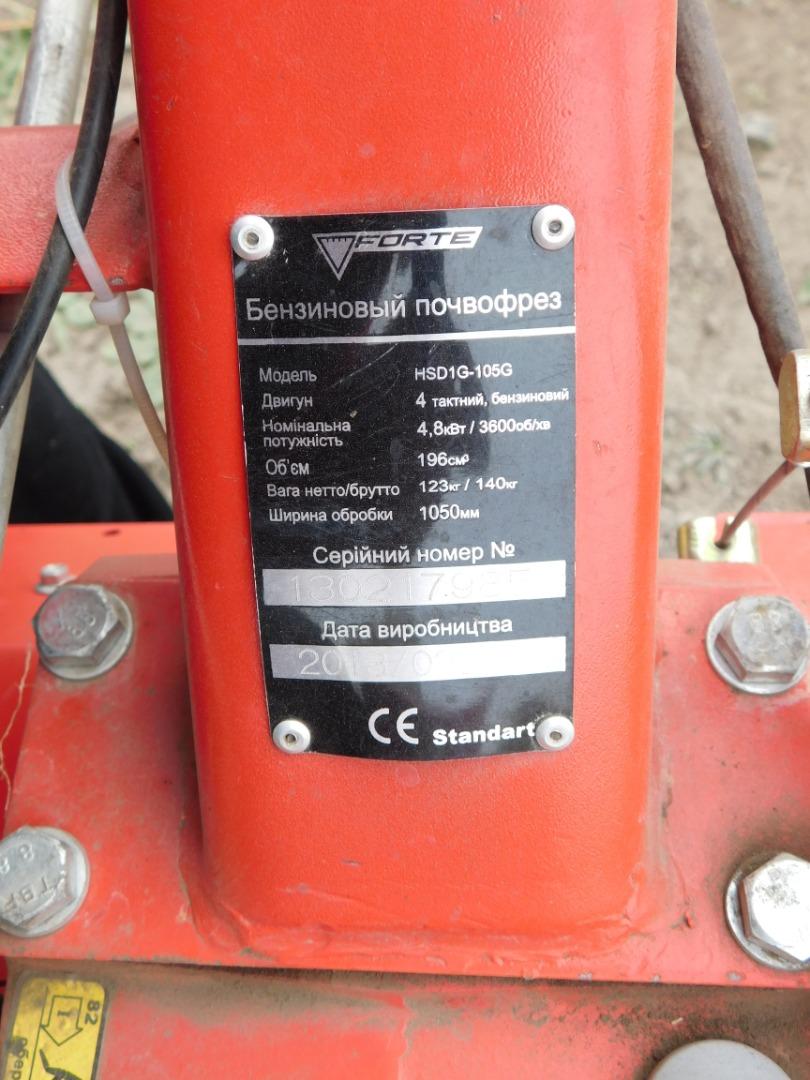

A motor-block tag with data and serial number on the support of the operator's handle. On top of the box, there is a filler neck with transmission oil (currently 2 liters of TAD-17 are hanging around). Drain (it was somewhere in the photo) under the screw on the transmission near the axle of the wheels. The gearbox and transmission are lubricated simultaneously with this oil.

What's on the label.

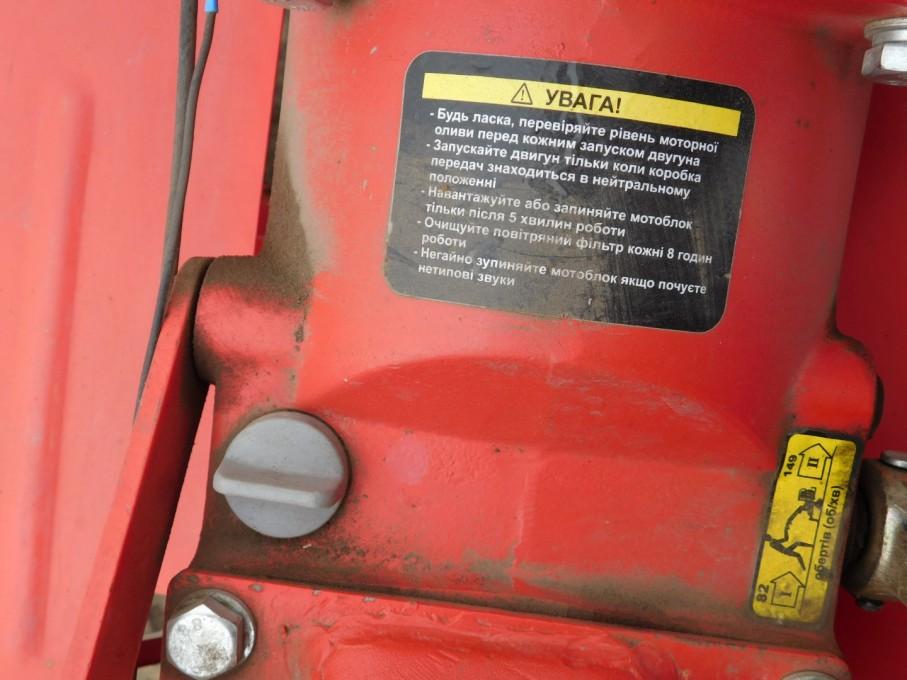

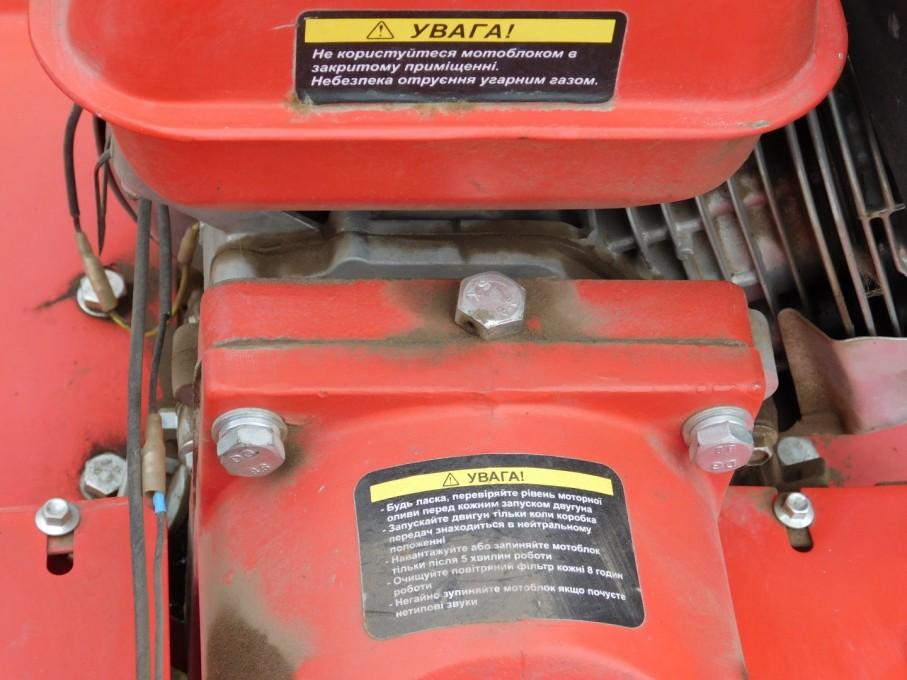

Important and useful instructions on the sticker for operation: short and clear.
Pay attention to the language quality of the stickers: I wonder where they were made and glued?

Unfortunately, the instruction sticker on the "back" is not so informative.

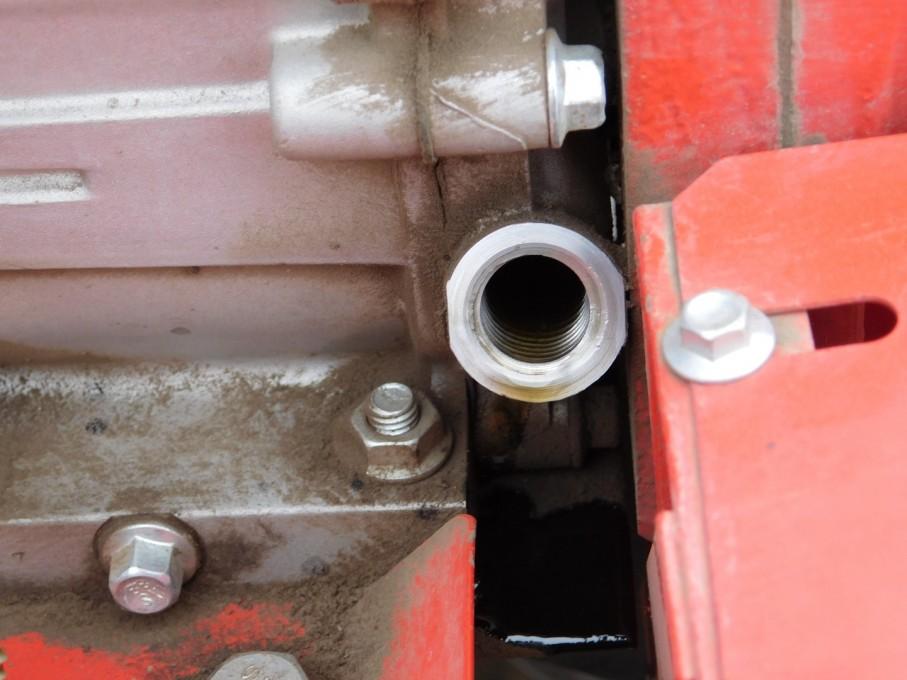

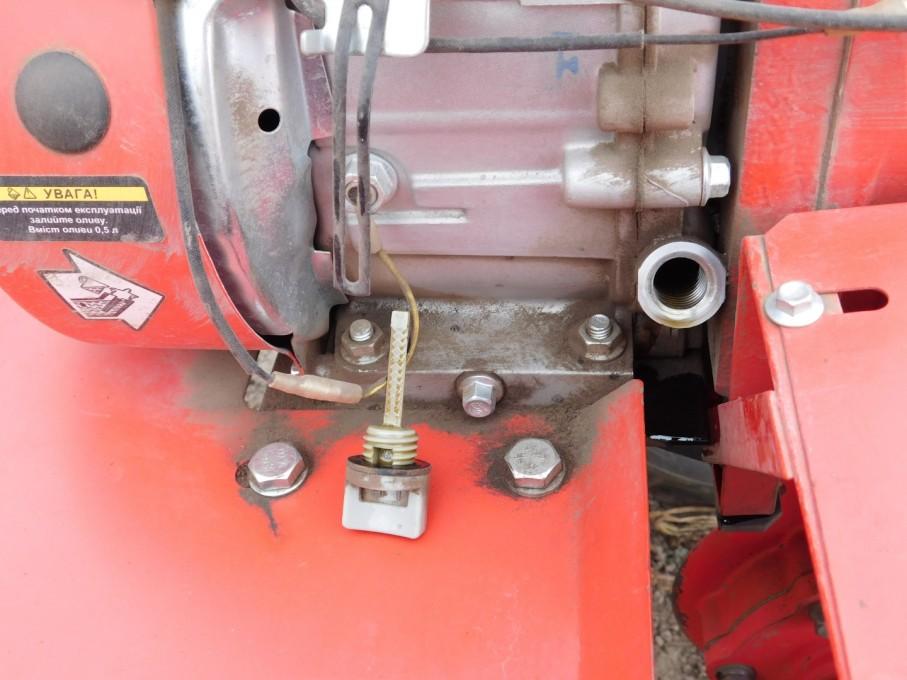

Removed the filler cap from the oil neck. Just the level.

Look, by the thread. That's how it should be. I change the oil approximately every 30-40 hours of operation (not engine hours). In general, somewhere once a season. All the same, the walk-behind tractor is more expensive than oil.

A bit of trouble - the walk-behind tractor was slightly tilted towards the fuel filler neck, so the oil spilled. To check the level and fill, try to put the walk-behind tractor evenly.

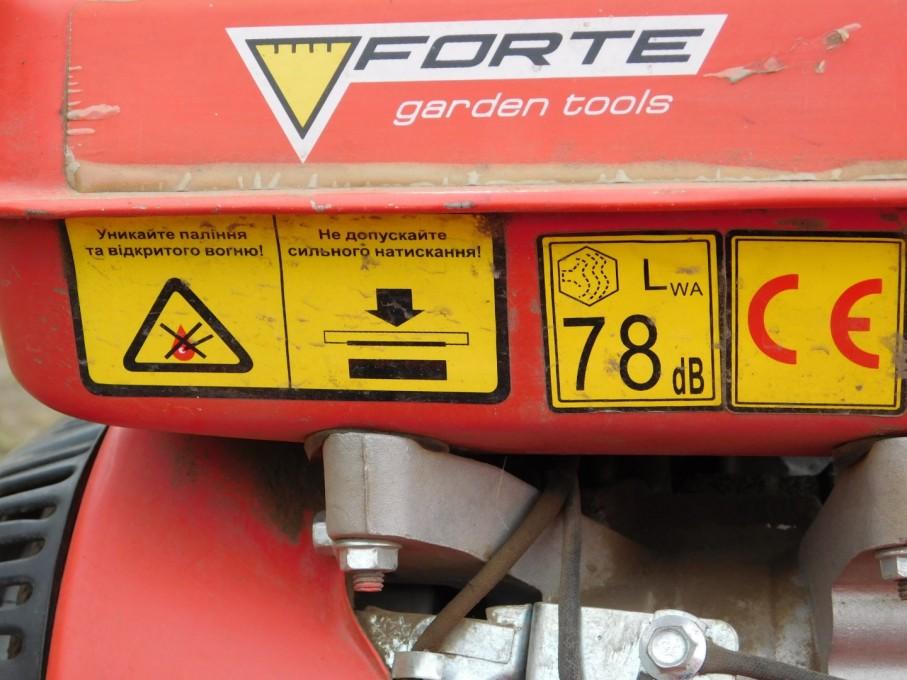

Safety-related warning stickers on the tank. Do not be lazy to familiarize yourself. Earplugs or protective headphones won't hurt either (I advise you, but I... although I don't, I take them to the mower).

The engine gasket, boxes "snort" a little. But this is a working moment. Do not be lazy to periodically check the tightness of the threaded connections.

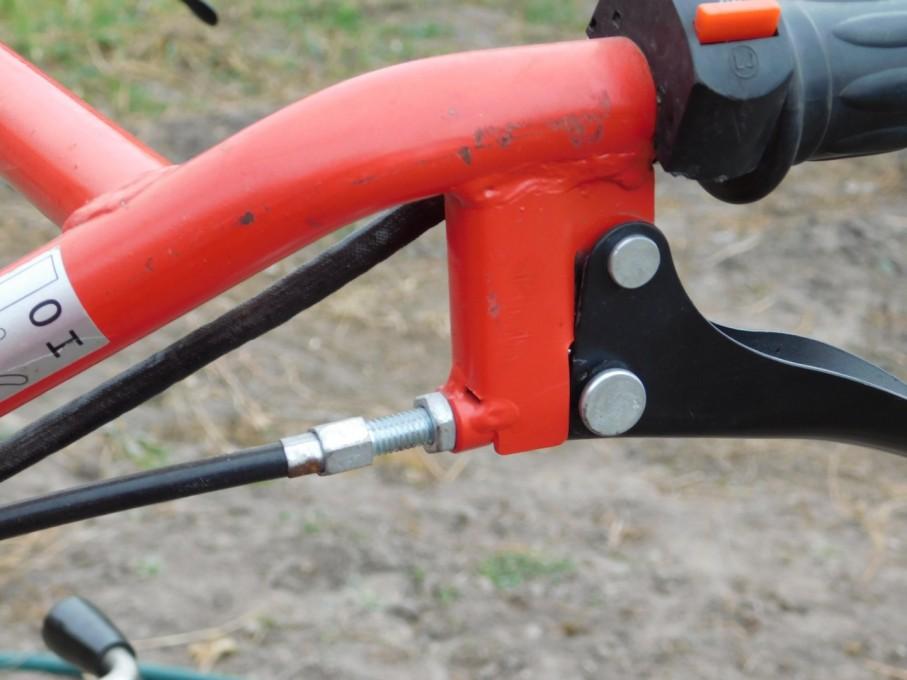

Adjusting the clutch.

This is how you can transport milling cutters. And they are not light.

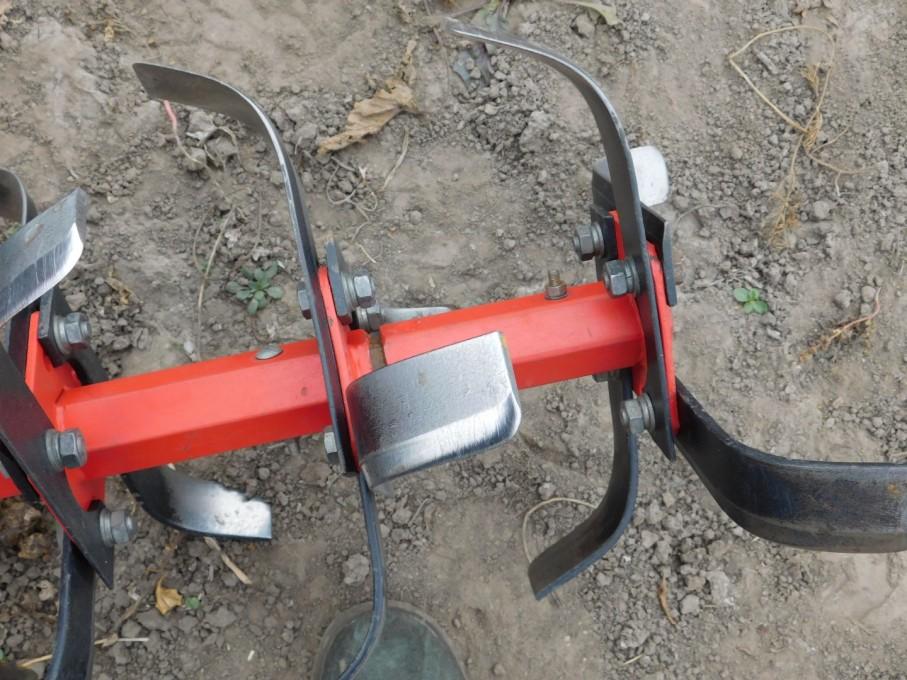

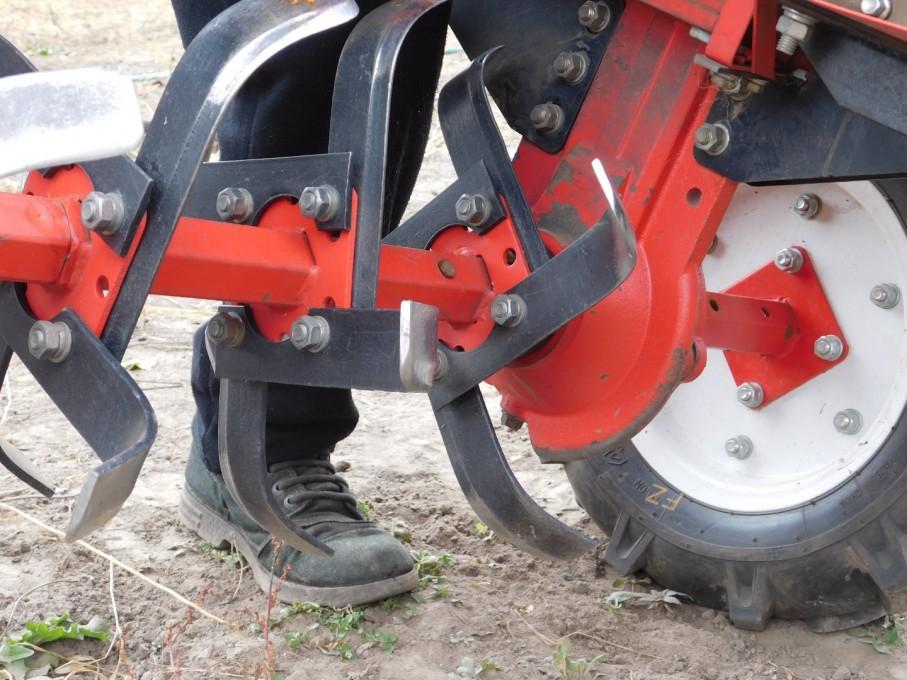

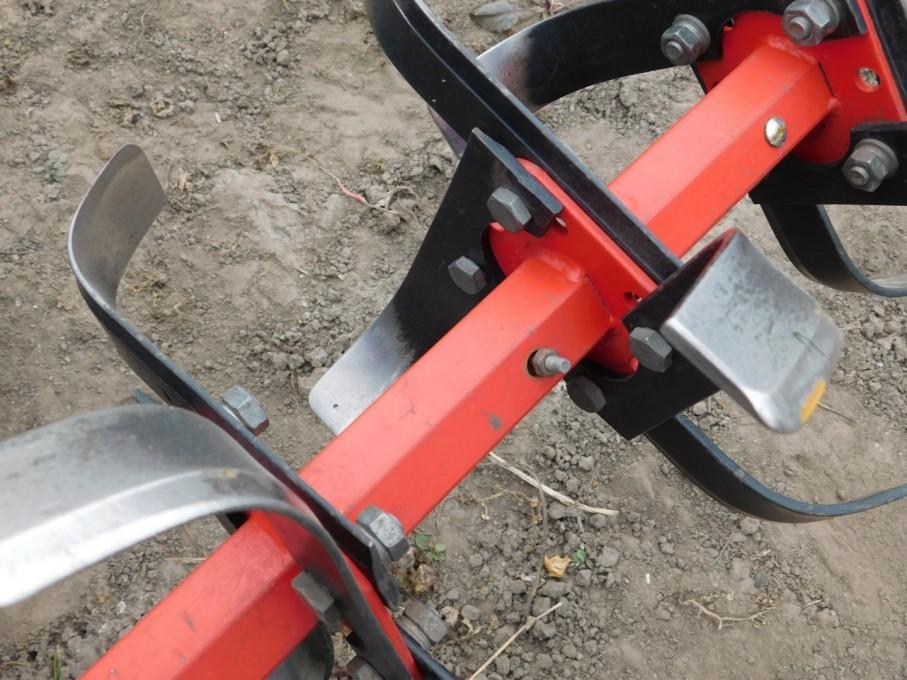

This is how working bodies are fixed. Honestly, at first I checked the puff, but then I realized the absurdity of it. Visually, everything is fine - well, fine.

And the knives wear out little by little. And just like an anchor, they don't need to be sharpened.

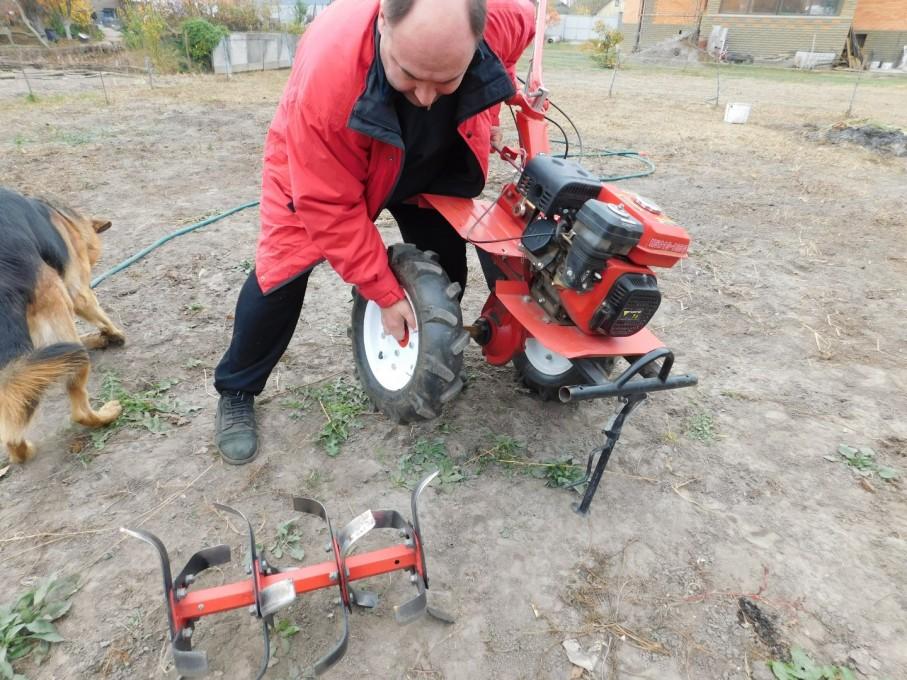

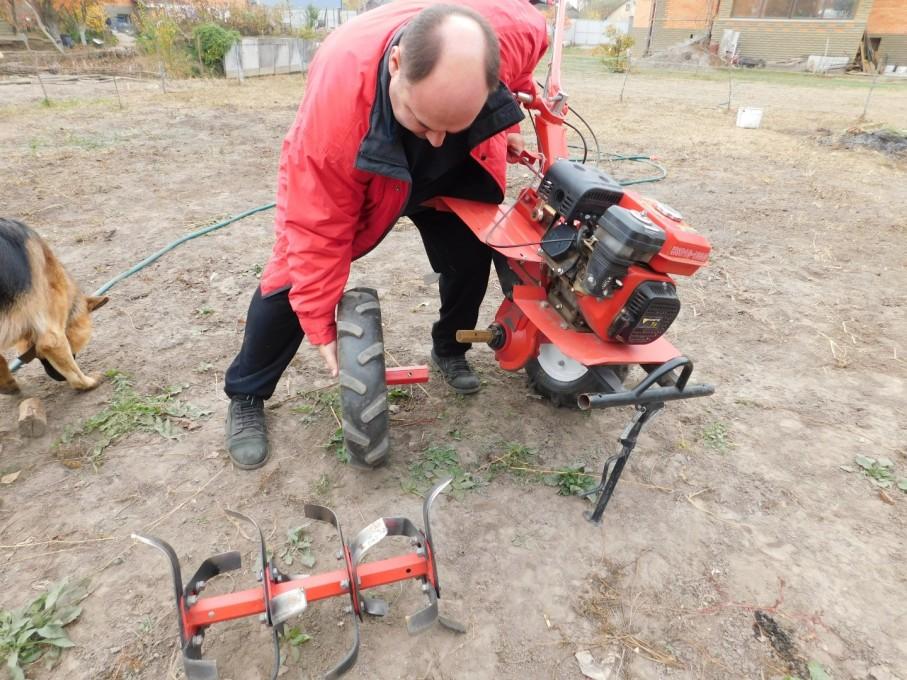

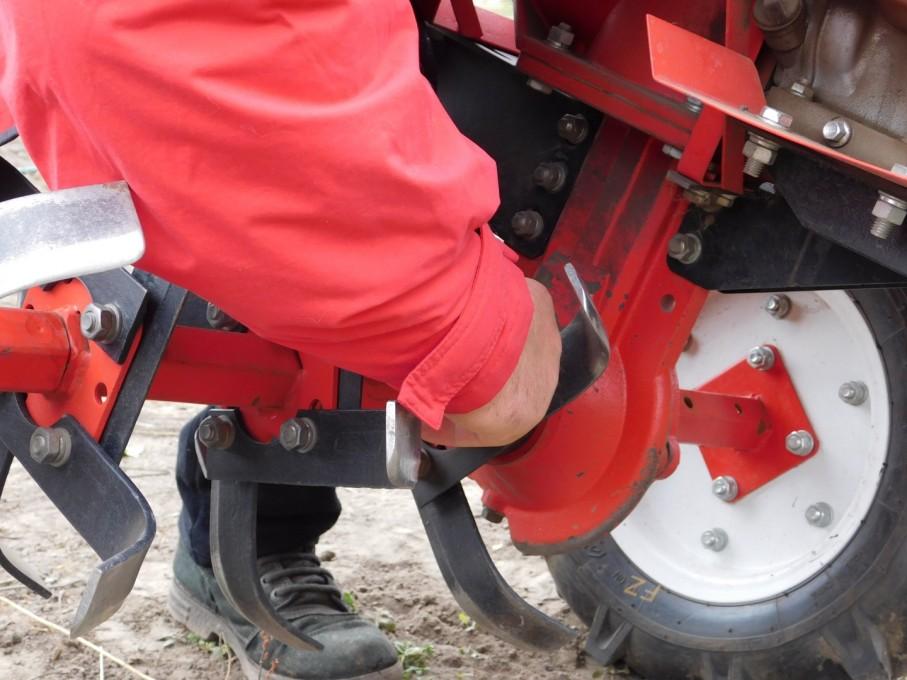

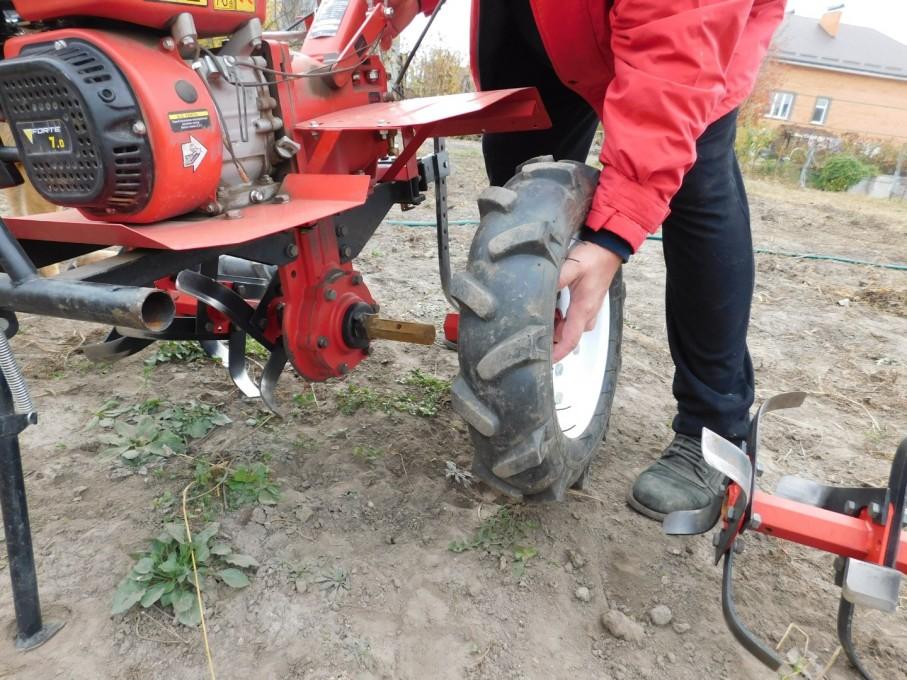

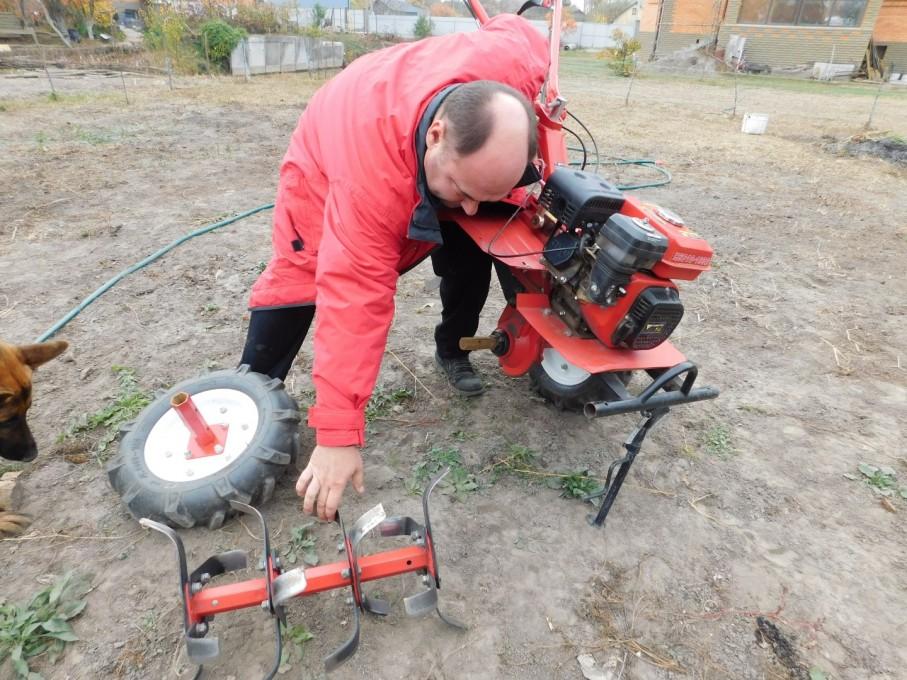

We're getting ready... I'm going to sleep myself. The first wheel is easy to replace, the second is more difficult - the cutter lever is larger. I posted the following specifically to show you how to do it the easiest on your own. Because it's only visually the walk-behind tractor is small, and after work it is three times heavier...

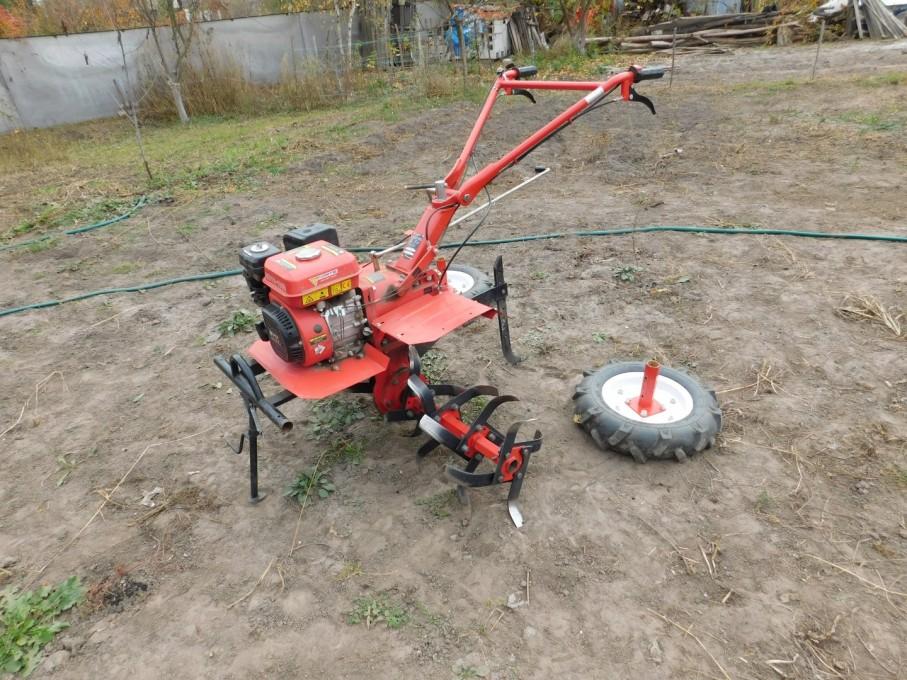

The wheel is removed.

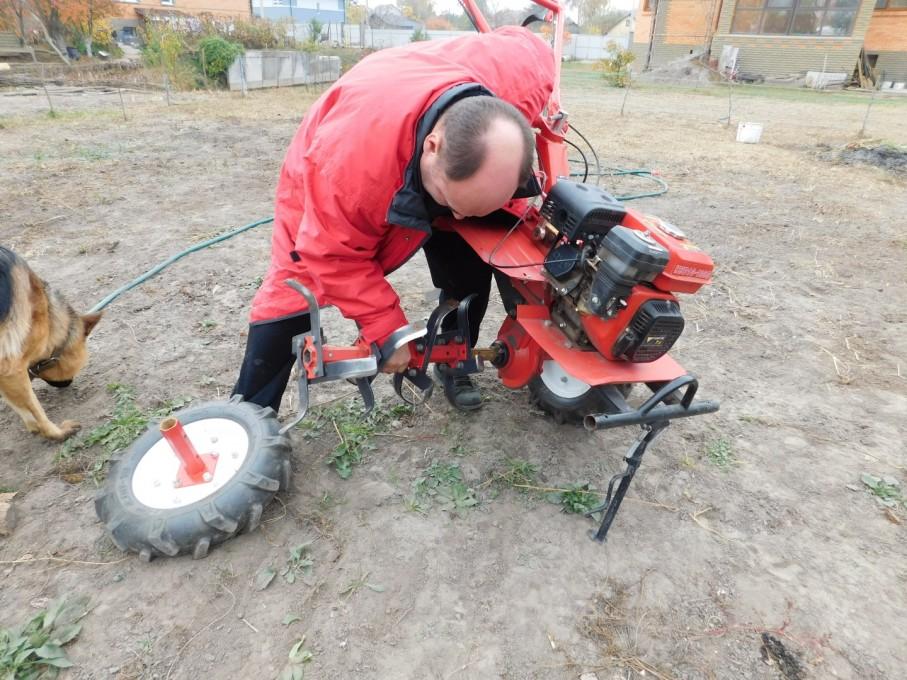

But I put the cutter far away...

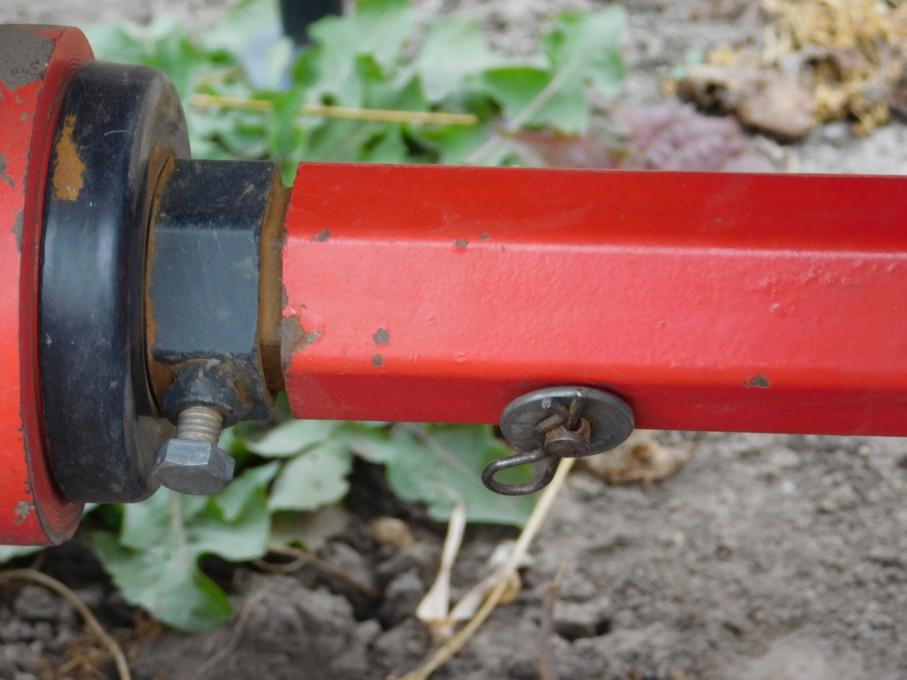

Obov' be sure to align the cotter pin holes.

Splitting...

Done!

Similarly to the second side.

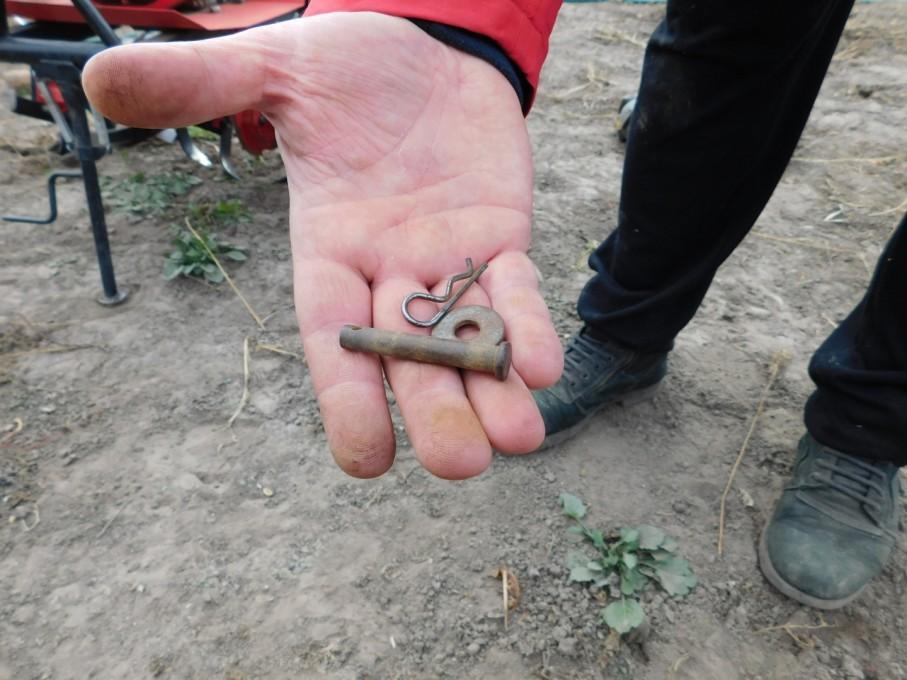

Splint. Keep on hand during the replacement process so you don't have to search for a long time.

Pressure and maximum load stamp on the rubber.

All ready to go.

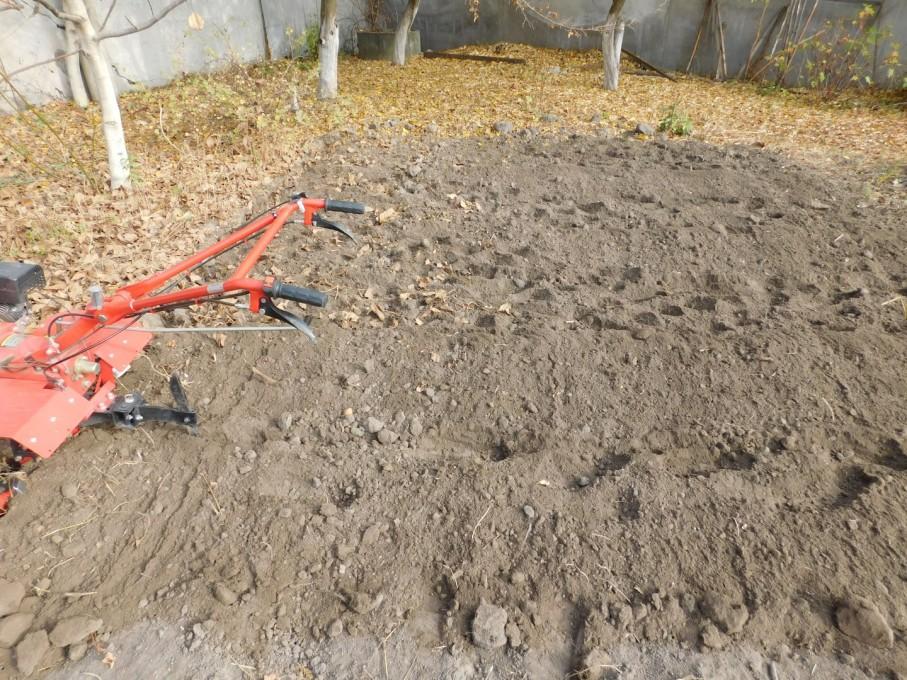

Approximately 15 min of work I took my time, in 1 pass, the ground is like a stone and dry.

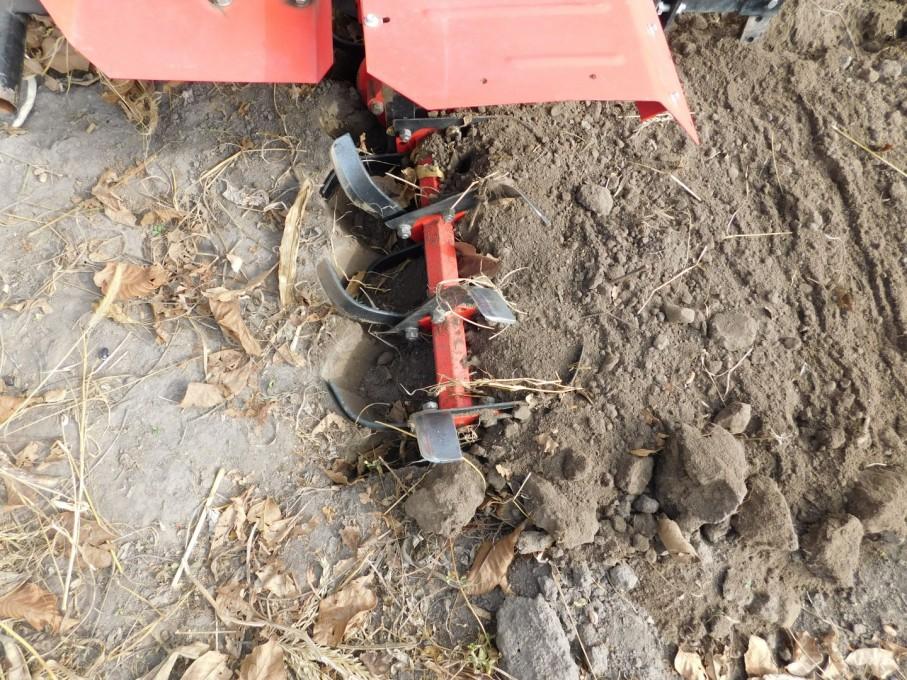

Level of deepening.

The disadvantage of milling is the trace of the operator, but it can be delayed.

We are refueling. In general, such a canister (5 l) is a good thing.

Full tank!

Hinged. This was purchased with a walk-behind tractor at once.

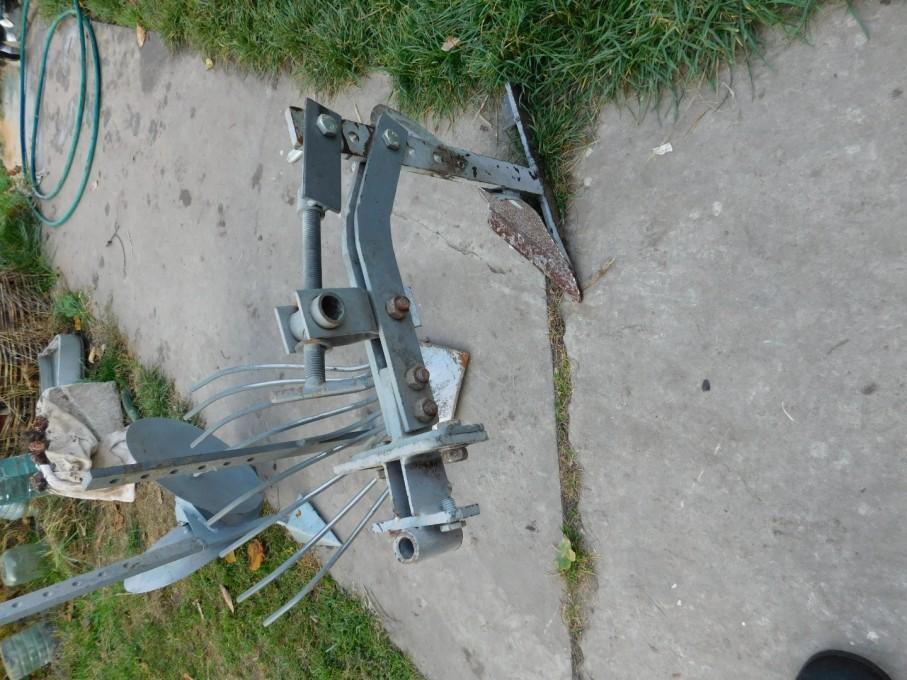

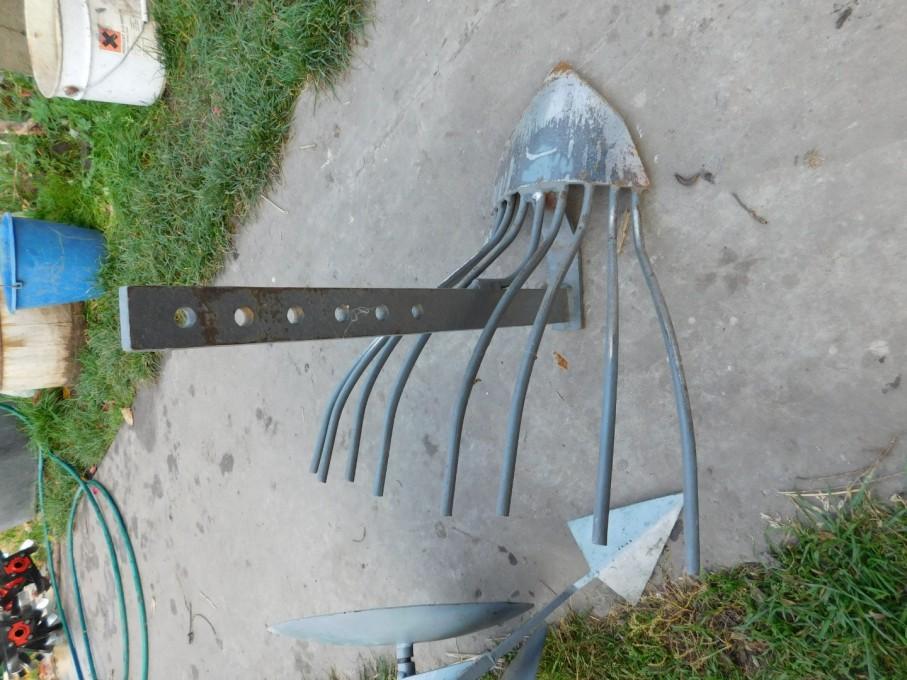

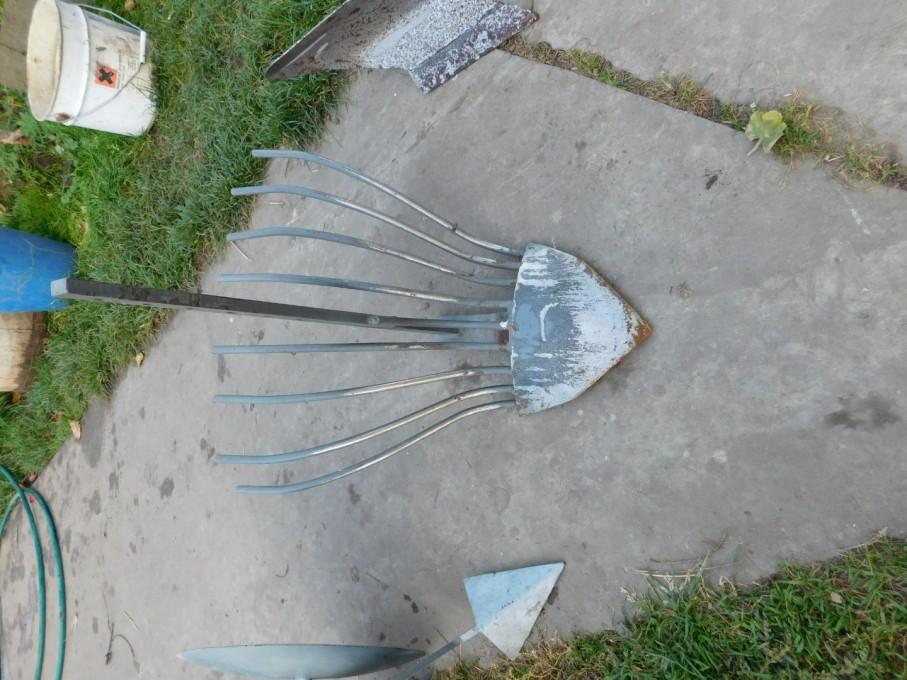

Dolphin potato digger. Nice and cheap thing. It is worth digging through the row, and then the remaining ones. If you are not in a hurry, then one at a time.

These whiskers bend on heavy or hard ground. But they can be lifted easily, even by hand.

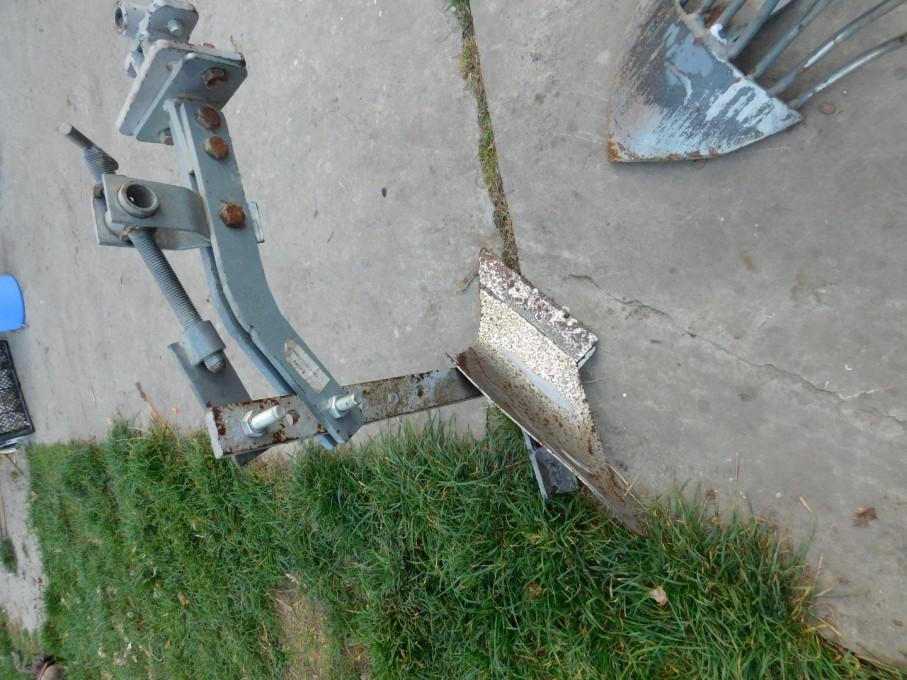

Plow with a universal hitch. Got it especially for a photo shoot.

The tilt and angle of attack are adjusted with the clutch.

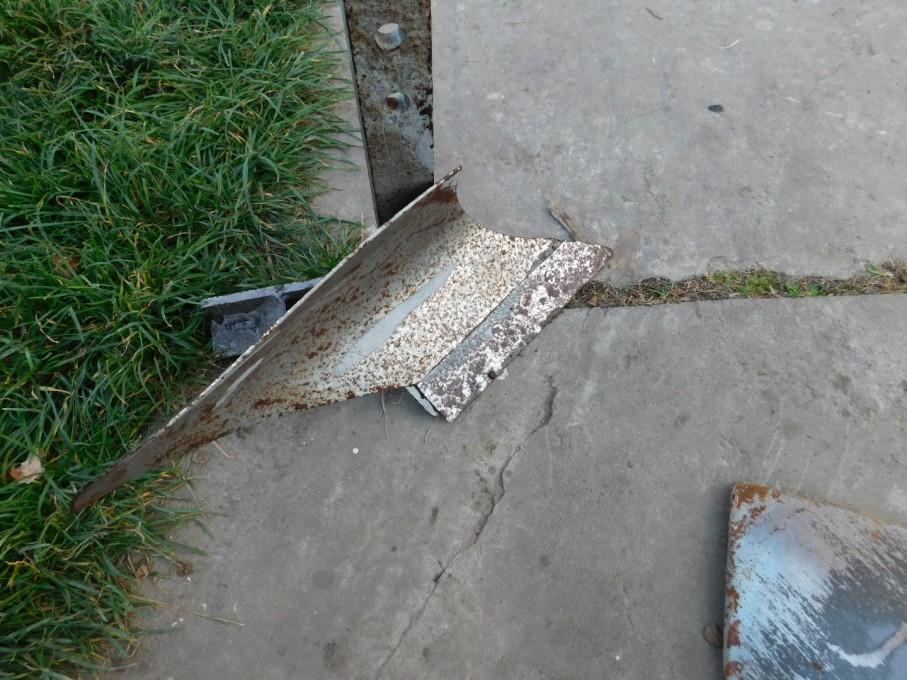

The plow itself. Oh, and he got me in time. Precisely by quality. As well as the clutch (among other things - it's domestic!). The nose of the plow had to be forged by welding and welded stiffeners, because it bent in different directions! And this is a plow blade!

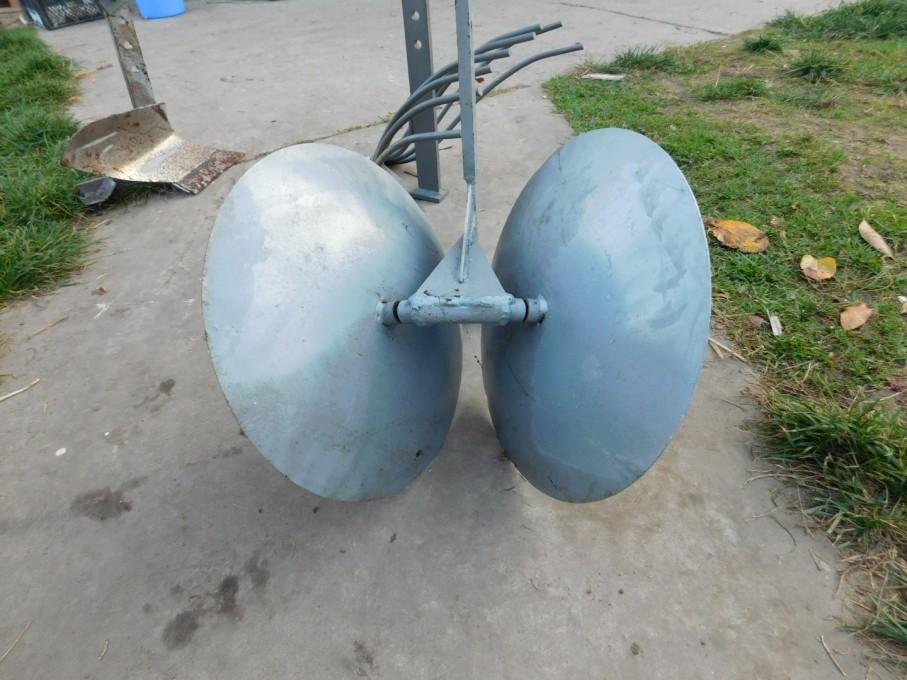

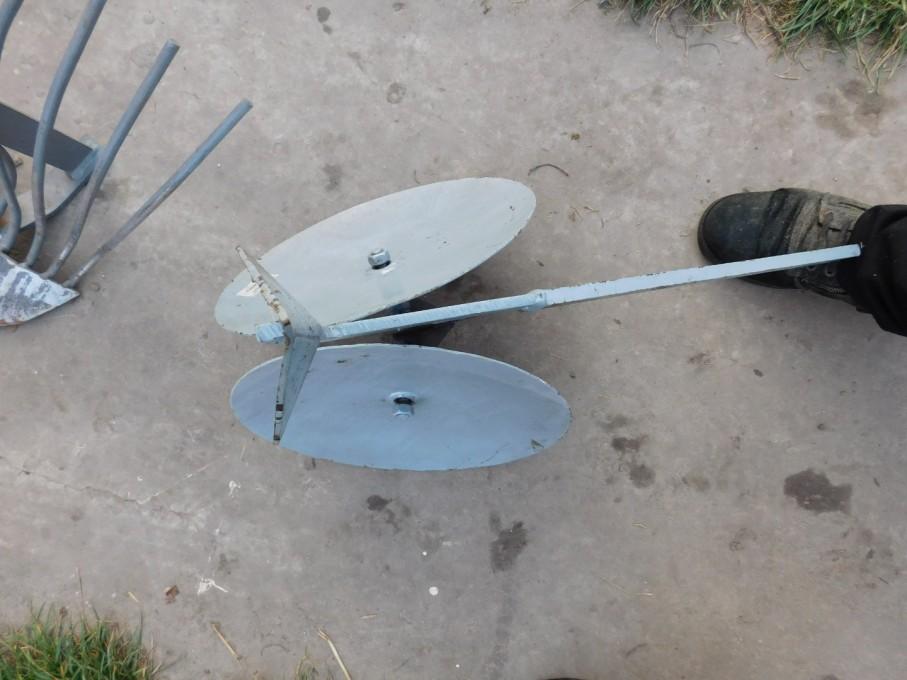

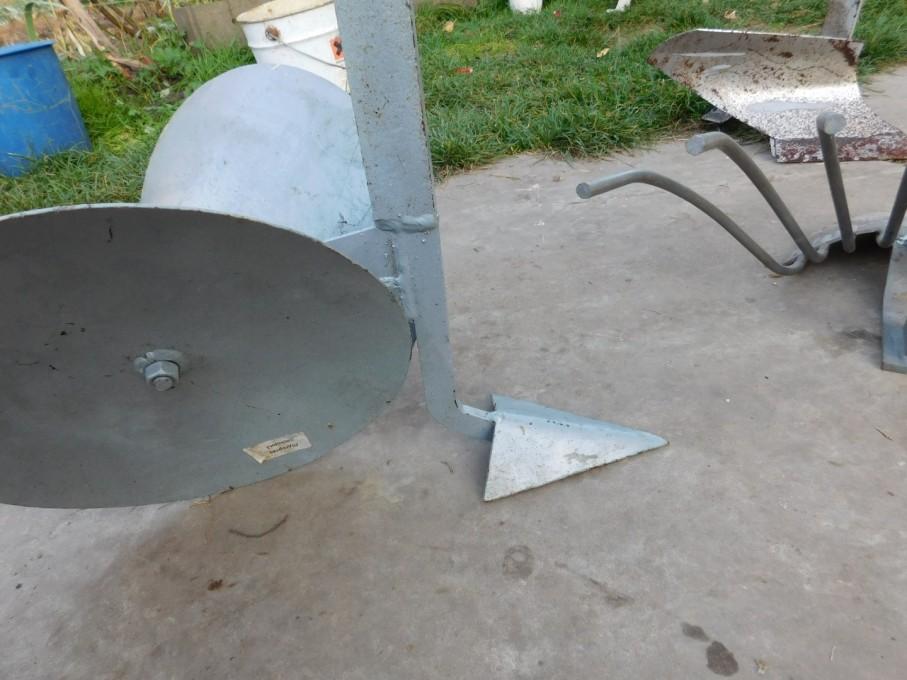

Disk wrapper (okuchnik). Never been at work. First, for normal operation, as it turned out, you need 2 and the corresponding clutch. And the width of the rows. And the corn at the end of the rows, which God forbid you touch! Well, you understand me. In short, the wrapper is just there.

This is how unpretentious he is from the back. In general, disc wrappers/kushniks/spreaders are considered better than classic, shelf ones.

To understand his delight...

And this is a "dolphin". With the correct adjustment, it will not crawl deeper because of the support leg at the bottom. But be sure to try the adjustment depth on a bad line.

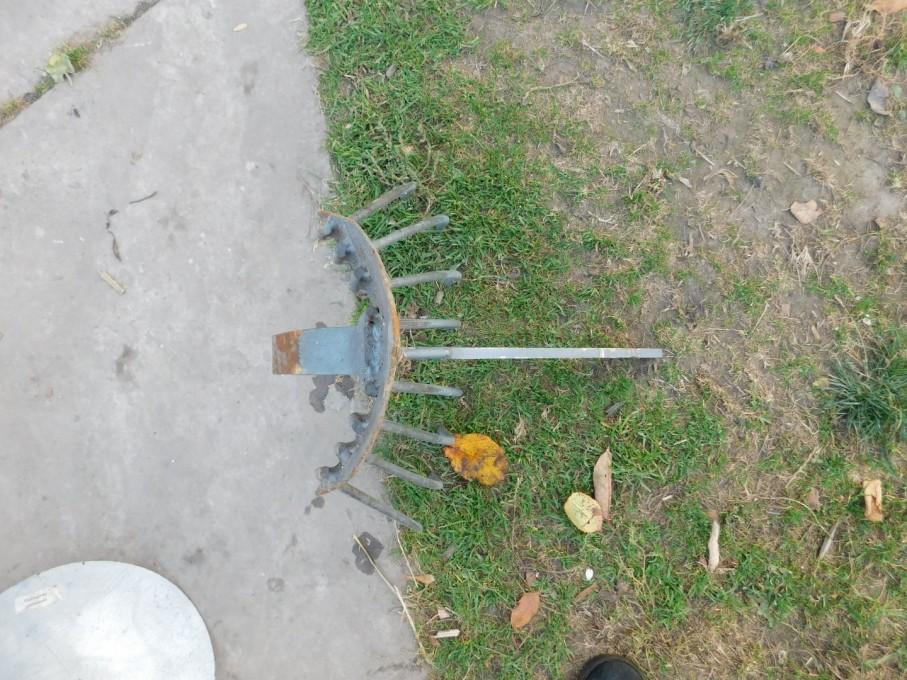

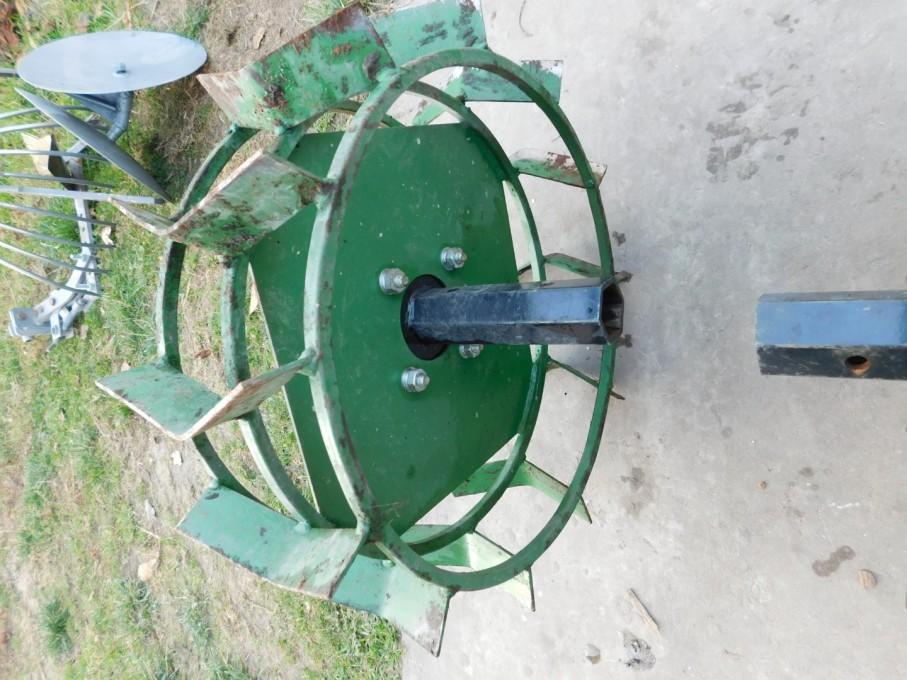

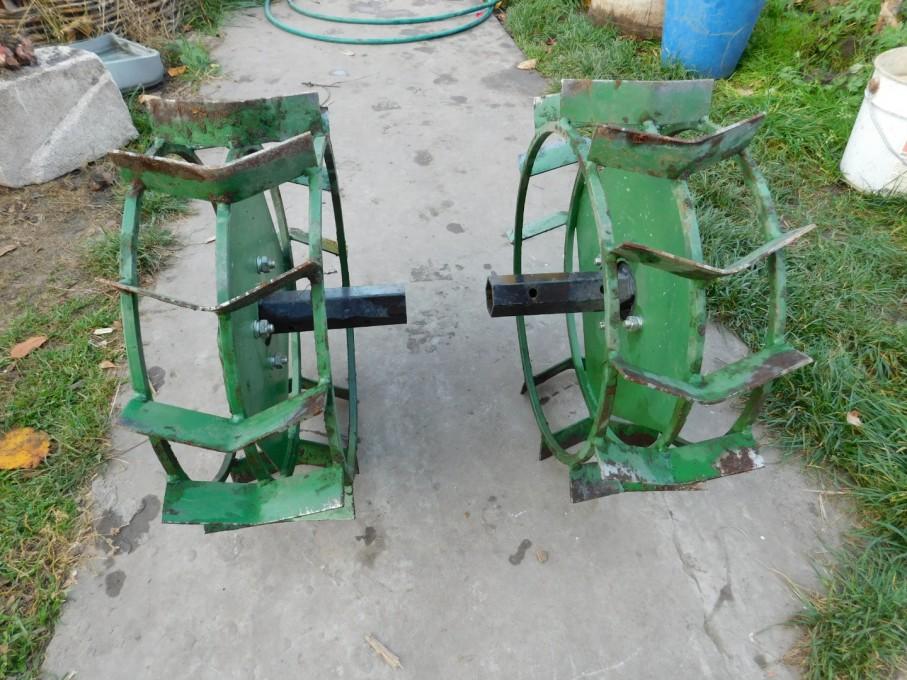

Ground hooks. There is also such a thing. But it's just for now. A useful thing when plowing, but it is necessary to load the walk-behind tractor with weights. We tried to dig potatoes with them - they press our soil and spoil the tubers.

And even the soil grippers go without semi-axles. They have to be bought separately, as well as the mounting hardware.

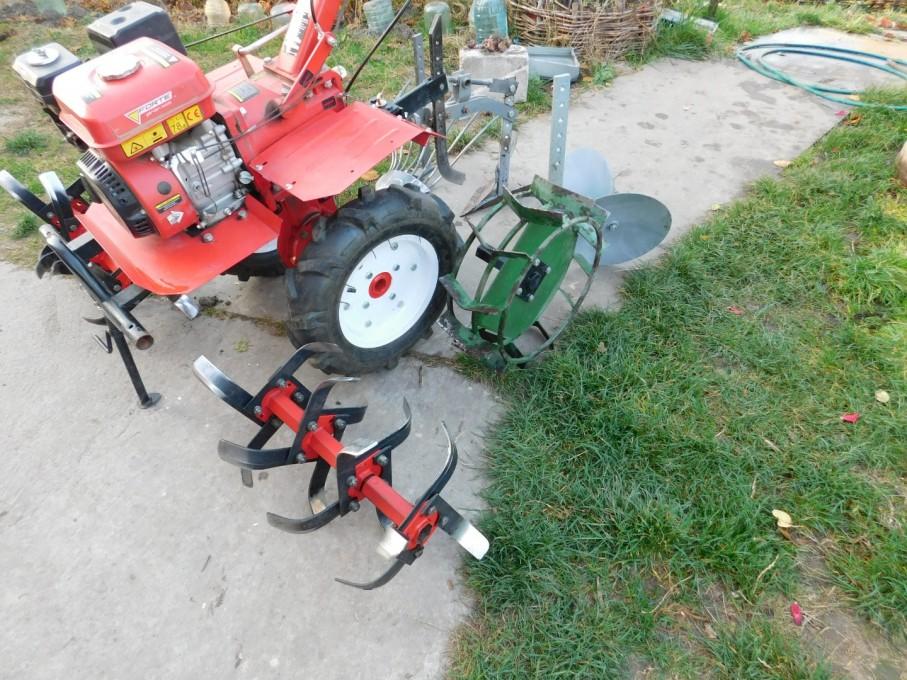

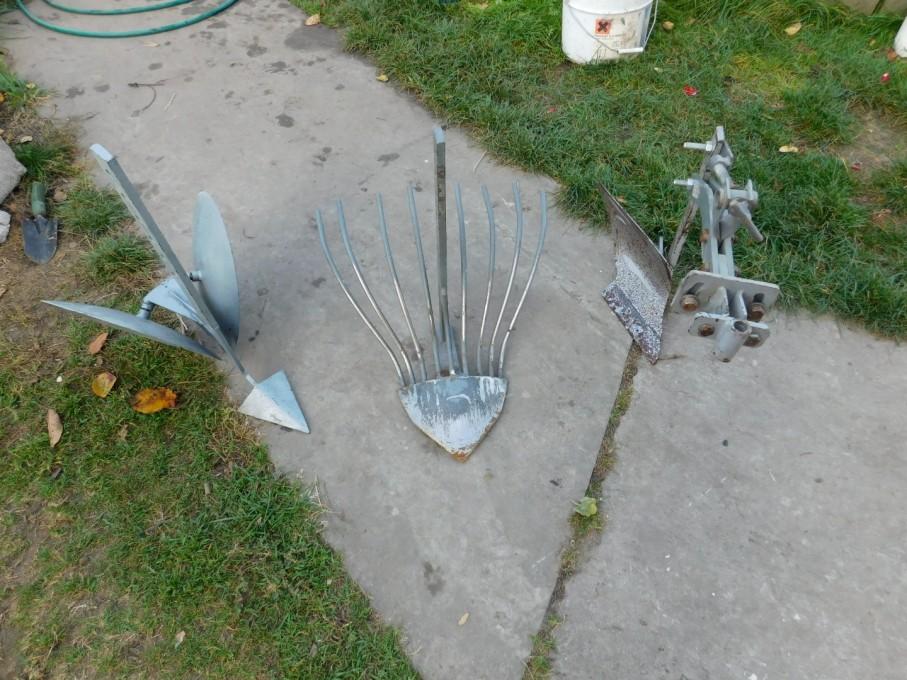

Well, here is my entire "gentleman's" set for the walk-behind tractor. And he was too lazy to get a rotary plow. In general, the money is nowhere to be found... Design, quality... Let your hands not hurt, because who made it! If there is an opportunity, I will make a review that you don't need to buy.
