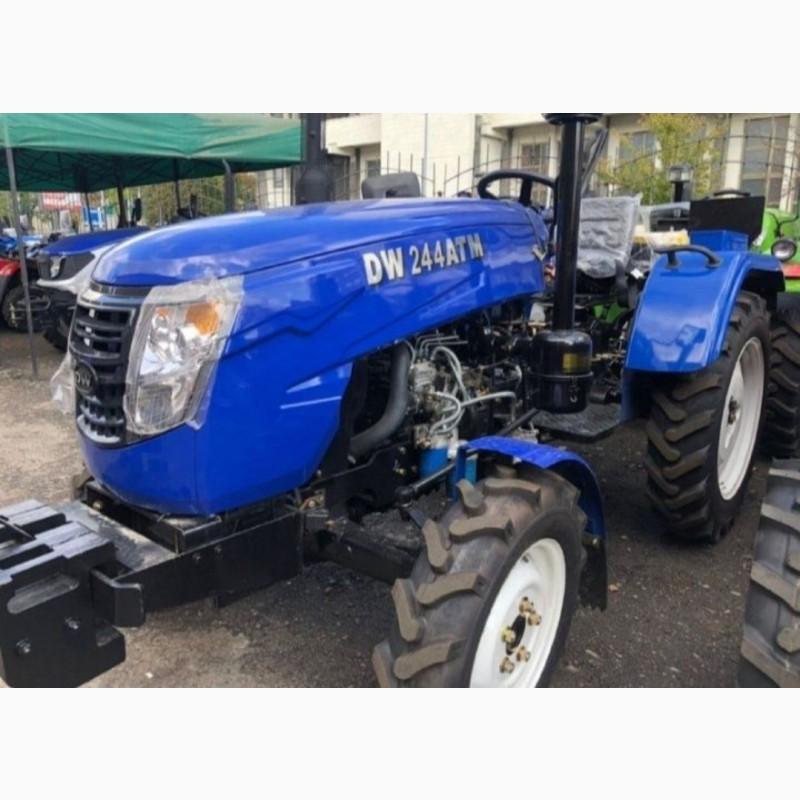

Tractor description:
3-cylinder engine with a total capacity of 24 horsepower. Unlike the classic 2-cylinder of the previous model, this engine has greater motor resource and endurance, its cooling system works much better. As a result - increased service life.
All-wheel drive with 4x4 formula, rear differential lock and stable
wheels, sizes 6.5-16 and 9.5-24. All this in a complex makes the DW 244 ATM tractor incredibly stable, maneuverable with a high cross-country ability.
The tractor's curb weight is 1265 kg, and its dimensions are 3350x1500x1860. The agricultural machine is very easy to operate in field conditions and on covered areas. It has a minimal impact on the ground thanks to a reasonably distributed weight.
The maximum carrying capacity of the tractor is 500 kg. This gives the opportunity to work with a wide range of attached equipment, performing a full range of agricultural and/or communal work.
Completing the model. A comfortable adjustable seat with cushioning, sensors on the dashboard, an electrical socket for the trailer, lights and horn, mirrors, front and rear hitches, fenders, a weight switch and an additional rear light: a similar set is already included in the price of the tractor.
Tractor characteristics:
Mini tractor DW 244ATM:
Power: 17.65 kW/ 24 hp.
Fuel: Diesel
Cooling system: Water
Engine volume: 1531.33 cubic centimeters.
Engine type: 4-stroke
(//tractor-service.com)
Starting system: Electric starter
Checkpoint: (4 + 1)x 2
Wheel formula: 4x4
Engine oil type: Mineral or semi-synthetic for diesel engines
Steering: Mechanical
The maximum load capacity of the hinged mechanism: 420 kg.
Fuel tank volume: 17 l
Engine crankcase volume: 6.6 l
The volume of the gearbox and rear axle crankcase: 11 l
The volume of the crankcase of the front axle: 4 l
Engine cooling system volume: 6 l
Wheelbase: 1700 mm
Overall dimensions: 3100 x 1500 x 1900 mm
Weight: 1310 kg
