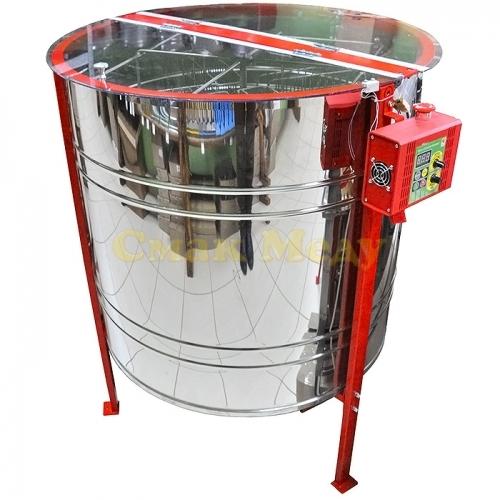

Medogonka 4-h ramochnaya automatic Dadan, Dnepropetrovsk region.

Basic technical data:

Electric motor supply current, V                                   constant, 12

Electric motor power, W 150

Electric motor shaft revolutions, rev/min.                                          1000

The number of management programs 7

Performance, frame / time 35-50

Weight not more, kg 53

The volume of honey accumulated in the honey beehive between ego

by obligatoryplums (the level of the lower spokes of the rotor), l              50

Note: an electric motor with the following tabular characteristics is installed on this product - power 300 W, 2000 rpm when connected to 24 V.

When the voltage is reduced to 12V, the power and revolutions drop to the specified ones.

         Preparation of the product for work and order of work.

        Before starting work, the honey extractor must be washed with hot water and dried. Set the honey extractor on a flat horizontal surface. Check and, if necessary, tighten all fasteners. Connect power to the control unit from the mains or from the 12V battery.  Next, on the remote control unit, select the operating mode: manual P0, or one of the automatic ones (P1; P2; P3; P4; P5; P6; P7).

        Operation of honey extractor in manual mode (P0)

       Speed, direction and rotation time in this mode are set manually on the remote control unit using the corresponding buttons. After the end of the rotation in one of the directions, or pressing the "Stop" button, a hold of 10 seconds is made. After stopping, when the indicator of the "Stop" button lights up, it will be possible to access further work with the remote control - for example, turning on reverse or entering the programming menu.

           Characteristics of manual mode

Range of revolutions / min.     50...300
Working time, min.              0...9

Direction of rotation Forward / Backward Attention!

Внимание!

1. It is not allowed to change the direction of rotation (press the "Forward / Back" button) before the rotor comes to a complete stop.  This can cause the engine to overload and cause it to malfunction.
(//tractor-service.com)
2. When selecting the manual mode, it is necessary to start with medium revolutions (not with maximum).

3. When using a voltage generator as a power source, be sure to include an additional load in the circuit (the minimum load is specified in the generator's passport).



           Operation of the honey race in automatic mode

          In order for the honey extractor to work in automatic mode, it is necessary to select one of the 7 programs on the control panel.

       Rotation speeds, the number of turns and also the pumping time are programmed at the manufacturer, if necessary, when entering the programming mode, changes are possible for each program. After the end of rotation in one of the directions, as in the manual mode, exposure is made for 20 seconds.

         Characteristics of automatic mode

Program                        Direction of rotation
Forward Back  Forward Back
      P1 RPM 120 120
 Working time (min.) 2 2
   P2 RPM 160 160
 Working time (min.)      2.5   2.5
      P3 RPM   100     160    160
 Working time (min.)       1.5    1.5    1.5
      P4 RPM   100     200    200
 Working time (min.) 1.5 1.5 1.5
      P5 RPM    100 160 160 160
 Working time (min.) 1.5 1.5 1.5 1.5
      P6 RPM    100 200 200 200
 Working time (min.) 1.5 1.5 1.5 1.5
      P7 RPM    100 160 200 200
 Working time (min.) 1.5 1.5 1.5 1.5

Tank: Stainless

The tankhoney race is covered  with a protective film that can be easily removed
Rotor details, welded cassette: Stainless
Faucet: Stainless
Cover: Plexiglas
Height: 1105 mm

Width: 840 mm
Tank diameter: 800 mm Details: https: / / medoray.top / p697711687-medogonka-ramochnaya-avtomaticheskaya.html
