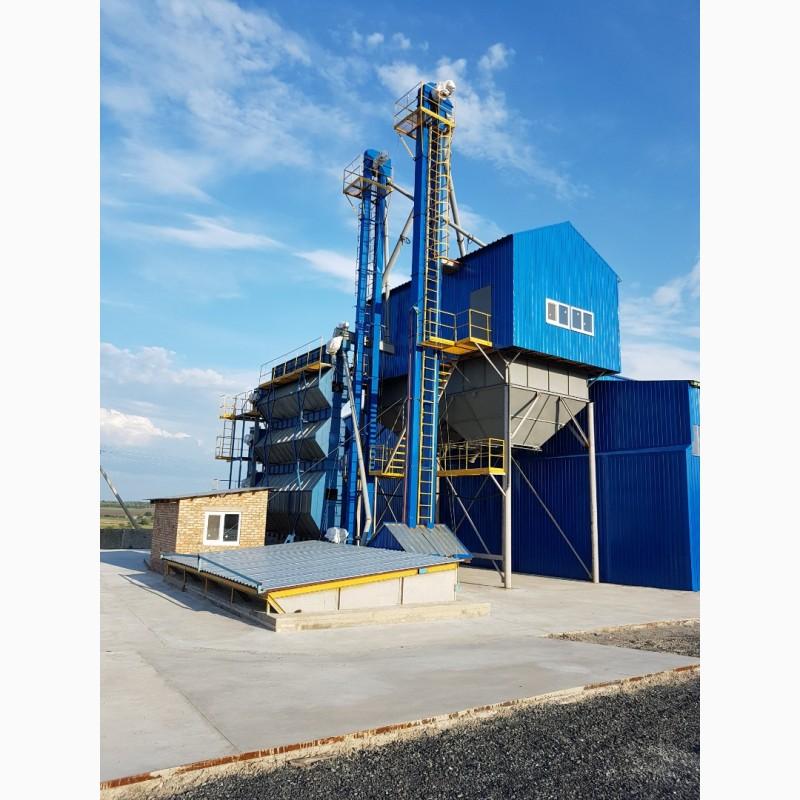

Grain dryer ZSM-6, Kharkiv region.

Grain dryers ZSM is reliability and efficiency, combined with availability and maximally meeting the needs of domestic agricultural producers.

The principle of operation of modular grain dryers is simple and reliable, which is confirmed by the following:
The grain is transported by auxiliary equipment to the upper part of the grain dryer, where the auger loads the columns one by one and distributes it evenly along the entire length of the dryer;
The fan blows air from the environment, which is heated by the burner and mixes with the already heated air and enters the drying chamber. Effective mixing of air and efficient burning by a gas burner ensures the uniformity of the heated air temperature at any point of the chamber.
Heated air under the pressure of the fan is blown through the perforated walls ofgrain columns, heats the grain and removes moisture from it.
In the lower part of the dryer there are dosing rollers, the speed of rotation of which regulates the time the grain remains in the columns.
The dried grain is shipped by the lower auger and transported by auxiliary equipment for cleaning or storage.
Peculiarities of ZSM grain dryer technology.
The outer and inner sieves of the grain dryer are made of high-quality stainless steel, which ensures a much longer service life compared to galvanized counterparts.
All metal parts of the grain dryer have a zinc coating, with a thickness of at least 750 gr./m2(//tractor-service.com)
Depending on the seed crops, it is possible to equip with sieves with a perforation diameter of 1.5 – 2.5 mm.
All models of grain dryers are equipped with octagonal low-flame burners that ensure efficient fuel combustion. In combination with the two-stage principle of burner operation in small and large flame modes, a 20% reduction in fuel consumption is achieved compared to similar equipment.
One of the conditions for an effective, reliable and safe gas line of the dryer is the use of high-quality electromagnetic valves of European production.
The use of axial fans with polypropylene blades significantly reduces the load on electric motors and reduces noise during operation.
The durability of the augers with significant drying volumes is achieved due to the use of fluoroplastic bushings in the auger fasteners. Fluoroplastic is characterized by a wide range of mechanical properties: low coefficient of friction, low value of wear, resistant to various aggressive substances and the environment, non-flammable.
Thanks to the complex steel construction of the dosing rollers, their deformation is impossible when unwanted foreign objects fall on them.
The use of European pulleys and bearings ensures trouble-free operation of the drive units of the dryer.
The presence of a large number of handrails, railings and ladders allows you to easily and safely perform inspection and maintenance of all parts of the dryer.

At the design stage of the grain dryer, our designers took into account the possibility of increasing productivity by increasingthe number of grain columns or installing an additional upper module.
A high-tech safety system for the operation of the complex is installed at the grain drying plant, which monitors all processes and thereby ensures the appropriate level of protection of personnel from industrial injuries and protection of the complex from fire.
The compact dimensions of the grain dryer and the absence of a capital monolithic foundation make it possible to easily supplement the existing technological line of any grain cleaning complex.
