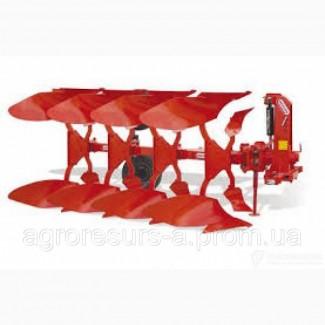

Reversible plow - an agricultural tool for smooth plowing without removable (falling) furrows and dumpers combs It is used mainly on areas with a complex configuration, as well as during soil processing on slopes where it is necessary to dump the layer in one direction. The reversible plow is equipped with right- and left-rotating bodies, fixed on a common frame, which is turned by a mechanism of rotation by 180 ° (reverse function) after each working stroke. The rotary plow is made mounted with the number of housings from 1 to 4 and semi-mounted with 5 housings and more.
Thanks to the reverse function, at the moment of completion of the furrow, with the help of the hydraulic system, the plow turns 180 ° and starts a new furrow following the previous track.
The rotation of the plow is carried out using a double-acting cylinder with an automatic switch. The short, strong axis of rotation, made of improved steel, withstands the hardest impact and long-term loads.
Adjustment of the point of application of traction force and the grip width of the first body is ensured by means of external and internal adjusting screws.
Changing the capture width
The width of the grip is 4-step by manual rotation of the boom elements. This allows you to easily adjust the plow according to different conditions (soil features, tractors, etc.). When adjusting the grip width, the front plows and the support wheel also change their position automatically.
Mechanical protection
Under load, the shear bolt breaks, the plow body deviates from the obstacle and goes uphill.
(//tractor-service.com)
Support wheel
For 3- and 4-body plows, a pendulum copying wheel is installed on pneumatic
tires.
For 5-body plows, a pendulum copying-transport wheel on pneumatic tires is installed.
It is set in the transport position by folding
the wheel and rearranging the bolt (only in combination with the transport lock on the attachment device).
Body tilt adjustment
With the help of an eccentric, the inclination of the body can be adjusted for reliable entry even on very hard dry soils.
Availability of field board
For reliable driving of the plow, large field boards are used. The field boards rotate 4 times, which makes it possible to fully use the material.
