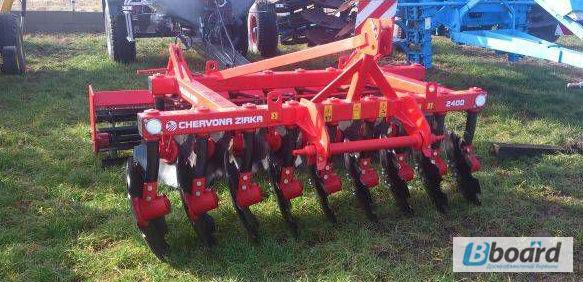

PALLADA 2400(-01) Mounted disc harrow, Dnepropetrovsk region.

Pallada 2400 —disk harrow mounted. Pallada 2400 harrow -01 (BDN-2400-01) is designed for resource-saving pre-sowing and main tillage of the soil for grain, technical and fodder crops, destruction of weeds and grinding of harvest residues after harvesting crops, as well as for grinding, leveling and compaction of the soil after disking. The Pallada 2400-01 (BDN-2400-01) disk harrow is used in soil and climate zones with soil moisture up to 27% and soil hardness in the cultivated layer up to 3.5 MPa, as well as in fields with a significant amount of crop residues. Each harrow disk Pallada 2400-01 (BDN-2400-01) is installed on an individual rack and has an inclination with respect to the vertical axis, which allows you to adjust the angle of attack and the working width of the disk. The Pallada 2400-01 disk (BDN-2400-01) performs the role blade and blade, which contributes to better rotation of the layer, its crushing, as well as to the reduction of the traction force of the tractor. The attachment of discs on an individual rack allows the disc harrow to work on lands with a large amount of plant residues, as well as on lands with any number of weeds, at the same time, the winding of plant residues on the axis of the disk and clogging of the space between the disks are excluded. The trail roller is designed for mixing plant residues with soil, leveling and compacting the soil after disking.
Technical data and equipment --Pallada 2400-01 (БДН-2400-01)
PALLADA 2400(-01)
Unit type -- mounted
Productivity --ha/h -1.8
Working speed km/h 8-12
Transport speed km/h -- up to 20
Width of capture m --2.4
Cultivation depth mm 80-120(//tractor-service.com)
Angle of attack of disks degrees. 0...30
Number of rows pcs. --2
The number of cutting units pcs. --18
Distance between rows of discs mm --950
Diameter of working bodies mm --560 (660)
The distance between the disc blades mm --250
Overall dimensions in working position mm 2050x2700x1200
Structural weight kg 880±30
They are aggregated with tractors hp. 80
