Rotating harrow - one-piece beam, Kyiv region.

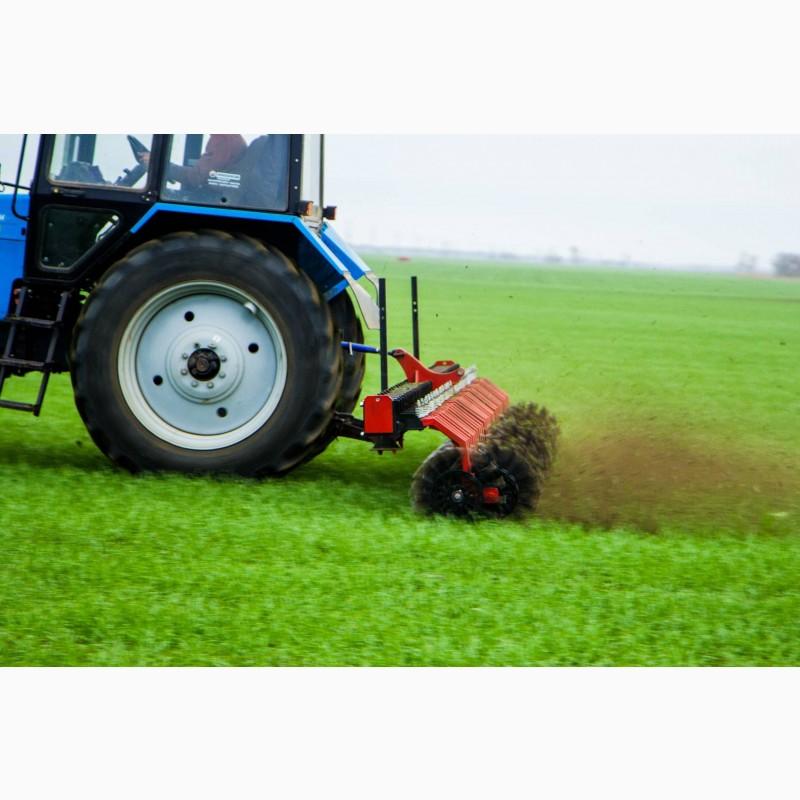

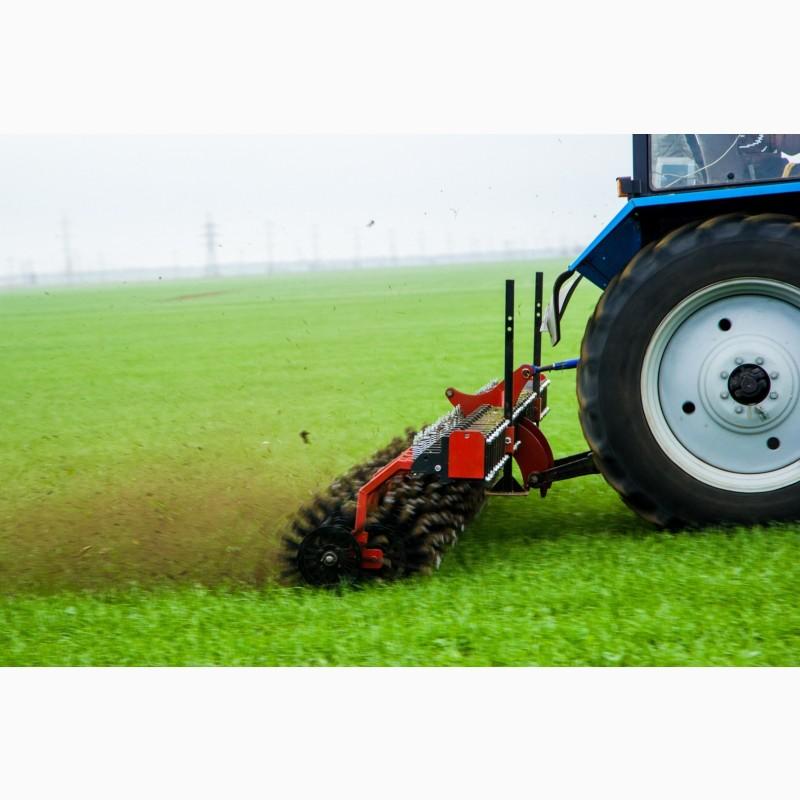

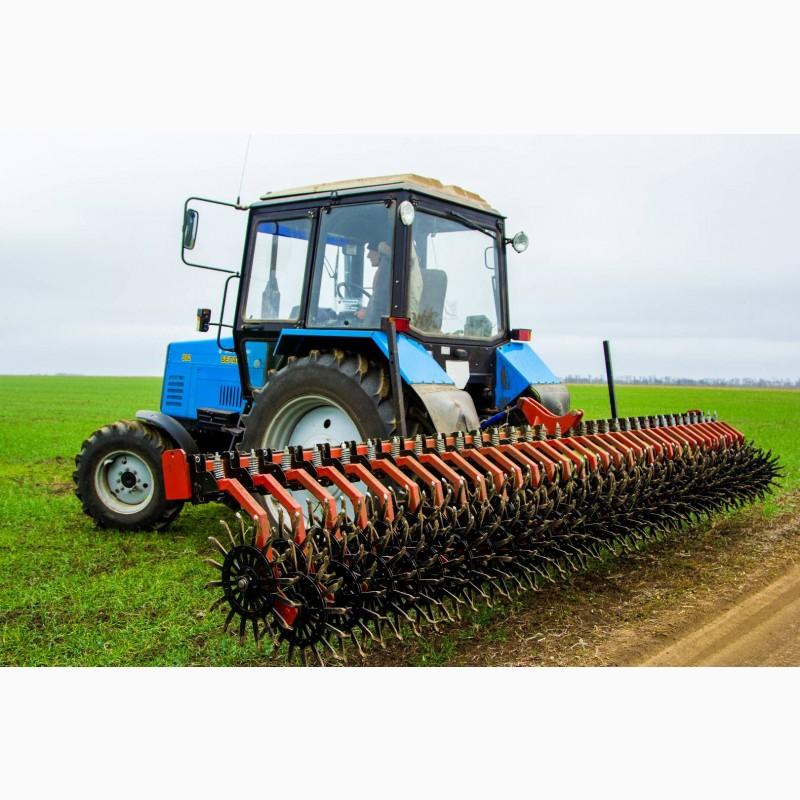

Rotary harrow mounted — "ROTARY HARROW" "RH -6"

Rotary harrow "ROTARY HARROW" "RH-6" is a hybrid of a cultivator and atooth harrow a harrow designed for pre-emergence and post-emergence harrowing (continuous and inter-row processing) of any agricultural field crops crops (cereal, plowing, technical), on any type of soil, including under difficult conditions (thick and strong soil crust, a large number of plant residues, stubble processing, etc.).

YouTube video link: https://www.youtube.com/watch?v=TWe9NiRlSFo&t=4s

Target "ROTARY HARROW" "RH-6":
• Surface loosening and soil aeration – micro-explosion;
• Destruction of filamentous weed seedlings.
The use of "RH-6" is effective for spring harrowing of winter wheat. When processing after vegetation, it allows to significantly influence the accelerated and full-fledged development of cultivated plants.
The working organs of "RH-6" create an ideal background for the initial development of the root system of plants, they mulch well the upper layer of the soil, destroying the soil crust, thus, preserving moisture, they destroy the filamentous roots of weeds up to 100% at speeds of up to 20 km/h. When a monolithic soil crust appears on the early seedlings of cultivated plants, at the stage of 2-3 leaves, when the use of tooth harrows is impossible, the efficiency of using "RH-6" increases dramatically.

Soil loosening (destroys capillaries and increases its porosity):
• promotes uniform distribution of moisture;
• promotes uniform distribution of oxygen;
• promotes plant strengthening and accelerated growth.
(//tractor-service.com)
Using the "ROTARY HARROW" "RH-6" technology gives YOU
Increased productivity. Significant economy.
• on corn for 20-25 cents; • Fertilized with nitrogen 100%;
• on the lake wheat by 10-15%; • Fertilized with potassium 100%;
• on sunflower for 4-5 cents; • Fertilized with phosphorus up to 100%;
Lubricants up to 40%;

ADVANTAGES:
1. Working area - 6105 cm.
2. Total weight - 1100 kg.
3. Number of sections - 33 pcs.
4. Number of teeth - 1056 pcs.

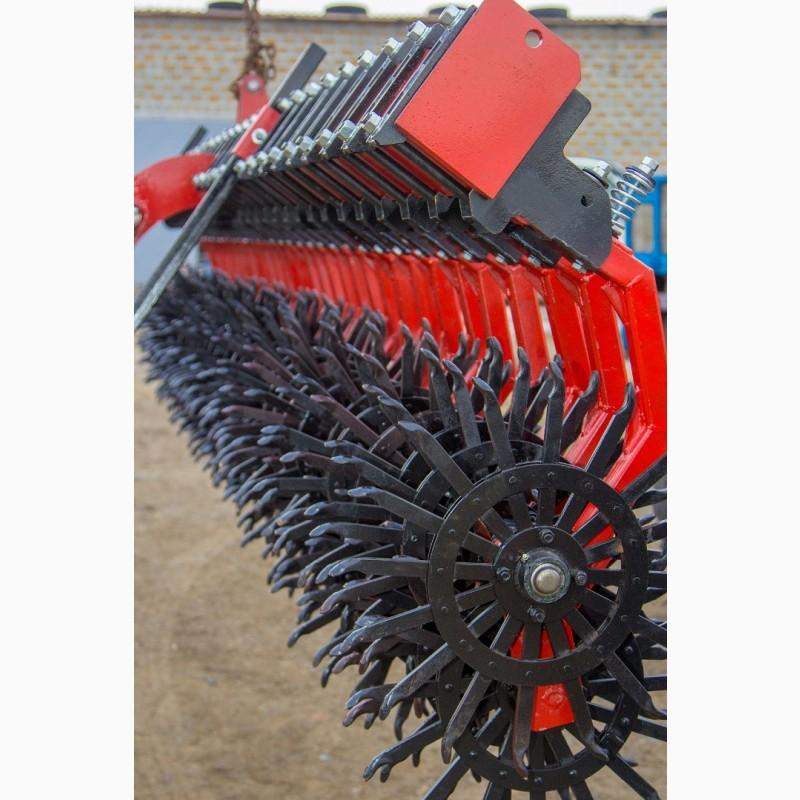

5. The shape of the tooth is peaked in the shape of a spoon (forged).
6. The hub is specially designed (grease goes to two bearings).
7. All bearing units (not bushings and silent blocks).
8. The spring works for compression.
9. And the most important thing is that there is NO section between the hedgehogs of LUFTA, as in analogues!!!
