Mobile units for sifting and washing sand Polygonmach SW, Turkey, Kyiv

Mobile units for screening and washing of the Polygonmach SW series are used for natural screening and washing of sand and gravel.
The biggest advantage of our mobile sorting and washing plants is easy mobility, quick installation and relatively smaller space requirements.
All necessary equipment for sifting and washing is combined in a one-wheeled chassis.

Mobile screening and washing units of the Polygonmach SW series are a combination of:
Loading hopper with vibrating feeder Vibrating screen
Feedback conveyor from the vibrating screen of the loading hopper
Washing screen
Folding conveyors
Wheeled mobile chassis with hydraulic supports
Automation system with PLC and remote control
Diesel electric generator set (option)

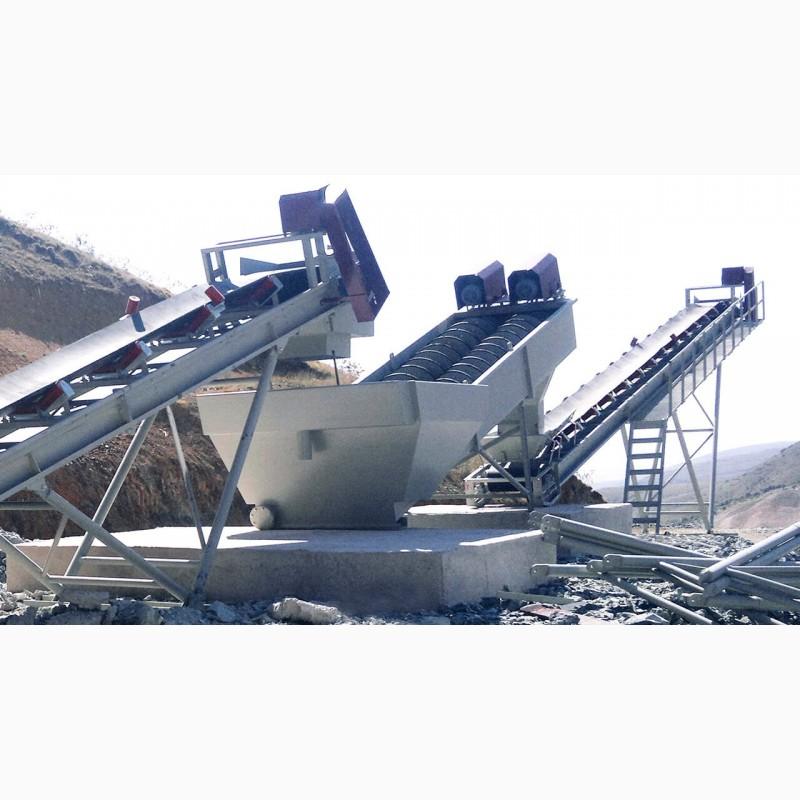

Unlike stationary sorting and washing units, the only option for washing is a screw washer, which provides a compact design and mobility.

Mobile sorting and washing units of the Polygonmach SW series are classified according to the production capacity of the models:

MODEL SW-1230
Productivity 60 t/h
Screen size 1.2 x 3 meters
The size of the washing unit is 400 x 4,000 mm
Weight 14 tons
Machine size 9 (L) x 4 (H) x 2.5 (W) m

Model SW-1640
Productivity 80 t/h
Screen size 1.6 x 4 meters
The size of the washing unit is 400 x 4,000 mm
Weight 17 tons
The size of the machine is 10 (L) x 4 (H) x 2. 6(W) m(//tractor-service.com)

Model SW-1850
Productivity 150 t/h
Screen size 1.8 x 5 meters
The size of the washing unit is 500 x 5,000 mm
Weight 22 t
Machine size 12 (L) x 4.2 (H) x 3.1 (W) m

Model SW-2060
Productivity 200 t/h
Screen size 2 x 6 m
The size of the washing unit is 600 x 6,000 mm
Weight 32 tons
Machine size 13 (L) x 4.3(H) x 3.3 (W) m

If necessary, it is possible to adapt the electric generator to the chassis of the installation, as well as remove the washer and use the installation only for testing.

Polygonmach mobile sorting and washing plants are equipped with a high-tech automation system, which includes electronic components and a high-class SIEMENS-SCHNEIDER PLC. The plant is controlled only by the tablet controller.

The overall dimensions of mobile sorting and washing plants are determined in accordance with international road transport rules and are easily transported between work sites. You can view the general view, information about transportation and photos of mobile washing machines for screening.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.
