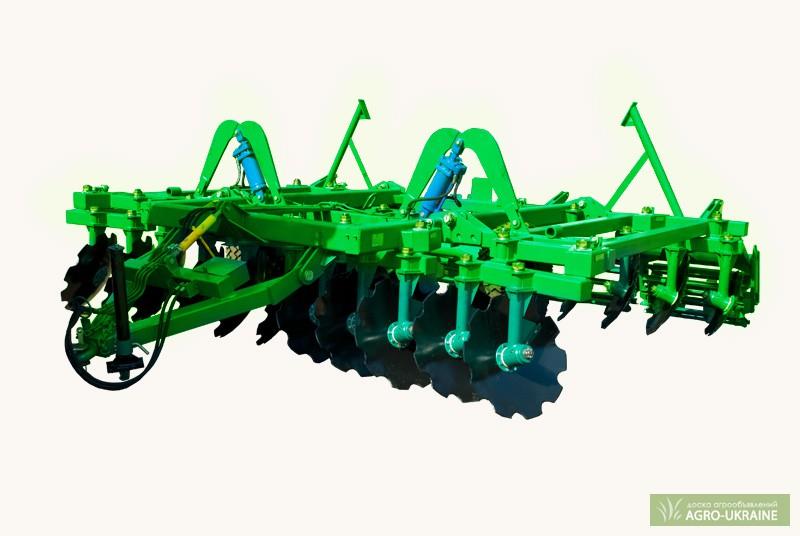

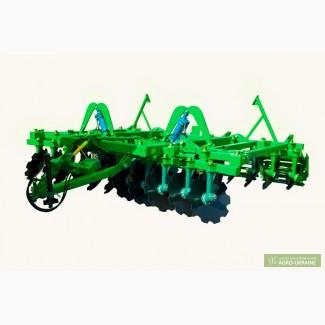

Disk aggregate UDA-3.8-20, Dnepropetrovsk region.

Universal disk unit unit typeUDA (trailer)
Units of theUDA brand are intended for processing all types of soil to a depth of 4-18 cm for sowing cereals, annual and perennial grasses, sunflowers, corn.
Since the aggregates grind and mix the soil without overturning the layer, the upper nutrient layer of the soil, rich in microflora, is located in the zone of seeding and development of the root system of plants, which increases the yield by 15-25%.
The units are equipped with discs with cutouts that have a sharp edge around the entire perimeter, perfectly grind the stalks of post-harvest residues and weeds, evenly distribute them throughout the entire depth of the treated soil layer, which leads to the decomposition of organic substances without mineralization and prevents soil oxidation.
Since the axes of rotation are placed at an angle to the horizontal and the discs simultaneously cut the lower layer of the soil layer, accordingly, the energy consumption of soil processing and the wear of the discs of these units is less than in known heavy disc harrows, which gives fuel economy. Technical characteristics
Gripping width, m 3.8
Productivity, ha/hour 3.3-3.8(//tractor-service.com)
Fuel consumption, kg/ha 4.0-7, 2
Working speed, km/h 8-12
Processing depth, cm 5-18
Guaranteed resource, ha 3850
Mass, kg 3250
Transportation width, m 3.0
It is aggregated with tractors, hp. 160-200
We also offer the entire range of units of the UDA type (UDA-2.1-20, UDA-2.4-20, UDA-3.1-20, UDA-4.5-20, UDA-5.2-20, UDA-6.1-20)
