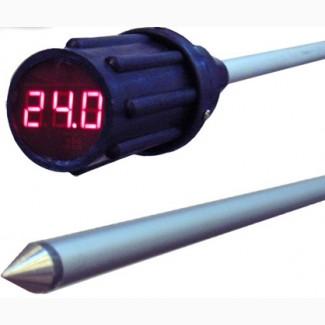

The purpose of the TC series digital thermometer is to measure temperature indicators in
grain and various bulk products of ego processing, as a rule, having a predisposition to spontaneous heating during storage.
The use of digital thermobars is recommended for many organizations on topics or otherwise related to the storage of grain products, their processing, or directly to quality control. For example, it is effective to use such measuring equipment as a shopping center at grain processing and bread-making enterprises, compound feed plants,
warehouses.
Procedure for temperature measurement:
1. Insert the digital thermometer with the thermosensor side into the product mass to the depth at which the control measurement is planned.
2. Hold the device for about 3 minutes in a static position to obtain the area of the device equipped with the sensor at the same temperature as the surrounding product.
3. Press the "Measurement" button in the lower part of the plastic handle of the thermobar. Hold it in the pressed position until the indication is shown in the form of glowing numbers on the display at the end of the handle.
4. Release the "Measurement" button before starting the next measurement, or after completing work with the device.
If the production temperature is below the minimum extreme of the range of device values, the display will show the symbolic expression "---" (three horizontal dashes standing next to each other).
Blinking indicates that the voltage level of the batteries has dropped to the point where they need to be replaced.
Technical characteristics of TC-2:
Range of measured temperatures, ºС -55...+125
Price of division (-9.9...+125) ºС 0.1
Average time of measurement, min 3
Power supply (4 elements AA-R6-1.5V), V 6
Current consumption, mA, no more than 40
Mass, kg, not more than 1.0
(//tractor-service.com)
Overall dimensions, mm, no more than 65x65x2150
Depth of temperature measurement, mm, no more than 2000
Technical characteristics of TC-3:
Range of measured temperatures, ºС -55...+125
Discreteness of reference (-9.9...+125) ºС 0.1
Average measurement time, min 3
Power supply (4 elements AA-R6-1.5V), V 6
Current consumption, mA, no more than 40
Mass, kg, not more than 1.0
Overall dimensions, mm, no more than 65x65x3150
Depth of temperature measurement, mm, no more than 3000
Warranty - 12 months
Price 2m-1995 hryvnias/3m-2290 hryvnias.
Delivery across Ukraine by Novaya Pochta, Intime, SAT, Delivery delivery services.
Call! We will be glad to help you. О97 ОЗ8 2О 42, О66 ЗЗ2 47 18
