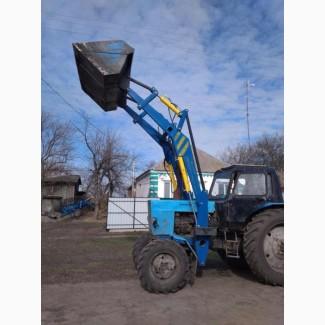

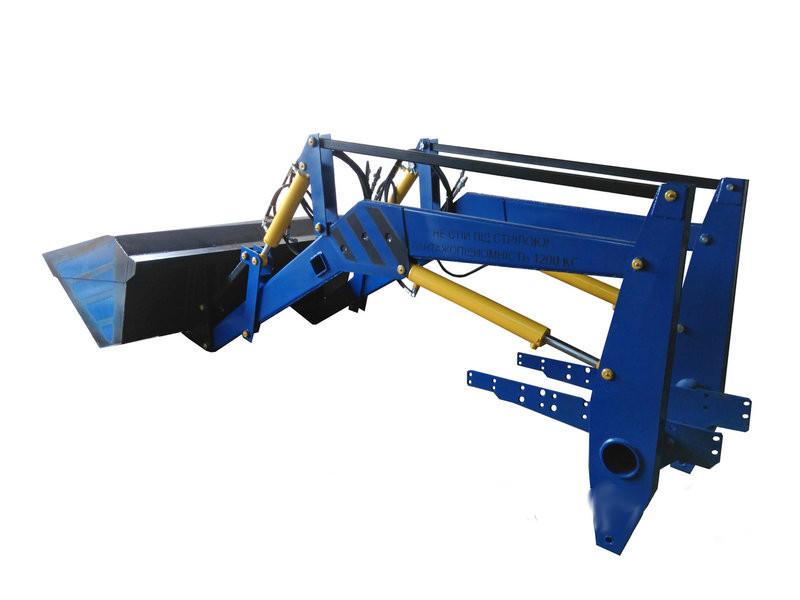

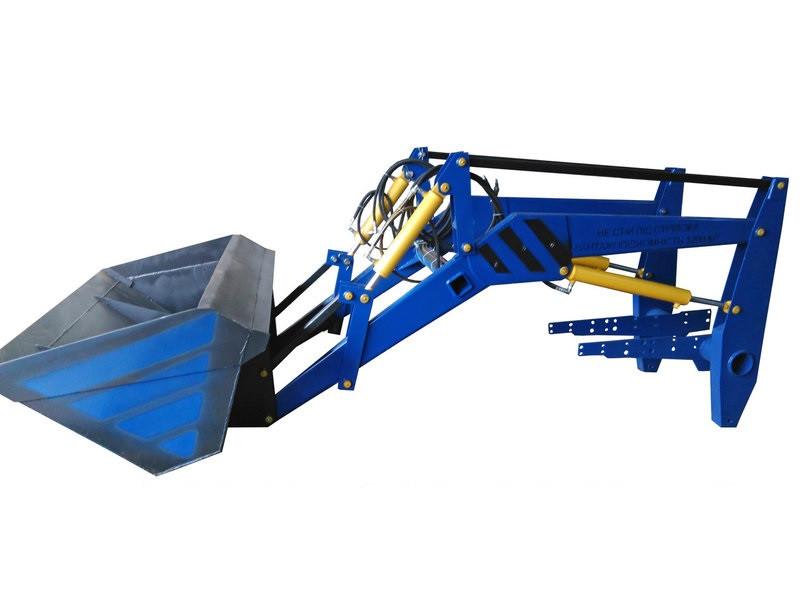

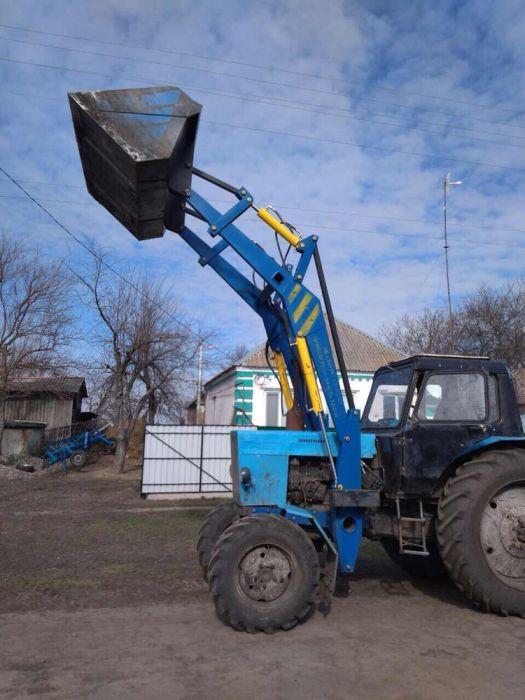

Front loader, front loader (KUN), MTZ tractor loader, Zhytomyr region.

The front-end loader is designed for loading various loads (grain, mineral fertilizers, organic fertilizers, manure, soil, straw, sand, crushed stone, etc.).
It will easily load trucks,trailers 4 meters high. It is also used for the mechanization of warehouse and repair work.

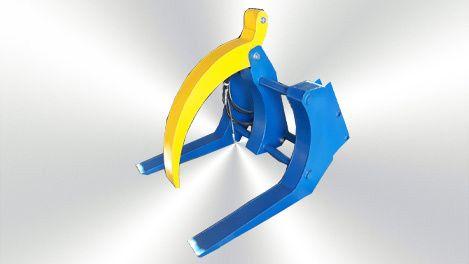

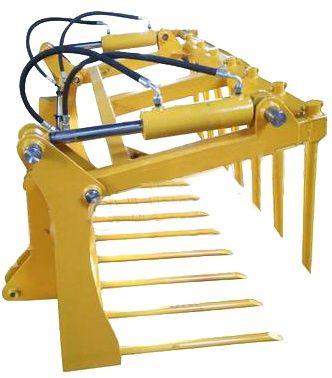

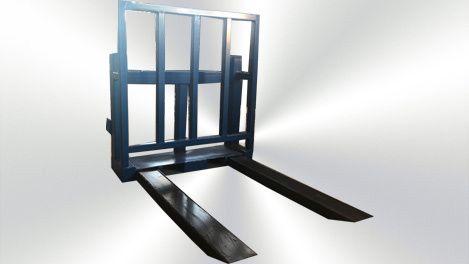

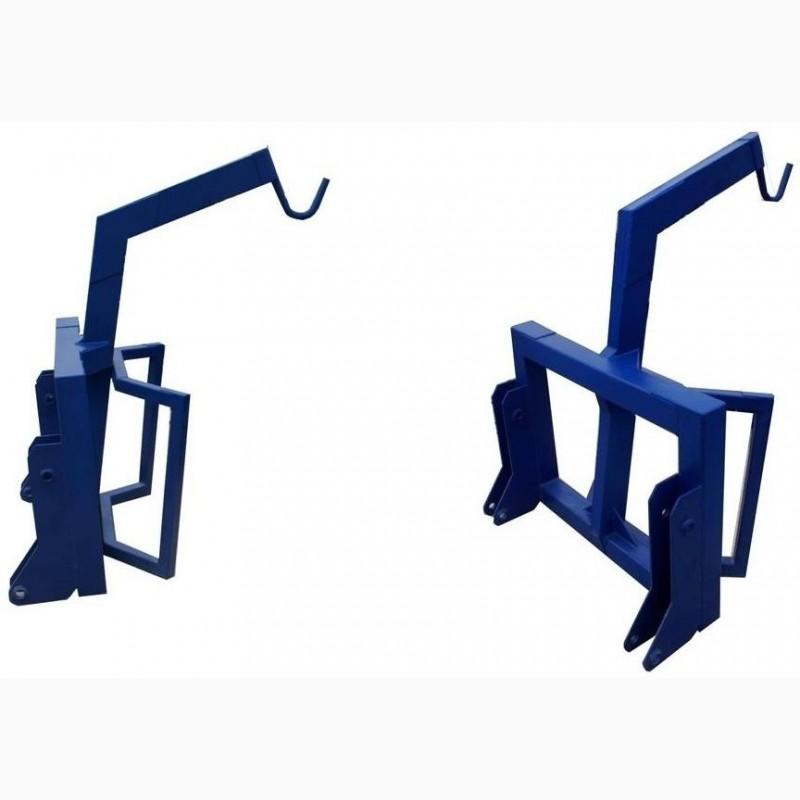

Additionally, it can be equipped with a snow removal blade, forks for pallets, grip for big bags, hay forks, and a crane.

Characteristics:

Load capacity 800/1200/ kg, and reinforced 1600 kg
Working height up to - 4.2 m.
Productivity per hour of main work up to 45 tons.
Gripping width: from 1.5 m to 2.2 m
Loader bucket modifications:
- 0.8 m³ (bucket width 1.6 m) best for soil, sand, crushed stone,
- 1 m³ (bucket width 1.8 m), universal,
- 1.2 m³ (bucket width 2.2 m) is the best for loading grain.(//tractor-service.com)

Advantages:

• reinforced frame design, makes it possible to lift heavy loads to a height of 4.3 m and weighing up to 1.6 tons.
• high-strength bucket made of solid sheet metal and with additional amplifiers with a square tube along the entire length of the bucket.
• A bucket of our own development - the presence of an 8 mm thick edge, an 18 mm thick knife (steel 45), reinforcing spacer plates inside the bucket.
• The bucket is quickly and easily removed (you move the lever and you can remove it from the hooks).
• The boom is quickly and easily removed and put on (you install the supports, thetractor comes up and the boom sticks).
• Availability of a copying system - stabilizers
• Modified design of the boom, due to which the load capacity and resistance of the unit to wear are increased.
• Hydraulic cylinders for raising the boom with a 50 rod.
• Equipped with hydraulic cylinders of foreign production.
• All fingers go on bolts, it strengthens and strengthens the structure.
• The loader has hidden oil pans, which increases the service life.
Full equipment: bucket, boom, left and right rack, 4 hydraulic cylinders, RVT, fittings, bolts, engraver, washers. Complete set for the installation and commissioning of the loader.
