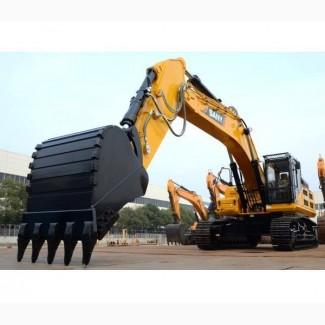

Экскаватор большой SY700H SANY, Киевская обл.

Big SY700H SANY excavator- with high power and high reliability, the engine fully ensures the stability of the excavatorустойчивость экскаватора, constantly working in harsh conditions, meeting the customer's high requirements for engine stability.

Characteristics

Engine model: Isuzu BB-6WG1XQA-03;
Nominal power 310/1800 kW / rev / min
Maximum. torque1540 / 1500nm / min
Displacement 15,681 l
Emission standard Level 2
Operating mass 72000 kg
Maximum. digging height 11653 mm
Maximum. digging depth 7152 mm
Maximum. drop height 7334 mm
Maximum. vertical digging depth 5129 mm
Maximum. digging reach 11374 mm
The minimum swing radius is 5058 mm
Transport length 12000 mm.
Transport width 3440 / 4188mm
Transport height 4771 mm
The upper width is 3360 mm.
The height of the cabin is 3700 mm.
The turning radius of the tail is 3980 mm.
Minimum ground clearance 875 mm
track width 750 mm
Bucket capacity 4.0 m³(//tractor-service.com)
Track shoes (to the side) 47
Upper rollers 3
Lower rollers 8
Track 2690 / 3250mm
Track length 5870mm
Boom length 6600mm
Arm length 2900mm.
Fuel tank 970 l
Hydraulic tank 620 l
Engine oiloil 47l
Engine coolant 57l
Travel speed 4.5 / 3.1kW / h Swing speed 6.7 rpm Slope 70% / 35 ° Ground pressure 89.5kPa Traction force 480kN Bucket digging force 356kN Digging force 273kN
The diameter of the boom x stroke cylinder is 180 × 1733 mm.
Lever cylinder diameter x stroke 200 × 2020mm
Bucket cylinder bore x stroke 180 × 1580mm
состояние : новое.
Manufacturer: China.
Our company sells absolutely NEW excavators of the highest quality. Our products are protected by quality certificates and have a warranty. By purchasing a new product, you ensure the long-term operation of the equipment. By purchasing this equipment, you receive a product with a warranty period and confidence in the excavator's performance tomorrow!

- Our managers will advise you and help you choose an excavator just for you.

- We provide a 12-month warranty on the product.

- We deliver to any city in Ukraine. We will also send you goods to CIS and EU countries.

Check the price with a consultant!
