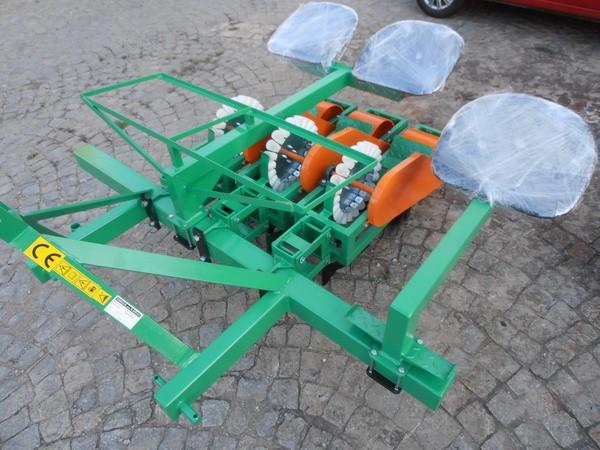

Seeder for garlic and onions NSC 2/3/4
Production: Czechia.
Description of the product.
We offer 2-row, 3-row, 4-row garlic and onion planters.
• Installed set-up unit for aggregation in the tractor's rear traction.
• The machine is designed for garlic seedlings and winter onion seedlings.

Basic information:
• The machine consists of a main frame, seed hoppers, working units and an operator's seat.
• The frame is equipped with a coupling device for attachment to the rear hydraulic couplings of tractors.
• The hitch is universal for tractor hitches ISO I. and ISO II.
• Separate planters are attached to the frame using a parallelogram.
• Above the unit there is a seedling tray of a special shape for more efficient emptying.
• The seeder consists of a central bowl, a coulter of the seeder, a unit drive and arear roller sealing.
• The central drivebead wheel is directly connected to the chain from the rear sealing roller, which rolls along the plot.(//tractor-service.com)
• The landing wheel is equipped with bowls into which seedlings fall from the hopper.
• Seats for controlling the machine are located at the back.
• The operator places seedlings in the solar wheel, checking the accuracy and smoothness of planting.
• Planting depth, inter-row and inter-row can be controlled by machine.
• The planting depth can be adjusted using height-adjustable wheels in combination with coulters.
• The distance between the rows can be changed by moving the working blocks on the machine frame.
• The distance between the lines can be controlled by replacing the asterisk in the working unit of the machine.
• Behind the landing blocks there is an all-metal roller for better sealing of the line.

Price of 2 bedrooms with VAT: 4040 EUR.
Price of 3 bedrooms with VAT: 5300 EUR.
The price of 4 bedrooms with VAT: 6600 EUR.
