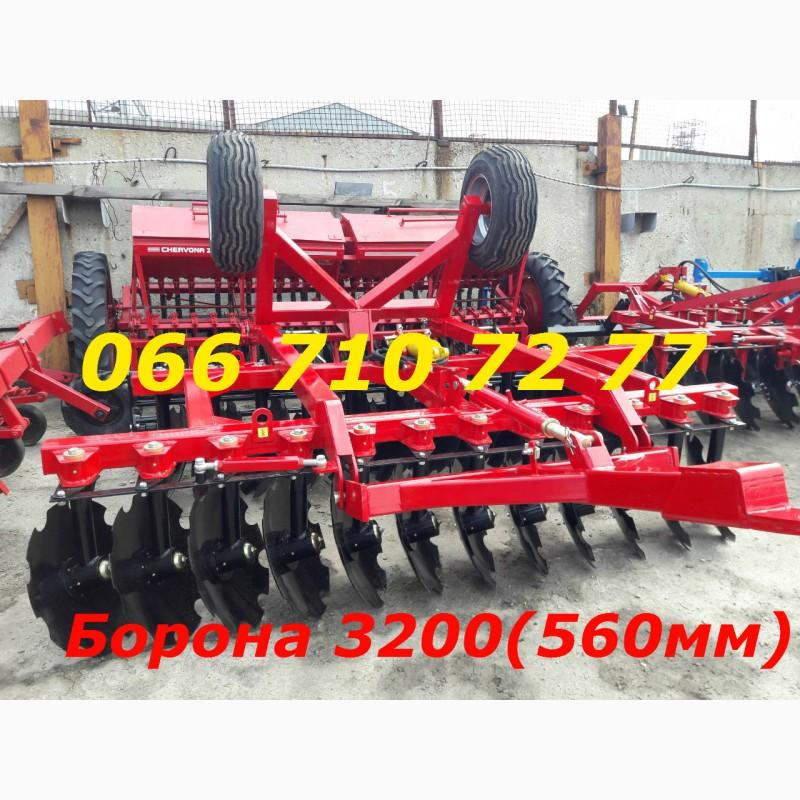

Trailed disc harrow BPD 3200 with 560mm discs (the best choice) for disc harrows, Zaporizhskaya oblast.

Disk harrow trailer BPD 3.20disk trailer BPD 3200 with 560mm disks (the best choice) for disking
intended for resource-saving pre-sowing treatment of the soil for sowing grain, technical and fodder crops, destruction of weeds and grinding of harvest residues after harvesting the crops, as well as grinding, leveling and compaction of the soil after disking.
The disc harrow BPD 320 is intended for use in soil and climatic conditions with soil moisture up to 27%, as well as in fields with a large amount of crop residues. Each disc of the harrow is installed on an individual stand, which allows the harrow to work in fields with a large amount of plant residues and weeds, excluding the winding of plant residues on the axis of the disc and clogging of the space between the discs, and also ensures high maintainability of the unit. The design of the unit provides smooth adjustment of the angle of attack of each row of disks within the range from 0° to 30°, which allows you to optimally adjust the harrow for different types of soil.
Type Trailed Harrow
Gripping width, m 3.2
Working speed, km/h 12
Productivity, ha/h 3.8
Overall dimensions, mm 4430x3350x1520(//tractor-service.com)
Mass, kg 1750
It is aggregated with tractors with a capacity of at least hp. 90
Processing depth, mm 100-140
Angle of attack of discs, degrees. 0...30
Number of cutting units, pcs. 24
Number of rows, pcs. 2
Distance between rows of disks, mm 950
Diameter of working bodies, mm 560
The distance between the disc blades, mm 250
