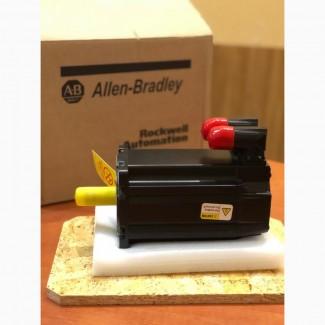

Allen-Bradley engine MPL-B430P-MJ72AA, Kyiv region.

Allen-Bradley MPL-B430P-MJ72AA engine
LLC "E-Trade Automation Kyiv"
Payment B/N with VAT and cash payment.
Warranty 12 months.
All products are new, not Chinese copies, in stock. Regarding the price - call to clarify.
"E-Trade Automation Kyiv" supplies the widest range of engines!!!

Description:

MP-Series Brushless Rotary AC Servo Motor, Type: Low Inertia, Rated Speed: 5000rpm, Armature Voltage: 460V, Frame: 115mm, Rated Torque: 6.55m Mil, Output Power: 2.2KW, Control: Multi-turn Encoder, Housing: Keyed Shaft Expansion, IP50, IP66, Mounting: metric IEC, free mounting holes (type FF), stack length: 3 V, connector: SpeedTEC Din, right angle, rotating 180 degrees (quick connection), feedback: multi-Turn, 1024 Sin / Cos, absolute encoder (Hiperface protocol), brake option: no brake

Technical characteristics:

Product name: AC Rotating Brushless Servo Motor

Type: Low Inertia

Sub-brand : MP-Series

Speed Rating: 5000 rpm

Armature voltage: 460 V

Frame: 115 mm

Torque rating: 6.55 Nm

Output power: 2.2 kW

Management: multi-turn coder(//tractor-service.com)

Housing: shaft extension with key, IP50, IP66

Mounting: IEC, metric, free mounting holes (type FF)

Stack length: 3 V

Connector: SpeedTEC Din, rectangular, rotating 180 degrees (quick connection)

Feedback: Multi-Turn, 1024 Sin / Cos, absolute encoder (Hiperface protocol)

Brake option: no brake

Functions:

Allen-Bradley brushless servo motors of the MP series with high performance use innovative design characteristics that allow to reduce the dimensions of the motor and significantly increase the torque. These compact and highly dynamic brushless servomotors from Rockwell Automation are designed to meet the stringent requirements of high-performance motion systems.

Innovative winding technology provides 40% higher torque per unit size than conventional servomotors
Improved winding insulation material for improved temperature control and heat exchange, which leads to increased productivity
High-energy rare-earth magnets for acceleration
The new SpeedTEC DIN connectors provide flexible connector orientation and the use of a single cable family with all MP series motors
A wide range of torque - all within one engine family
Additional shaft sealing for protection class IP 66
Operating temperature range: 0 to 40 ° C (32 to 104 ° F)
Low-profile, reversible engine connectors for minimal impact of the servomotor on the machine structure
Standards: UL recognized, CSA certified, CE marked, KC certified, CUL listed
Fields of application: for packaging, processing, assembly of electronics, automotive industry, processing of metals by pressure and processing of materials.

The company has offices in Europe, the USA and Asia. Therefore, we have access to spare parts and components of any manufacturer.
Due to the automation of logistics, we deliver spare parts and components in the shortest possible time!!!
