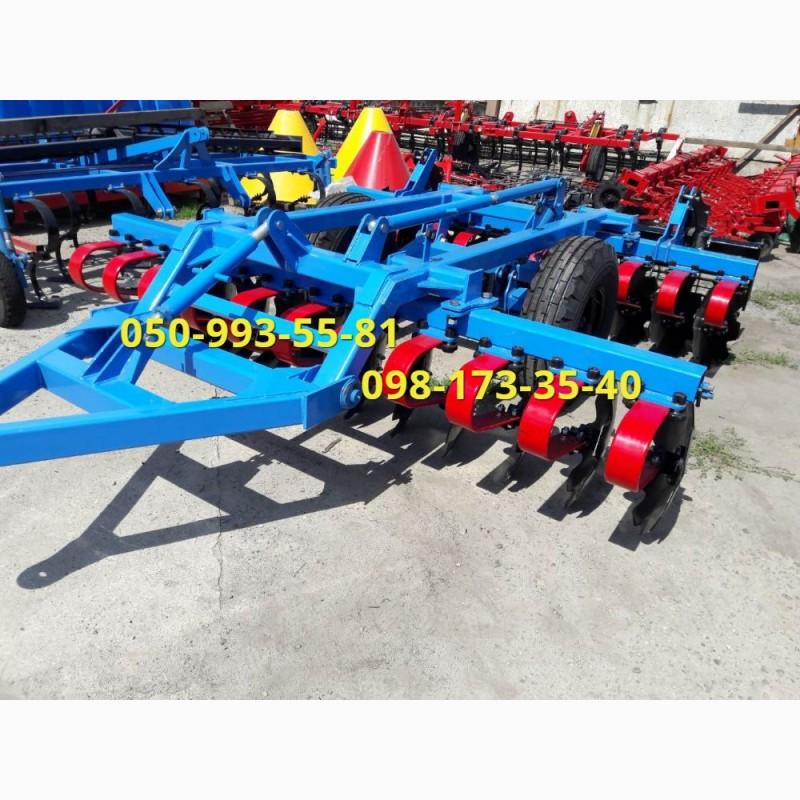

Harrow LUSCHILNYK LDVN-2, 4 LDVP-3, 0 spring-loaded best choice, Kharkiv region.

Disk harrowHarrow Harrow LDVN-2,4 LDVP-3,0 on a spring stand the best choice of trailer LDVP-3 (in spring LDVN-2,4) PLANT TrailersWood chippers are best suited for stubble processing. It provides intensive mixing of the soil and plant mass to a depth of up to 15 cm. The design and arrangement of the working bodies ensures high-quality pre-sowing processing, which, in turn, allows to significantly expand the scope of application of the disc husker, increase its feed loading and economic efficiency of use.

The main goal of stubble cultivation is not the fight against weeds, but the covering of carrion and a large amount of crop residues - with minimal tillage technologies, a lot of unshredded and unevenly distributed straw and stubble remains on the field. Most modern cultivators cannot cope with such an amount of organic mass on the field, fallen grains, stubble of long-stemmed crops.

LDVP peeler 3.0 1 LDVP - 3.0
Peeler LDVP 3.0 2
Peeler LDVP 3.0 3
Technical characteristics.
Name of LDVP - 2.7 LDVP - 3.0 LDVP - 3.5 LDVP - 4.0 LDVP - 4.5 LDVP - 6.0 LDVP - 7.0 LDVP - 8.0
Trailer type
Working speed 10-14 km/h
The depth of soil treatment is 5 - 15 cm.
Height 800 ± 20 mm.
Long with roller 2180 ± 30 mm.
Width 2700 mm. 3000 mm. 3500 mm. 4000 mm. 4500 mm. 6020 mm. 7020 mm. 8020 mm.
Productivity 3.0 Ha/h. 3.2 Ha/h. 3.8 Ha/h. 4.5 ha/h. 5.3 Ha/h. 6.4 Ha/h. 7.5 Ha/h. 8.7 Ha/h.
Tractor power - L.S. 80÷90 90÷100 110÷130 130÷150 150÷160 180÷200 210÷230 240÷260
Transport speed, no more than 20 km/h(//tractor-service.com)
Ground clearance, not less than 300 mm,
Number of working bodies 20 racks 22 racks 26 racks 30 racks 34 racks 46 racks 54 racks 62 racks
The distance between adjacent working bodies is 270 mm.
Disc inclination angle 10.5°
Angle of attack 19°
The diameter of the disc is 560 mm.
Number of rinks 1 2 4
Weight kg. 1800 ± 20 2000 ± 20 2300 ± 20 2600 ± 20 3000 ± 20 5000 ± 20 5500 ± 20 6200 ± 20
Stand of the LDVN LDVN peeler Stand LDVP-LDVN
Advantages of a spring rack production

Reduction of fuel consumption by at least 15-25% (due to a reduction in traction); 162
Защита: подшипникового узла при наезде на любые препятствия исключает поломку дисков, подшипников, стоек, повреждение рамы;
Uniform depth of processing, due to the fact that the peeler does not deepen when the disc hits an obstacle;
Self-cleaning of discs during work allows you to work effectively on wet soil.
They can also walk on harder soils, on a larger amount of harvest residues.
Note: The trailed peeler is equipped with both a spring and a spring retainer (the spring retainer can be removed if necessary), on hinged versions the unit is equipped only with a spring.
The original design of the roller rink does not have a central axis and consists of a strip of 8x40, thanks to which the roller does not clog even in conditions of high humidity and in conditions of strong soiling of the field.
