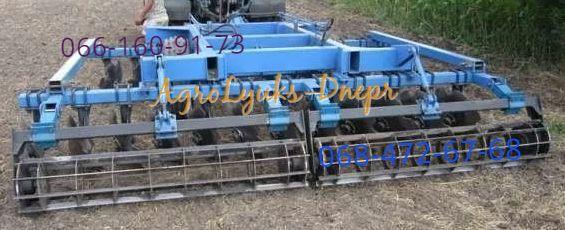

Trailed Disc Harrows BDFP 2.4 - 4.2 m, Poltava region.

Disk harrows BDFP is intended for continuous andpre-sowing soil processing different mechanical composition under technical, grain and fodder crops and with grinding and embedding plant residues in the soil.
Technical Parameters of BDFP:
Name: BDFP-2.4 BDFP-2.8 BDFP-3.1 BDFP-3.5 BDFP-3.8 BDFP-4.2
Type: Trailed
Working speed: 8-12 km/h
Depth of soil treatment: 8-18 cm.
Height in transport position: 1400 mm.
Height in working position 1100 mm.(//tractor-service.com)
Length: 4940 mm.
Powertractor: 80 hp. 100 HP 130 L.S. 160 HP 100 HP 200 HP
Transport speed, no more than 20 km/h.
Number of working bodies 14 racks 16 racks 18 racks 20 racks 22 racks 24 racks
Quantityrinks: 1 rink 2 rinks
Ground clearance, not less than: 300 mm,
Transfer to the transport and working position by the hydraulic wheeled transport mechanism of the disc harrow, connected to the hydraulic system of the tractor.
Weight 1400 kg. 1630 kg. 1850 kg. 2000 kg. 2250 kg. 2400 kg.
BDFP harrows in stock.
