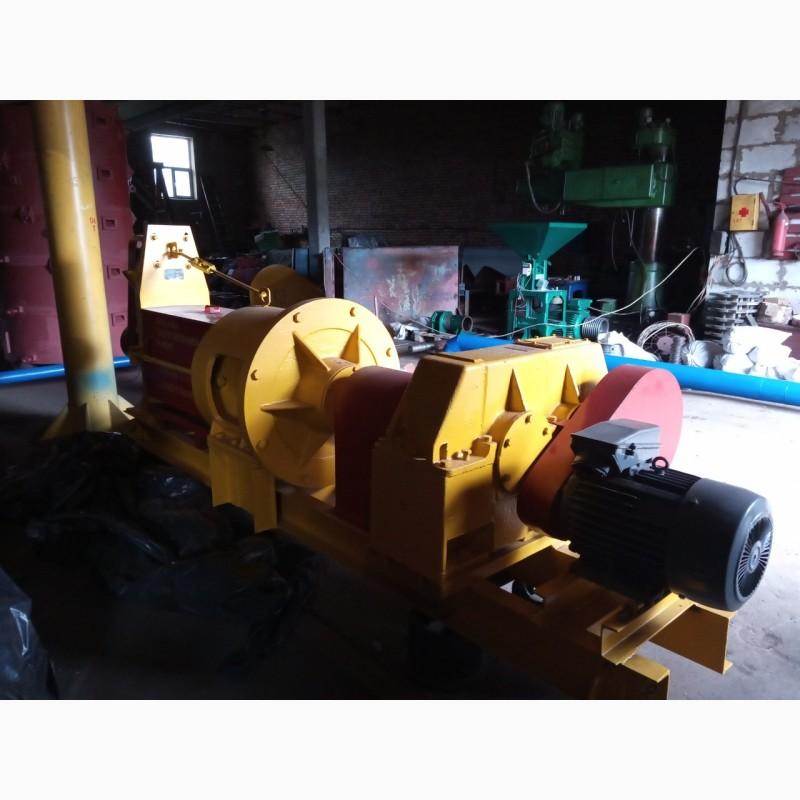

Moldovan cake press M8-MSHP, Cherkassy region.

The M8-MSHP cake pressing press is designed for double pressing of various oil crops, such assunflower, soybeans,rape and others. by the method of hot pressing. It is optimal to use in production workshops for processing agricultural products of farms.

At the same time, a good yield of oil is achieved, so the remaining oil in thecake does not exceed 7-9% in the post-pressing mode. Since the pressing takes place at a mint temperature of 110-115 ° C, the oil has excellent taste qualities, a unique taste and aroma, without losing its useful properties.

The MP-450.01 oil press uses windings (screws) set on the shaft, the advantage of which is to replace only part of the windings that have worn out, which will save on the cost of repair and maintenance.

The press has four stepped working chambers, a variable height of the winding ridge along the entire length of the winding assembly on the shaft and an adjustable gap between the cone and the flange. Thanks to which, high quality indicators of oil extraction are achieved. At the same time, the oil comes out through the gaps in the oil chamber and collects in the oil collector, and then goes to filtration and settling.
(//tractor-service.com)
Technical characteristics PM-450.04

Productivity, kg/h. 250-300
Installed power, kW 11
Mass, kg 2650
Overall dimensions, mm
length 3450
height 1270
width 1150
