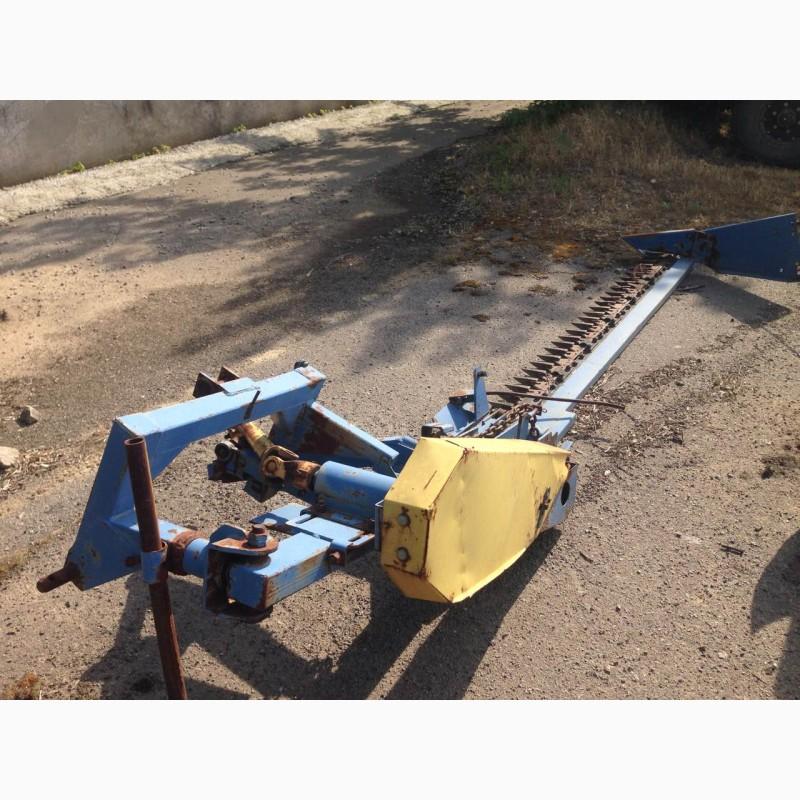

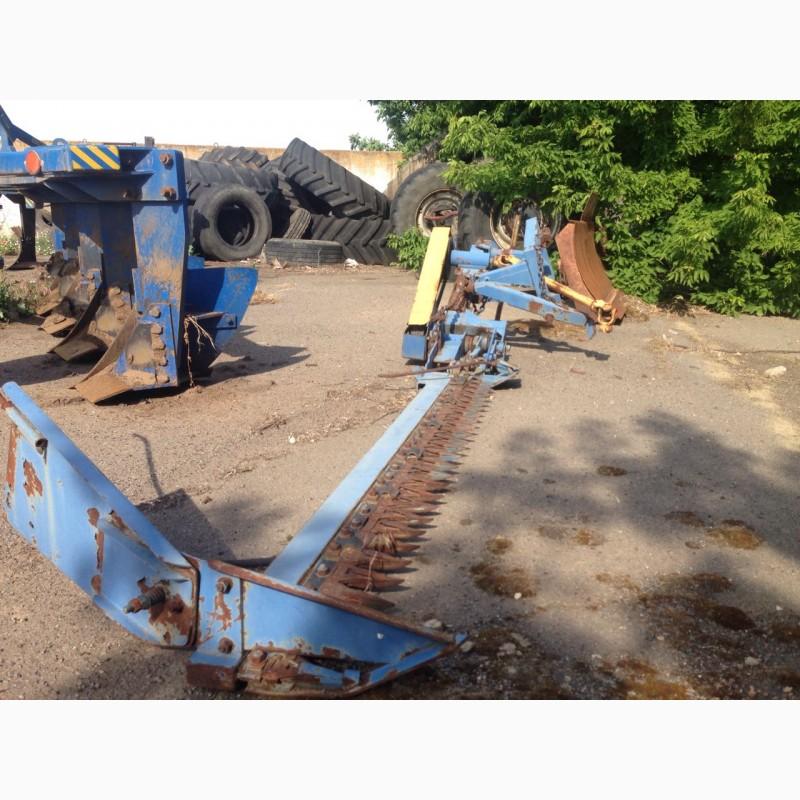

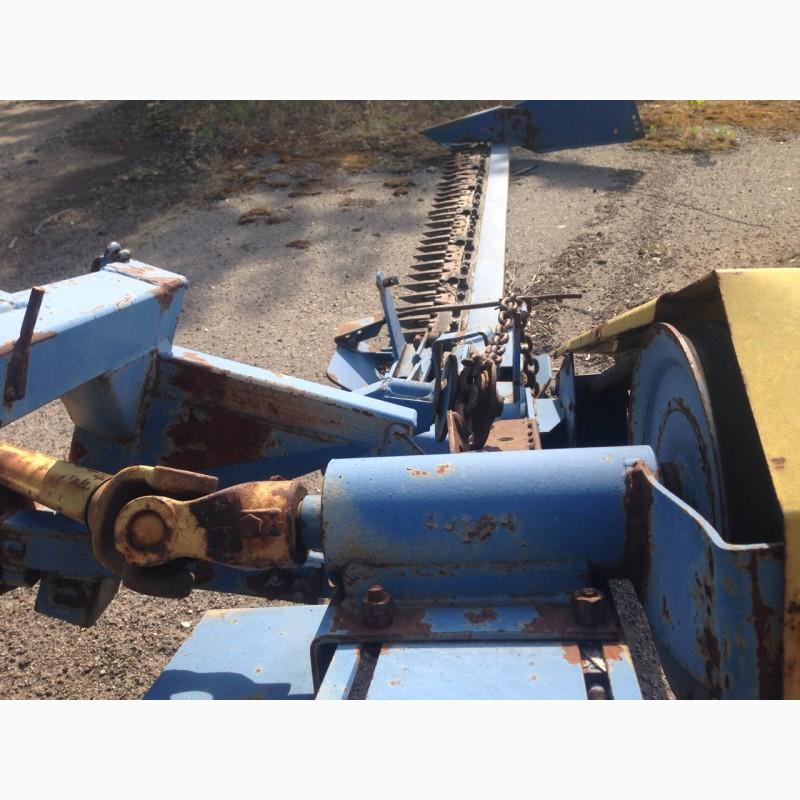

KPN-2 finger segment mower, 1 mounted for T-40 MTZ YMZ, Kherson region.

KPN-2 finger segment mower, 1 mounted for T-40 MTZ YuMZ
See a large selection of new and used agricultural machinery on our website www.agrorezerv.com combines,harvesters, tractors, disk harrows, spring harrows, cultivators, seeders, plows, sprayers, deep tillers,rollers, seed throwers, OVS-25, Petkus, SM-4, grain treaters, sowing complexes, etc.
KPN-1,8 / KPN-2.1 single-bar finger mower (segmented) Aggregation type - trailed, grip width - 1.8/ 2.1 m, working speed - 6-12 km/h, productivity - 2 / 2.5 ha/h, minimum cutting height - 50 mm, transport speed - 2 km/h, weight - 220/250 kg, service staff 1 h.
The KPN-2,1 finger mounted mower is intended for mowing seeded and wild-growing grasses.
• The beam and beam of the cutting apparatus are more reliable than those of manufacturers of similar mowers, which excludes the possibility of its deformation or destruction during operation, and the small width of the beam means the accumulation of cut mass on it. The improved design of the right divider, which stably ensures the removal of the cut plant mass to the left, and thus the left ski moves on the clean stubble during the next pass of the mower.
• Transfer of the mower to the transport position and vice versa is carried out mechanically with the help of a lever mechanism that automatically activates when raising and lowering the tractor attachment and ensures the raising and holding of the mower in an almost vertical position, which allows you to use this feature to clean the beam of the cutting device from the harvest residues accumulated on it.(//tractor-service.com)
• High cutting speed and low cut do not disturb the root system when mowing perennial and wild grasses, and also have a positive effect on their growth.
• Spheres of longitudinal rods of the tractor attachment in the working position of the mower are located at a height of 260 mm, which does not require rearranging the outer levers along the slots.
• Reinforced knife head.
• Additional protective shields are installed on the mower, preventing the winding of the plant mass on the working organs.
The mower is equipped with a cardan shaft in a protective plastic casing.
• The field relief copying system consists of: a longitudinal lever connected by a chain with a beam and a beam; the safety mechanism, which is activated when hitting an insurmountable obstacle and is hingedly attached to the suspension frame and the beam; a beam carrying a chain connected to the frame of the suspension - the chain limits the negative angle of copying and ensures, together with the longitudinal lever, the lifting of the beam of the cutting device.
• For fixing the mower bar in the transport position when moving, as well as for fixing the bar during inter-shift storage, there is a flexible hook that provides reliable fixing of the bar with a hinge.
