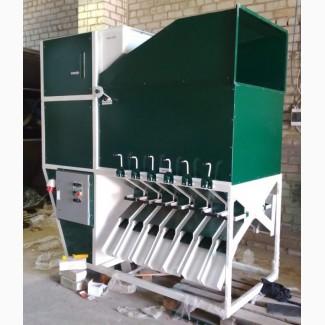

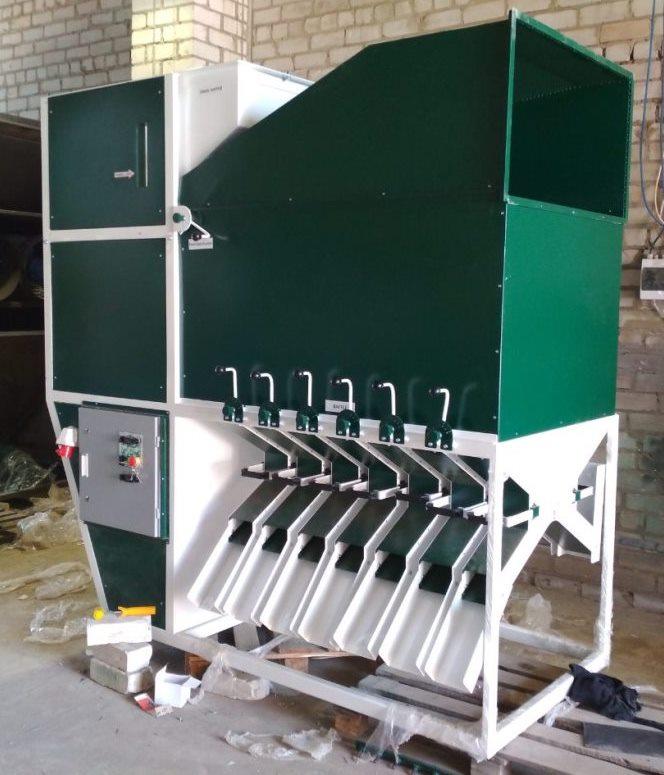

ISM-40 grain cleaning and calibration machine, seed separator, manufacturer, APO, SOC, Kharkiv region.
Region:вся Украина,
Kharkovskaya region
(Kharkiv)
The best aerodynamic separator in Ukraine!
The latest scientific achievements in the field of cleaning and calibration of various seeds by the sieveless method.
The warranty for each machine is 2 years.
There is a state compensation program.
The price of the machines can be changed.
- ISM-40, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 183,000 UAH.;
- ISM-40 TsOK, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 1100kg, dimensions d.4907/w.1574/h.2864mm., c. UAH 269,000; 165
- ІСМ-50, очистка 50т/год, калібрування до 25т/год, 2,2-7,0кВт, 380В, 50Гц, вага 710кг., габарити д.2310/ш.1150/в.2400мм., ц. 198000 грн.;
- ISM-50 TsOK, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 290,300;
- ISM-100, cleaning 100t/h, calibration up to 50t/h, 4.0-11.0kW, 380V, 50Hz, weight 860kg, dimensions d.3130/w.1750/h.3017mm., c. UAH 399,000.;
- ISM-100 TsOK, cleaning 100t/h, calibration up to 50t/h, 2.2-7.0kW, 380V, 50Hz, weight 1600kg., dimensions d.6382/w.2250/h.3682mm., c. UAH 465,700.
Prices for March 2023, from now on - check by phone!
ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOK machines);
SOK is a self-moving cleaning complex, five in one (replaces ZAV)
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. UAH 132,500.;
- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. 139400 hryvnias.;
- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. UAH 125,000; 185
- ІСМ-15 ЦОК, очистка 15т/год, калібрування до 7т/год, 0,4-2,2кВт, 380В, 50Гц, вага 685кг., габарити д.4800/ш.1150/в.2800мм.), ц. 193500 грн.;
- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;(//tractor-service.com)
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800.;
- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400.;
- SOK-25 c. 520,000 UAH.;
- SOK-30 c. UAH 530,000.;
- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600;
-set of wheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
The latest scientific achievements in the field of cleaning and calibration of various seeds by the sieveless method.
The warranty for each machine is 2 years.
There is a state compensation program.
The price of the machines can be changed.
- ISM-40, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 183,000 UAH.;
- ISM-40 TsOK, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 1100kg, dimensions d.4907/w.1574/h.2864mm., c. UAH 269,000; 165
- ІСМ-50, очистка 50т/год, калібрування до 25т/год, 2,2-7,0кВт, 380В, 50Гц, вага 710кг., габарити д.2310/ш.1150/в.2400мм., ц. 198000 грн.;
- ISM-50 TsOK, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 290,300;
- ISM-100, cleaning 100t/h, calibration up to 50t/h, 4.0-11.0kW, 380V, 50Hz, weight 860kg, dimensions d.3130/w.1750/h.3017mm., c. UAH 399,000.;
- ISM-100 TsOK, cleaning 100t/h, calibration up to 50t/h, 2.2-7.0kW, 380V, 50Hz, weight 1600kg., dimensions d.6382/w.2250/h.3682mm., c. UAH 465,700.
Prices for March 2023, from now on - check by phone!
ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOK machines);
SOK is a self-moving cleaning complex, five in one (replaces ZAV)
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. UAH 132,500.;
- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. 139400 hryvnias.;
- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. UAH 125,000; 185
- ІСМ-15 ЦОК, очистка 15т/год, калібрування до 7т/год, 0,4-2,2кВт, 380В, 50Гц, вага 685кг., габарити д.4800/ш.1150/в.2800мм.), ц. 193500 грн.;
- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;(//tractor-service.com)
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800.;
- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400.;
- SOK-25 c. 520,000 UAH.;
- SOK-30 c. UAH 530,000.;
- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600;
-set of wheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
