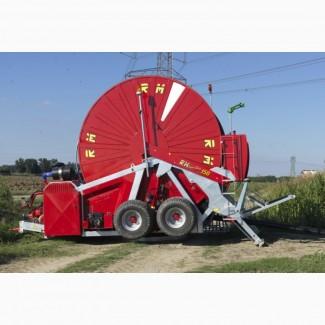

Dozhdevalnaya machine RM Giant, Kirovohrad region.

Standard equipment

Turbine with flow separation with integrated bay-pass.
Four-speed gearbox with fully oil-lubricated timing.
Power regulator for hose winding
Brake system for hose unwinding with fully automatic control.
Automatic speed compensator depending on the diameter of the hose coil.
Safety hose safety device.
Safety device for stopping the machine if the hose is wound unevenly.
Electronic device for measuring the speed of hose rewinding.
Digital clock.
Endless screw hose rotation system with precise adjustment and double guide.
The support of the coil on ball bearings and the fixing ring with a sleeve made of stainless steel.
The frame rotates on the central plate of the ball bearing by 360 °.
Automatic lifting of the cart at the end of the sprinkler using the VertiLift ™ system.
Rear anchor brackets with hydraulic control, independent on both sides.
The base of the rod with hydraulic control through the spool valve.
Two-wheeled cast iron sprinkler trolley.
Adjustable track and heightwheels.(//tractor-service.com)
SIME sprinkler with slow return and a set of nozzles
Manometer in a glycerin bath on the car.
Pressure gauge in a glycerin bath on a sprinkler (SIME).
Ball joint on a sprinkler trolley.
Sprinkler cart for ballast.
Six-stage spool valve on a rotary lever
Water intake on both sides.
Hydraulic rotation of the central bearing plate with six levers
Pump unit with engine drive, built into the machine structure.
Vacuumpump for emptying the hose.
Immersion tube ø 150 with a rotating joint and basket ø 550.

The drum-type sprinkler machine is very popular due to the large number of tasks to be solved. Yes, the RM Giant XJM machine is ideal for automatic watering:

• Orchards and vineyards.
• Cereal and fallow crops (barley, soybean, wheat, corn, sunflower);
• Forage crops;
• Vegetable crops, namely: onion, pepper and other crops;
• Бахчевых култур;
