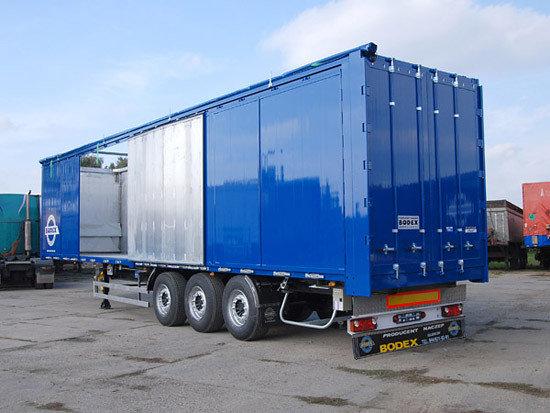

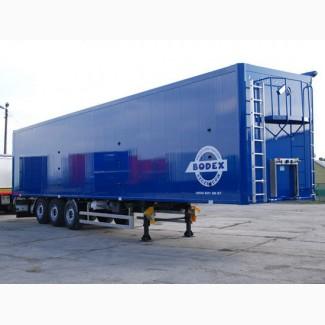

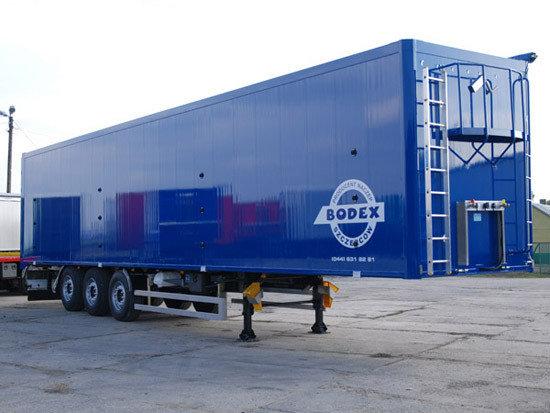

Bodex KIS 3FR woodchip semi-trailer, Kiev region.

Three-wheeled aluminum self-loading and self-loading semi-trailer intended for transportation of various bulk cargoes of low density (chips, sawdust, agricultural products, wood, industrial waste, artificial goods).

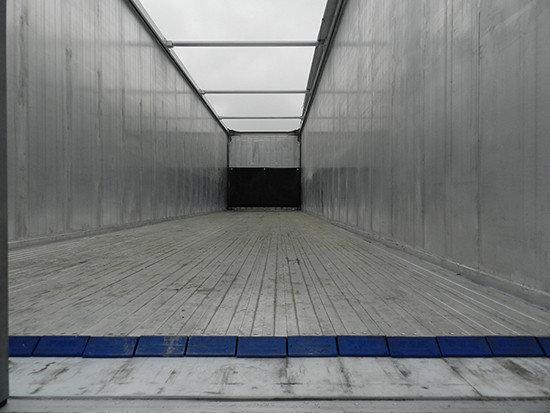

On the bottom of the trailer there is a series of bars that are set in motion with the help of a hydraulic system. The hydraulic drive is carried out from the power take-off shaft of the tractortractor.

The system of moving floors mounted on a chipper semi-trailer is based on the principle of a walking floor.

Frame:

Reinforced from Swedish DOMEX steel, consists of two welded longitudinal spars connected to each other by traverses and beams;
The frame is welded on both sides with powder wire calculated for - 400;
Coupling device - coupling plate with a 2" pin JOST (Germany);
Support device two-range telescopic JOST (Germany) g/p 24 t with manual one-way drive
Suspension:
(//tractor-service.com)
Three-axle pneumatic spring (pneumatic on semi-elliptical reinforced springs, OFF-ROAD version) manufactured by SAF/BPW (Germany), with a technical load on an axle of 11/12 tons and the original manufacturer's warranty of 1 hour;
The first axle is equipped with a 2-sided lifting mechanism "WABCO" (Germany);
The function of quick release of air from the air cylinders of the suspension when unloading a semi-trailer.
Brake system:

Two-wire pneumatic with drum-type braking mechanisms (420x200) with all-wheel drivewheels, expansion fist levers with automatic gap adjustment WABCO (Germany);
The parking brake is a pneumatic drive with energy accumulators on two axles;
Anti-lock brake system EBS WABCO 4S/2M (Germany).
Characteristics

The load on the SSU is 11,000 kg.
The height of the SSU is 1150 mm.
Gross weight 35,500 kg
The curb weight is 7,100 - 8,400 kg.
Load capacity 30,000 kg
