KRN, cultivator section, KRN section, buy KRN section, KRN from the manufacturer, Dnipropetrovsk region.

Approximate prices for 2023, in hryvnias,|| |173
спец. ціна/ ціна від ФОП без ПДВ/ ціна від ТОВ з ПДВ:

- KRN section without working bodies: 6810.00/ 6946.20/ 8335.40,
- KRN section with working bodies: 7884.00/ 8941.68/ 9650.10.

We reserve the right to change the price, both higher and lower, in connection with the volume of the order, the form of calculation and balances ofstock. We will inform you of the exact terms of delivery by phone on the day of your application.

The set of working bodies of the KRN section (included in the price) includes:
- KPS counter (Kharkiv),
- Arrow paw width. 270 mm. (Odesa, steel 65G + Sarmaite surfacing on the working edge), 185
- Дві стійки під лапи-бритви (Харків),
- Two razor legs (Odesa, steel 65G + Sarmaite surfacing on the working edge).

Additional equipment (not included in the price):
- Fertilizer set, 190
- Окучник центральний у зборі зі стійкою (картопляний),
- Two side lifters on racks.

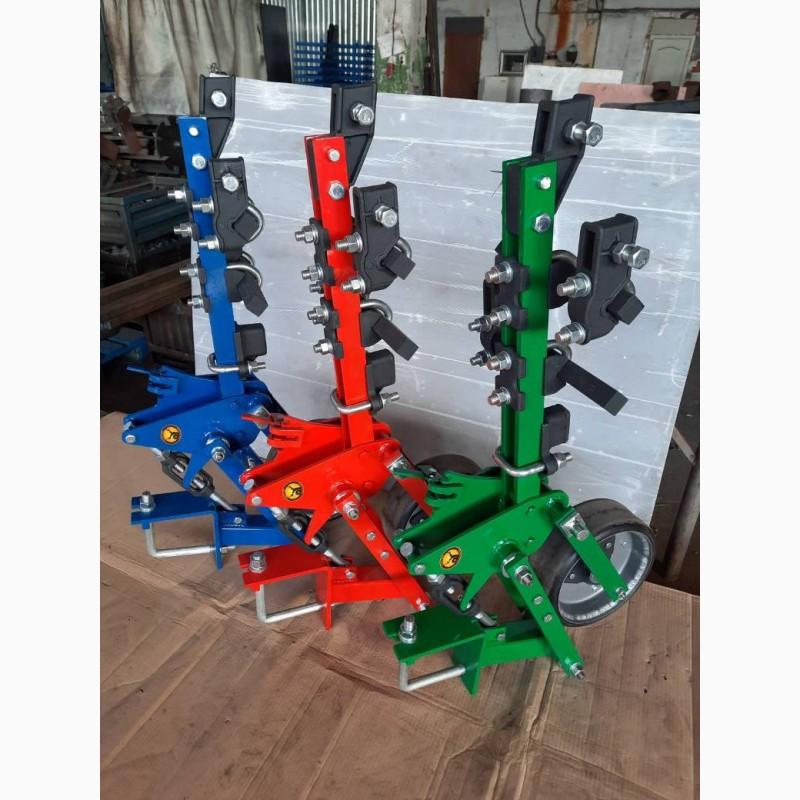

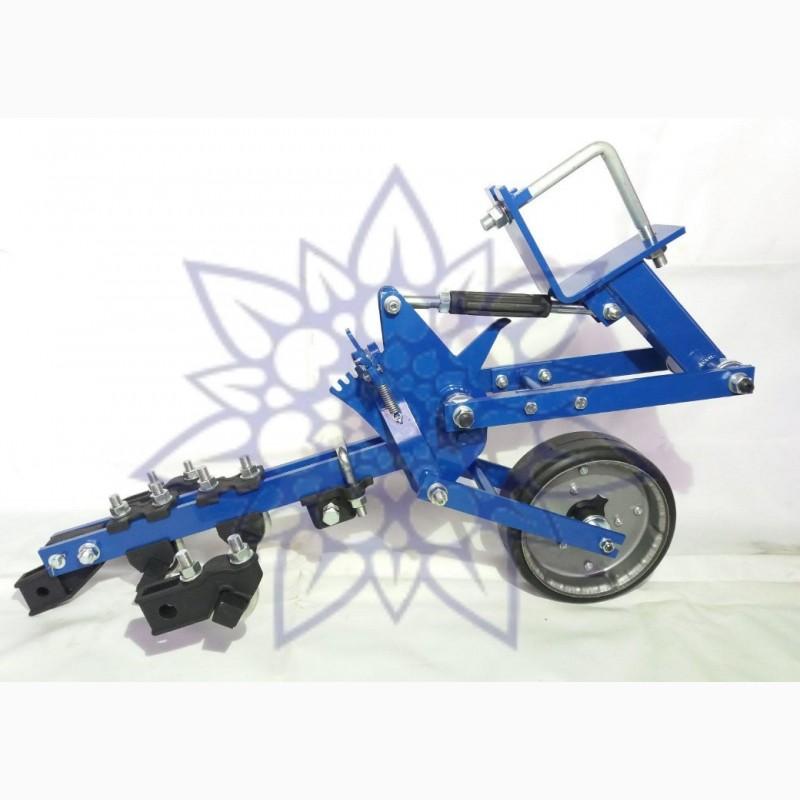

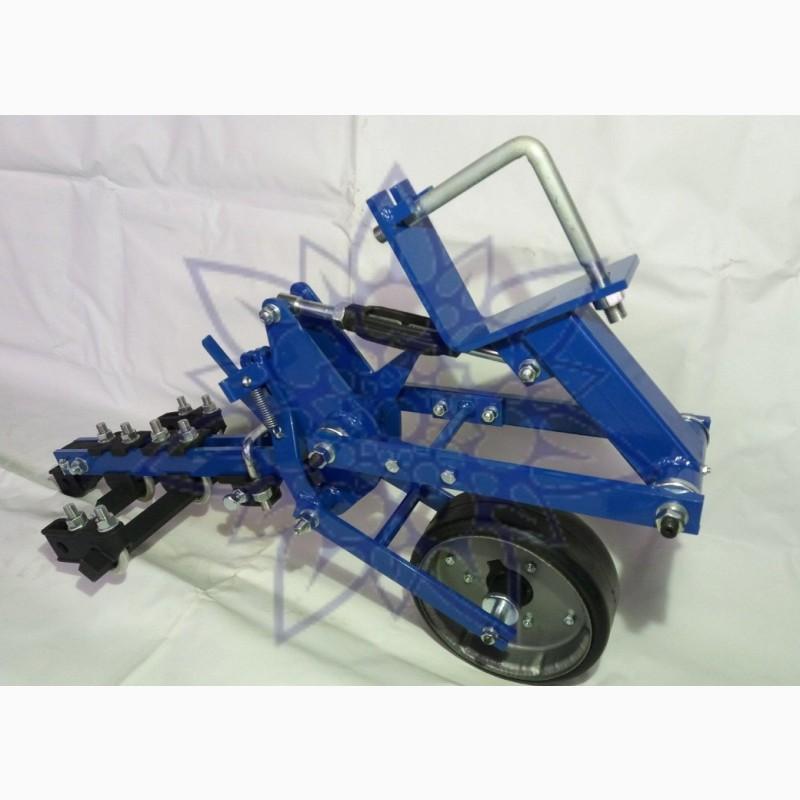

Design features of the KRN section

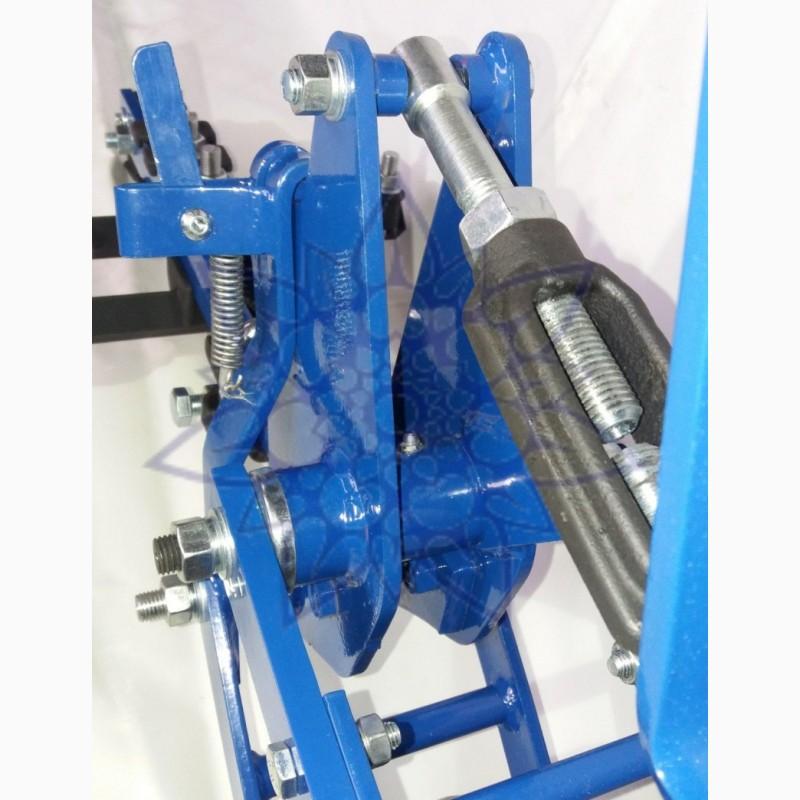

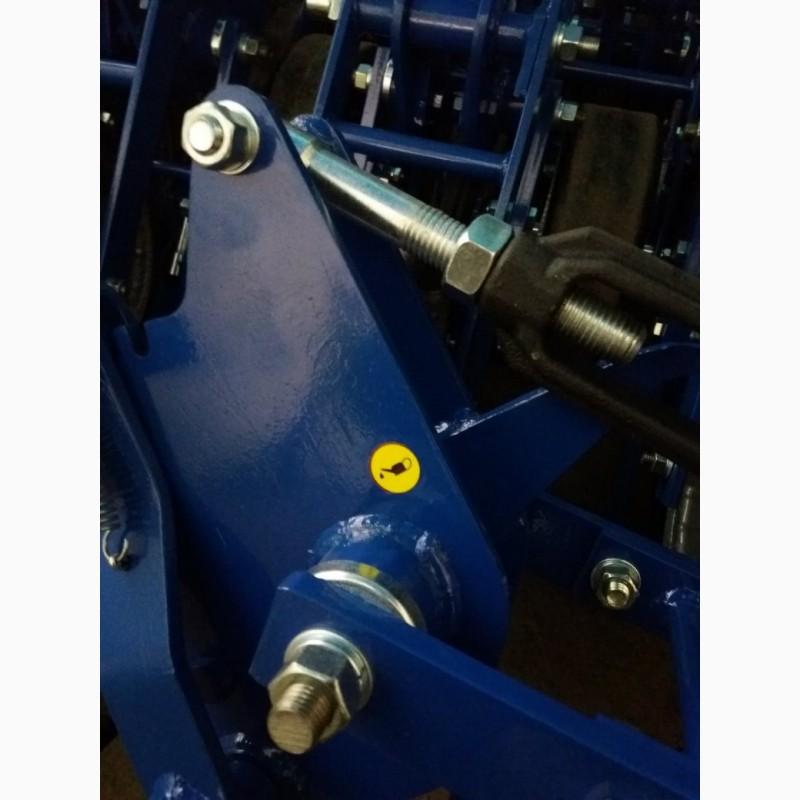

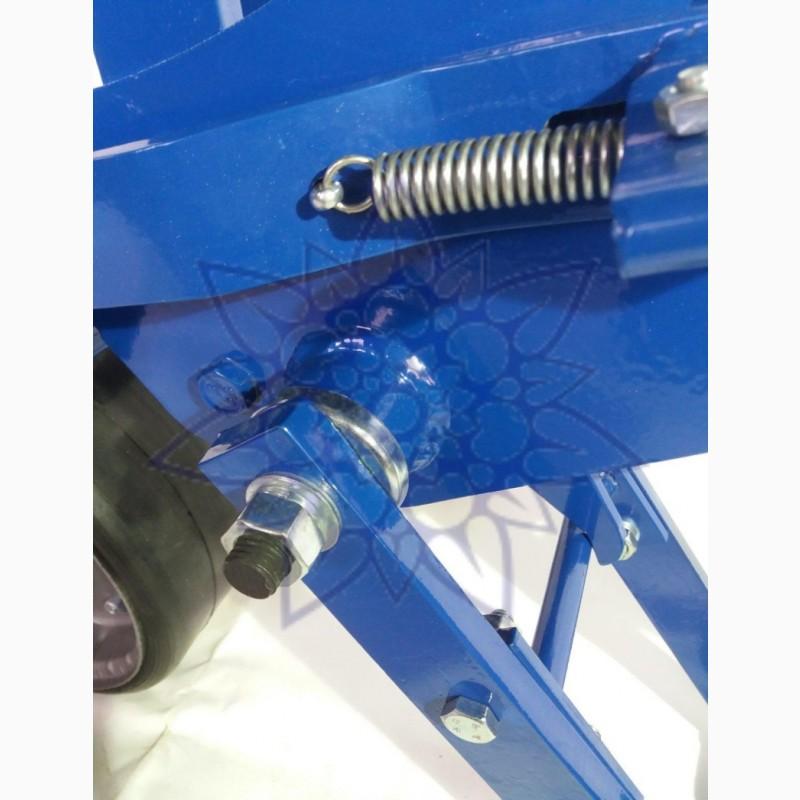

1. Bearing 180503 (62203) is installed in the bearing assembly. The bearing is closed with rubber caps (plastic seals) and reliably protected from dust and moisture due to the tightness of the plugs;

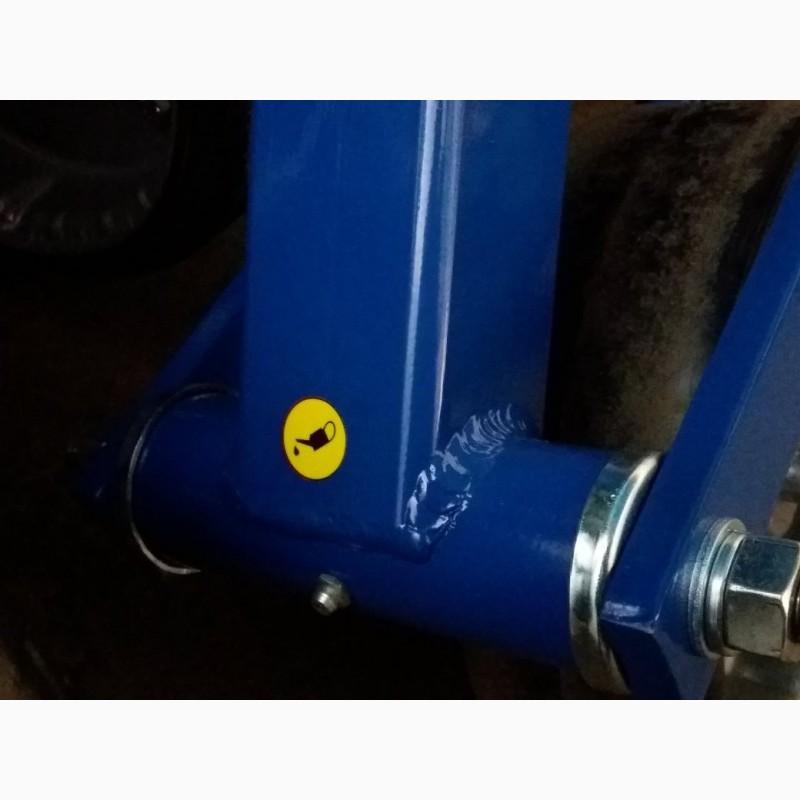

2. Oil pans are installed in the bearing housings;

3. Bearing housings are protected by metal anthers;

4. The bearing housing of the supportingwheel is protected by oil seals and metal anthers;

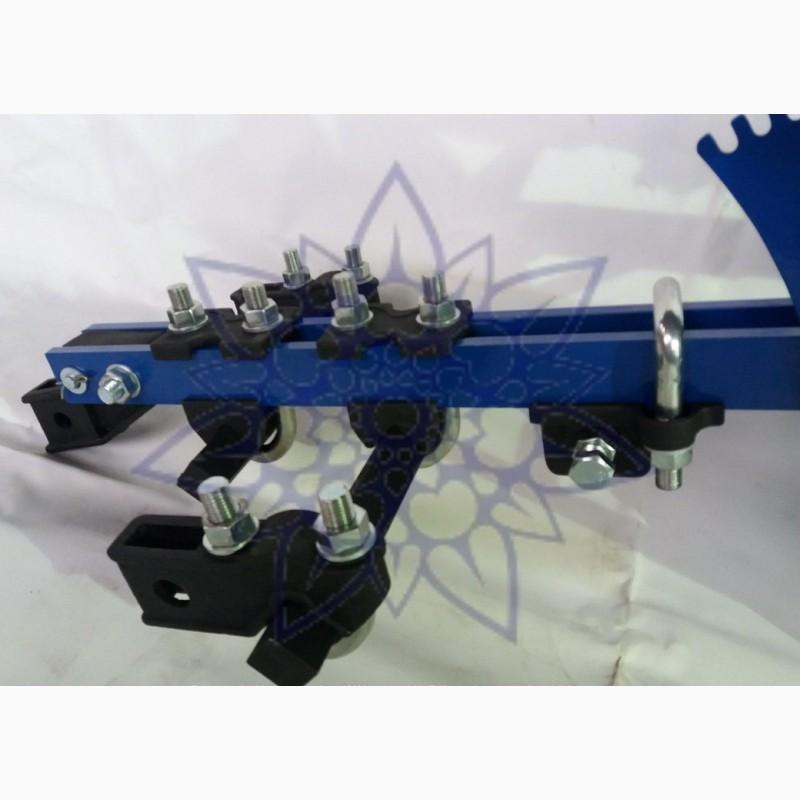

5. Hinged parts (prisms, overlays, fastening screws, brackets, holder rods) are coated with anti-corrosion enamel;(//tractor-service.com)

6. Chrome brackets, anthers, springs and hardware are installed on the section;

7. The product is painted with high-quality powder paint;

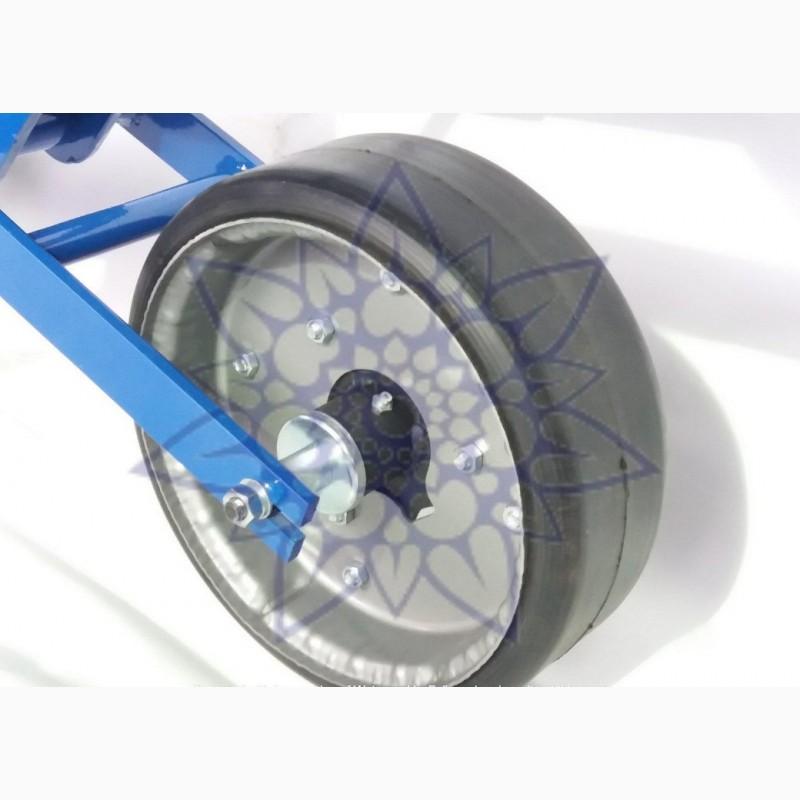

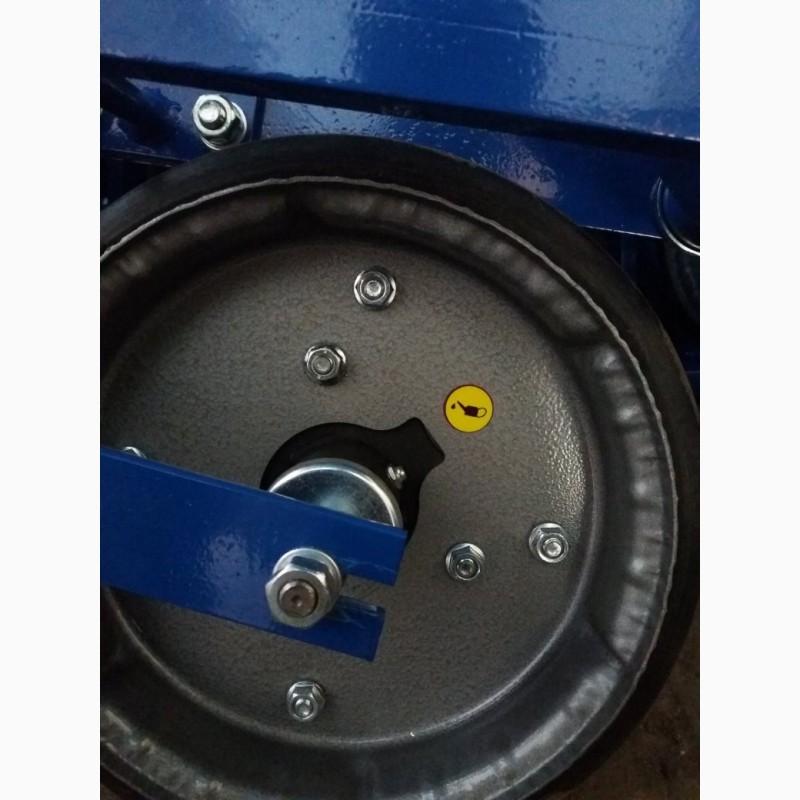

8. Discs of the support wheel of the section are covered with hammer paint by baking. Such a coating not only protects against corrosion, but is also particularly resistant to mechanical damage.

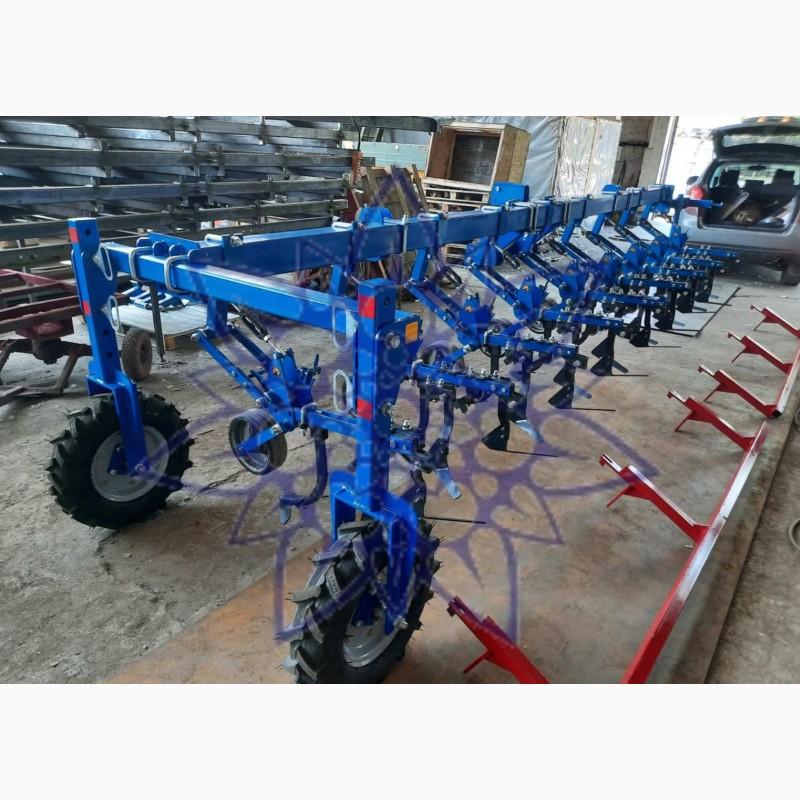

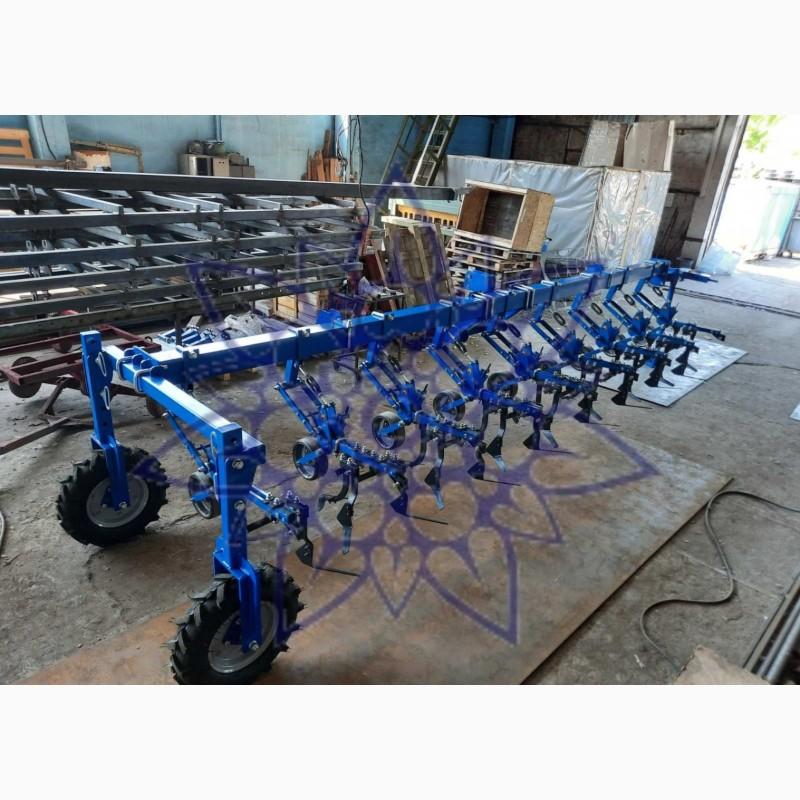

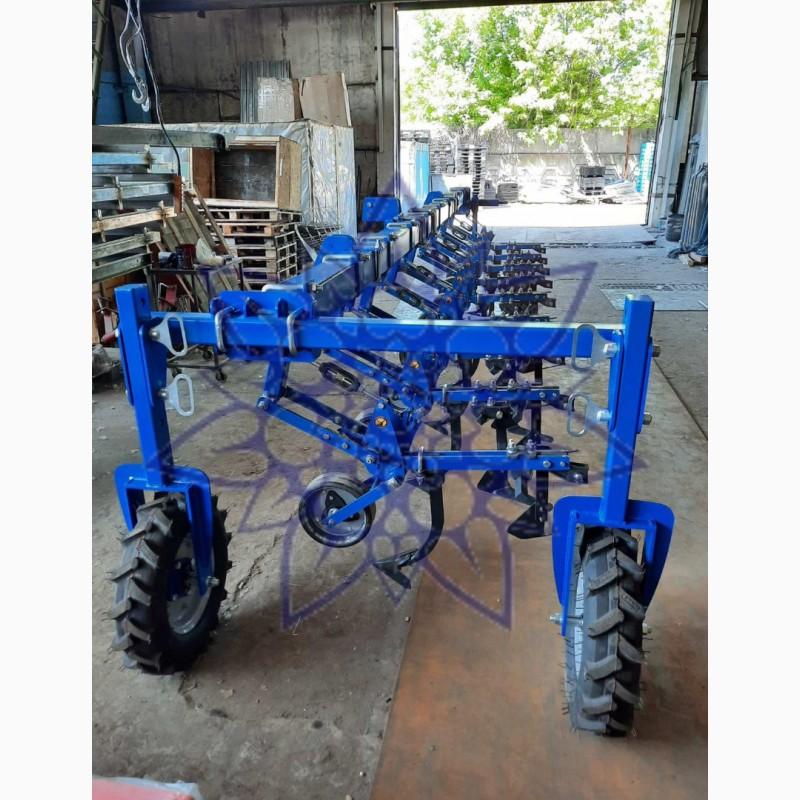

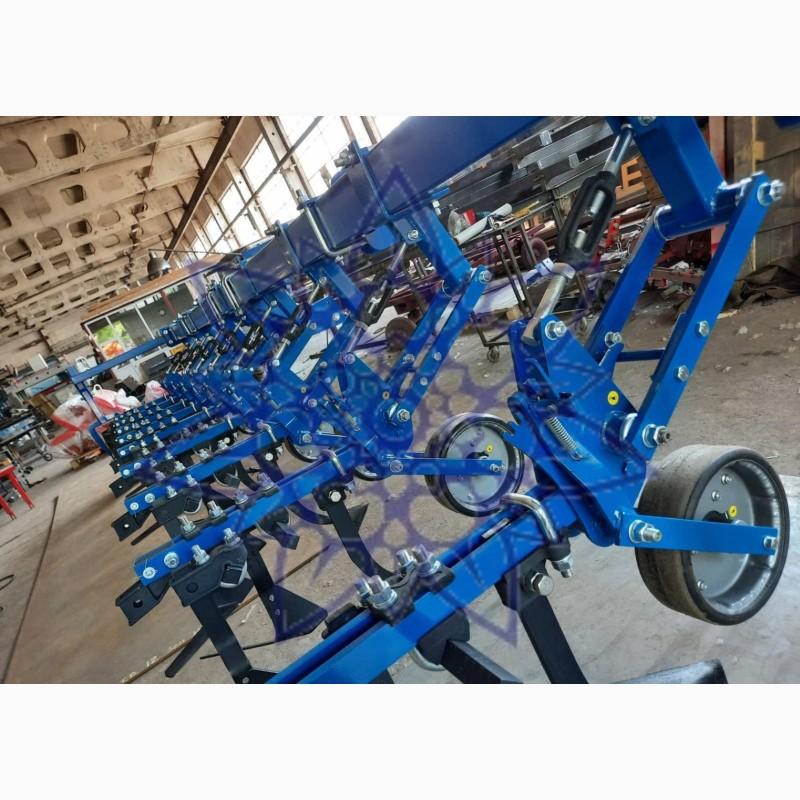

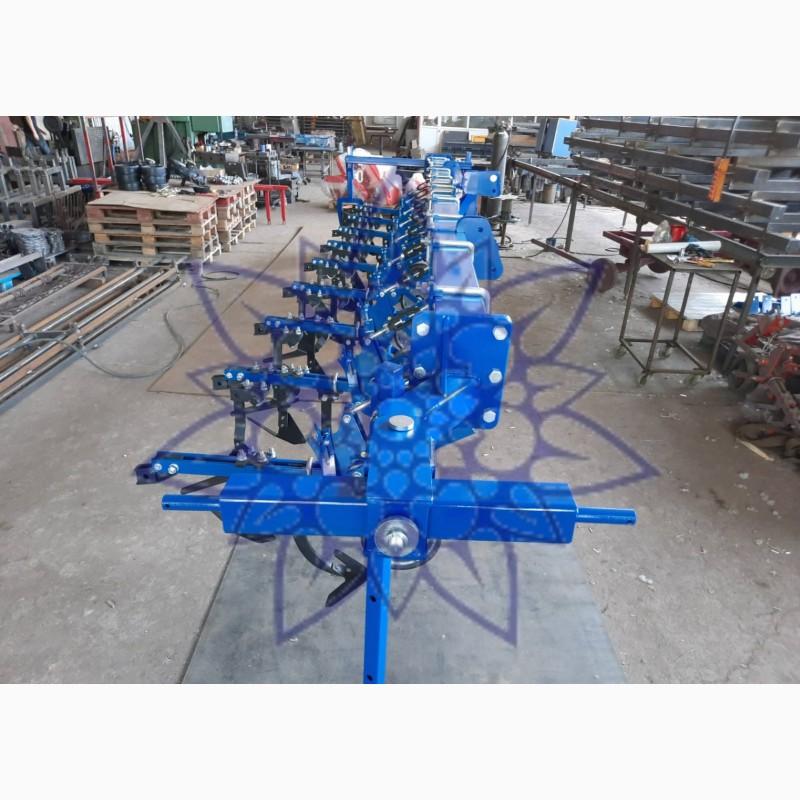

We also offer a strengthened modernized cultivator mounted KRN, which is aggregated with tractors from 60 horsepower.

Characteristics of KRN Cultivator:
- frame, beam 140x140 mm., 6 mm thick.;

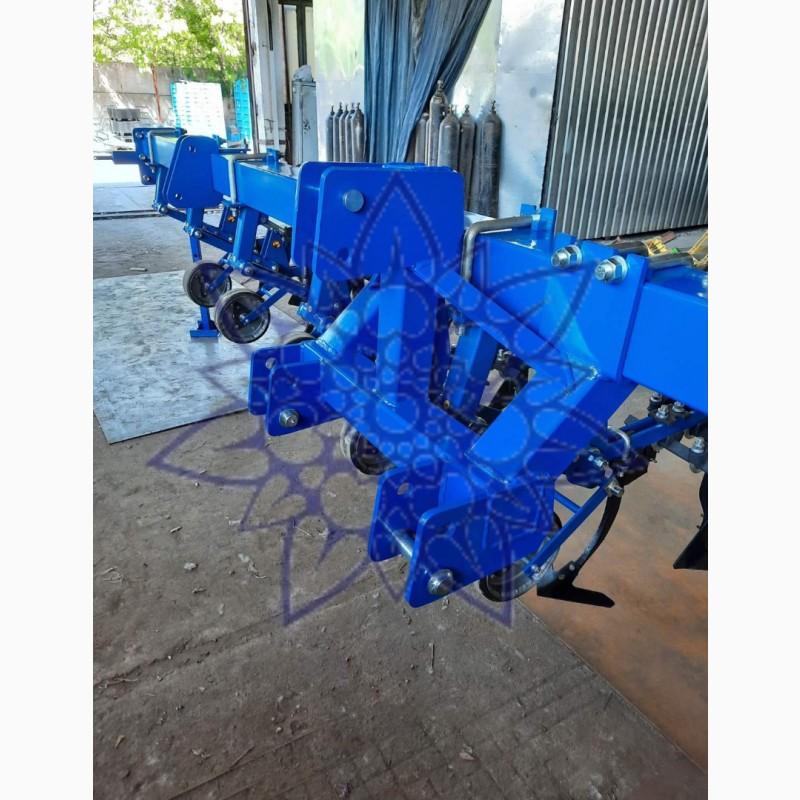

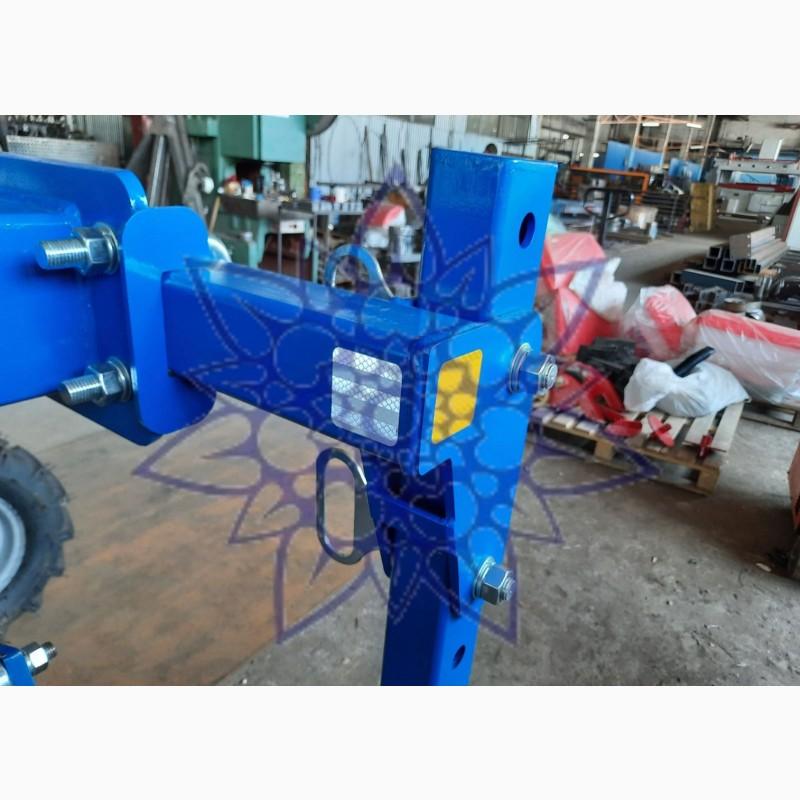

- Transport device: front bracket (thickness 12 mm), which is attached to the trailer mechanism with 6 M20 bolts of increased strength class 8.8. Modernized towing device.
Reinforced supports of support wheels (profile 80x60 mm, wall 6 mm). These same racks together withwheels are rearranged into the working position. In the working position, they are attached to the original brackets. The cross member of the transport device is also reinforced (profile 80x80 mm, wall 6 mm). Support wheel racks in both the transport and working positions are fixed with threaded locking fingers. Cultivator wheels increased to 6.00x12 (standard 5.00x10), with increased permissible load;
- The cultivator is equipped with colored reflective signaling (to increase safety when moving on public roads).

For tractors with a capacity of 60 horsepower or more:
- KRN-4.2 standard,
- KRN-4.2 standard, with transport device,
- KRN-4.2 standard, with transport device and fertilizer application system,

For tractors with a capacity of 80 horsepower or more:
- KRN-5,6 standard,
- KRN-5,6 standard, with transport device,
- KRN-5,6 standard, with transport device and fertilizer application system,
- KRN-5,6 reinforced, modernized, with a transport device,
- KRN-5,6 reinforced, modernized, with a transport device and a fertilizer application system,

The transport device for the KRN cultivator can be purchased separately.

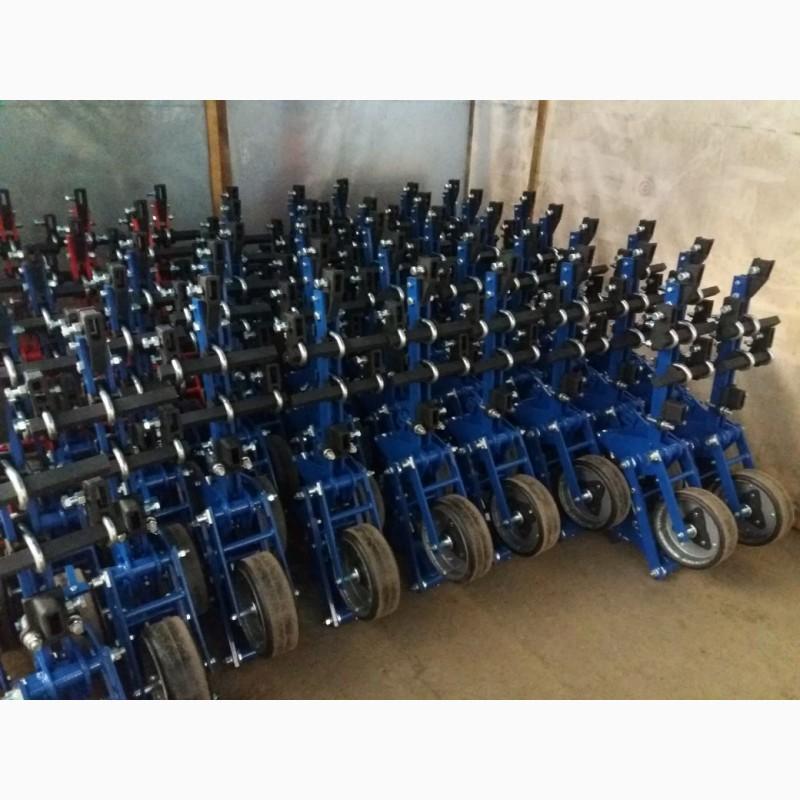

Production complex and warehouse of finished products in the city of Dnipro (right bank).
Self-pickup is possible or we will send by delivery service upon agreement of the parties.
