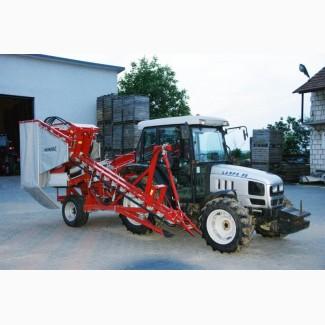

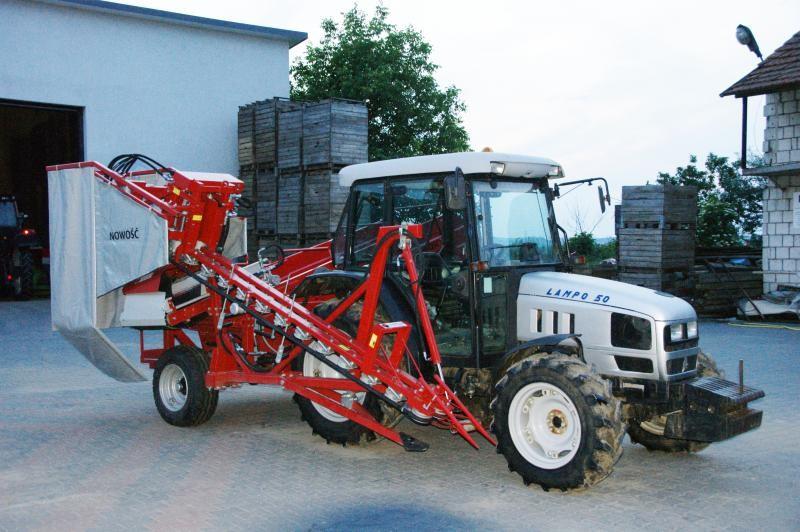

Carrot harvester Sator, Kirovohrad region.

When creating this equipment, there were ideas and advice of farmers who grow carrots, beets and other root crops are used.
The structure of thevykapyvayusche plow (elevator) and the method of its installation gives the possibility of easy adjustment of the advance or downtime of carrot digging. What makes it possible to dig carrots from the soil of any kind, as well as in any weather. Thanks to the structure of the servo motor handle (three-point linkage), the combine can be aggregated with tractors of any brand.

Description
The difference in the length of the belts, which transport the carrots to the top cutter, and then throw out the already cut top, is intended to obtain work without downtime, without the need for a clean space between the blades of the top cutter and the belts. The transverse adjustment of the wheel base of the drive belt pulleys is intended for the exact determination of the direction of ejection of the top, which in the future ensures easier cleaning of the belts from the remains of the top, and also makes it impossible to clog the working nodes of the combine.

Complete set:

– independent hydraulic system
– working width of conveyors 468/550 mm(//tractor-service.com)
- feed height up to 3.5 m
- required powertractor: 70 hp
- max. working speed: 8 km / h
- max. transport speed: 25 km / h
- belt length: 3.9 and 4.2 m.
Additional options
– hydraulic torpedoes
– hydraulic cleaning of the root or hydraulic shaking
– adjusting the speed of the hoist belt
- adjusting the speed of the conveyor belt
