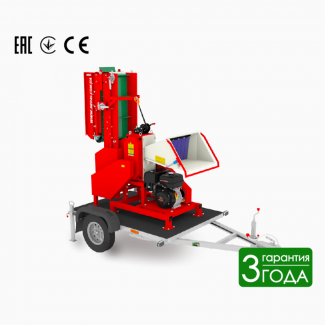

Branch chopper, branch crusher, branch chopper, woodcutter ARPAL/ARPAL AM-120BD-K PRO, Vinnytsia region.

Am-120BD-K PRO branch shredder is intended for processing and utilization by cutting branches, rails, moldings, lamellas and other wood waste. The branch shredder turns the raw material into pieces 9...18 cm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-120BD-K PRO branch chopper is capable of cutting branches with a diameter of up to 12 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The productivity of the branch shredder AM-120BD-K PRO is a maximum of 10 cubic meters of finished products during operation. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The branch shredder AM-120BD-K PRO is equipped with a WEIMA gasoline engine with a capacity of 18 hp. the fuel consumption of which is only 800 g/hour. This engine is one of the highest quality on the territory of Ukraine, service centers are located in each region. The engine is protected from overloads by a special friction clutch developed by us. Pulleys and belts are closed from all sides to minimize the possibility of foreign objects hitting and increase the safety of working with the equipment. The engine has a separate warranty from the manufacturer for a period of 12 months.

Knives are the working element of the branch chopper. 6 knives are installed on the AM-120BD-K PRO branch chopper, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the branch chopper are inserted into the milled groove of the working shaft, this technology allows you to significantly reduce the load on the fastening bolts of the knives.

The branch shredder AM-120BD-K PRO is installed on a car trailer, which allows you to move the branch shredder over long distances directly to the place of raw material processing. The trailer is certified and subject to mandatory registration. You can also order a branch shredder complete with atrailer.(//tractor-service.com)

The AM-120BD-K PRO branch chopper is equipped with a conveyor that allows you to feed chopped raw materials immediately to a car trailer or into a special container (container, big bag). The conveyor allows you to significantly increase labor productivity and reduce the number of personnel when working with abranch shredder. We use only high-quality PVC tapes made in Poland or Holland. The transporter has a complex design and in the working position, the length and height of the transporter lift is enough to load chopped branches into the body of atruck, or a trailer. The lifting height of crushed raw materials is 3 meters. For transportation and storage, the transporter folds up. To prevent the fall of chopped raw materials, additional boards are installed at the place of feeding chopped branches onto the conveyor belt.

The branch shredder AM-120BD-K PRO is equipped with a special safety handle, which is located on the edge of the input hopper and is used for emergency stop of the branch shredder during operation. Also, the entrance hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during work.

The branch shredder AM-120BD-K PRO is completely manufactured at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The grinder is covered with powder paint, which significantly extends the service life of the structures.

We are confident in our products, so we provide a 36-month warranty for the AM-120BD-K PRO branch chopper. In addition, as a manufacturing plant, we provide both warranty and post-warranty maintenance of the AM-120BD-K PRO branch shredder.

By purchasing a branch shredder from us, you will receive a reliable assistant on the way to your energy independence!
