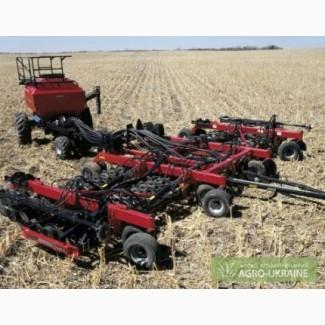

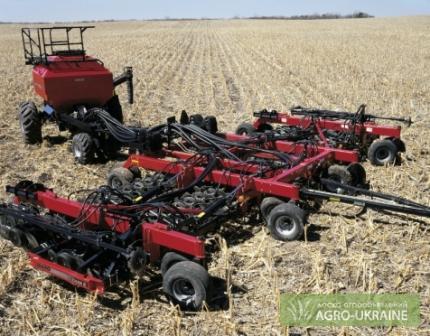

Disk pneumatic seed drill Case SDX30, Kherson region.

Technical characteristics of disc pneumatic seed drill Case SDX30

Gripping width, m 9.14
Number of sections 3
Spacing between coulters, cm 19
Number of coulters 48
Application of dry granulatedfertilized Yes
Bunker
Hopper model ADX -2230
Hopper volume, l 8105
Separation of the seed/fertilizer hopper, % 60/40
Fan drive Hydraulic
Disc coulters
Single disk type
Disc diameter, cm 57.2
Disc pressure force, kg 113 -231
Adjustment of seeding depth Individually for each coulter
Transport width, m 4.26
Transport height, m 3.63
Total length, m 8.48
Ground clearance, cm 20.3(//tractor-service.com)
Total weight, kg 11113
Blocking of side sections during transportation Hydraulic lock
Required power of the tractor, hp 300
Recommended models of tractors New Holland series T8

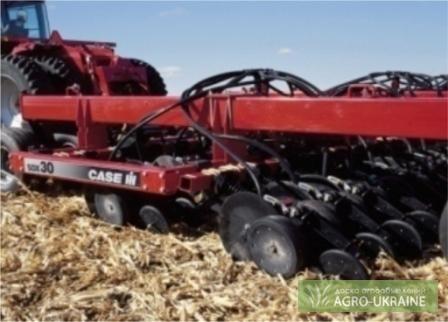

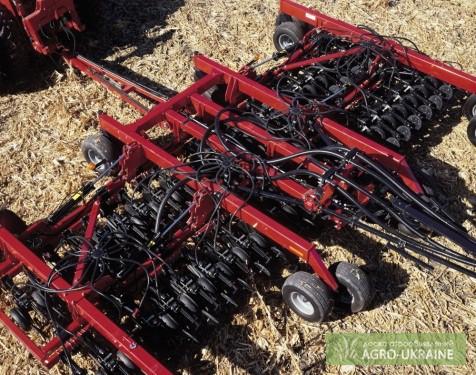

The Case IH SDX30 pneumatic disc seed drill combines modern technologies and vast experience accumulated by the company's engineers in the field of developing equipment for minimal and zero-technology cultivation of agricultural crops. The main feature of this seeder is theconstruction of a disc coulter of the Single Disc Opener No Till Air Drill type, which ensures high-quality sowing under any operating conditions. The frame of the seeder is a durable and heavy spatial 3-section construction. In the transport position, the wings of the frame are folded over the central section, simplifying the movement of the machine to the workplace. The number of coulters is 48 pcs. with inter-rows of 19 cm and 36 pcs. with row spacings of 25.4 cm. The distance between rows of coulters is 1.6 m. The SDX coulter has the following distinctive features:
- the largest disc among similar machines, easy setting of seeding depth,
-individual adjustment of the pressure on the coulter disk, adjustable pressure
rolling,
-adjustable position of the rolling roller.
-three coulter pressure settings:
- 112-160 kg when working on a prepared field,
-160-200 kg. when working with minimal technology,
-200-230 kg with zero processing.
- the sowing depth is adjustable with an adjustment step of 6.4 mm.
Each seed is located on a seed shelf created by a scraper. This seed shelf has less foreign matter (soil particles, residues, etc.) than the bottom of the furrow created by the disk.
In addition, due to the way the scraper opens the groove, the seed shelf has minimal compaction along the side, so a seed with a tap root system, upon germination, encounters little resistance to penetration into the soil. This allows the SDX coulter to maintain a consistent seeding depth, improve seed contact with the soil, and reduce the time required for roots to penetrate the soil, i.e. ensure maximum seed germination in a short time. The SDX30 seeder is ideally combined with thetractor Case MX315/MX340 which has 5 pairs of hydraulic outlets, and the MegaFlow hydraulic system with a capacity of 282 l/min, which contributes to the accurate operation of the complex.
This tandem can sow 100 ha or more fields in a single day!
