Machines for the manufacture and restoration of ring matrices, Odessa region.

Machines for the manufacture and restoration of ring matrix pressesgranulators

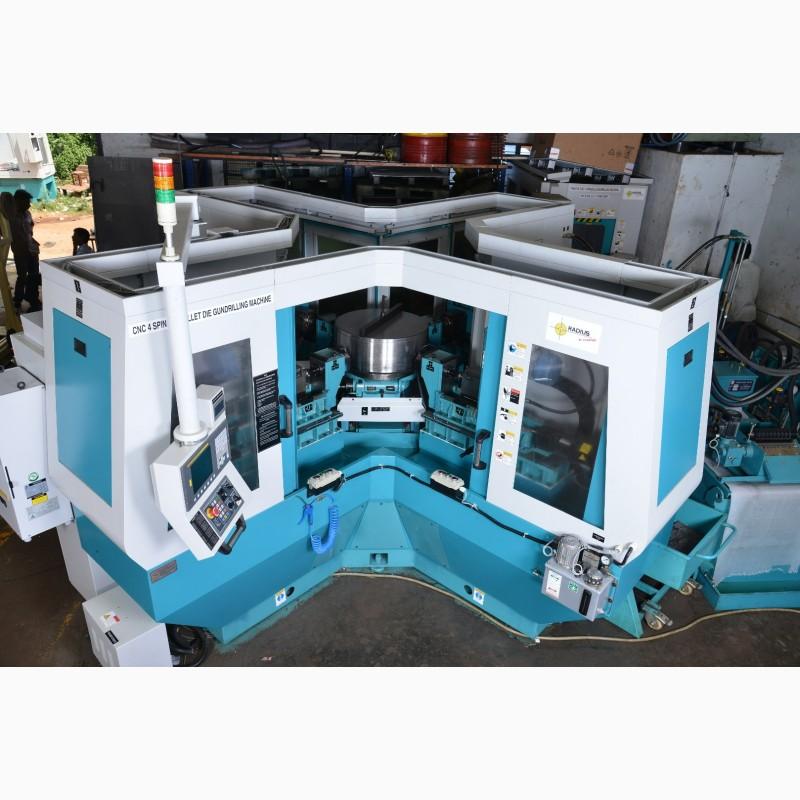

1. Two-four-eight spindle machines for processing ring dies. Processing of chamfers of ring matrices. The outer diameter of the matrix is ​​up to 1000 mm. Drilling diameter 1.6-12mm. FANUC CNC system.
2. FANUC CNC machine for internal and external grinding of ring dies.
The maximum outer diameter of the processed matrix is 1000 mm.
The minimum inner diameter of the processed matrix is 350 mm.
The maximum height of the processed matrix is 300 mm.
The maximum weight of the processed matrix is 1000 kg.
The power of the spindle is 5.5 kW.
Max. Spindle revolutions 4500 rpm.
Accelerated movement along the X and Z axes 10m/min.
The diameter of the grinding wheel is 190-230 mm.(//tractor-service.com)
The weight of the machine is 6000 kg.
3. FANUC CNC machine for countersinking ring dies.
Drilling diameter 2.5-10mm.
The outer diameter range of processed matrices is 450-1000mm.
The height of the matrix is 300 mm.
The weight of the matrix is 1000 kg.
The power of the spindle motor is 3.7 kW.
Max. spindle speed 3000 rpm.
Travel along the Z axis (vertical) 400mm
Machine weight 2500kg
