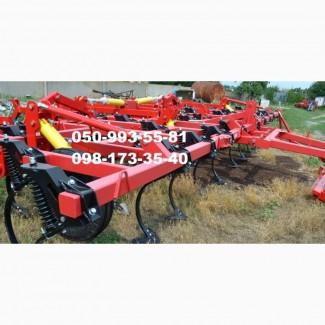

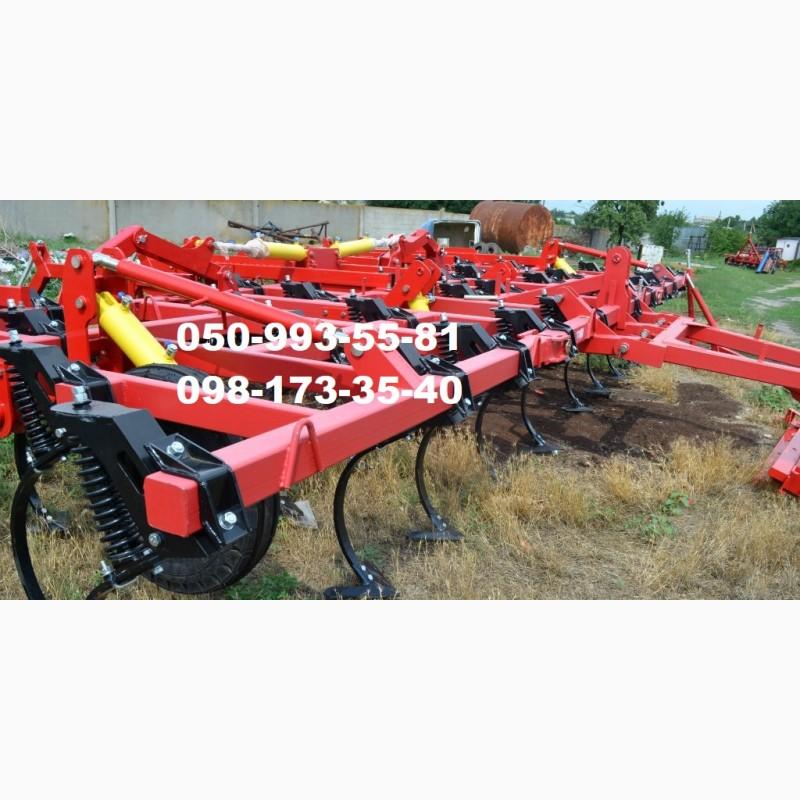

Universal cultivator KSU-4/KSU-8.4 for continuous tillage, Kharkiv region.

The KSU 4/KSU-8.4 universal cultivator for continuous tillage is capable of performing a whole range of agricultural work in one pass: soil leveling, loosening, mulching, rolling, weed removal.Cultivator of continuous processing KSU-8.4 trailed performs pre-sowing processing of soils of any agro-climatic zones and any composition (except stony).

Technical characteristics of the cultivator KSU-4
Working width of capture. m 4
Productivity. 4 -g/h
Depth of tillage. cm 5-15
Mass. kg 1100
The number of rows. piece 3
Number of working bodies. pc 16
Tractor class 1.4
The working body is a 330 mm flat-cut arrow paw on a parabolic spring stand, with a cross section of 20x45
Steel grade - 65 G.
Thickness - 8 mm
Technical characteristics of the cultivator KSU 8.4(//tractor-service.com)
Type of Machine Semi-trailer
Processing depth 5-15 cm.
The length in the working position is 8000 mm.
Height in working position 2300 mm.
The type of working body is a flat-cut arrow paw
The minimum distance between adjacent working bodies on the frame is 230 mm.
The working width of the paw is 310 mm.
Overlap of paws 80 mm.
Standard equipment 3-row harrow with spring teeth
Optionally equipped plasticrink with step ~100 mm. with a diameter of 255 mm.
Clearance under the frame (from the soles of the paws) 700 mm.
The minimum distance between adjacent working bodies is 690 mm.

CALL, ORDER! In stock KSU-4, KSU-8.4trailers solid cultivators.
DELIVERY IN UKRAINE!
