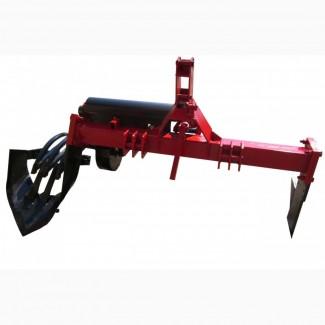

Excavated clamp with shaker, Poltava region.

The digging clamp with the SVS-1 shaker is designed for digging up fruit and berry seedlings in nurseries, forest nurseries to a depth of up to 500 mm.
The plow is aggregated with tractors of a typical traction class of 1.4 t and above. Assembled with MTZ 82, MTZ 890/892, MTZ-1221, T-150 tractors.
The plow can work in all zones.
It is allowed to useplow on areas with a slope of up to 15 °.
The method of aggregation is attached to the rear linkage mechanism.
Control of the hydraulics of the attachment - drive from the PTOtractor 540 rpm.
Width of capture row 1 - 520 mm.
The side knife is made of solid metal with a thickness of 25 mm.(//tractor-service.com)
Working speed km / h up to 10
Excavation depth mm 500 or more.
The number of service personnel. 1
Overall dimensions in working position:
The length of mm is not more than 1000
The width in mm is not more than 2650
The height mm is not more than 1100
The mass of the digging clamp is 460 kg.
