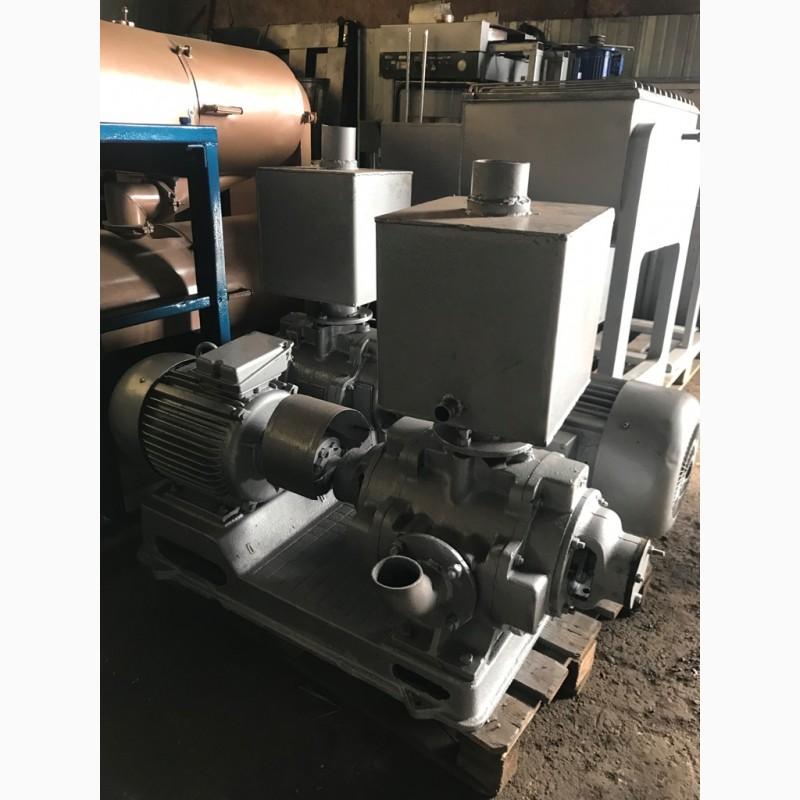

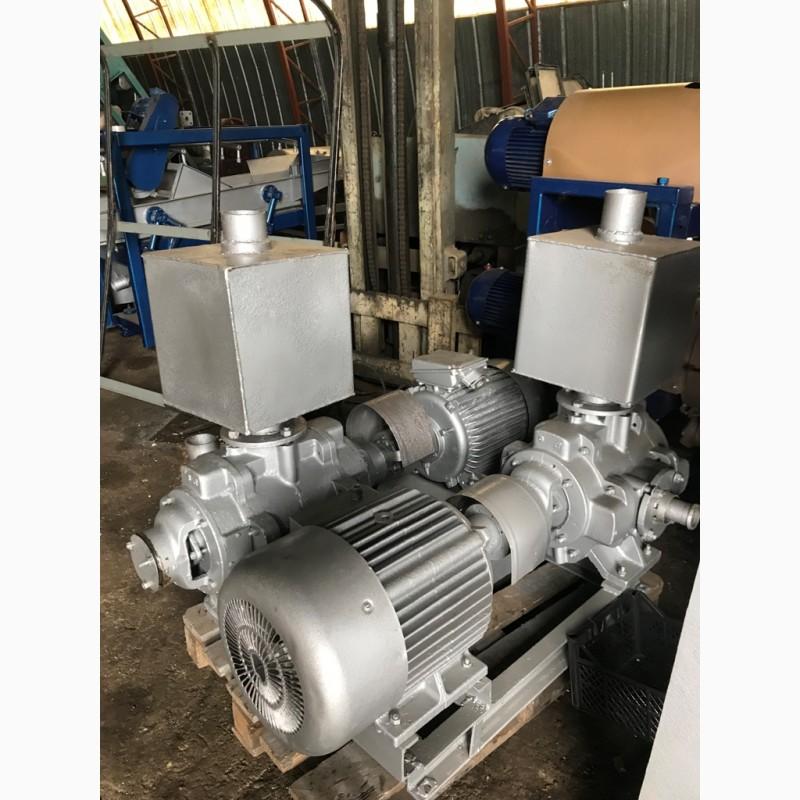

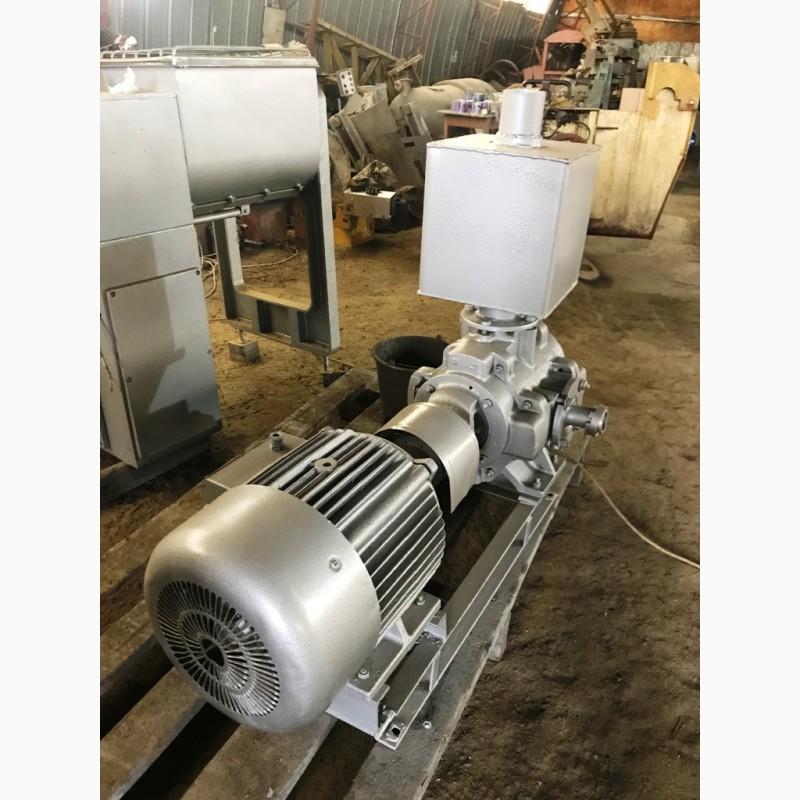

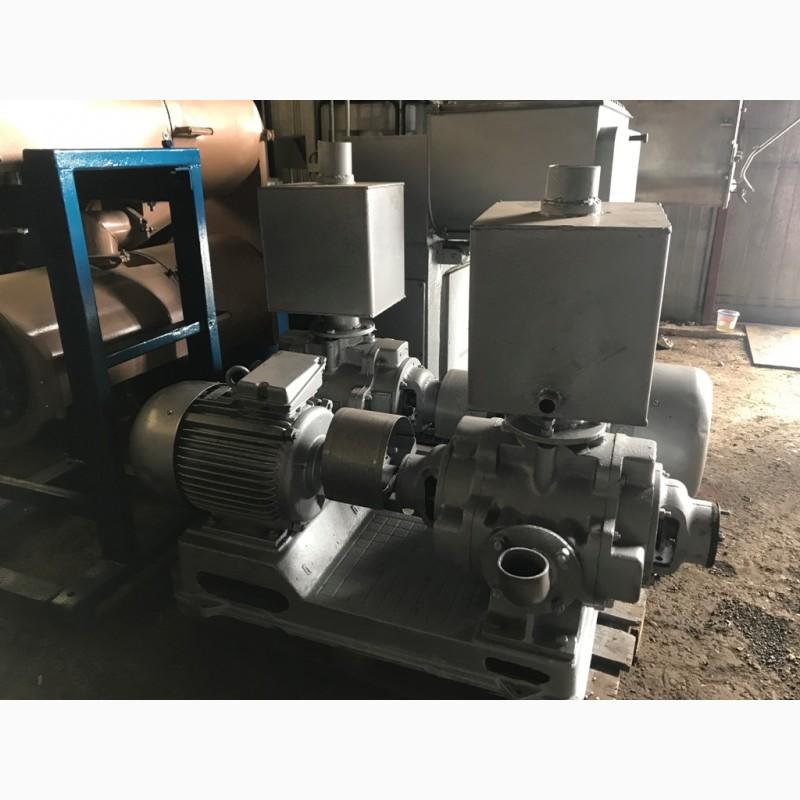

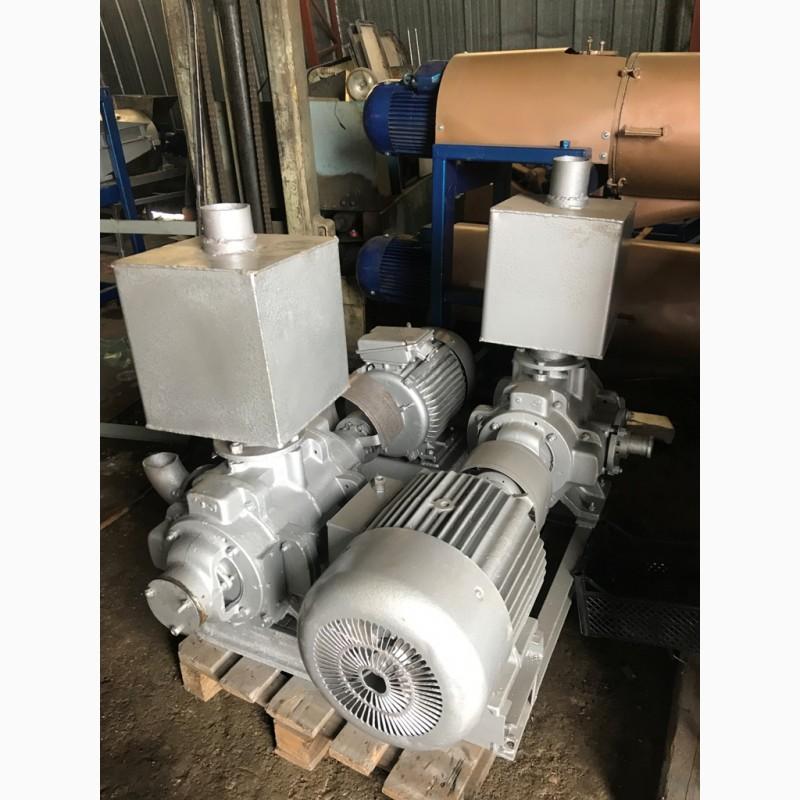

Vacuum pump water ring VVN-1, 6, Ivano-Frankivsk region.

Company MPP BK No. 12 "Orhei" offers vacuum pumps VVN 1-3, VVN 1-6, VVN 1-12 intended for depending on the material of the flow part, for suction (vacuum creation) of air, inert or aggressive gases insoluble in water. The working fluid is water.

Pumps VVN 1-3, VVN 1-6, VVN 1-12 - vacuum, water-ring pumps with shaft sealing. They consist of the following main parts: cover, body, disk, bracket, shaft. When the disc rotates, the water entrained by the paddles under the action of centrifugal forces is thrown to the periphery of the cover, forming a water ring. A rarefied space is created between the hub of the working disk and the inner surface of the water ring, which ensures gas suction through a large sickle-shaped cutout in the pump housing. With further rotation of the disc, the pumped gas is compressed. Through a small sickle-shaped cutout in the body, gas and excess water are thrown into the discharge pipe of the pump.
(//tractor-service.com)
Field of application of VVN 1-3, VVN 1-6, VVN 1-12 pumps: chemical, coal, sugar, paper, mining and metallurgical, leather, food industry, agriculture, construction and medicine.

PRICE NEGOTIABLE !!!
